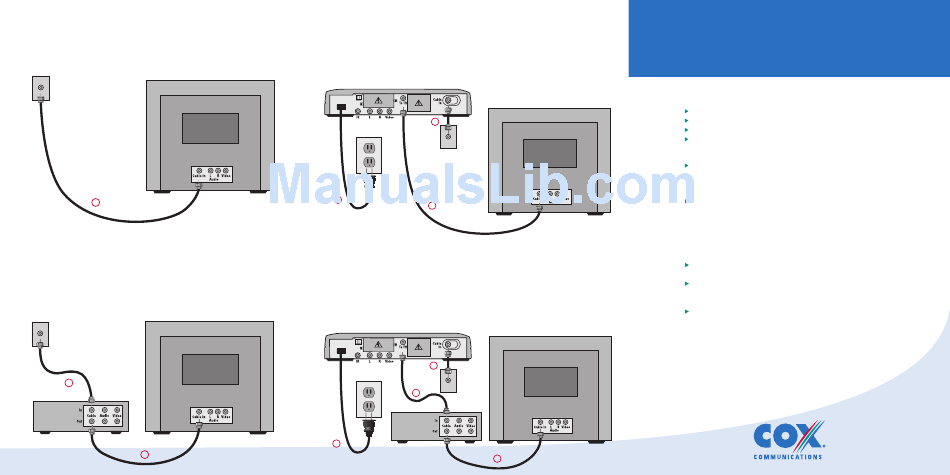

COX Cable Fast Connect Instruction Manual

TV
Step 1:
Connect the coax cable from the
outlet to the CABLE IN on the TV.
Wall
Outlet
Refer to your TV
user manual for auto
programming your
cable TV stations.
1
TV/VCR
Step 1: Step 2:
Connect the coax cable Connect the coax cable
from the outlet to the from the VCR CABLE
CABLE IN on the VCR. OUT to your standard
definition TV CABLE
Wall
Outlet
Refer to your TV
user manual for auto
programming your
cable TV stations.
1
VCR
Optional
2
TV/Cable Converter Box
Step 1:
Connect the coax cable from
the outlet to the CABLE IN
on the converter box.
Standard
Definition TV
Cable Converter Box
Power
Outlet
3
TV/VCR/Cable Converter Box
Step 1: Step 2:
Connect the coax
Connect the coax
cable from the output
cable from the outlet
TO TV
to the CABLE IN on
IN. box to your VCR
the converter box.
CABLE/ANTENNA
Standard
IN.
Definition TV
Cable Converter Box
Power
Outlet
4
Step 3:
Step 2:
Connect the power cord to
Connect the coax cable
the power outlet.
from the output TO TV on
the cable box to your standard
definition TV CABLE/
ANTENNA IN.
Standard
Definition TV
1
Wall
Outlet
2
Step 3:
Step 4:
Connect the coax Connect the power
cord to the power
cable from the VCR
on the cable outlet.
CABLE/ANTENNA
OUT to your standard
definition TV CABLE/
ANTENNA IN.
Standard
Definition TV
1
Wall
Outlet
2
VCR
Optional
3
520-2113 REV 9.31.04
Cox Cable Fast Connect
Instruction Guide
Step 1: Verify That You Have Received The Following Items
In Your Kit.
Converter box and cable (if needed).
Remote with instructions and batteries.
Remote control Operating Manual.
A Guide To Cox Cable.
Step 2: Verify The Correct Install Diagram.
Refer to the hook-up diagrams above and match the correct diagram for home
video set-up.
Step 3: Location Of The Converter Box.
Choose a spot with adequate ventilation. The converter box generates heat
much like a personal computer and needs proper ventilation. Please leave
approximately 4 inches of space between the top of the converter and other
electronic equipment or an entertainment center.
Never place other equipment on top of converter box.
Step 4: Using The Remote Control.
Place the batteries that are provided inside the remote control through the access panel
on the back of the remote using diagram inside of remote following + and - signs.
Use the enclosed Remote Control Operating Manual to program the features of
your remote to run your TV and your VCR. Codes are provided in the Remote
Operating Manual to control these functions.
Tip: The remote is already configured to operate your converter and will not
need to be programmed. (See Remote Control diagram on reverse side.)
Questions?
www.cox.com/HR
222-2222 224-2222
Southside
The COX Cable Kit was designed to give customers more flexibility and less cost in hooking up
their own cable services. Sometimes customers are unable to complete the self-installation. In
those cases, we are happy to send a technician to your home to assist you. The charge for this
home visit is $31.50.
Peninsula
