User's manual
IKBT12 Bluetooth Stereo
Music Audio Receiver
Advertisement
Table of Contents
Summary of Contents for ikross IKBT12
- Page 1 User’s manual IKBT12 Bluetooth Stereo Music Audio Receiver Before use…………………………………………………………………………………1 1. About IKBT12…………………….…………………………….……………………….1 2. System requirements…………………………………….…………………………1 3. Overview of IKBT12…………..…………………………….………………………...1 Getting started………………………………………………..………………………2 1. Charging the receiver…………………………………………………………………..2 2. Turning on/off the receiver………………………………………….…………………...2 3. Pairing with Bluetooth devices……………………………..……..………………….…3 4. Music playback……………………………………………..……………………….5 5. LED indicator………………………….……………………..…………………………...5 Care and maintenance………………….………………………..………………………6...

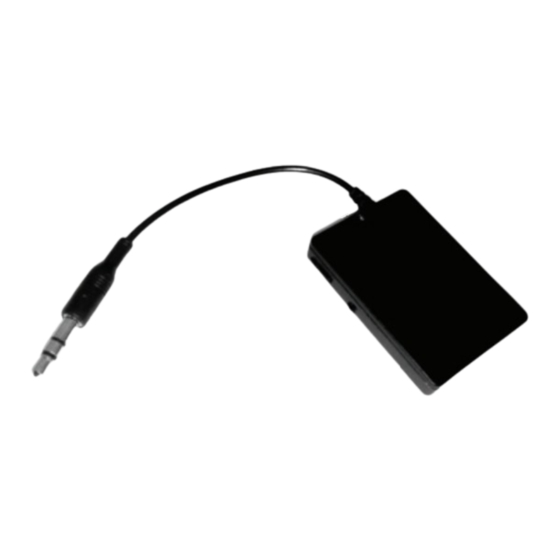

- Page 2 Before use 1. About IKBT12 IKBT12 is a stereo Bluetooth receiver. You can use an common audio device with 3.5mm audio in jack for playing back any stereo Bluetooth-enabled device’s music after plugging in IKBT12. The product comes with a built-in rechargeable battery, it can be usded for about 12 hours after being charged fully.
- Page 3 Getting started 1. Charging the receiver IKBT12 comes with a built-in rechargeable battery, prior to using it, it is recommended to charge the battery fully for the first time. When the receiver is low power, red LED flashes once and the receiver emits three tones every 20 seconds.
- Page 4 6～7 seconds until LED alternately flashes red and blue alternately Remark: The pairing mode will last 2 minutes, the receiver IKBT12 will switch to standby mode automatically if no devices can be connected within 2 minutes. Pairing with Bluetooth mobile phone Ensure your mobile phone supports A2DP profile.
- Page 5 Every time the receiver is turned on, it will automatically connect to last connected device. If you want to pair it with other devices, please turn off the Bluetooth function of last connected devices first and pair the receiver with the new device according to steps 1～6 mentioned above.
-
Page 6: Music Playback
4. Music playback Connect IKBT12 to an speaker and a Bluetooth music device at the same time, now you can enjoy music wirelessly. Function Status of IKBT12 Operation Pause Playing music Short press MFB button once Play Pausing Short press MFB button once... - Page 7 In case the receiver doesn’t function properly, send it to the store you bought it. The staff will help you to solve the problem. FAQs 1. What to do when IKBT12 can’t be turned on? Please charge the IKBT12. 2. What to do when BTR001 can’t pair and connect to a Bluetooth device? a) Make sure the Bluetooth device is placed within 5 meters;...
- Page 8 Specifications Bluetooth version Bluetooth V2.1 Bluetooth profiles A2DP and AVRCP Bluetooth frequency range 2.402GHz-2.480GHz Operating distance 10 meters, Class II Charging input voltage/current DC 5V 300mA Standby time 230 hours Working time Up to 12 hours Dimensions 45×33×8mm Weight Notes: 1.
