PK-232SC
Operating Manual
Note: This manual covers the features added with the SC version of the PK-232.
The main PK-232 manual describes the modes and features found in the
original PK-232 and PK-232MBX. They are marked with an "*".
The DSP manual supplement describes the DSP board features.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PK-232SC and is the answer not in the manual?

Questions and answers

Related Manuals for Timewave PK-232SC

Summary of Contents for Timewave PK-232SC

  • Page 1 PK-232SC Operating Manual Note: This manual covers the features added with the SC version of the PK-232. The main PK-232 manual describes the modes and features found in the original PK-232 and PK-232MBX. They are marked with an “*”. The DSP manual supplement describes the DSP board features.
  • Page 2 If your A.06118 fails in normal use because of a defect in workmanship or materials within one year of the date of purchase, we will repair or replace (at our option) the equipment at our factory without charge to you. Timewave will pay for the return of the warranty-repaired unit to you.

  • Page 3: Table Of Contents

    Table of Contents Overview ............................4 PK-232SC Block Diagram ......................5 Front Panel ..........................6 Rear Panel ............................ 8 Operation ..........................12 PC USB Connection ........................12 USB device driver........................12 Power............................12 Radio ............................12 PK-232SC Ports .......................... 12 PK-232SC Control ........................

  • Page 4: Overview

    PK-232SC. Use these jacks for rig control of USB-equipped transceivers and for other USB station accessories. A new feature in the PK-232SC is an instant reset switch. A quick flick of the switch when the power is off resets the PK-232SC to factory default condition.

  • Page 5: Pk-232Sc Block Diagram

    PK-232SC Block Diagram Computer System Block Diagram PK-232SC Multimode Controller Radio XCVR Rig Control I/O Serial data Rig control data Control PTT, PK-232 PTT, CW, Control CW, FSK FSK Output Input UARTx2 PK-232 CPU PK-232 Modem Audio Data Data Audio...

  • Page 6: Front Panel

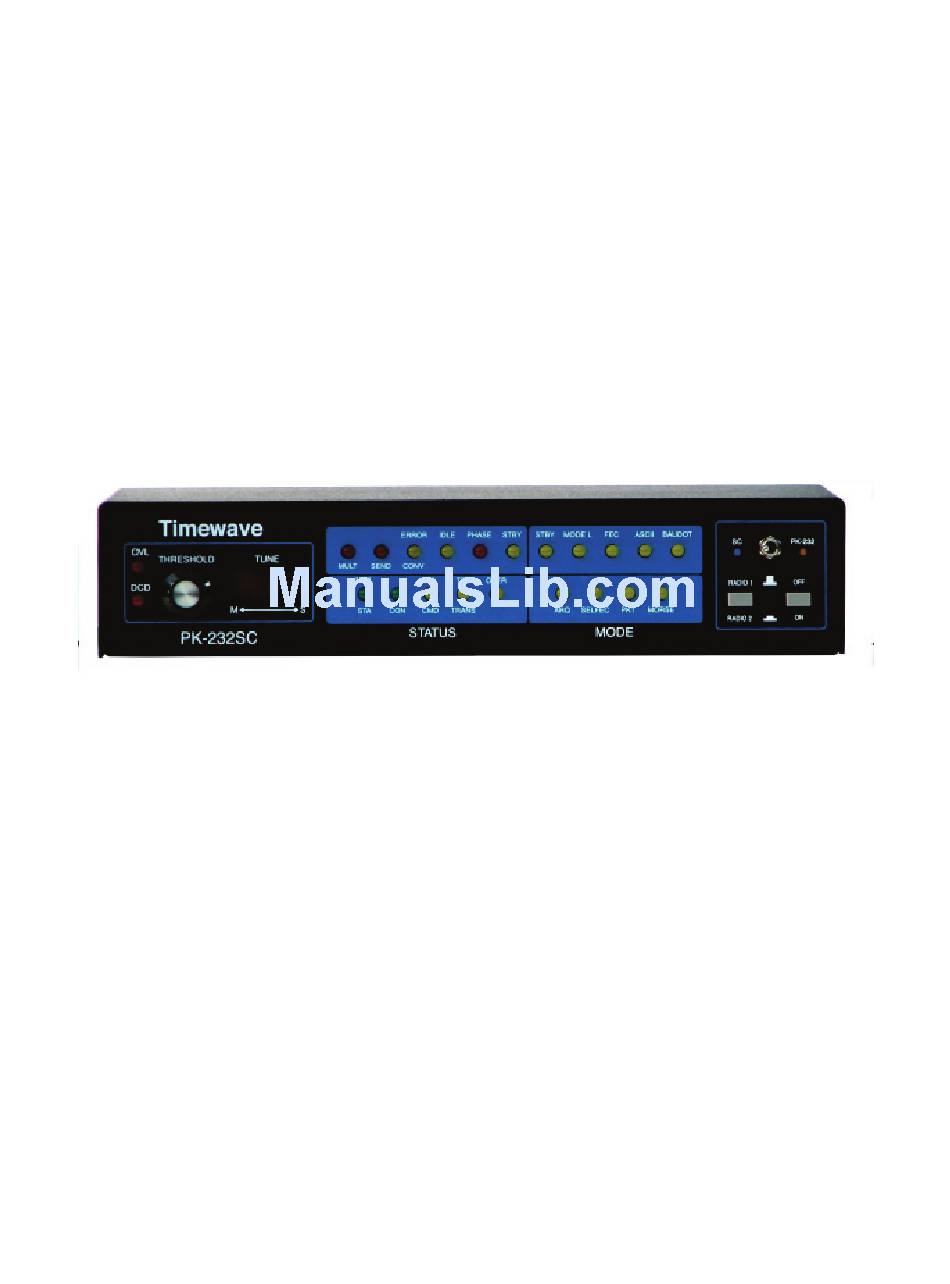

    Front Panel 1. OVL LED 2. DCD LED* 3. THRESHOLD control* 4. TUNE LED bar* M – Mark S – Space 5. STATUS LEDs* 6. MODE LEDs* 7. RADIO 1 / RADIO 2 switch* 8. ON / OFF Power Switch* 9.
  • Page 7 2. Amber PK-232 LED on – The PK-232 mode is on if the switch is set to the right. 3. If both blue and amber LEDs are on at the same time, you have selected the SC mode with software control and have set the panel switch to PK-232 mode.

  • Page 8: Rear Panel

    Rear Panel 22 21 10 11 12 13 14 1) Reset Resets PK-232 to factory default (baudot mode, erases memory) Press once momentarily with power off. 2) Power Power jack for +13.5 VDC @ 750 Ma. (5.5mm x 2.1mm) 3) RX-IN Audio 1* 3.5 mm mono phone jack Tip –...
  • Page 9 6) RX-IN Audio 2* 3.5 mm mono phone jack Tip – receive audio from radio Ring & Sleeve – Ground 7) Scope & FSK* Five pin DIN connector 1 – FSK Normal output 2 – Ground 3 –Mark signal to oscilloscope 4 –...
  • Page 10 12) Logic Level Rig Control – See Note 1! 8 pin miniDIN female 1 – RXD - logic level data input from radio 2 – TXD - logic level data output to radio 3 – RTS – logic level data control output to radio 4 –...
  • Page 11 5 Volts DC only @ 2A for powered USB hub operation only Required only for USB devices that draw greater than 100 mA. To use this jack, you must change a jumper inside the PK-232SC. 22) Aux in Level Adjusts only sound card auxiliary input level...

  • Page 12: Operation

    IN position. This connection is the same for all models of the PK-232. Radio Connect your radio data audio input, data audio output and PTT line to the PK-232SC Radio 1 or Radio 2 ports. This connection is the same for all models of the PK-232. If you are upgrading your PK-232MBX to a PK-232SC, you can use your existing cable if you do not change radios.

  • Page 13: Pk-232Sc Control

    USB Audio Sound Card The USB audio sound card built into the PK-232SC appears as a separate audio device on your PC. It is called “USB Audio Codec”. No software driver is necessary when you use the USB Audio Codec. You must select the USB Audio Codec when you configure your terminal program to operate sound card modes such as PSK-31.

  • Page 14: Sc Board Jumper Settings

    USB Jack Power The two type B USB jacks on the PK-232SC default power output is 5 Volts @ 100 mA. This power is derived from the computer or powered USB hub upstream from the PK-232SC. If the jumper on JP5 is connected between pins 2 &3 (factory default), the external power supply will not be connected.

  • Page 15: Data Sheet

    Operating Center software, changing to PSK31 from Pactor or MT63 is a simple menu click. The single USB cable from your PC also moves your logic level Kenwood RX/TX/RTS/CTS, Yaesu CAT, and Icom CIV, RS-232 and USB Rig Control interface to the back panel of your PK-232SC.
  • Page 16 All the Proven Modes + All the Sound Card Modes The PK-232SC supports all the new sound card modes in addition to all of the existing PK-232 modes - Pactor, VHF/HF Packet, AMTOR/SITOR, Baudot, ASCII, Morse, HF Weather FAX, TDM, and NAVTEX.
  • Page 17 For USB 2512 default, remove all shunts VDDA33 XTAL1/CLKIN VDDA33 VDDA33 VDDPLLREF/VDDA33 USB2514-CLKIN-24MHz 0.1uF 0.1uF 0.1uF 0.1uF VDDCR18 XTAL2 0.1uF 1.0uF/10V VDDA18PLL VSS(FLAG) VDDPLL18 0.1uF 1.0uF/10V Title PK-232SC USB Hub Size Document Number R e v <Doc> 12-4.1 Date: W ednesday, September 14, 2011 Sheet...
  • Page 18 100uF 1.0uF/10V .01uF GND-USB To isolated +5Vi digital circuits including 74xx ICs +5Vi Header 2 S1GB R150 0 LM7805CT To PK-232sc +13.5 VDC BEAD FERRITE/SM 10uF 0.1uF 100uF 0.1uF 0.1uF To isolated +5VA Analog circuits +2.5VDC audio reference U10 LP38692MP-2.5...
  • Page 19 R27 470 JP9 HEADER 3 +5Vi U19-5 Connect 2N3904 for PK-232 only! R31 470 U19-7 Do not use for PK-232MBX and R30 560 U19-6 all Timewave models MMBT2222A JP10 HEADER 3 DTRB/ U20-9,10 RXD/ TXDB U20-4,5 TXDB U20-4,5 RTSB U20-12,13 RTSB U20-12,13 +3.3Vu...
  • Page 20 +5Vi C119 C125 R152 R151 0.1uF Open C126 0.1uF 0.1uF C124 0.1uF C120 R146 R147 R148 R149 EN_L 0.1uF DTR-232 CTS-232 TX-232 FORCEON RTS-232 FORCEOFF_L RX-232 INVALID_L TX-232 DIN1 DOUT1 RTS-232 DIN2 DOUT2 DB9M-RA CTS-232 C114 C115 C116 C117 ROUT2 RIN2 RX-232 ROUT1...
  • Page 21 +3.3VA +3.3V C112 74LVC1G08/SOT +3.3V 47pF +3.3VA C65 10uF 100uF Aux Audio Out R Aux Audio Out R 1.5k 100uF Aux Audio In R BPAS C127 VBUS2-SW U21 PCM2901E R86 22 C128 HEADER 3 PCM2901-D+ SSPND To Connector 4.7uF/6.3V 4.7k Board PCM2901-D- R88 22...
  • Page 22 C12 0.1uF HEADER 3 R7 22 AudioR-Out R8 22 AudioR-IN Audio Monitor GND-PCM2901 Tip - Output Ring - Input 3.5mm open open Title PK-232SC Connector PCB Size Document Number R e v <Doc> 12-1 Date: Tuesday, November 15, 2011 Sheet...
  • Page 23 To JP1 on PK-232 main board SW DPDT - Momentary 2 Pin IDC Wire to +5BB - D12 or D14 To JP7-1 PK-232SC board Reset Switch Assembly All wires #24 vinyl covered Assembly for PK-232SC board To reset PK-232 to factory default,...
  • Page 24 Yellow Blue Sound Card Header 4x1_2 Sound Card SW SPDT Title SC/TNC LED-Switch board Size Document Number R e v Assembly AP.40734 MPCB.40733 <RevCode> Date: Monday, June 06, 2011 Sheet...
