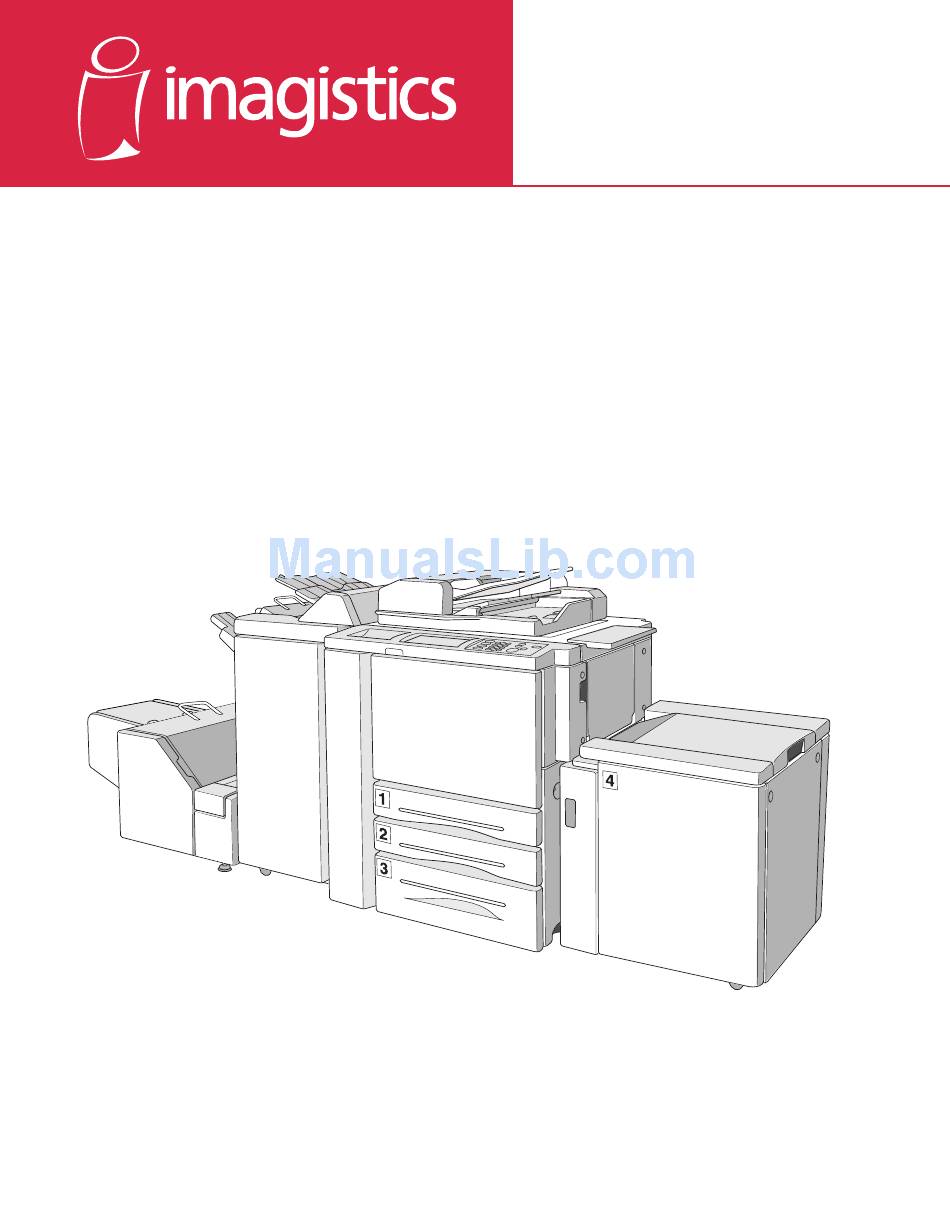

- Page 1 DL750 Punch Kit User's Manual For use with Imagistics and Pitney Bowes DL750 copier/printers.
-
Page 3: Table Of Contents
This maunal explains the Punch Kit 9756. Refer to the Copier Operator’s Manual for use and functions of the Copier. Contents 1. Machine Configuration ............2 2. Requirements for Safe Use ........... 5 3. Punching Mode ..............6 4. Help Mode ................8 5. -
Page 4: Machine Configuration
1. Machine Configuration External Machine LCD touch screen Control panel Work table 9846/9844 Finisher (option) Multi-sheet bypass tray LCC top door Power switch Left side cover (not shown) Front door Left door Tray 1 Tray 2 Tray 3 Tray 4: Large Right side door (not shown) capacity cassette LCC left... - Page 5 External Machine Call-outs 1 EDH (Electronic Document Handler) automatically feeds multiple originals one at a time to the platen glass for copying. 2 Work table provides a convenient workspace for documents both before and after copying. 3 Multi-sheet bypass tray used for small quantity copying onto plain paper or special paper. 4 LCC top door opens to allow loading paper.
- Page 6 Punch Kit Details Upper lever: opens upward to allow removal of mishandled paper. Punch Kit knob: Right lever: can be turned to ease opens upward to allow removal of mishandled removal of mishandled paper. paper. Left lever: opens downward to allow removal of Trash basket: mishandled paper.
-
Page 7: Requirements For Safe Use
(2829) (1845) 141.7 (3599) DL750 + 9844 + 9756 + 9849 + 9869 NOTES: Dimensions are in inches with millimeters included in parentheses. The Finisher main tray of the 9846/9844 Finisher gradually goes down while printed material is output. DO NOT allow any object to interfere with the operation of the tray on the left side of the finisher, as any interference may cause damage to the finisher. -
Page 8: Punching Mode
3. Punching Mode The Punching mode is available only when the 9756 Punch Kit option is installed on the 9846/9844 finisher. When the Punching mode is selected in combination with any of the Primary (Main) tray output modes, each copied sheet is punched and output to the Primary tray according to the selected output mode. - Page 9 Punch Position Selection Screen 1 Touch on the Basic Screen to display the Finisher Mode Selection OUTPUT APPLI. Screen. 2 Touch to display the Punch Position Selection Screen. PUNCH 3 Touch the desired punch position key on the screen to highlight it. 4 Touch on the Punch Position Selection Screen to restore the Finisher Mode Selection Screen.
-
Page 10: Help Mode
4. Help Mode Use the [Help] key to access information about the current screen mode and to learn about setting procedures. The [Help] key can be pressed from any screen except Program Memory and Key Operator Screens. The Help Screen also includes the Help menu icon in the center. When the HELP MENU key is touched, the Help Menu Screen displays a list of all of the copier functions. - Page 11 1 While in any screen, press [Help] to display the Help Screen. 2 Touch TONER SUPPLY PAPER SUPPLY STAPLE SUPPLY TRIMMER PUNCH , or the Service call telephone number and Fax number to display FOR ASSISTANCE specific Help information. 3 For help on operations, touch in the center area of the screen.
-
Page 12: Finisher Adjustment [17] Of Key Operator Mode
5. Finisher Adjustment [17] of Key Operator Mode Use this mode to make fine adjustments to each function of the finisher. Finisher Adjustment Menu Screen Key Operator Mode Screen 2 Stapling&Folding Stopper Position Adjustment Screen Folding Stopper Position Adjustment Screen Punch Adjustment Mode Screen Trimming Stopper Position Adjustment Screen Punch Horizontal Position Adjustment Screen... - Page 13 5 Make fine adjustment on the screen. To go on or back to another adjustment screen, touch . Touching restores the Finisher NEXT PREVIOUS PREVIOUS SCREEN Adjustment Menu Screen. 6 Touch to restore the Key Operator Mode Screen. If other key PREVIOUS SCREEN operator setting changes are required, select the desired menu item, from [1] to [18].
-
Page 14: Empty Trash Basket Of Punch Kit 9756
6. Empty Trash Basket of Punch Kit 9756 When the trash basket becomes full, “Trash basket of Punch Kit is full / Please empty trash basket” message displays on the touch screen. 1 Open the Finisher/Punch Kit front door. Withdraw the trash basket. 2 Empty the trash basket. -
Page 15: Clearing Mishandled Paper
7. Clearing Mishandled Paper CAUTION When removing mishandled paper, be sure to leave no torn paper inside the machine, avoid touching the drum or scratching it in any way, and keep all metal and magnetic objects, e.g., watches, jewelry, etc. away from the drum area. When a paper misfeed occurs, the copier stops making copies and mishandled paper codes display on the screen to indicate misfeed area(s). -
Page 16: Specifications
8. Specifications Function : Punching file holes in copies Number of punch holes : 3 : 0.315" ± 0.020" (8.0 mm ± 0.5 mm) Hole diameter : 4.252" ± 0.020" (108 mm ± 0.5 mm) Hole pitch Paper Size : 11"x17", 8.5"x11" Paper Weight : 16 ~ 24 lb Punching unit specified in Thick 1 ;... - Page 17 Notes:...
- Page 18 Notes:...
- Page 19 Supplies The supplies listed below have all been designed especially for Imagistics copiers to ensure maximum product performance and quality. Substituting other supplies may result in inferior copy quality and machine malfunction. Ordering supplies is quick and easy. To order Supplies: Call the Imagistics Copier/Printer Supply Line at 1-800-462-6797...
- Page 20 Imagistics International Inc. 100 Oakview Drive Trumbull, CT 06611 ©Imagistics International Inc. 2002 Printed in USA Part Number DL7500200 The information contained in this manual is subject to change without notice to incorporate improvements made to the products listed in this www.imagistics.com...
