Summation Technology SummitBLU Operation Manual

Blu-ray/dvd/cd multi-drive disc duplicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

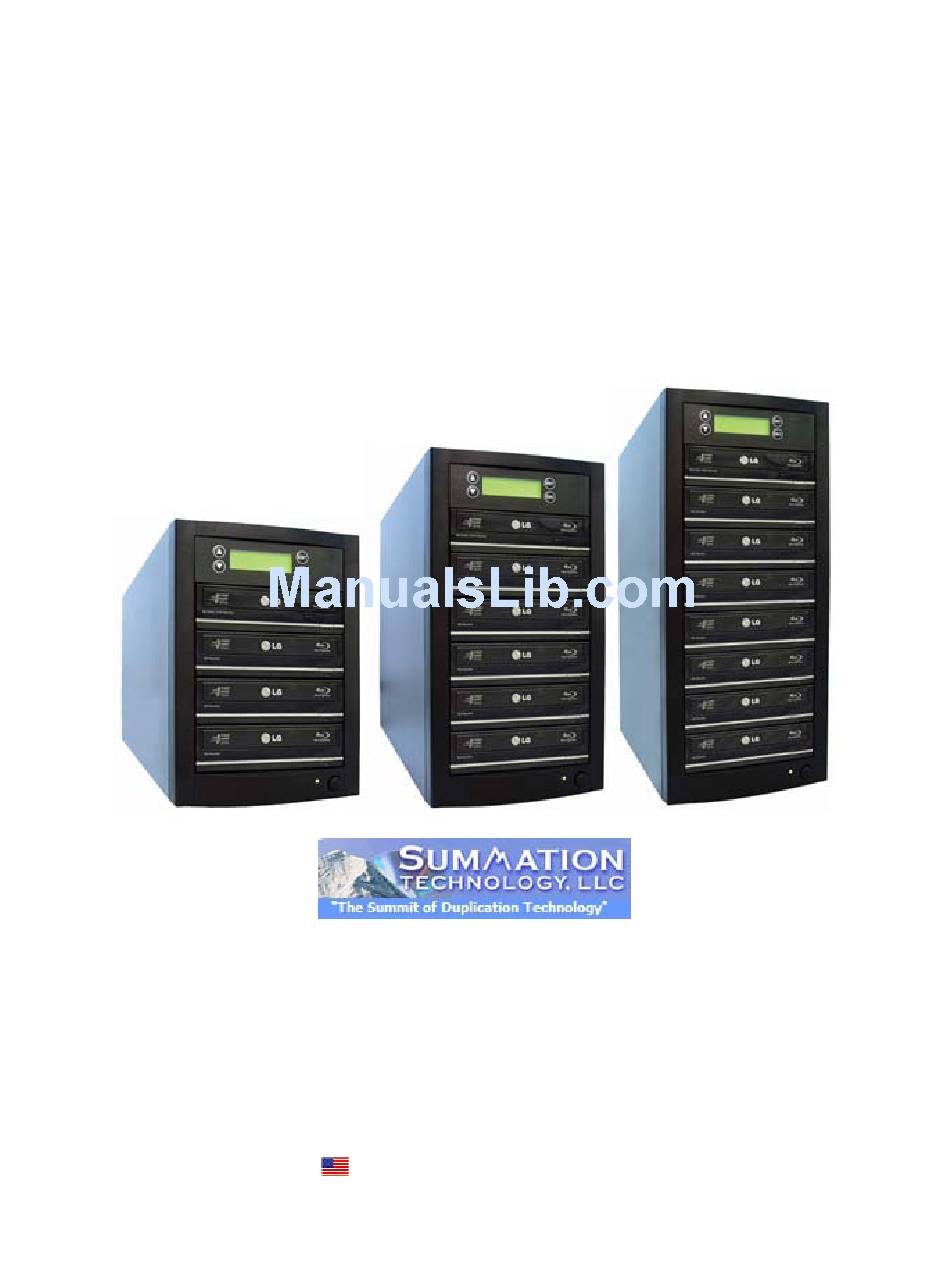

SummitBLU
BLU-RAY/DVD/CD Multi-Drive
Disc Duplicator

Operation Guide

(Rev 8.4.11)
Summation Technology, LLC
1155 Kelly Johnson Blvd.
Suite 130
Colorado Springs, Colorado 80920
Toll Free: 1-888-340-3738
Phone: 719-590-6063
Fax: 719-590-6057
Email: info@summationtechnology.com
We Are a U.S. Based Company

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SummitBLU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Summation Technology SummitBLU

  • Page 1: Operation Guide

    SummitBLU BLU-RAY/DVD/CD Multi-Drive Disc Duplicator Operation Guide (Rev 8.4.11) Summation Technology, LLC 1155 Kelly Johnson Blvd. Suite 130 Colorado Springs, Colorado 80920 Toll Free: 1-888-340-3738 Phone: 719-590-6063 Fax: 719-590-6057 Email: info@summationtechnology.com We Are a U.S. Based Company...

  • Page 2: Table Of Contents

    Summation Technology Table of Contents Chapter 1 Quick Start Guide….…………………..3 Chapter 2 Product Introduction…………………..4 Chapter 3 Safety Information & Set Up………..5 Chapter 4 System Overview...…………………….6 Chapter 5 Menu Overview…………………………7 Chapter 6 Operation Guide………………...…..10 Copy………………….………...…………………………10 Test………………………………………………………..11 Compare………………………………………………….11 Copy + Compare……………………………………… 12 Set Burn Speed………………………………………….12...

  • Page 3: Quick Start Guide

    Summation Technology Chapter 1. Quick Start Guide Step 1: Plug in power cord to back of the Step 2: Turn on power button and wait for unit. LCD to read “1. Copy”. Step 3: Eject reader tray (top drive) and insert source disc.

  • Page 4: Product Introduction

    Should you encounter any difficulty, please refer to the "Troubleshooting" section or contact Technical Support for assistance. We strongly suggest you locate your SummitBLU in a dust free environment. Dirty discs may cause duplication rejects or even total failure. Do not place unnecessary items on the unit.

  • Page 5: Safety Information & Set Up

    Summation Technology Chapter 3. Safety Information and Set up Please be aware of the following installation and operation precautions. Read these instructions - All the safety and operating Do not defeat the safety purpose of the grounding-type instructions should be read before use of this system.

  • Page 6: System Overview

    Summation Technology Chapter 4. System Overview LCD panel & Control Buttons Reader (Source) Tray Writer (Target) Trays Power Button (On and Off) Control Buttons There are 4 control buttons: , , ENT, UP; Backward; Use this button to navigate backward in the menu.

  • Page 7: Menu Overview

    Summation Technology Chapter 5. Menu Overview Function Table Function Sub-function Description 1. Copy To copy disc to disc 2. Test To simulate copy process 3. Compare To bit by bit compare between source disc and copied disc 4. Copy & Compare To copy first and compare the copied discs later.
  • Page 8 Summation Technology Allow the system to do the Copy, Test, Compare and Copy 1. Auto Start Time + Compare functions automatically 1. Basic 2. Display Mode 2. Show Speed 3. Show Timer 3. Button Beep 1. Eject All To eject all trays with disc inside once the Discs system is booted up.
  • Page 9 Summation Technology 1. Select Image To select image file from HDD as your source for copy. 2. Disc => Image To load your source disc to the built-in HDD. 3. Set Reader Speed 4. Show Image Info To check the disc format and data size of the image file.

  • Page 10: Operation Guide

    Summation Technology Chapter 6. Operation Guide 1. Copy It is important to make sure that your source disc is placed in the right drive. The default source is your top drive. You can check or select your source reader by checking function 6.

  • Page 11: Test

    Summation Technology 2. Test This function will simulate the copy process to ensure error free duplication. During the simulation, nothing will be burned on to the blank discs. 1. Using select 2. Test and press 2. Press to start test 3.

  • Page 12: Copy + Compare

    Summation Technology 4. Copy + Compare This function will perform the copy task first and then execute a comparison automatically when copy process has been finished. Note** In Copy, Test, Compare and Copy+Compare functions If there is no source and target discs are inside the duplicator, there will be nothing displayed on LCD.

  • Page 13: Utility

    Summation Technology 7. Utility 7-1. Information You can check the information of disc, drive and system. By pressing each disc or drive’s information will show on the LCD. 1. Using select 7.Utility, press to enter the sub menu. Then, select 1.Information and press 2.
  • Page 14 Summation Technology 7-2. Erase Disc This function will erase the rewritable discs in WRITER drives. There are two erase modes available:  Quick Erase: It will erase the INDEX of the rewritable disc.  Full Erase: It will erase ALL DATA on the disc Note: This Full Erase process takes longer than Quick Erase.

  • Page 15: Audio Track Edit

    Summation Technology 7-3. PreScan Source This function will scan and detect any bad sectors existing in the source disc, which helps you to ensure the readability of the source disc. 1. Place a source disc into reader. 2. Using select 7. Utility and press to enter the sub menu.
  • Page 16 Summation Technology  Navigate,  to the track number that you would like to select, and then press ENT to confirm your selection. The track will be played through the rear end audio jacks (Optional) after each selection is made. Continue with your selection of tracks from the disc.
  • Page 17 Summation Technology 7-5. Eject All Disc You can eject all discs including source and target discs at the same time by this function. 7-6. Copy Counter This function will record the result of duplication.  Show Count: You can check how many discs copies were successful and/or failed.

  • Page 18: Setup

    Summation Technology 7-8. PRINT LS Label (Optional) This function will let you use the Lightscribe technology to print your own image on discs. This is an optional function which requires special Lightscribe writers. 8. Setup 8-1. Auto Start Time This setting will allow the system to do the Copy, Test, Compare and Copy + Compare functions automatically in a few seconds once the source and blank discs are placed in the tray and detected by the system.
  • Page 19 Summation Technology 8-4. Eject On Start You can make the trays or discs eject once the system is booted up.  Eject All Discs: Eject all trays with disc inside once the system is booted up.  Do Not Eject: Do not eject any tray or disc once the system is booted up.
  • Page 20 Summation Technology Show HDD Image Name: Show capacity: **Note: When you change the source from drive to HDD, the LCD will show the HDD information. How to change your source reader please refer to 6. Select Source , page 12.

  • Page 21: Troubleshooting Guide And Faq

    Troubleshooting Guide There are no end-user serviceable components that can be replaced in the CD/DVD Duplicator. Please contact Summation Technology for warranty repairs and service. No LCD display. Please check if the power cord is connected properly and the utility power is supplied.
  • Page 22 Need Technical Support? Technical support is part of every solution we sell at Summation Technology. Should you need assistance in operation of any equipment or system you have purchased from Summation Technology, please contact us by phone, or send us an e-mail.
