Summary of Contents for Option Audio OAX2000

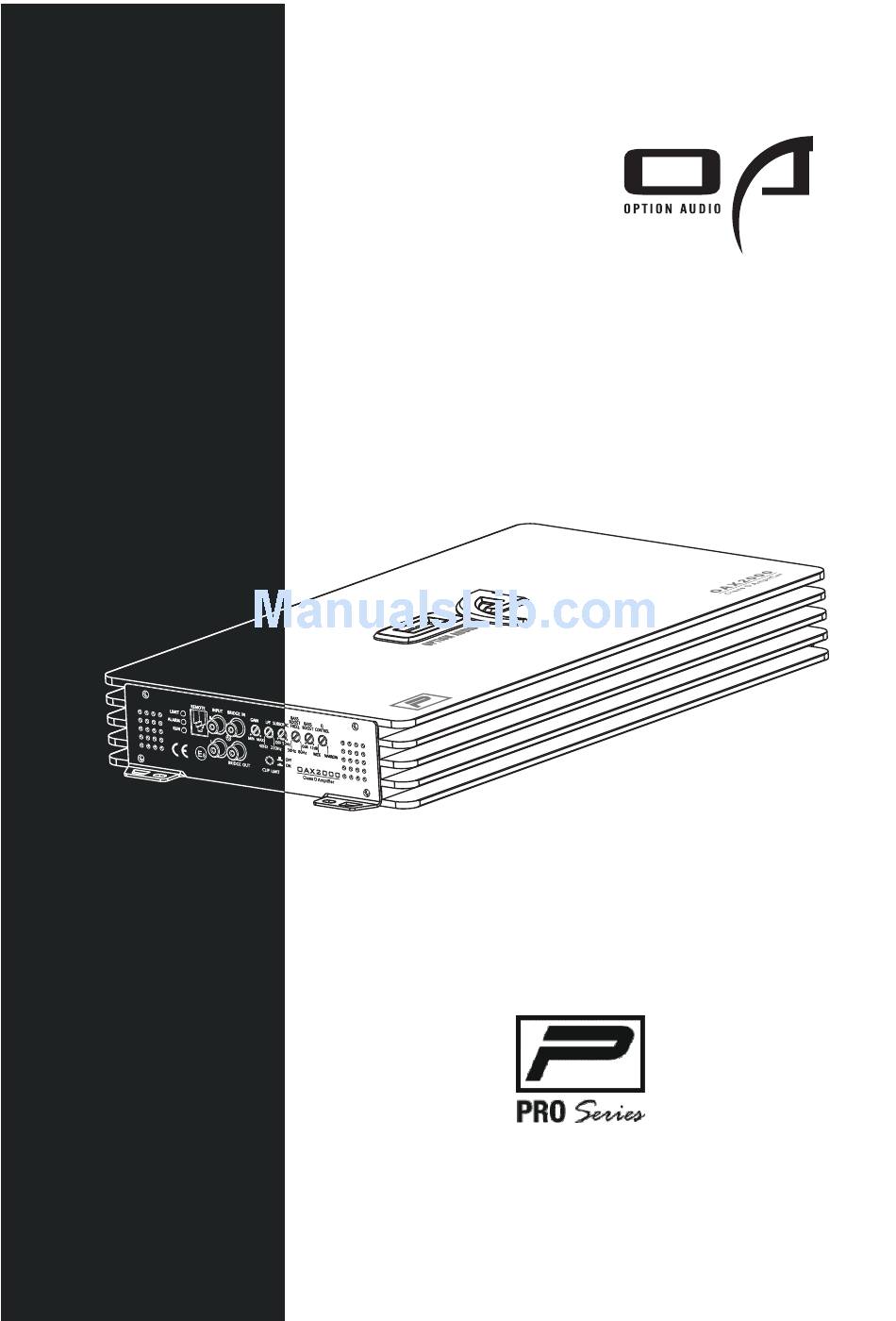

- Page 1 OAX2000 PRO-Series Mono Bass OWNERS MANUAL Car Amplifier PRO-Series Mono Bass Car Amplifier...
- Page 2 The Ultimate Sound Experience Congratulations on purchasing an Option Audio amplifier At Option Audio, we like our music LOUD! Manufactured using the latest in cutting edge technology and high quality components, you can trust your Option Audio amplifier will sustain optimum sound, while not compromising quality.
-
Page 3: Design Features
DESIGN FEATURES Double side FR-4 PCB, high quality SMD components Compact size & Light weight Full MOSFET circuit design Advanced power management function Clip limit function 24dB Low pass filter and subsonic filter adjustable Bassbosst frequency, level and Q factor adjustable Easy bridging, optional remote gain control Overload, thermal, low/high power voltage protection Passed RoHS, E-mark... -
Page 4: Amplifier Functions
OPTION AUDIO AMPLIFIER FUNCTIONS OAX2000 1 Speaker connection Connect your speakers correctly which means plus to plus and minus to minus. Never connect speaker cables with chassis ground directly. It may destroy your amplifier. We recommend AWG 8-10# speaker cable. The two plus units and two minus units are connected inside amplifier. - Page 5 4 GND Chassis ground terminal. The chassis ground cable must be connected very tight on a nearby massive and electric conductive place. Please connect chassis ground near amplifier with same gauge as power cable. Gain Gain control regulates the sensitivity of amplifier to match the signal output voltage of your source unit.
-
Page 6: Pre-Installation
OPTION AUDIO 12 Q-Control This knob adjust the curve shape of bassboost. Turn it to narrow side will make the boosted frequency narrow and sharp, turn it to wide side will extend the boosted frequency range. Combining with bassboost frequency and bassboost level adjusting, youcan achieve a perfect bass response matching your system. - Page 7 Fix the amplifier in an open air area to insure proper heat dissipation. Fix the amplifier in place where can access easily to set input controllers. INPUT WIRING CONFIGURATION OAX2000 Optional Remote Bass Level Control Source Unit 5V Max Signal Input...
- Page 8 OPTION AUDIO OUTPUT WIRING CONFIGURATION One Subwoofer Wiring OAX2000 1 ohm Minimum FUSE Two Subwoofers Wiring OAX2000 FUSE...
- Page 9 BRIDGING OAX2000 2 ohm Minimum...
-
Page 10: Troubleshooting
OPTION AUDIO IMPORTANT When bridging two amplifiers you should use same model amplifiers. Please make sure the negative speaker terminal of two amplifiers are connected by the same gauge cables as the positive terminal being used. Also make this cable as short as possible. -
Page 11: Specification
SPECIFICATION MODEL OAX2000 RMS Power @ 4 OHM 800W RMS Power @ 2OHM 1300W RMS Power @ 1OHM 2000W Input Sensitivity 0.2~5V 40~220Hz Frequency Response 10~180Hz 10~50Hz Subsonic Filter BassBoost Frequency 30~80Hz 0~12dB BassBoost Level BassBoost Q control THD at 4Ohm load 30% Rated Power <0.2%... - Page 12 PRO-Series Mono Bass Car Amplifier WEBSITE : WWW.OPTION AUDIO.COM...
