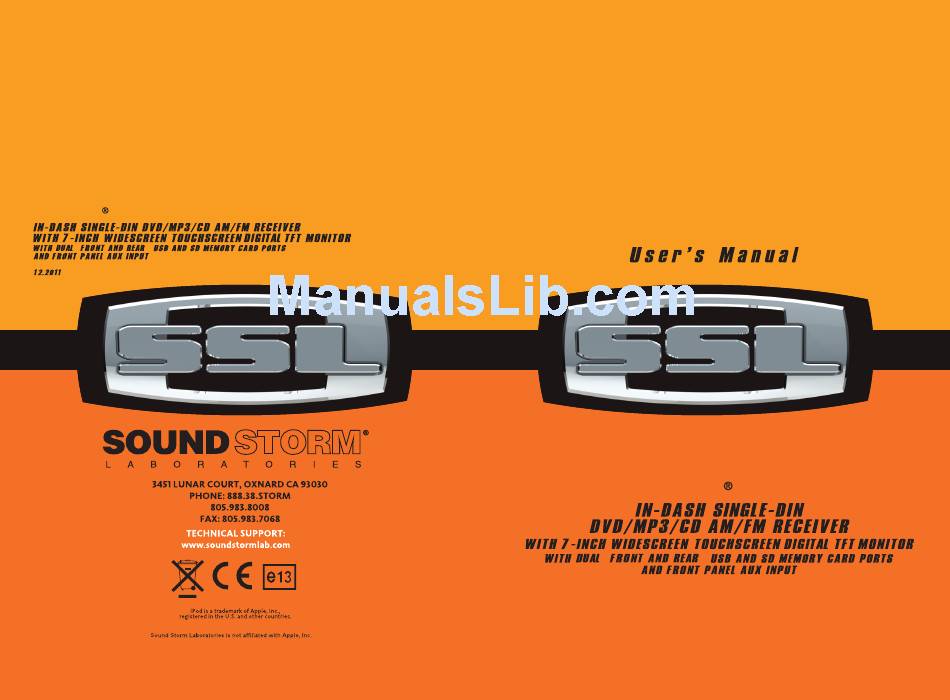

Ssl SD722MBI User Manual

In-dash single-din dvd/mp3/cd am/fm receiver with 7-inch widescreen touchscreen digital tft monitor with dual (front and rear) usb and sd memory card ports and front panel aux input
Hide thumbs
Table of Contents

Advertisement

Quick Links

SD722MBI
Full iPod Control
(
)
SD722MBI
Full iPod Control
(
)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD722MBI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ssl SD722MBI

Summary of Contents for Ssl SD722MBI

  • Page 1 SD722MBI Full iPod Control SD722MBI Full iPod Control...
  • Page 2 INSTRUCTIONS INSTRUCTIONS ACCESSORY CONTENTS Accessory Quantity Panel Introduction Wire Basic Functions Remote Control Function USB Cable Turn the Unit On/Off Enter into the Main Interface Keys 2PCS Play SD card/USB memory device Remote controller Radio Function Operation Disc Function Operation Warranty card 2PCS Play/Eject Disc...

  • Page 3: Panel Arrangement

    INSTRUCTIONS INSTRUCTIONS PANEL ARRANGEMENT SD722MBI OPEN 2/RPT 3/RDM MODE MUTE SD722MBI This unit is with switchable frequency. You can switch from USA frequency to Europe frequency by following the below steps: OPEN Step1. In main menu, press setup icon to enter the setup interface.

  • Page 4: Basic Function

    INSTRUCTIONS INSTRUCTIONS BASIC FUNCTION WIRING DIAGRAM This player is equipped with ISO standard connector, please follow below instruction: Red - ACC ON (+12V) Grey/Grey black - Right front speaker (+/-) ● ● ● White/White black - Left front speaker (+/-) ●...
  • Page 5 INSTRUCTIONS INSTRUCTIONS Dual (front and rear)USB Warning :You can only use either front or rear USB at a time.Never connect both front and rear USB at the same time! This could cause malfunctions.

  • Page 6: Remote Control Function

    INSTRUCTIONS INSTRUCTIONS REMOTE CONTROL FUNCTION Audio setting Click icon on setup interface to access audio setting interface, as shown in right(PIC 1) diagram: You can turn on or turn off the existing functions on audio setting interface. CLASSIC 6.SEEK+ ( )/ SEEK- ( )button In normal playback MP3, USB, SD songs,...
  • Page 7 INSTRUCTIONS INSTRUCTIONS Access setup interface Click [Setup] icon on main interface to access setup interface. General setting Click icon on setup interface to access general setting interface, as shown in below PIC 1 diagram: In general setting interface, you can select to turn on or turn off the existing functions. You can set wallpaper and opening picture you like and check version number of DV/DC, click icon to browse up/down.
  • Page 8 INSTRUCTIONS INSTRUCTIONS iPod function operation Turn on/off Host Connect to iPod first, touch [iPod] icon on main interface to access iPod interface, as When the ignition switch is put in ACC or ON position,Press[ ] button on the front panel shown in below diagram.
  • Page 9 INSTRUCTIONS INSTRUCTIONS Bluetooth Function Operation Radio Function Operation Enter/exit Enter/exit Touch [ RADIO ] icon in the main interface to enter into the radio interface. Touch [ Bluetooth ] icon in the main interface to enter the bluetooth interface. Touch icon to return to main interface, and then touch other function icons so as to exit Touch icon to exit bluetooth interface.
  • Page 10 INSTRUCTIONS INSTRUCTIONS Disc Function Operation Access next menu Touch it to access the next menu interface. Play/eject disc Time setting Play disc Touch this button to access time setting interface. Insert the disc into the disc slot with the printing surface up, system will detect the disc and automatically take it in to read and play.
