GE QuickClean JBS03MWH Dimensions And Installation Information

JBS03M
GE 30" Free-Standing QuickClean
®

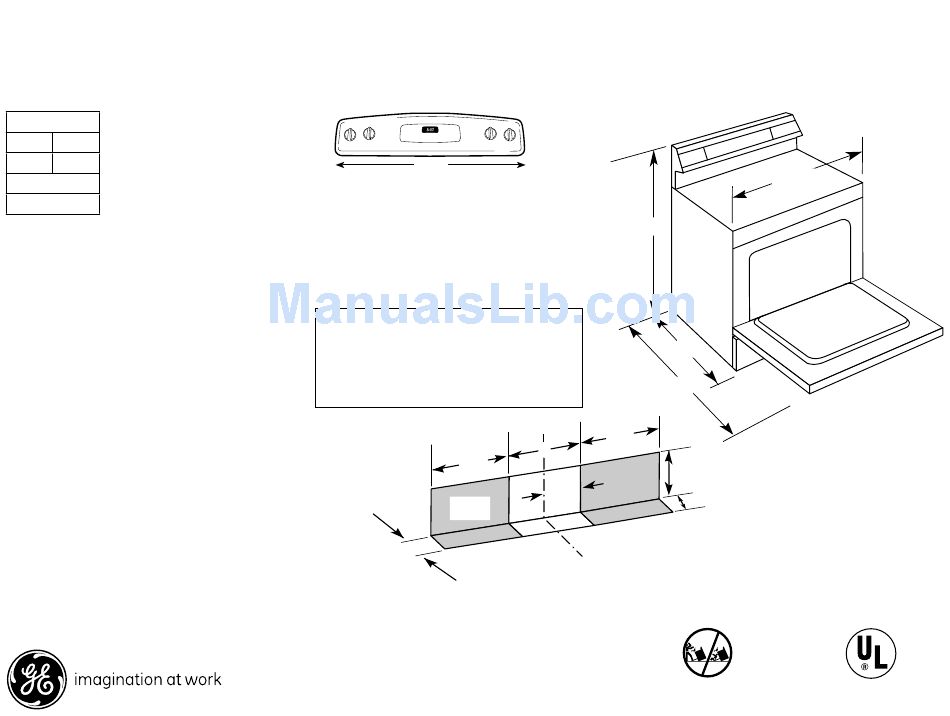

Dimensions and Installation Information (in inches)
KW Rating
240V
11.5
208V 8.6
Breaker Size
40 Amps
†
Note: Check local codes for required breaker size.
†
Effective January 1, 1996, the National Electrical
Code requires that new construction (not existing)
utilize a 4-conductor connection to an electric range.
Receptacle Locations: Locally approved flexible
service cord or conduit must be used because
terminals are not accessible after range installation.
See shaded area in drawing for location of electrical
outlet box. Recommended outlet locations allow
range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for
0" spacing from adjacent walls below countertops.
To reduce possibility of scorching walls, engineering
recommends a minimum of 1-1/2" spacing to allow
for possible extended, high-heat, no-load heating
element operation.
Installation information: Before installing, consult
installation instructions packed with product for
current dimensional data.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
Electric Range
™
All 30" GE gas and electric range backguards
are 30-7/8" wide.*
Note: 30" ranges conform to U.L. requirements
for 0" spacing from adjacent walls below
countertops. To reduce possible scorching of
walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended,
high heat, no-load heating element operation.
* Except these models: JGBS07, JGBS04, JGBP90,
all GE Profile free-standing electric and gas
ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.
or
™
service,
30-7/8"
7
7-1/2
3-1/2
REAR
WALL
2-1/4
CENTER LINE
29-7/8
7
7-1/2
3-1/2
REAR
WALL
2-1/4
29-7/8
46-1/4
26-1/4*
46-1/4
7-1/2
5
2-1/4
*Dimension from wall to front of closed door handle is 27-3/4".
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 10/08
5
2-1/4
CENTER LINE
*Dimension from wall to fron
of closed door handle is 28
Listed by
Underwriters
Laboratories
322035
