Subject
Disassembly of the 13 Inch Roll Heated Flatwork Finisher
Use With Models UD13F063 and UD13F078
The roll heated flatwork finisher is delivered as one
unit that is approximately 108 inches x 26 inches x 44.5
inches. The press must be disassembled in order to fit
through a 36 inch door opening.
IMPORTANT: These instructions must be carried
out by a qualified service person with experience in
steam and electrical connections.
IMPORTANT: Minimum of 2 people required to
complete disassembly.
Tools Needed:
Phillips head screwdriver
Allen wrenches (5 mm, 10 mm)
Drift punch
Flat head screwdriver
CAUTION
If using a forklift to move press, exercise
care that forklift arms are inserted under the
frame and do not contact any operating
mechanism.
WARNING
To avoid serious injury use caution when
separating press. Sections can become
unstable if not supported correctly.
®
RSPC
P.O. Box 990
Ripon, WI 54971-0990

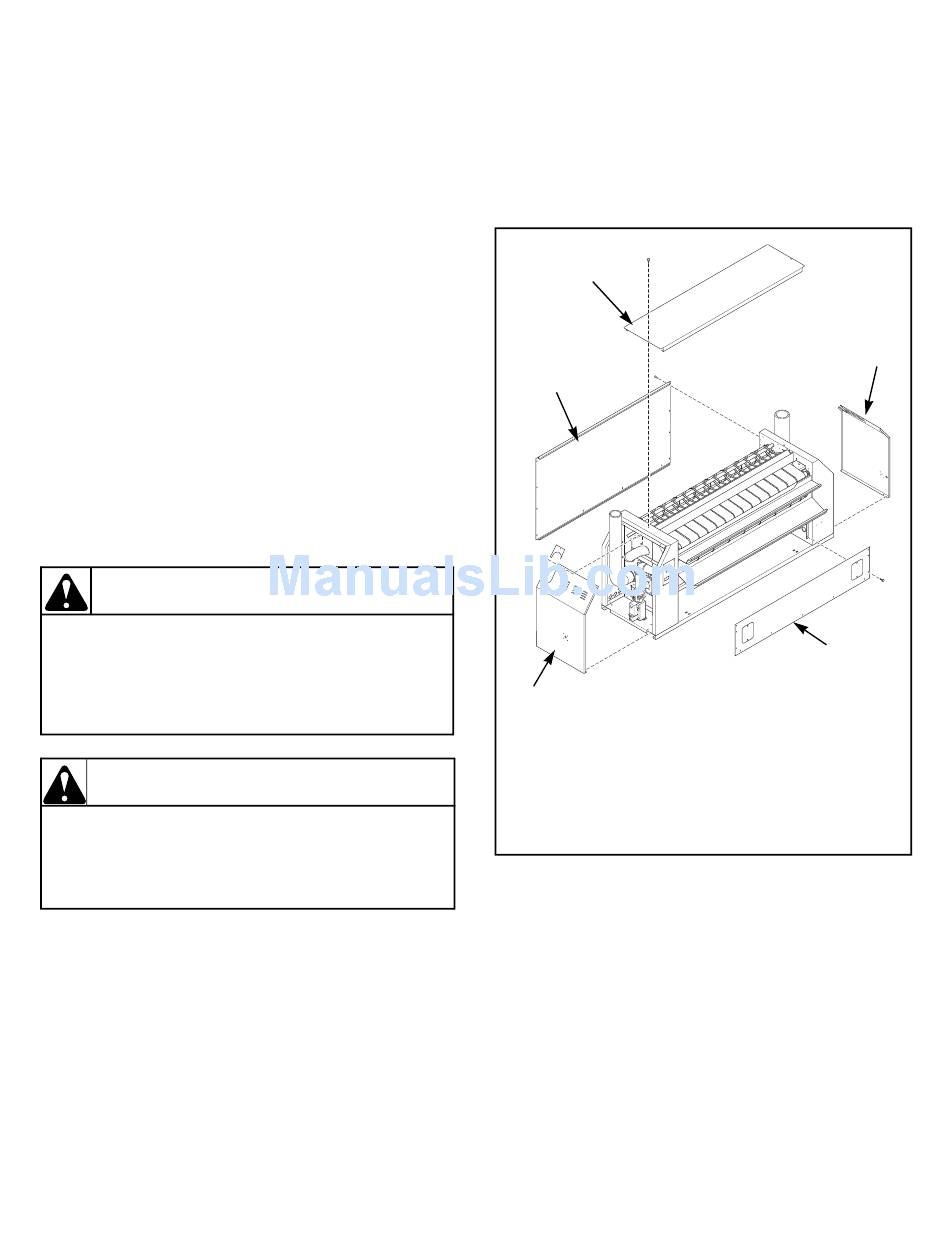

1. Remove front, side, top and rear panels. Refer to
Figure 1.
1
5
4
W431
1
Top
2
Right Side
3
Front
4
Left Side
5
Rear
W432
Page 1 of 5
3
Figure 1
Form No. 1-05-3
March 2005
2
FWF66N
FWF66N
