GE JGBP85SEMSS Datasheet

JGBP85SEM
GE 30"Free-StandingSelf-CleanGasRange
®

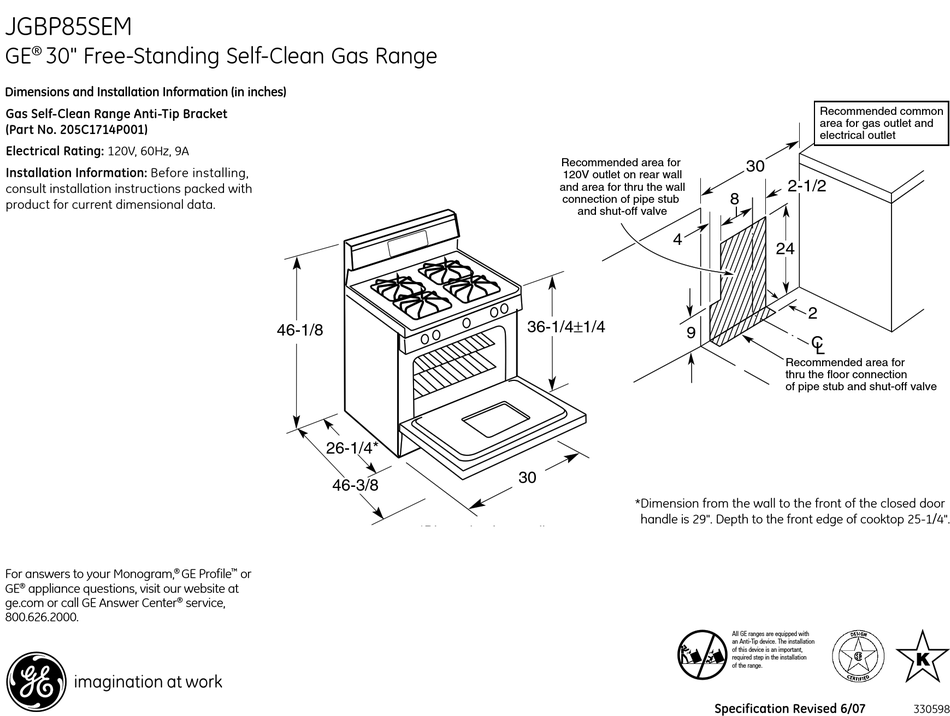

Dimensions and Installation Information (in inches)
Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating:120V,60Hz,9A
Installation Information:Beforeinstalling,
consultinstallationinstructionspackedwith
productforcurrentdimensionaldata.
ForanswerstoyourMonogram, GEProfile
®
GE ® appliancequestions,visitourwebsiteat
ge.comorcallGEAnswerCenter service,
®
800.626.2000.
46-1/8
26-1/4*
46-3/8
Installation Information (Dimensions in inches)
*Dimension from wall
to front of closed
door handle is 29-1/8".
46-1/8
26-1/4*
46-3/8
or
™
36-1/4±1/4

30
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
36-1/4±1/4
30
*Dimension from wall
to front of closed
door handle is 29-1/8".
30
2-1/2
8
4
24
2
9
C L
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
* D imensionfromthewalltothefrontofthecloseddoor
Recommended area for
handleis29".Depthtothefrontedgeofcooktop25-1/4".
120V outlet on rear wall
and area for thru the wall
8
connection of pipe stub
and shut-off valve
4
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
9
Specification Revised 6/07
Recommended common
area for gas outlet and
electrical outlet
Recommended c
area for gas outle
electrical outlet
30
2-1/2
24
2
C L
330598
Recommended area for
thru the floor connection
of pipe stub and shut-of
