Monogram KIT 7212 Assembly Manual

Monogram KIT 7212 Assembly Manual

Ford f-250 super duty pickup

Advertisement

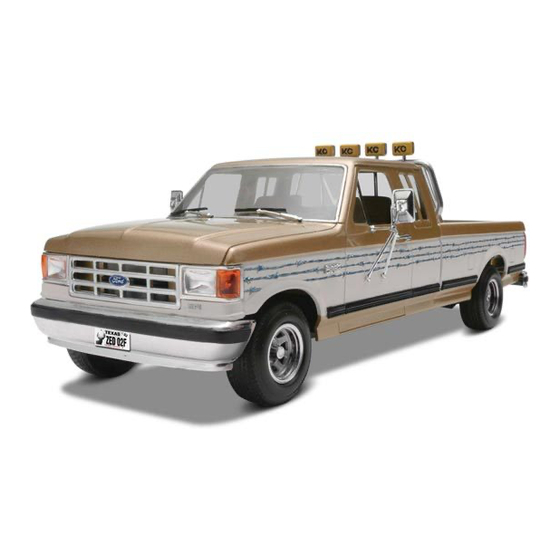

The Ford F-250 pickup is the
"King" of the heavy-duty pick-
ups. It rides on a heavy-duth lad-
der frame chassis with a 155-
inch wheel base, is powered by
a 7.5 liter V-8 engine and has
an electronically controlled auto-
matic
overdrive
transmission.
This is one of the toughest work-
horses on the American road.
Your Revell model features an
opening hood, detailed V-8 engine,
off-road roll bar with lights, extend-
ed super-cab body and pickup bed.
Authentic factory stock and custom
graphic decal are also incuded.
* REPEAT SEVERAL TIMES
* OPTIONAL PARTS
* A REPETER PLUSIEURS FOIS
* PIECES EN OPTION
Read tHIS BeFORe YOU BeGIn
* Study the assembly drawings.
* Each plastic part is identified by a number.
* In the assembly drawings, some parts will be
marked by a star (★) to indicate chrome
plated plastic.
* For better paint and decal adhesion, wash
the plastic parts in a mild detergent solution.
Rinse and let air dry.
* Check the fit of each piece before
cementing in place.
* Use only cement for polystyrene plastic.
* Scrape plating and paint from areas
to be cemented.
* Allow paint to dry thoroughly before
handling parts.
* Any unused parts may be discarded.
decal applIcatIOn InStRUctIOnS
1. Cut desired decal from sheet.
2. Dip decal in water for a few seconds.
3. Place wet decal on paper towel.
4. Wait until decal is movable on paper backing.
5. Place decal in position on model, face up and
slide backing away.
6. Press out air bubbles with a soft damp cloth.
7. Milkiness that may appear is for better decal
adhesion and will dry clear. Wipe away any
excess adhesive.
8. Do not touch decal until fully dry.
9. Allow the decals 48 hours to dry before
applying clear coat.
nOte: decals are compatible with
setting solutions or solvents.
If you have any questions or comments, call our hotline at:
Revell Inc Consumer Service Department, 1850 Howard Street Unit A, Elk Grove Village, Illinois 60007
Be sure to include the plan number (85721200200), part number, description, your return address and phone number.
KIT 7212
FORd F-250 SUpeR dUtY pIckUp
* DECAL
* ALTERNATIVE ASSEMBLY
* DECAL COMANIE
* ENSEMBLAGE ALTERNATIVE
lIRe ce QUI SUIt aVant de cOmmenceR
* Etudier les schémas de montage.
* Chaque pièce en plastique est identifiée par un numéro.
* Sur les schémas de montage, certaines pièces sont
marquées d'une étoile (★) pour indiquer qu'elles sont en
plastique chromé.
* Pour une meilleure prise de la peinture et des autocollants,
laver les pièces en plastique avec une solution détergente
peu concentrée. Les rincer et les laisser sécher à l'air.
* Vérifier que chaque pièce s'ajuste bien avant
de la coller en place.
* N'utiliser que de la colle pour polystyrène.
* Gratter les parties à coller pour enlever le chrome et la peinture.
* Laisser la peinture bien sécher avant de manipuler les pièces.
* Toute pièce inutilisée peut être jetée.
dIRectIVeS d'applIcatIOn deS aUtOcOllantS
1. Découper l'autocollant désiré de la feuille.
2. Tremper l'autocollant dans de l'eau pendant quelques secondes.
3. Placer l'autocollant mouillé sur une serviette en papier.
4. Attendez que l'autocollant puisse être déplacé sur son
support en papier.
5. Mettre l'autocollant en position sur le modèle face sur
le dessus et faire glisser le support pour l'enlever.
6. Appuyer avec un chiffon doux humide pour éliminer les bulles d'air.
7. La substance laiteuse qui peut apparaître est destinée à
améliorer l'adhésion de l'autocollant et devient incolore au
séchage. Essuyer pour enlever tout excédent d'adhésif.
8. Ne pas toucher l'autocollant tant qu'il n'est pas bien sec.
9. Laisser l'autocollant sécher pendant 48 heures avant
d'appliquer une couche transparente.
RemaRQUe: les autocollants sont compatibles avec
les solutions de fixage ou les solvants.
or, please write to:
Visit our website: www.revell.com
Revell Inc Elk Grove Village, IL. Copyright © 2010. All rights reserved.
* CEMENT TOGETHER
* REMOVE AND THROW AWAY
* A COLLER
* A RETIRER ET JETER
this paint guide is provided to complete this kit
as shown on the box.
Ce guide de peintures est fourni pour reproduire le modèle
réduit qui apparaît sur la boîte.
Semi Gloss Black
Gloss White
Yellow
Turn Signal Amber
Ford Engine Blue
Gloss Gold Metallic
Silver
Aluminum
Transparent Red
(800) 833-3570
85721200200
* DO NOT CEMENT
* NE PAS COLLER
Noir satiné
Blanc brillant
Jaune
ambre
Bleu moteur Ford
Or brillant métallisé
Argent
Aluminium
Rouge transparent
