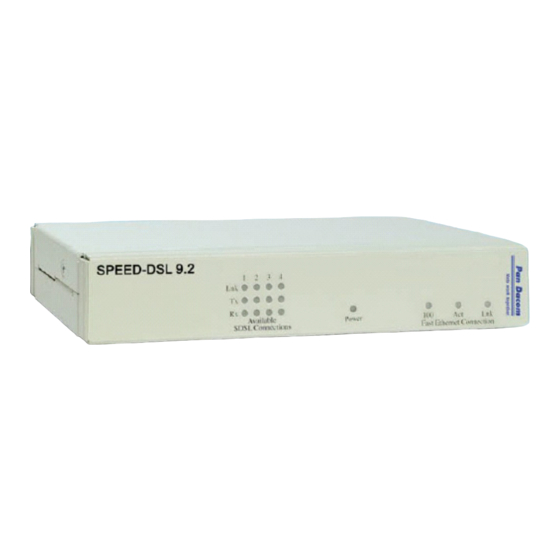

Summary of Contents for Pan Dacom Direkt Speed-DSL 9.2

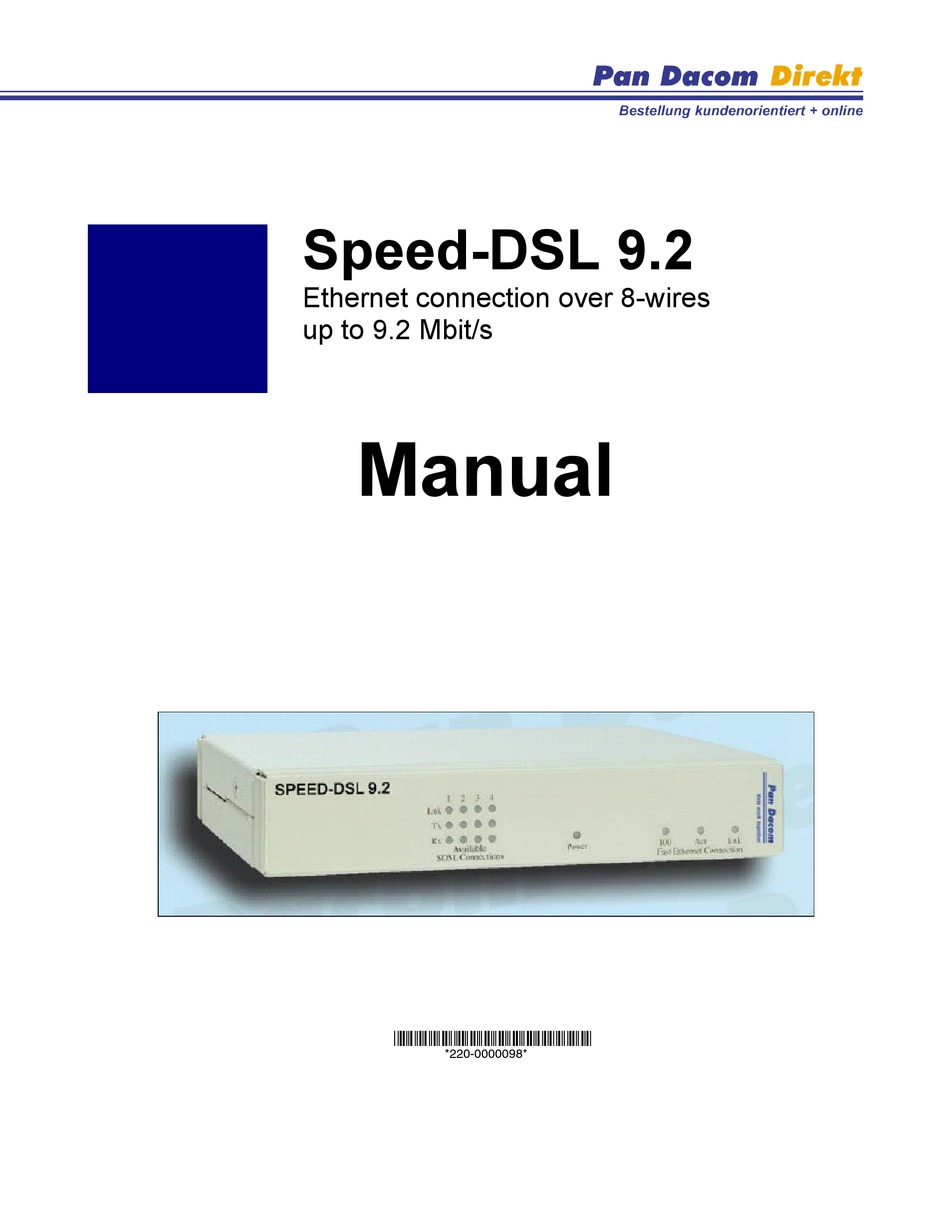

- Page 1 Speed-DSL 9.2 Ethernet connection over 8-wires up to 9.2 Mbit/s Manual *220-0000098* *220-0000098*...
- Page 2 SPEED-DSL 9.2 Notes Before installing and putting the device into operation, please read the security guidelines at the end of this documentation! Pan Dacom Direkt would like to point out that the information and notes contained in these documents are subject to technical changes. In particular, changes resulting from the continuing development of the products may not have been taken into account.
-
Page 3: Installation
American Wire Gauge (AWG) cable. Connections made with cable of a lesser gauge (e.g., 24 AWG) will link up at greater distances. Your SPEED-DSL 9.2 may not link up if the cable is in poor condition or if the cable distance is greater than a particular bandwidth will support; if link IS achieved under such conditions, traffic quality may be affected (e.g., packets may be dropped). - Page 4 G.SHDSL equipment and the copper cable pair connecting the two. 1.4 Connect the G.SHDSL Line(s) The primary feature of the SPEED-DSL 9.2 is loop bonding capability between all four ports, though both the provider and subscriber units can function with a single G.SHDSL connection as well.
- Page 5 SPEED-DSL 9.2 an SPEED-DSL 9.2-S and any of G.SHDSL provider equipment. Likewise, a single line connection can also be established between an SPEED-DSL 9.2-P and G.SHDSL subscriber units. Verify your connection: the G.SHDSL LED corresponding to the connected port (G.SHDSL 1-4) will flash green to indicate the connection is established and operational.
-
Page 6: Pin Connection
Ethernet speed and duplex mode configurations cannot be hard set on the SPEED-DSL 9.2. For the best connection results, the remote device (PC, hub, switch, etc.) should be set to auto-negotiate speed and duplex mode as well. If the remote device cannot be configured to auto-negotiate, speed may be hard set at either 10 Mbps or 100 Mbps but duplex mode must be hard set to Half Duplex;... - Page 7 SPEED-DSL 9.2 10/100 Ethernet RJ45 Pinout PIN CONNECTION not used not used not used not used SPEED-DSL 9.2/22.10.2004 page 7...
-
Page 8: Additional Information
Indication Additional Information Power solid green unit is operational If the Power LED is not illuminated, it is unlikely that the SPEED-DSL 9.2 is receiving power and therefore none of the LEDs will be illuminated. SDSL Link (Lnk) pulsing G.SHDSL Traffic is flowing. - Page 9 SPEED-DSL 9.2 no activity Either there is no Ethernet link or a link illumination exists but there is no activity. SPEED-DSL 9.2/22.10.2004 page 9...
- Page 10 SPEED-DSL 9.2 10/100 Ethernet solid green Ethernet If the Ethernet Lnk LED is illuminated but not Link (Lnk) connection is the Ethernet 100 LED then a 10 Mbps established connection has been established. If the Ethernet 100 and Lnk LEDs are BOTH illuminated then a 100 Mbps connection has been established.
-
Page 11: Regulatory Compliance For Class A Equipment
SPEED-DSL 9.2 2.2 Regulatory Compliance for Class A Equipment 2.2.1 FCC Regulatory Compliance Information for Class A Equipment This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 12 SPEED-DSL 9.2 Pan Dacom Networking AG GS Nord Merkurring 105 GS Ost 22143 Hamburg Germania Bogen Tel.: 040-679447-0 Multimedia-Center Fax: 040-67944750 12099 Berlin Tel.: 030-7508-3500 Fax: 030-7508-3535 GS West Schiess Straße 55 40549 Düsseldorf Tel.: 02131-17058-0 Fax: 02131-1705880 GS Mitte/Zentrale Robert-Bosch-Straße 32...
