Page 1: Washing Machine

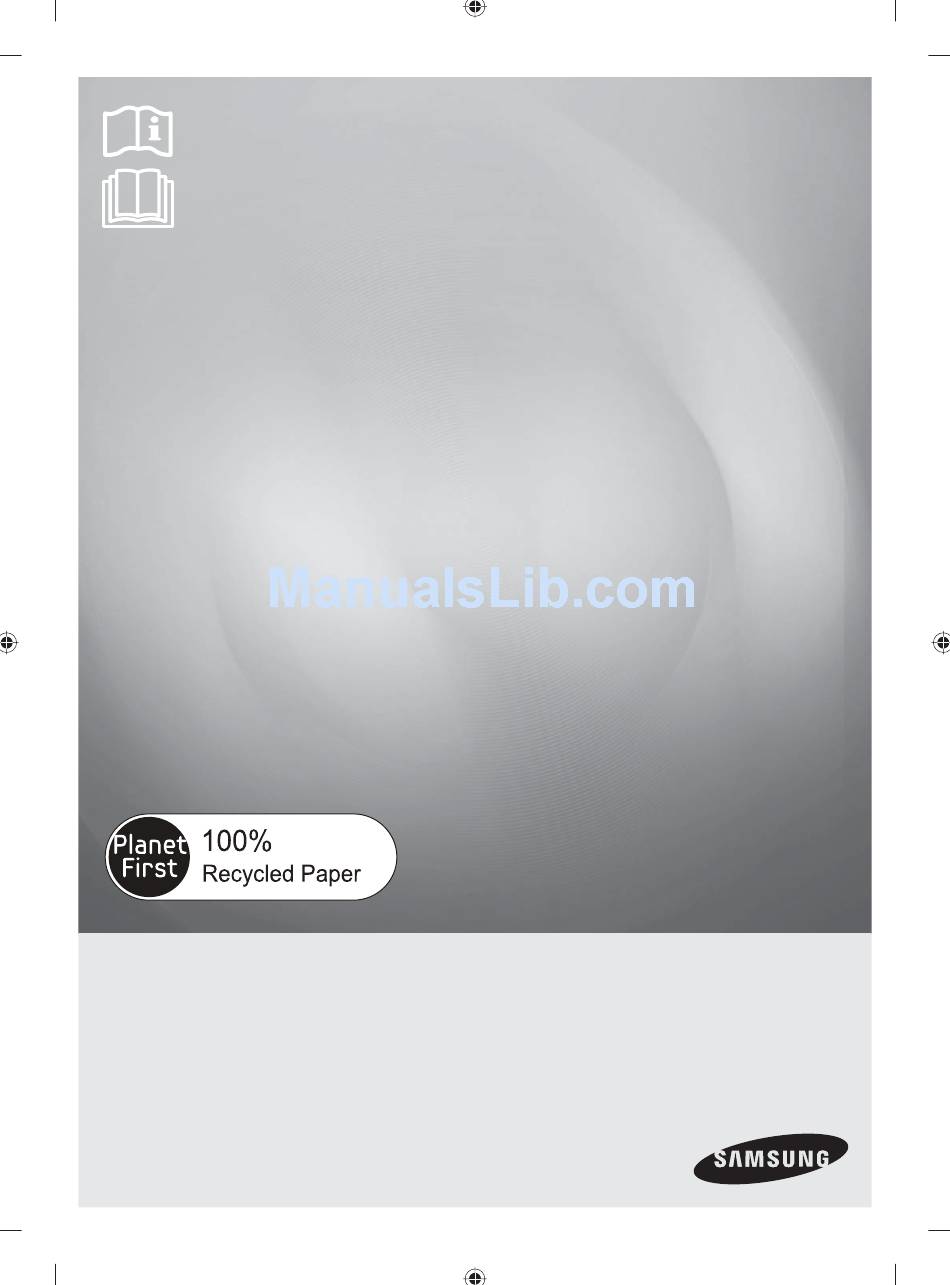

WA70F5G4 WA80F5G4 Washing Machine user manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at www.samsung.com/register [W3050_F550]WA80F5G4DJW-03302A_EN.indd 1 [W3050_F550]WA80F5G4DJW-03302A_EN.indd 1... -
Page 2: Power Wash
The power of tornado-like water currents guarantee excellent washing performance. • Digital Inverter Motor Samsung digital inverter motor can offer more effi cent energy and more powerful washing performance. With balancing the laundry better, it can give longer durability on your washing machine. -
Page 3: Child Lock
• Tub Clean Samsung’s Eco Clean Tub is specially designed to remove dirt and biofi lm in the tub without special chemical detergent. This innovative function keeps drum extremely clean by soaking and spinning only with the water. -
Page 4: Safety Instructions
safety instructions Please note that the following precautions for safety intend to prevent unpredictable danger and damage by helping the proper use in safety. When using hot water in washing, please make sure that the water should not exceed 50°C. •... - Page 5 the water supply taps, and the drain pipes are accessible. For washing machines with ventilation openings on the base, ensure that the opening is not obstructed by a carpet or any other obstacles. Please use the new hoses. Do not use the old hoses. WARNING There might be serious injury or fatal accident when you violate this instruction.
- Page 6 The use for business purposes qualifi es as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse.
-
Page 7: Table Of Contents
contents SETTING UP YOUR WASHER Description of part How to wash automatically depends on the laundry Control Panel MANUAL FUNCTIONS Manual functions Environment INSTALLATION & MAINTENANCE Levelling Connecting the water supply hose Assembling the rat protection panel (option) How to connect the drain hose (option) Calibration mode Adding detergent Adding fabric softener... -
Page 8: Setting Up Your Washer
setting up your washer DESCRIPTION OF PART The User’s Manual is for common use. Make use of the User’s Manual depending upon your washing machine model. Be sure to keep the lid closed Water supply hose (Cold) during washing and spinning. Water supply hose (Hot) Fabric softener dispenser... -
Page 9: Checking Before Washing And Caring For Garments
CHECKING BEFORE WASHING AND CARING FOR GARMENTS Must follow the checkpoints in order to avoid machine problems or damages on garments. • If the below problems are caused by customer’s faults, separate service fee will be charged. Checkpoints Before Starting Washing Check if the clothes are bleaching or not. -
Page 10: Caring For Clothes Before Washing
setting up your washer CARING FOR CLOTHES BEFORE WASHING Take out personal belongings from pockets. • Caution, Check the pockets! Hairpins and coins cause damages to clothes and washing machine. They make noise and problems to the machine. Must check the pocket. If pants zippers are open while washing, the spin basket may be damaged. -
Page 11: How To Wash Automatically Depends On The
HOW TO WASH AUTOMATICALLY DEPENDS ON THE LAUNDRY Before starting washing, check the following; • Connect the water supply hose to the water tap. Leave a tap open. Plug the power cord in. Make sure to lay down the drain hose. Washing for the fi... -
Page 12: Control Panel
setting up your washer CONTROL PANEL For more details, see control panel of your washing machine. Select the appropriate cycle for the type of load. The cycle you select determines the tumble pattern and spin speed for the cycle. Cotton - For most fabrics including cottons, linens, and normally soiled garments. - Page 13 Press the button repeatedly to cycle through the different water temperature options. Hot - Whites and heavily soiled, colorfast items. Temp. selection button Warm - Colorfast items. Cold - Brightly colored, very lightly soiled items. Press the button repeatedly to cycle through the different spin speed options. High - Use for underwear, t-shirts, jeans, and sturdy cottons.
- Page 14 setting up your washer CHILD LOCK This function is for protecting children, the elderly and the frail. 1. Press the Power button. 2. To activate the Child Lock function, press and hold both the Spin and Water Lavel buttons down simultaneously for 3 seconds. (If the Child Lock function is activated, the Child Lock icon blinks.) 3.
- Page 15 Downloading the Samsung Smart Washer app Download the Samsung Smart Washer app to your mobile phone from the Android market or Apple App store and install it. You can easily fi nd it by searching for “Samsung Smart Washer”. Using the Smart Check function 1.
-
Page 16: Installation & Maintenance
installation & maintenance The User’s Manual is for common use. Make use of the User’s Manual depending upon your washing machine model. ENVIRONMENT Leave some space Maintain at least 10 cm between the washer and the wall. Place the washer on a sturdy fl at surface. If the washer is placed on an uneven or weak surface, noise or vibration occurs. -
Page 17: Assembling The Rat Protection Panel (Option)
4. Connect the water supply hose to the adaptor. Pull down the part (c) of the water supply hose. When the part (c) is released, the hose is automatically connected to the adaptor making a ‘click’ sound. 5. Connect the other end of the water supply hose to the inlet water valve at the back of the washer. -
Page 18: How To Connect The Drain Hose (Option)
Make sure that you install your washing machine correctly by running the Rinse+Spin cycle after the installation is complete. CALIBRATION MODE Your Samsung washing machine detects the laundry weight automatically. For more accurate weight detection, please run Calibration Mode after the installation. To run Calibration Mode, follow these steps: 1. -
Page 19: Adding Detergent
ADDING DETERGENT 1. Open the detergent drawer and then add the powder detergent into the detergent compartment. 2. Add detergent evenly so that it doesn’t brim over the edge of the drawer. • Use a reasonable amount of detergent. If you use more detergent than the standard quantity or the water temperature is too low and the detergent does not dissolve in the water completely causing it to remain on the laundry and in the hose... -
Page 20: Cleaning The Fi Lter
installation & maintenance CLEANING THE FILTER Clean the filter net often to keep the washer clean. 1. Push the upper part of the Hygiene fi lter 2. Open the cover as shown in the fi gure. and pull in. 3. Clean the Hygiene fi lter. 4. -
Page 21: Troubleshooting _21
troubleshooting PROBLEM CHECK Washing machine won’t work • Is the water tap opened? • Is the washer plugged in? • Is the power cut off? • Is there enough water? Water dose not drain • Is the drain hose down? (No pump) •... -
Page 22: Washing Machine Won't Work
washing machine won’t work? PROBLEM CHECK The power is cut off. Is the electric voltage normal? Is the washer plugged in? Plug in the electric cord. Water does not drain. Is the drain hose down? Put the drain hose down. Is the drain hose folded? Unfold the drain hose. - Page 23 PROBLEM CHECK The water leaks at the water supply Did you press the Start/Pause button after selecting the water hose connector. supply? If the Start/Pause button is not pressed, water is not supplied. Press the Start/Pause button. Is the faucet closed? Turn on the faucet.
-
Page 24: Specifi Cation
WA70F5G4,WA80F5G4 87 ℓ WA70F5G4 7.0kg Extra high MAX. MASS OF DRY CLOTH IN kg 65 ℓ WA80F5G4 8.0kg High STANDARD WATER LEVEL 44 ℓ WASH 300- 350W Medium POWER CONSUMPTION 34 ℓ SPIN 250W DIMENSIONS(mm) 610*672*1100 (High) WASHING TYPE... - Page 25 memo [W3050_F550]WA80F5G4DJW-03302A_EN.indd 25 [W3050_F550]WA80F5G4DJW-03302A_EN.indd 25 2013-05-02 2013-05-02 4:09:02 4:09:02...
- Page 26 memo [W3050_F550]WA80F5G4DJW-03302A_EN.indd 26 [W3050_F550]WA80F5G4DJW-03302A_EN.indd 26 2013-05-02 2013-05-02 4:09:02 4:09:02...
- Page 27 memo [W3050_F550]WA80F5G4DJW-03302A_EN.indd 27 [W3050_F550]WA80F5G4DJW-03302A_EN.indd 27 2013-05-02 2013-05-02 4:09:02 4:09:02...
- Page 28 QUESTIONS OR COMMENTS? Country CALL OR VISIT US ONLINE AT AUSTRALIA 1300 362 603 www.samsung.com NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com Code No. DC68-03302A_EN [W3050_F550]WA80F5G4DJW-03302A_EN.indd 28 [W3050_F550]WA80F5G4DJW-03302A_EN.indd 28 2013-05-02 2013-05-02 4:09:02 4:09:02...
