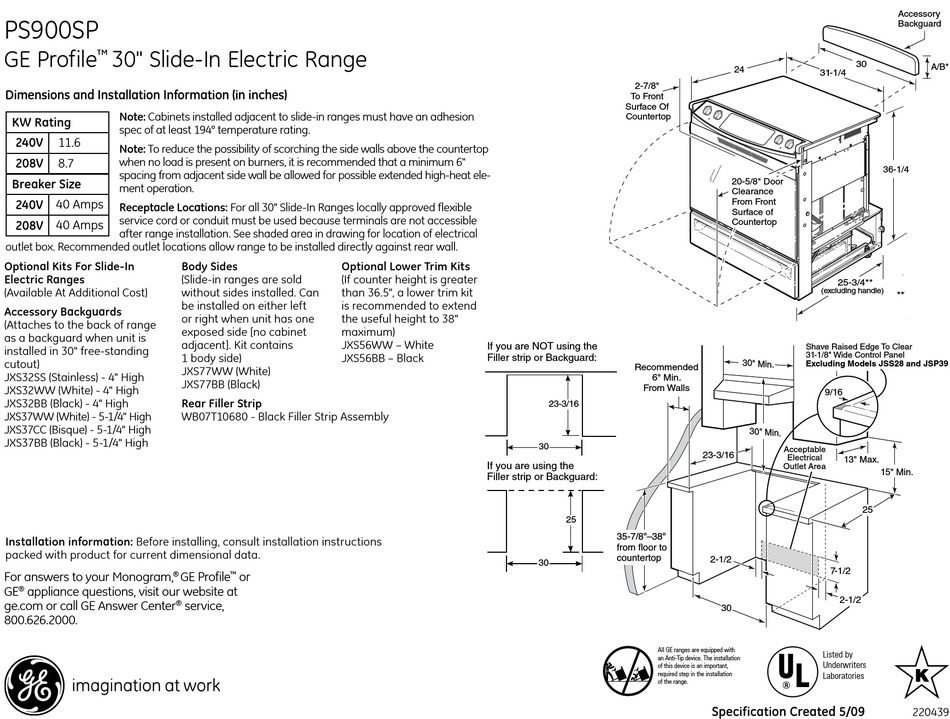

GE Profile PS900SPSS Dimensions And Installation Information

PS900SP
GE Profile 30" Slide-In Electric Range
™
Dimensions and Installation Information (in inches)
Note: Cabinets installed adjacent to slide-in ranges must have an adhesion
KW Rating
spec of at least 194° temperature rating.
240V 11.6
Note: To reduce the possibility of scorching the side walls above the countertop
208V when no load is present on burners, it is recommended that a minimum 6"
8.7
spacing from adjacent side wall be allowed for possible extended high-heat ele-
Breaker Size
ment operation.
240V 40 Amps
Receptacle Locations: For all 30" Slide-In Ranges locally approved flexible
service cord or conduit must be used because terminals are not accessible
208V 40 Amps
after range installation. See shaded area in drawing for location of electrical
outlet box. Recommended outlet locations allow range to be installed directly against rear wall.
30" Slide-In Range
Optional Kits For Slide-In Body Sides
Dimensions (in inches)
Electric Ranges
(Slide-in ranges are sold
(Available At Additional Cost) without sides installed. Can
30" Slide-In Range
be installed on either left
Accessory Backguards
Dimensions (in inches)
or right when unit has one
(Attaches to the back of range
exposed side [no cabinet
as a backguard when unit is
adjacent]. Kit contains
installed in 30" free-standing
1 body side)
cutout)
JXS77WW (White)
JXS32SS (Stainless) - 4" High
JXS77BB (Black)
JXS32WW (White) - 4" High
15" Min. Rear Filler Strip
JXS32BB (Black) - 4" High
JXS37WW (White) - 5-1/4" High WB07T10680 - Black Filler Strip Assembly
JXS37CC (Bisque) - 5-1/4" High
15" Min.
JXS37BB (Black) - 5-1/4" High
Installation information: Before installing, consult installation instructions
*Wall to front of
packed with product for current dimensional data.
closed door handle
on model JSP34.
For answers to your Monogram, 28" on models GE Profile
®
*Wall to front of
JSP26/JSS26/16.
GE ® appliance questions, visit our website at
closed door handle
on model JSP34.
ge.com or call GE Answer Center
®
28" on models
800.626.2000. JSP26/JSS26/16.
Note: Range may be placed with 0" clearance (flush) at the back wall and side walls
below countertop if the range side trims above the countertop extend beyond the cabinet
fronts at least 1/4". (Self-clean models only.) Maintain at least 6" distance from nearest
combustible surface.
Note: Range may be placed with 0" clearance (flush) at the back wall and side walls
below countertop if the range side trims above the countertop extend beyond the cabinet
fronts at least 1/4". (Self-clean models only.) Maintain at least 6" distance from nearest
combustible surface.
30" Slide-in Elec. Range
Aug. 8, 2003 -km
30" Slide-in Elec. Range
Aug. 8, 2003 -km
Optional Lower Trim Kits
(If counter height is greater
than 36.5", a lower trim kit
is recommended to extend
the useful height to 38"
maximum)
JXS56WW – White
JXS56BB – Black
Maintain
at least 6"
from nearest
30" Min.
combustible
Maintain
6 surface.
at least 6"
from nearest
30" Min.
combustible
31-1/2
6 surface.
30
4-1/2
6
31-1/2
5
30
4-1/2
2-1/4
6
Acceptable
5
Electrical
Outlet Area
2-1/4
Acceptable
Electrical
Outlet Area
28-1/4*
or
™
45-1/8
28-1/4*
service,
45-1/8
If you are NOT using the
Filler strip or Backguard:
If you are NOT using the
Filler strip or Backguard:
23-3/16
23-3/16
30
30
If you are using the
Filler strip or Backguard:
36
If you are using the
Filler strip or Backguard:
25
36
25
30
30
30
30
30
24
2-7/8"
To Front
Surface Of
Countertop
20-5/8" Door
Clearance
From Front
Surface of
Countertop
30 " Mi n.
Recommended
6" Min.
If the countertop area is not flat, excess tension may be applied to the glass cooktop causing breakage
From Walls
and voiding the warranty. Make sure the wall covering, countertop, flooring and cabinets around the range
can withstand the heat (up to 200˚F) generated by the range.
A. Allow 30" minimum clearance between surface units and bottom of unprotected wood or metal cabinet,
or allow a 24" minimum when bottom of wood or metal cabinet is protected by no less then 1/4" thick
30 " Mi n.
flame retardant millboard covered with no less than No. 28 MSG sheet metal (.015" thick), .015" thick
stainless steel, .025" aluminum or .020" copper.
Acceptable
23-3/16
B. This appliance has been approved for 0" spacing to adjacent surfaces above the cooktop. However,
Electrical
a minimum 6" spacing to surfaces less than 15" above the cooktop and adjacent cabinetry Outlet Area
is recommended to reduce exposure to steam, grease splatter and heat. Allow 1/4" minimum clearance
at the back wall.
To reduce the risk of burns or fire when reaching over hot surface elements, cabinet storage space above
the cooktop should be avoided. If cabinet storage space is to be provided above the cooktop, the risk can
be reduced by installing a range hood that projects at least 5" beyond the front of the cabinets. Cabinets
installed above the cooktop must be no deeper than 13".
35-7/8"–38"
from floor to
countertop
2-1/2
30
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Created 5/09
24
2-7/8"
To Front
Surface Of
Accessory
Backguard
A/B*
31-1/4
36-1/4
*JXS37 is 5-1/4" and JX
25-3/4**
(excluding handle)
**Total depth from wall t
front of closed oven d
including handle is 27
Shave Raised Edge To Clear
31-1/8" Wide Control Panel
Excluding Models JSS28 and JSP39
9/16
13" Max.
15" Min.
25
7-1/2
2-1/2
Listed by
Accessory
Underwriters
Backguard
Laboratories
220439
A/B*
31-1/4
