Summary of Contents for GE Interlogix Calibur CBR-PB3-WD

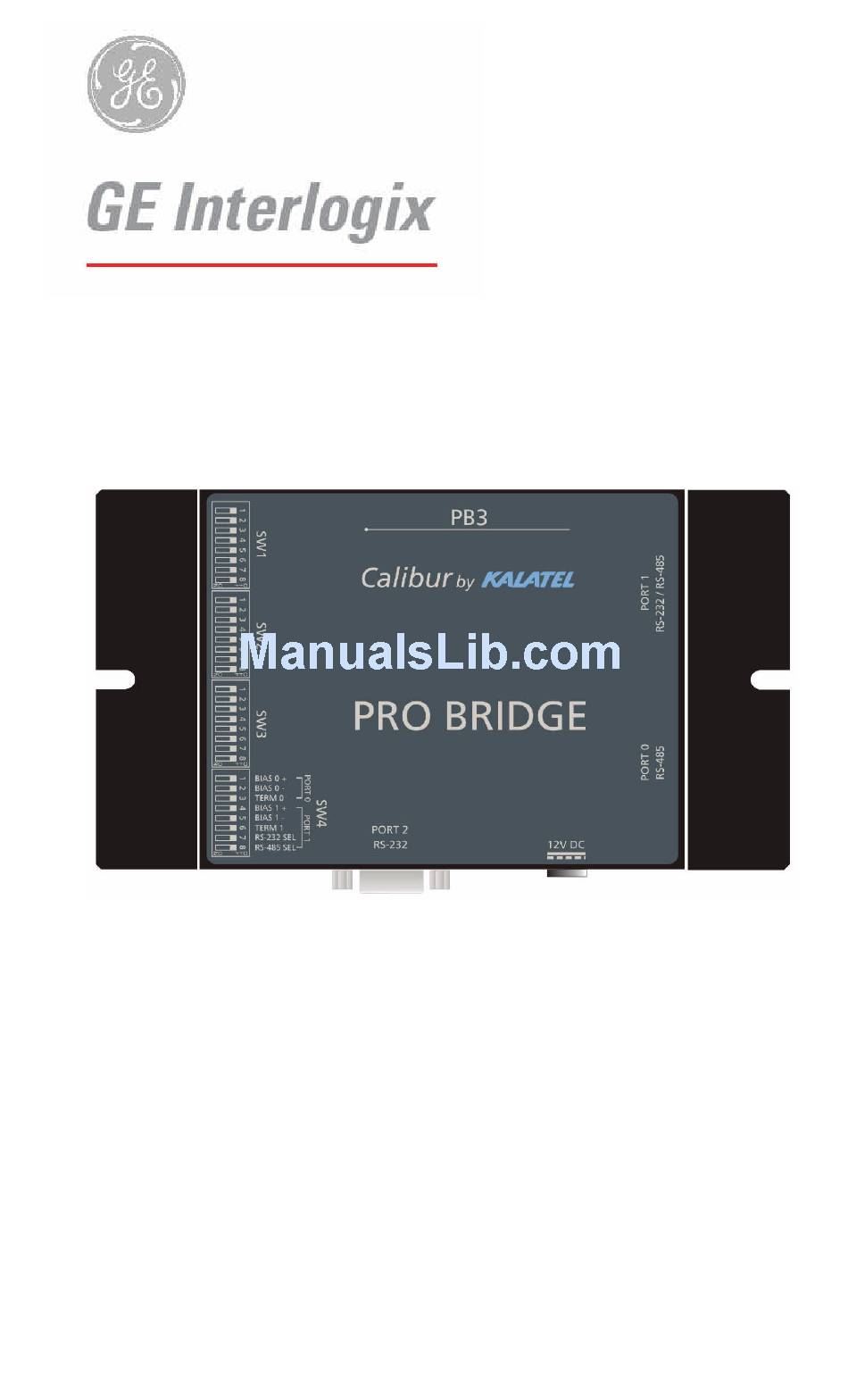

- Page 1 Kalatel CBR-PB3-WD ProBridge Receipt Printer Interface Product Overview & Installation Manual...
-
Page 2: Copyright Information
To prevent fire and electronic shock, do not expose this product to rain or moisture. The lightning flash with the arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 3: Table Of Contents
Table of Contents CBR-PB3-WD ProBridge... 5 Kalatel CBR-PB3-WD Description... 5 Additional Equipment Provided by the Installer... 5 Compatibility ... 5 Disclaimer... 5 Before You Begin ... 6 Installation Summary... 6 How to Use this Manual... 6 Kalatel Components:... 6 Installation Environment ... 7 Power ... - Page 4 12 Cable Specifications... 33 13 Specifications ... 35 14 Warranty and Service ... 36 14.1 Factory Service... 36 14.2 Warranty... 36 Kalatel CBR-PB3-WD 0150-0261A...
-
Page 5: Cbr-Pb3-Wd Probridge
1 CBR-PB3-WD ProBridge 1.1 Kalatel CBR-PB3-WD Description The Kalatel CBR-PB3-WD is a specific ProBridge unit for interfacing the DVMRe family of digital video multiplex/recorders Wayne Plus Receipt Printers (WP/RJ). One CBR-PB3-WD is required per cash register. Where multiple cash registers are connected to a single DVMRe unit, the individual CBR-PB3-WD’s are interconnected via the PB3’s built-in RS-485 network. -
Page 6: Before You Begin
2.1 Installation Summary The basic steps to install the CBR-PB3-WD unit are: Connect the PB3 to the Receipt Printer using the supplied cable. (If more than two PB3 units are used, verify that proper termination is set on each individual PB3 unit. -
Page 7: Installation Environment
2.4 Installation Environment Power: Ensure that the installation site’s AC power is stable and within the rated voltage of the external power supply. If the site’s AC power is likely to have spikes or dips, use power line conditioning or an Uninterruptible Power Supply. Temperature: Observe the unit’s ambient temperature specifications when choosing a location for the unit. - Page 8 4310-0008 220VAC Power Supply Power Supply Input Voltage: 220 Volt AC Tolerance: ±10% Frequency: 50 Hz Power Supply Output Voltage: 12 Volt DC Current: 110mA Power: 1.3 Watts Connector: 2.1mm female barrel. Center Positive Kalatel CBR-PB3-WD 0150-0261A...
-
Page 9: Probridge Diagram
Port 0 and Port 1 each have identical looping RJ45 NOTE connectors. Dipswitch Position Legend Kalatel CBR-PB3-WD Port 2 Power Supply Connects to ECR Connector 12VDC and Receipt Printer Port 1 RS232 Connection to Triplex/DVMRe or PC Port 0 RS485 Network Bus If multiple PB3s are connected together... - Page 10 Dipswitch 3 Kalatel CBR-PB3-WD Down Down Down Down Down Down Down Down Special Functions (see Section 6) Camera Assignment Reserved Baud Rate Protocol Receipt Printer Device Select ProBridge Termination Down Down Down Down Down Down Down Down Down Down 0150-0261A...
-
Page 11: Connection Diagram
PB3 can be added near the DVMRe allowing RS-485 communication between the PB3 units. If there are more than (2) two PB3’s required per installation, please verify proper termination. Kalatel CBR-PB3-WD Receipt Printer CBR-PB3-WD DB9F 4310-0078A Cable Receipt Printer... - Page 12 Termination Switch Termination is set on SW4 for PORT 0 (Dipswitch #3) termination on some of the PB3 units will change. The first PB3 and the last PB3 on the RS-485 network will have termination set to ON (Down), all others between these two units will have their termination set to OFF (Up).
-
Page 13: Detailed Installation Steps
5 Detailed Installation Steps 5.1 PB3 Physical Installation Disconnect the existing Receipt Printer cable from the back of the POS system and install the ECR Interconnect Cable (4310-0078A) to the Receipt Printer as shown on page 11. Reconnect the Receipt Printer Cable to one of the D9F connectors on the ECR Interconnect Cable as shown on page 11. -
Page 14: Configuring The Pb3 For Pos Interface
5.2 Configuring the PB3 for POS Interface Associating ECR data to a specific camera. Program the DVMRe for the desired recording functions based upon the presence of transaction text. In addition make sure the RS-232 port on the DVMRe is configured correctly set via the DVMRe Setup Menus: COMMUNICATIONS>RS-232>PORT (1 OR 2)>19200 Transaction text is captured with video regardless of the NOTE... - Page 15 iii. If the unit fails to display transaction text, please go to the troubleshooting section of this manual. To verify proper operation using a DVMRe–CS/CD/eZ, please refer to Section 11. Kalatel CBR-PB3-WD 0150-0261A...
-
Page 16: Special Functions
6 Special Functions NOTE If these settings are used, they must be turned off before normal transaction processing will resume. 6.1 Display Memory This setting displays all internal memory settings through Port 1 on the text box window of the selected camera on a DVMRe Triplex. This allows you to quickly check what settings are in your unit. -
Page 17: Reset - Clear Memory
As a troubleshooting tool, this element allows you to verify that the PB3 is able to send messages and have the DVMRe correctly capture data coming from the PB3. In this mode, if text can be received and displayed, yet when attempting to process ECR data fails, then some other problem exists with respect to the ECR connection (cabling) or interface setup. - Page 18 To exit this mode return the dipswitches to the following position: Power must be cycled OFF and then ON to the ProBridge unit before NOTE the reset command will take effect. Kalatel CBR-PB3-WD 0150-0261A...
-
Page 19: Troubleshooting
If data is being displayed but is not intelligible, the likelihood is that the baud rate is different than the default value for the selected register. Check with the baud rate settings for the Receipt Printer on your POS system. -
Page 20: Troubleshooting Guide
Section 4 contains all of the default Jumper Settings, if it is necessary for you to manually configure the interface. Troubleshooting Guide Problem Red LED is not illuminated Cannot display demo text Cannot connect with HyperTerminal Kalatel CBR-PB3-WD Solution Check to make sure the power transformer is plugged in properly. -
Page 21: Text To Camera Address
8 Text to Camera Address This section contains dipswitch settings for associating a specific Cash Register’s transaction text with a specific camera on the DVMRe unit. SW1 - Dipswitches 5-8 Dipswitches 5 thru 8 on SW1 assigns transaction text for that cash register’s PB3 unit to a specific camera on the DVMRe. - Page 22 Camera # Kalatel CBR-PB3-WD Dipswitch 5- 8 Camera Assignment Dipswitch Numbers DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN 0150-0261A...
-
Page 23: Manual Switch Config
9 Manual Switch Config Manual configuration should only be used if the “POS Device Selection” does not conform to your specific device because baud rates or protocols are slightly different than the default values for the selected device. 9.1 Manual Dipswitch Settings Available Camera Address (SW1 –... -
Page 24: Protocol
9.1.2 Protocol Legend: Up (Off) = U Protocol: Asynchronous Parity: Even Code: 8-Bit ASCII Mode: 1 Stop Bit Protocol: Asynchronous Parity: Odd Code: 8-Bit ASCII Mode: 1 Stop Bit Protocol: Asynchronous Parity: None Code: 8-Bit ASCII Mode: 1 Stop Bit Protocol: Asynchronous Parity: Even Code: 7-Bit ASCII... - Page 25 Protocol: Asynchronous Parity: Even Code: 8-Bit ASCII Mode: 2 Stop Bit Protocol: Asynchronous Parity: Odd Code: 8-Bit ASCII Mode: 2 Stop Bit Protocol: Asynchronous Parity: None Code: 8-Bit ASCII Mode: 2 Stop Bit Protocol: Asynchronous Parity: Even Code: 7-Bit ASCII Mode: 2 Stop Bit Protocol: Asynchronous Parity: Odd...
-
Page 26: Hyperterminal Setup
10 HyperTerminal Setup Manual configuration can also be completed using Windows HyperTerminal in lieu of the dipswitches. Manual configuration should only be used if the “POS Device Selection” does not conform to your specific device because baud rates or protocols are slightly different than the default values for the selected device. -
Page 27: Setting Up The Probridge For Hyperterminal Operation
10.2 Setting up the ProBridge for HyperTerminal Operation Start HyperTerminal and open a new Connection (FILE>NEW): Under “Connect Using” option select “COM1”. The Com1 Properties menu will appear. Select the following settings to complete the setup: Bits per Second = 19200 Data Bits = 8 Parity = None Stop Bits = 1... -
Page 28: Manual Hyperterminal Configuration
10.3 Manual HyperTerminal Configuration The configurable settings are: Protocol Baud Rate Parity # of Stop Bits Charcter Set POS Device Type The following screen (or similar) will confirm that you are in HyperTerminal programming mode. Initializing from DIP Switches Kalatel ProBridge III POS Ver: 2.10 Camera: 16 Once HyperTerminal mode is set up, press the “Enter”... - Page 29 Setup Option 2 (Port #2) Port #2 is an RS-232 port that connects the PB3 unit to the Receipt Printer Interconnect Cable. The settings will vary based upon the type of Receipt Printer in use. Once you have selected this option, there will be multiple selections available for each element.
- Page 30 #3 BACKUP and select the option to Save the settings. Kalatel CBR-PB3-WD 1200 2400 4800 9600 14.4K 19.2K 38.4K None Even 1-Stop (bit) 2-Stop (bit) 7-Bit ASCII 8-Bit ASCII Generic Receipt Printer Epson Printer Citizen Printer …other printers may be included 0150-0261A...
-
Page 31: Pb3-Pos With Dvmre-Cd/Cs Units
11 PB3-POS with DVMRe -CD/CS Units If the unit to be connected to the PB3 is a DVMRe-CD (Duplex) or a DVMRe-CS (Simplex) unit, please note the following changes to the normal installation and configuration process below. Kalatel recommends using a DVMRe-CT (Triplex) unit to NOTE initially connect the PB3 unit to. -
Page 32: Final Testing
ii. Modem must be configured for Port 1. The menu setup is: iii. The unit will have to be opened and a specific jumper Transaction text is captured with video regardless of recording NOTE mode (Time-Lapse, Time-Lapse+Event or Event only). If Time- Lapse+Event or Event only recording modes must have at least one second set for the pre-event duration. -
Page 33: Cable Specifications
12 Cable Specifications ProBridge to Triplex (DVMRe-CT) Part Number : 4310-0034B Communication Type: RS232 Connector Type: RJ-45, RJ-45 Cable Required: 5 Foot RJ-45 to RJ-45 Triplex RS232 Cable (Supplied). Connects ProBridge to DVMRe-CT. RJ-45 Connector ProBridge to DVMRe (DVMRe-CD/S) Part Number : 4310-0047B Communication Type: RS232 Connector Type: RJ-45 ,DB9F Cable Required: 6 Foot RJ-45 to DB9F... -
Page 34: Rj45 Connector
Connector Type: RJ45, RJ45 Cable Required: RS-485 Interconnect Cable (up to 3,000’)). Interconnects multiple PB3’s in a RS485 network. RJ45 Connector ProBridge to ECR and Receipt Printer Part Number : 4310-0078A Communication Type: RS232 Connector Type: DB9F to DB9M to DB9F. -
Page 35: Specifications
13 Specifications Housing Dimensions (W x L x H) Nominal Weight Shipping Weight Color Temperature Relative Humidity AC Power Voltage Range: Current: DC Power Power Supply Voltage: Current: Power: All specifications are subject to change without notice. Kalatel NOTE believes that all specifications are correct, however no liability is assumed for omissions or errors. -
Page 36: Warranty And Service
14 Warranty and Service 14.1 Factory Service If the unit requires factory service, contact the dealer who supplied the unit to you for the correct procedures on returning the unit to the factory or the nearest factory service center. If the dealer is not available, contact the manufacturer of the unit as detailed below and request a Return Material Authorization number (RMA). - Page 37 For all non-warranty repairs, the customer will be billed for parts, labor, and shipping. Labor will be billed in half-hour increments. Note: Customers requesting an estimate prior to repair will be notified by phone. If they cannot be reached, they will be notified by fax. If we are unable to reach the contact person for repair authorization after one phone attempt and two fax attempts, the equipment will be returned without being repaired.
