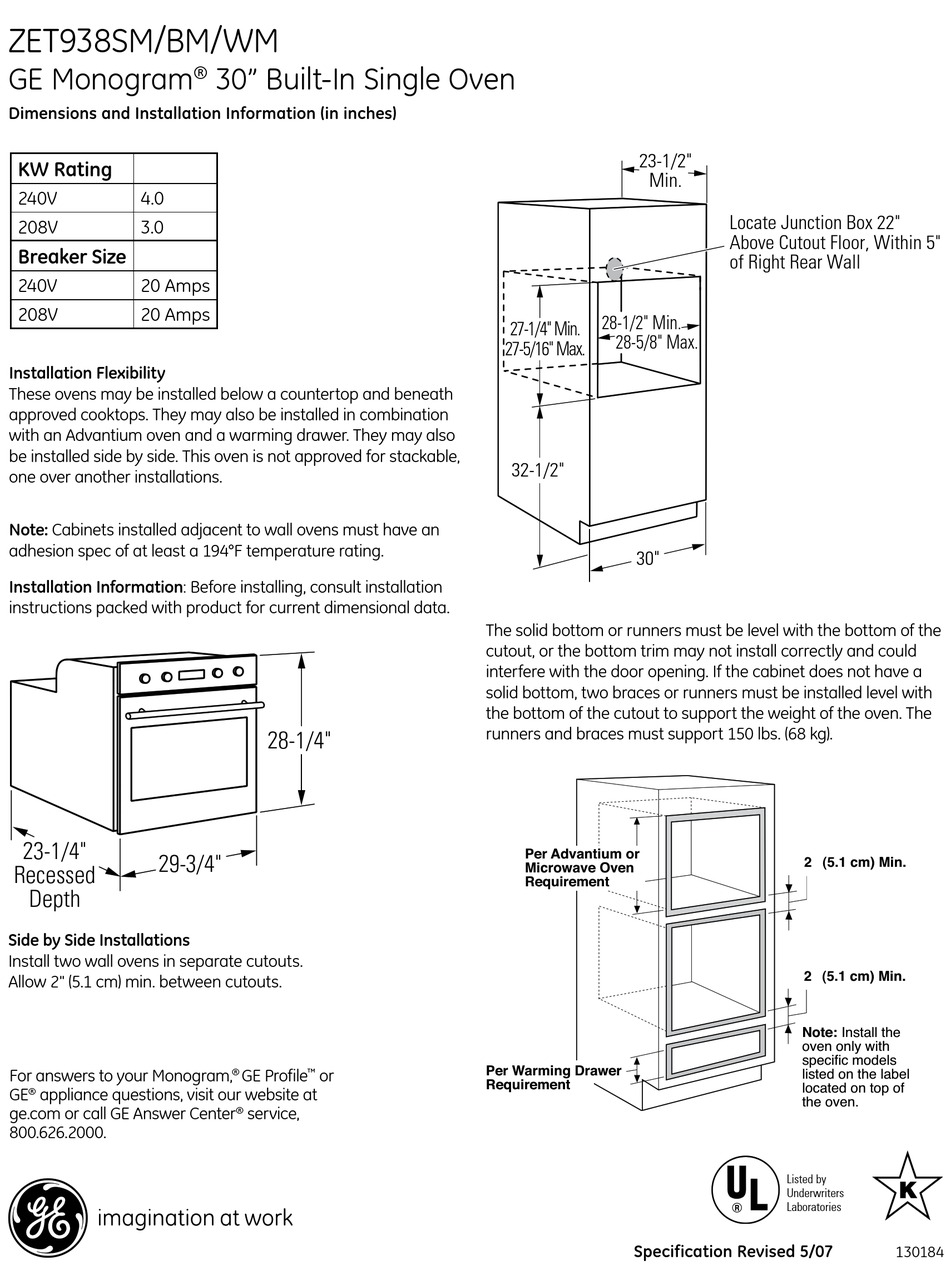

ZET938SM/BM/WM
GE Monogram
Dimensions and Installation Information (in inches)
KW Rating
240V 4.0
208V 3.0
Breaker Size
240V 20 Amps
208V 20 Amps
Installation Flexibility
These ovens may be installed below a countertop and beneath
approved cooktops. They may also be installed in combination
with an Advantium oven and a warming drawer. They may also
be installed side by side. This oven is not approved for stackable,
one over another installations.
Note: Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least a 194°F temperature rating.
Locate Junction Box 22"
Above Cutout Floor, Within 5"
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data. of Right Rear Wall
23-1/4"
29-3/4"
Recessed
Depth
Side by Side Installations
Install two wall ovens in separate cutouts.
Allow 2" (5.1 cm) min. between cutouts.
For answers to your Monogram,
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
30" Built-In Single Oven
®
28-1/4"
GE Profile or
® ™
service,
®
23-1/2"
Min.
28-1/2" Min.
27-1/4" Min.
28-5/8" Max.
27-5/16" Max.
32-1/2"
30"
The solid bottom or runners must be level with the bottom of the
cutout, or the bottom trim may not install correctly and could
interfere with the door opening. If the cabinet does not have a
solid bottom, two braces or runners must be installed level with
the bottom of the cutout to support the weight of the oven. The
runners and braces must support 150 lbs. (68 kg).
Per Advantium or
Microwave Oven
Requirement
Per Warming Drawer
Requirement
Specification Revised 5/07
Locate Junction Box 22"
Above Cutout Floor, Within 5"
of Right Rear Wall
23-1/4"
29-3/4"
Recessed
Depth
2 (5.1 cm) Min.
2 (5.1 cm) Min.
Note: Install the
oven only with
specific models
listed on the label
located on top of
the oven.
Listed by
Underwriters
Laboratories
130184
28-1/4"
