GE Profile Spacemaker JVM1870BF Dimension Manual

JVM1870BF/CF/SF/WF
GE Profile Spacemaker
™

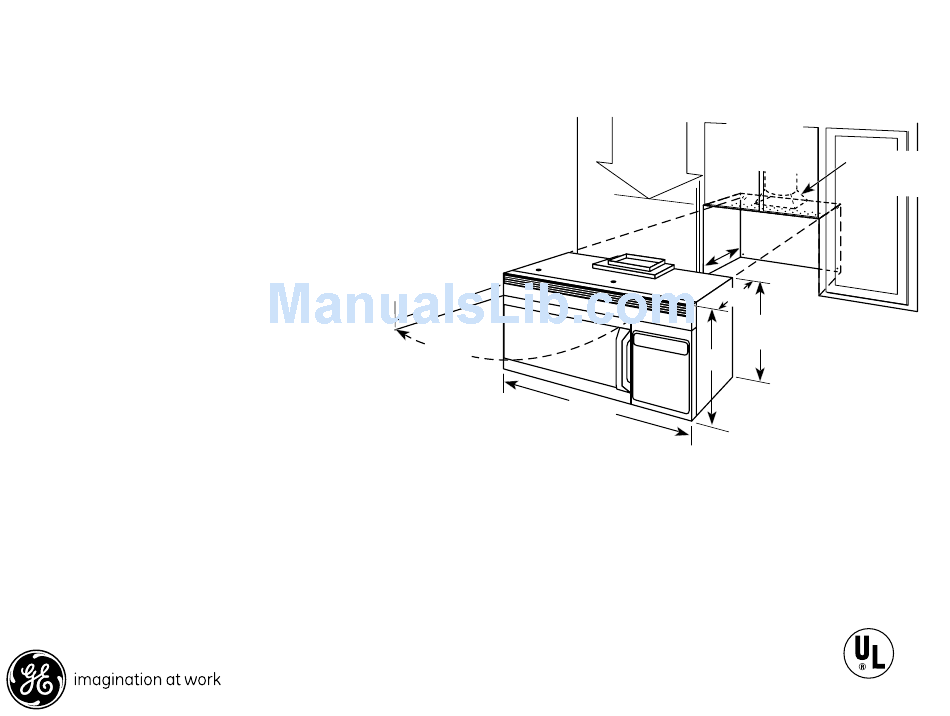

Dimensions and Installation Information (in inches)
Note: Requires 120V grounded outlet. Electrical receptacle
must be located in cabinet above Spacemaker microwave oven.
No additional wiring, venting or cabinet rebuilding necessary
in many cases. Complete detailed, easy-to-follow installation
instructions and convenient full-size templates are packed with
the Spacemaker microwave oven.
Important Information: When installing the Spacemaker
microwave oven over a range, allow minimum of 2" from bottom
of Spacemaker microwave oven to top of range backguard to
allow for removal of light covers.
Installation Information: This information is not intended to
be used for installing unit described. Before installing, consult
installation instructions packed with product/kit for current
dimensional data.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
1.8 Cu. Ft. Over-the-Range Microwave Oven
®
or
™
service,
Over-the-Range Microwave Oven
Dimensions (in inches)
24-1/2
105°
Door open
(without
obstruction)
29-7/8
Minimum distance from
door hinge side to adjacent
wall should equal 1/2-inch.
66" MIN.
30"
Mounting
MIN.
height
width
from
required
floor
13"
MAX.
12"
MIN.
15-1/4
16-13/32
(rear)
16
Specification Revised 8/07
Exhaust outlet
connects to
3-1/4" X 10" duct
Listed by
Underwriters
Laboratories
240264
