Summary of Contents for AccuPower AP1222-1

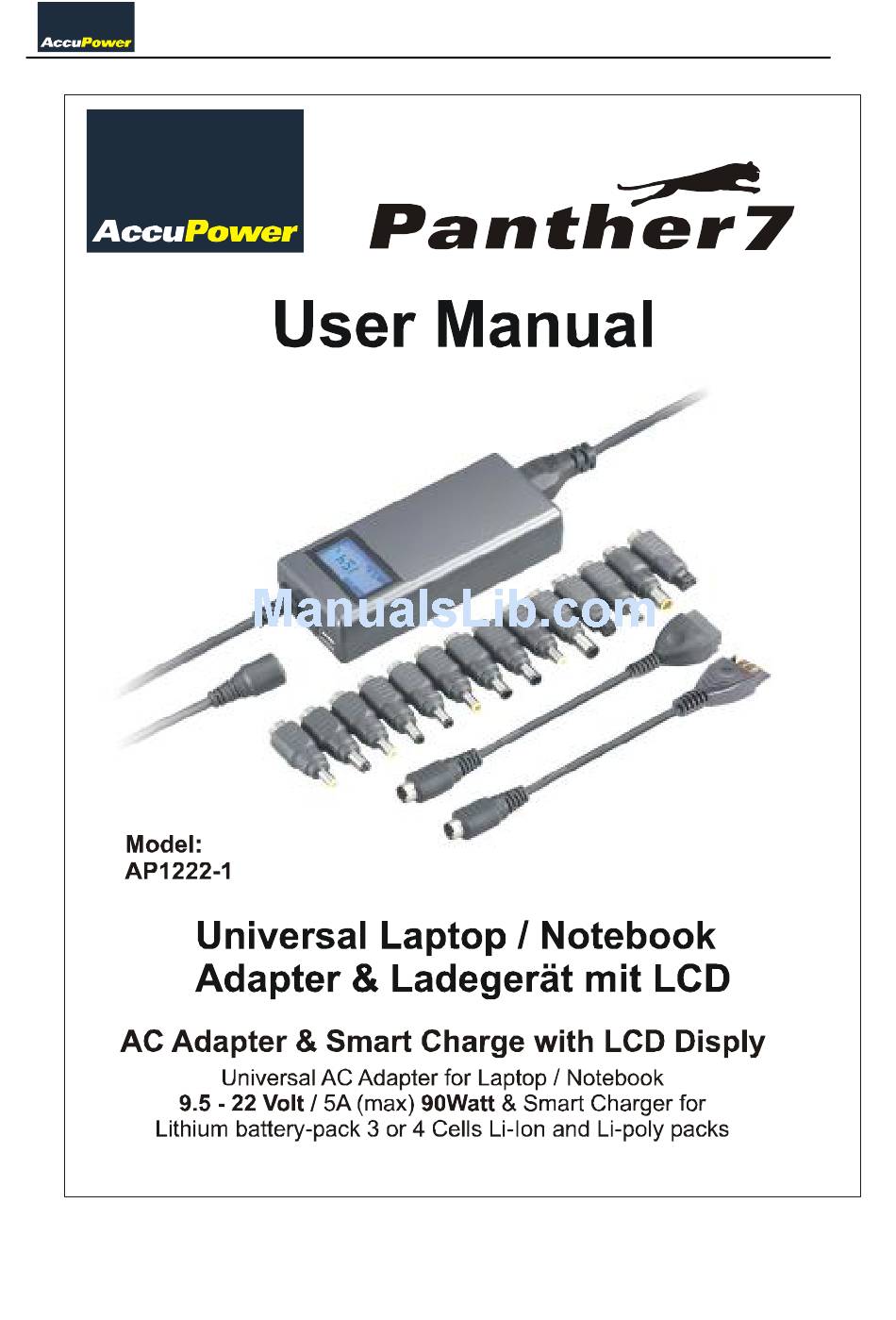

- Page 1 Panther7 AC Adapter & Smart Charger with LCD Disply User Manual AP1222-1 Page 1/9...
- Page 2 Alle Funktionen des Gerätes sind Microcontrollergesteuert. Die Spannung im DC Betrieb wird automatisch auf das Gerät eingestellt, das Laden von Akkus wird überwacht und der Ladezustand angezeigt. Schlagfestes Gehäuse, anti-static design 10. Betriebssicherheit: Temperaturabschaltung bei 85°C,Überspannungsschutz ausgangsseitig 24V, Überstromschutz ab 6.5A, kurzschlussfest und Ladezeitbegrenzung. AP1222-1 Page 2/9...
-
Page 3: Product Feature
2. 15 DC connectors (optional)：A B C D E F G H I J K L M Q R S T U V 3. Charging cables for laptop batteries (optional) 4. Charging cables for mobile phone, MP3, bluetooth and other digital products (optional) 5. USB cable (optional) AP1222-1 Page 3/9... -
Page 4: Product Diagram
Connectors Charging cable for laptop batteries DC Joint Operation Instruction： Switch on the AC power(picture A). Without DC connectors in the DC port, the LCD screen background shows a blue color, with letters same as (picture B) AP1222-1 Page 4/9... - Page 5 Put the other end of charging cable to the laptop battery, the LCD screen indicates the remaining power in Red background and the charging process works as each grade indicates 5% of the power (picture E, F, G, H) AP1222-1 Page 5/9...
- Page 6 2. It’s a common phenomenon for the unit to feel hot when using; 3. Avoid falling and bumping otherwise the electrical components will be damaged; 4. Don’t try to disassemble or open the cover under any circumstance in order to avoid danger. AP1222-1 Page 6/9...
- Page 7 Panther7 AC Adapter & Smart Charger with LCD Disply User Manual DC connectors Specification of AP1222-1 Output Output Range Current Connectors Spec. Replacement for: Voltage Voltage (max) HP/COMPAQ:18.5V/2.7A,18.5V/3.5A, 18.5V/3.8A,18.5V/4.9A; 18.0-20.2V 4.74A 4.8*1.7*10.7 mm DC-F DELTA:19V/2.64A; ASUS:19V/2.64A; NEC:19V/2.64A etc. TOSHIBA:15V/3A,15V/4A,15V/5A,15V/6A; 14.0-16.2V 6.3*3.0*10.7 mm...
- Page 8 255-3S4400-G1L1, 255-3S4400-S1S1 A42-M2/M2000/M2400 Li-ion Voltage:14.8V Capacity:4400mAh; A42-M2/70- FOR ASUS AU-A42 series N651B1001/90-N651B1010/AS-M2000NL/M2A/E-1A TravelMate Li-ion Voltage:14.8V Capacity:4400mAh; FOR ACER AR-2300 2300/2310/2350/4000 BT.T5003.001/BT.T5003.002/BT.T5005.001 series /BT.T5005.002/BT.T5007.00 /BT.T5007.001 /LCBTP03003 Notes: all the above involved brands are owned by the original manufacture. AP1222-1 Page 8/9...
- Page 9 MAXX:V3,V6,MPX,MPX220, ROKR:E2,E3,E6,E9, RIZR:Z3 Z6 Z8, Motorola Bluetooth NEC170 PAS:OK315，UT227 D528,D808,D828,D838,D848,D900,D908,E258,E428,E488,E698,E778,E878,E898,E900,E90 Samsung 8,F300,F369,F519,I320,I718,M359,P308,P310,X828, Z550 D418,D428,D608,E378,X168,X488,X508,X708 Samsung J100,J220,J230,K200,K220,K310,K320,K510,K550,K610,K618,K620,K750,K758,K790,K800, Sony K818,P990,M600,M608C,V630,W200,W300,W550,W600,W610,W700,W710,W800,W810,W8 Ericsson 30C,W850,W880,W888C,W900,W950,W958C,Z310,Z520,Z530,Z550,Z558,Z610,Z710C Kinds of digital products with USB input Standard Notes: all the above involved brands are owned by the original manufacture. AP1222-1 Page 9/9...
