Summary of Contents for GVI Security GV-VP410Y

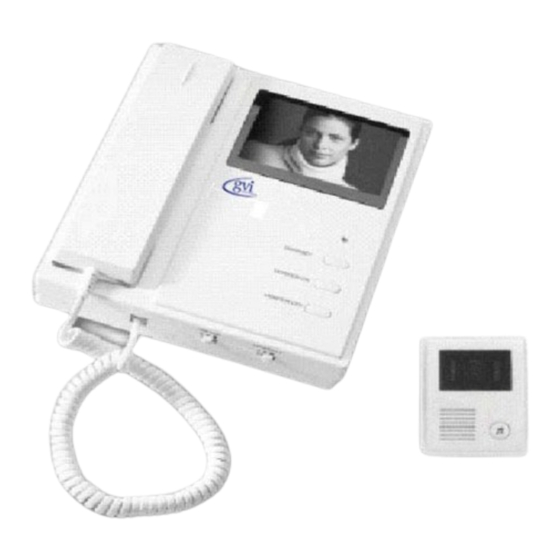

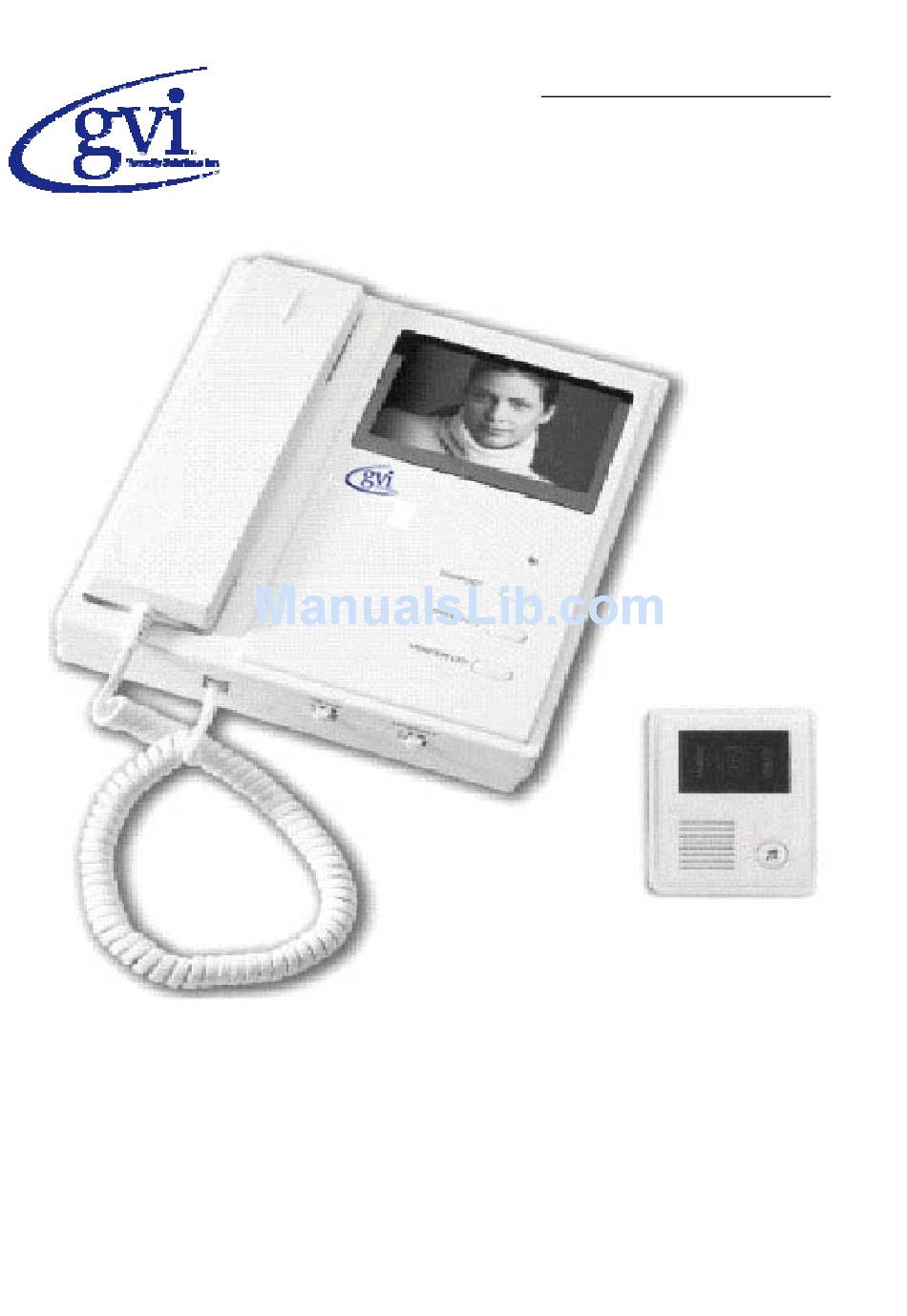

- Page 1 VIDEO INTERCOM SYSTEM INSTALLATION AND OPERATION MANUAL GV-VP410Y ■ First read the user’s manual carefully before using this product and call to the nearest dealer or installation service center for detailed guidance when a problem occurs on using or the content...
- Page 2 FCC COMPLANCE STATEMENT INFORNATION TO THE USER This equipment has been tested and found to comply with the limits for a class B digital device. Pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 3: Table Of Contents
Contents Features ◆ 1. Introduction 2. Components 3. Specifications Parts ◆ Installation ◆ 1. Cable connection 2. GV-VP410M indoor unit installation 3. GV-VP410C outdoor unit installation Name and Function of Each Part ◆ Cautions ◆ No Trouble ◆ Operation Description ◆... -
Page 4: Features
Features 1. Simple installation Because the currently used door phone 4-wire system and box can be utilized, a separate work is unnecessary and the construction is simple. 2. Solid active semiconductor Because the solid active semiconductor is used, no preheat is required, no function of this product is affected by temperature or humidity, its life span is semi-permanent and it’s strong against an external shock 3. -
Page 5: Specifications
Features 3. Specifications Outdoor Unit (GV-VP410C) Specifications Black and White 1/3” CCD SYNC System Internal Scanning Frequency 15.75KHz (H) 60Hz (V) Frame 30/sec Lens F=2FixedFocus, 92.5 degrees of viewing angle Output Signal Composite Video 75Ω 1Vp-p External/input jack Terminal Chime Bell Illumination 0Lux. -
Page 6: Parts
Parts Monitor Parts ② Wall hanger fixing screw ① Wall hanger Camera Parts ② Screw fixing the camera control support main camera support ⑤ Camera ④ Screw fixing holder the camera ① Main camera support bracket into main ③ Water proof cap... -
Page 7: Installation
Installation 1. Cable Connection CAMERA (GV-VP410C) DOOR STRIKE SLAVE MONITOR (GV-VP410M) MASTER MONITOR (GV-VP410M) (GVM-VP410) (DC12V/300Ma) ADAPTOR ADAPTOR (DC15V/1A) (DC15V/1A) Video Memory Unit: GVM-VP410 (option) ※ 1-1. Cable connection Precautions ＊ Monitor and door camera wiring, 4-wire type, are polarized, as seen in preceding diagram, Thus, special attention to polarity should be given, because wiring of other specifications will not operate system. -
Page 8: Gv-Vp410M Indoor Unit Installation
Installation 2. GV-VP410M Indoor Unit Installation 2-1. External View 2-2. Installation 1. When system is attached to 1 rectangular switch box ② 1 rectangular switch box ① Wall hanger panel for fixing monitor When system is attached to wall or pillar Standard height monitor Center of Braun tube... - Page 9 Installation 2-3. Installation Precautions ＊ Keep away from humidity, magnetic force, medicines, direct sunlight, heater, and so on, which may result in a trouble. ＊ The standard height of monitor is within 1,450mm and 1,500mm from the floor on the basis of the Flat CRT 2-4.
-
Page 10: Gv-Vp410C Outdoor Unit Installation
Installation 3. GV-VP410C Outdoor Unit Installation 3-1. External View 3-2. Installation When system is attached to 1 rectangular switch box ② 1 rectangular switch box ① Wall bracket for fixing camera. When system is attached To wall or pillar... - Page 11 Installation 3-3. Installation Location Camera lens based (Unit: mm) ＊ Standard height of door camera is 1,400~1,450mm from the bottom of one hall switch box. ＊ In case that height of camera exceeds the range of min. 1,250mm~1,550mm, it is impossible to control the screen picture with only the lens angle, and therefore, be careful of the height of camera installation.
- Page 12 Installation 3-4. Installation Precautions ＊ Monitor and camera must be installed away from direct light and counter light. ＊ Camera must be installed at a place free from rain. ＊ Standard height of monitor must be, 1,450mm~1,500mm from ground. ＊ Camera should be installed on the wall in which cement is completely dry. ＊...
-
Page 13: Name And Function Of Each Part
Name and Function of Each Part GV-VP410M (Monitor) Handset To communicate with door camera 4-inch Screen To identify visitor Power LED Lamp To check power ON/OFF status Door Key Button Door opens when this button is pressed. Available only for the door Equipped with door opener. -
Page 14: Cautions
Cautions Keep away from humidifier Never fall off the monitor Or heater, High-temperature And door camera and give and humidity may cause a A terrible shock to them trouble Never place the monitor close to the objects Never clean this product generating a strong With hand or in use of magnetic force... -
Page 15: Operation Description
Operation Description 1. When a visitor arrive at the door 1. The internal monitor is automatically turned on with call sound and displays has figure when a visitor presses the call button of camera. 2. Pick the handset and check the visitor’s appearance before conversation. -
Page 16: To Check The Visitor's Appearance
Operation Description 3. To check the visitor’s appearance 1. The internal monitor is automatically turned on with call sound with call sound and displays his figure when a visitor presses the call button of camera at door 2. Then, if you want only to check the visitor’s figure, check the only screen instead of picking the handset 4. -
Page 17: Warranty
2) If this product breaks down during proper use as a result of product defect. GVI Security will repair it within one year from date of purchase free of charge. 3) The following cases will be subject to charge, even during warranty period: a. -
Page 18: Memo
MEMO... - Page 19 MEMO...
- Page 20 GVI Security, Inc.(dba Samsung CCTV) 2801 Trade Center Dr. Suite 120, Carrollton, Texas 75007, Usa TEL : 972-245-7353 888-595-2288...
