PIONEERPOS Stealth S series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Pioneer
POS
Stealth S-Line
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stealth S series and is the answer not in the manual?

Questions and answers

Summary of Contents for PIONEERPOS Stealth S series

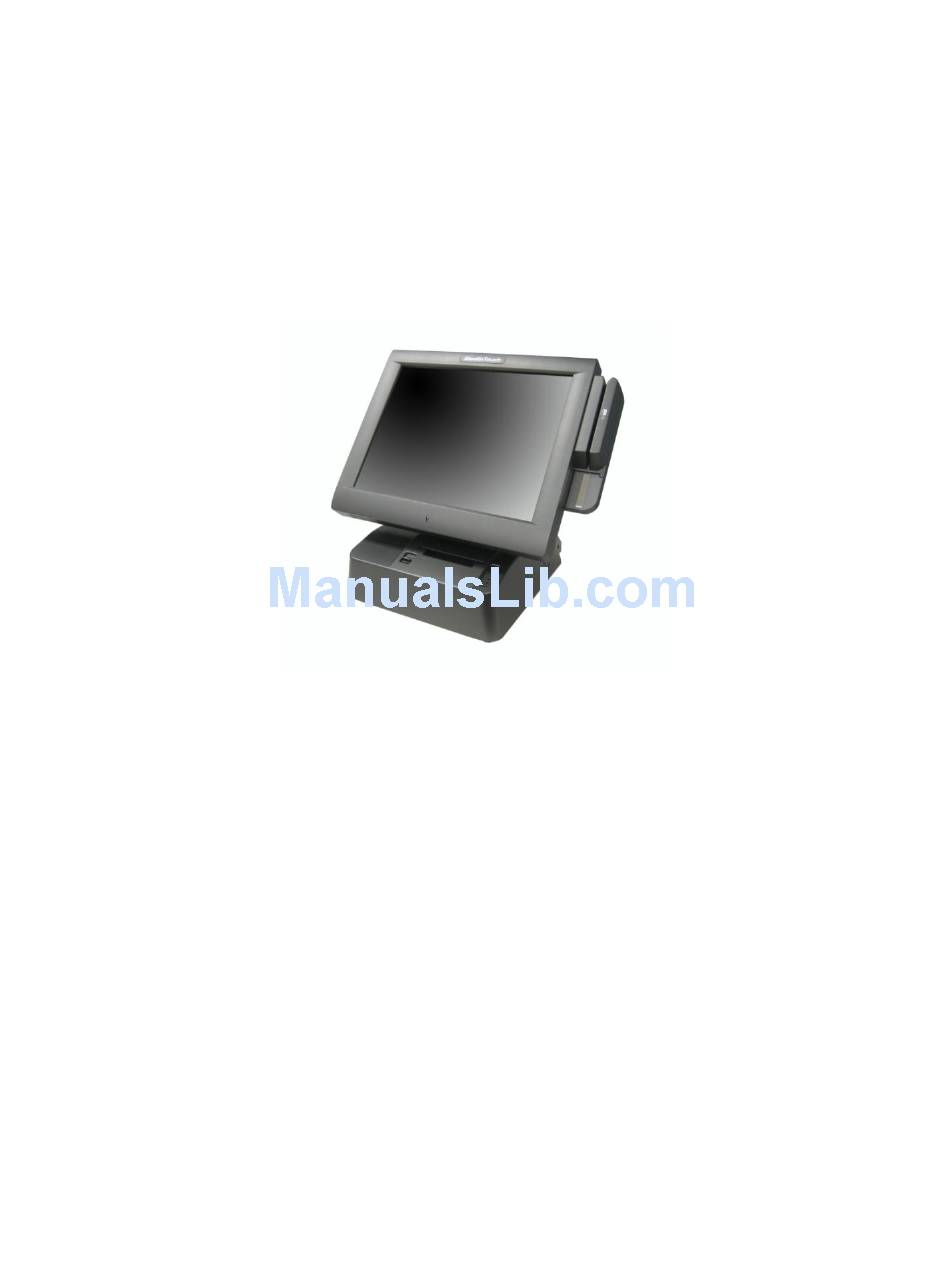

  • Page 1 Pioneer Stealth S-Line User Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. PRODUCT OVERVIEW 2. STEALTHTOUCH ALL-IN-ONE TOUCHSCREEN COMPUTER 3. HARD DISK DRIVE SET 3.1 REMOVING/CHANGING HARD DISK DRIVE 4. PRINTER 4.1 PRINTER SPECIFICATION 4.2 PRINTER OVERVIEW 4.3 PRINTER SETUP & REPLACEMENT 4.4 PRINTER MAINTENANCE 4.4.1 SELF TEST PRINT 4.4.2 HEXADECIMAL DUMP 4.4.3 LED INDICATOR 5.

  • Page 3: Product Overview

    1. Product Overview Stealth S-Line terminal consists of three major components: 1. StealthTouch all-in-one touchscreen computer 2. 2.5” Hard disk drive set 3. S-line thermal printer 2. StealthTouch All-in-one Touchscreen Computer For StealthTouch touchscreen computer maintenance and troubleshoot, please refer to StealthTouch Computer User Guide.

  • Page 4: Hard Disk Drive Set

    3. Hard Disk Drive Set The harddisk drive bay on S-line base unit accommodates one 2.5” laptop type harddisk. 3.1 Removing/Changing hard disk drive 1. Remove printer cover by first pressing on buttons on both sides of cover, then lift cover up towards user.

  • Page 5: Printer

    4. Printer 4.1 Printer Specification Item Specification Model STLH-TP60 Print method Direct Thermal Width: 80 mm (3.125”) Paper Roll diameter: 80 mm (3.125”) 72.19 mm (2.84”) Print width Print speed 150 mm/s (5.9”/sec) Interface Serial / USB Cash drawer Support up to 2 cash drawers (6-pin RJ11 connector) Cutter Guillotine Jam free auto-cutter Full/Partial cut option...

  • Page 6: Printer Overview

    4.2 Printer Overview Printer power switch FEED button Cover lever LED indicator USB Connector Cash drawer port Power connector Serial connector Rev 1.2...

  • Page 7: Printer Setup & Replacement

    4.3 Printer Setup & Replacement The S-line terminal will come with printer pre-setup based on part number (ie serial or USB type). No additional set up step is required, other than installing OPOS or Windows driver, if required. Loading paper roll 1.
  • Page 8 Printer removal 1. Remove printer cover by first pressing on buttons on both sides of cover, then lift cover up towards user. 2. Unscrew thumb screws on both sides of printer 3. Slide printer out in user direction Rev 1.2...
  • Page 9 4. Disconnect USB cable from printer, if any. 5. Turn printer over, disconnect rest of cables to take out printer. 6. Replace with a new printer and reverse Step 5  1 to install printer. Rev 1.2...

  • Page 10: Printer Maintenance

    4.4 Printer Maintenance 4.4.1 Self test Print 1. Power off printer by disconnecting Power USB connector from I/O port. Power off printer by turning off switch on printer (above LED indicator) 2. While pressing down the FEED button, reconnect the Power USB connector / turn on printer power switch.

  • Page 11: Led Indicator

    4. Printer will enter hexadecimal dump mode. 5. Printer will print the following: Hexadecimal printing mode….. 6. To exit hex dump mode, cycle power of printer by disconnecting and reconnecting Power USB connector to exit Hex dump mode. 4.4.3 LED Indicators LED status: X = off, √...

  • Page 12: Troubleshoot

    5. Troubleshoot Paper jam/Cutter won't retract 1. Reset printer power by toggling printer power switch or disconnecting Powered USB connector on I/O ports and reconnect them. 3. Cutter will auto retract. 3. Open printer cover to clean excessive paper, if required. Printer beeps continuously 1.
  • Page 13 Product by 238 Benton Ct., City of Industry, CA 91709 Tel: 888-468-9757 Fax: 909-468-9557 Web: www.pioneerpos.com e-mail: sales@pioneerpos.com / support@pioneerpos.com Version control Descriptions Date Author New document 07/01/2009 Updated spec 09/16/2009 Updated with switch model 04/23/2010 Rev 1.2...
