HURST SERIES 250 Specifications

OPTIONAL SKID PACKAGES
Skid Mounted,
Piped & Wired
FEEDWATER SYSTEMS
Shipping Container Friendly Up to 800 Horsepower
Standard Steam Trim
Operating & high limit pressure controls
Modulating pressure control (when appl.)
Water column with drain valve, gauge glass,
combination low water cut-off
& pump control
Probe Aux, L.W.C.O. w/ Manual Reset
Steam pressure gauge, syphon & test cock
Stack Thermometer, Water column
drain valve
Safety relief valve(s) per ASME Code
BLOWN DOWN SEPARATORS
Standard Water Trim
Operating & high limit temperature controls
Modulating temperature control (when appl.)
Probe type low water cut-off control with
Manual Reset
Combination pressure & temperature gauge
Hot water return baffle for shock resistance
Safety relief valve(s) per ASME Code
Stack Thermometer
HBC-09517
01/2011
2-PASS SCOTCH MARINE DESIGN
with Semi-Wetback Construction

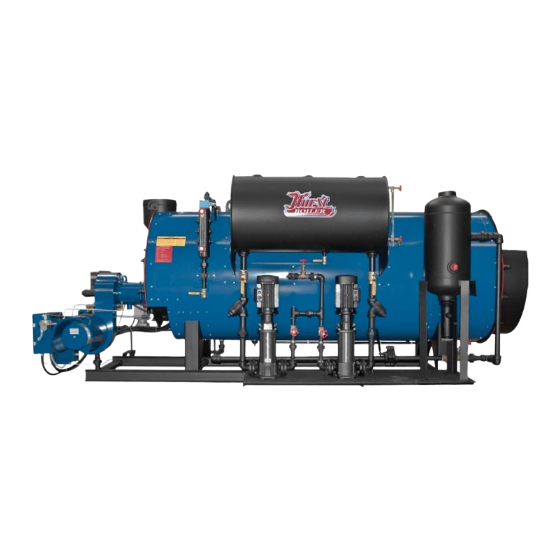

Shown with
OPTIONAL SKID PACKAGE
ENHANCED FIRE TUBES
H U R S T P E R F O R M A N C E
STEAM
Pressures From 15-450 PSI.
HOT WATER
Section I and Section IV
Advanced technology fire tubes with enhanced
heat transfer characteristics.
S E R I E S B O I L E R S
