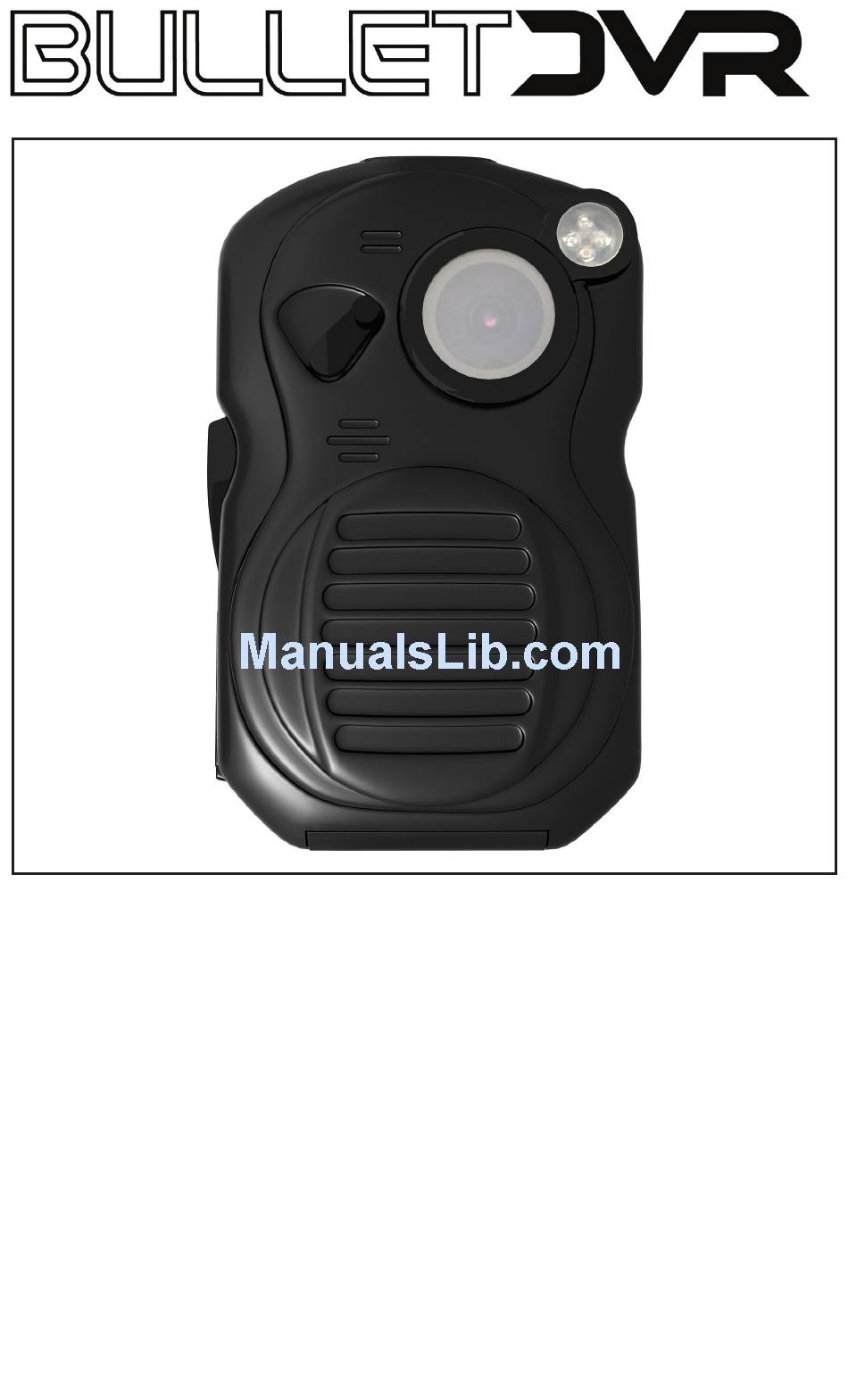

- Page 1 ™ HD-3G Video Recording System User’s manual Copyright 2011 Speed Concepts Ltd.
-
Page 2: Table Of Contents
HD-3G Video Recording System User’s manual HD-3G Video Recording System Table of Contents: page Control buttons................3 Explaining the control buttons............4 Battery Maintenance...............5 Memory card installation..............5 Explaining the Configuration Menus..........6 Video Mode settings................7 Photo Mode Settings...............8 Playback Mode................9 File Storage...................10 GPS Conversion Software............10 Connecting to an HDTV set............11... -
Page 3: Control Buttons
HD-3G Video Recording System User’s manual GPS Receiver LED Flash Light Lens Night vision switch HDMI Out AV Out USB SD Card LCD Screen Auto-record Switch PTT Switch Mounting Point Radio Plug Mode button Power button Menu button Reset switch... -
Page 4: Explaining The Control Buttons
HD-3G Video Recording System User’s manual Explaining the control buttons: • Joystick The joystick button has four different functions: Left= LCD On/Off Up= Zoom in Down= Zoom out Press= Flip Image/OK • Record Press to start/stop a recording or to take a snapshot. -
Page 5: Battery Maintenance
HD-3G Video Recording System User’s manual Battery Maintenance The HD-3G camera uses a rechargeable, high capacity Lithium- Polymer battery pack, capable of providing over 6 hours of run time on a single charge. We recommend charging the battery completely before the first use. A full charge takes around 10 hours to complete. -
Page 6: Explaining The Configuration Menus
HD-3G Video Recording System User’s manual Explaining the Configuration Menus Each of the 3 available modes (Video, Photo & Playback) allows you to change different settings, to adjust the camera to the ambient light conditions and also to configure other system settings. -
Page 7: Video Mode Settings
HD-3G Video Recording System User’s manual Video Mode settings • Size = Select the desired resolution: 1920x1080 @ 30fps, 1440x1080 @ 30 fps, 1280x720 @ 30 fps, 848x480 @ 60 fps. • EV = Exposure compensation. Override the automatic settings of the camera. -
Page 8: Photo Mode Settings
HD-3G Video Recording System User’s manual • Date = Configure the current date. • Clock = Configure the current time. • Format = If you are having problems with the memory card, you can re-format it. • System Reset = Restore to original factory settings. -
Page 9: Playback Mode
HD-3G Video Recording System User’s manual • Size = Image resolution: 5 or 8 Mega pixels • EV = Exposure compensation • Quality = Image quality: Normal, Good, Fine. • White Balance = Select the ambient light that best suits the lighting conditions •... -
Page 10: File Storage
Select POWER ON to use the camera normally. GPS Conversion Software The Compact Disc provided with your HD-3G camera contains a file conversion utility for Windows PC computers. You will need it to convert the raw GPS data into a format that can be read by 3rd party applications, such as Google Earth and others. -
Page 11: Connecting To An Hdtv Set
GPS mapping application, to view the recorded route. Connecting to an HDTV set The HD-3G camera can be connected to any HDTV (1080p resolution is recommended) to see the image on a large screen while you are monitoring, recording or to playback your files. -
Page 12: Specifications
Refresh rate 1 Hz Dimensions 62 x 98 x 31 mm (2.4” x 3.8” x 1.2”) Weight 143 gr. (5 oz) Waterproofing Conforms to IP67 standards Distributed by: Speed Concepts Ltd 1284 Des Seigneurs #94086, Terrebonne, QC, J6W 5V4 Canada. www.speedconcepts.ca...
