Kantech Expansion Modules Cabinet KT-MOD-CAB Installation Sheet

Overview

The KT-MOD-CAB cabinet is an enclosure for the KT-MOD-REL8, the KT-MOD-INP16
and KT-MOD-OUT16 expansion modules. Up to 6 modules can be installed in the
cabinet.

Content

•
698-009K: Black cabinet
•
KT-MOD-SPI36: 1 m (3.0 ft) SPI cable assembly with 1 SPI connector
•
KT-LOCK: Lock with 2 keys
•
DN1805: Cabinet Install Sheet, French version
•
DN1806: Cabinet Install Sheet, English version
Related Documentation (each document is enclosed in their corresponding box)
•
KT-MOD-REL8: KT-400 Expansion Module 8-Relay with SPI Cable, Install Sheet, DN1786
•
KT-MOD-INP16: KT-400 Expansion Module 16-Zone Input with SPI Cable, Install Sheet, DN1776
•
KT-MOD-OUT16: KT-400 Expansion Module 16-Output with SPI Cable, Install Sheet, DN1781

Cabinet Description

•
Dimensions: 54 cm (21.2 in) High x 29.2 cm (11.5 in) Wide x 7.6 cm (3 in) Deep
•
Eight (8) standard knockouts 1.9 cm (0.75 in): 4 on top, 2 at the bottom and 1 on each bottom side
•
Two (2) additional openings, 6.3 cm (2.5 in), on the back panel

Installation

1. Insert the nylon standoffs into the back panel of the
cabinet.
Note: Make sure the cabinet is in the upward
position and the tamper switch location is on the
right.
IMPORTANT: Don't install the expansion modules
before checking their locations within the cabinet.
Trying to pull out the module from its standoffs
would damage it.
2. Secure the cabinet to the wall in the desired
location. Use appropriate wall anchors when
securing the cabinet to drywall, plaster, concrete,
brick or other surfaces.

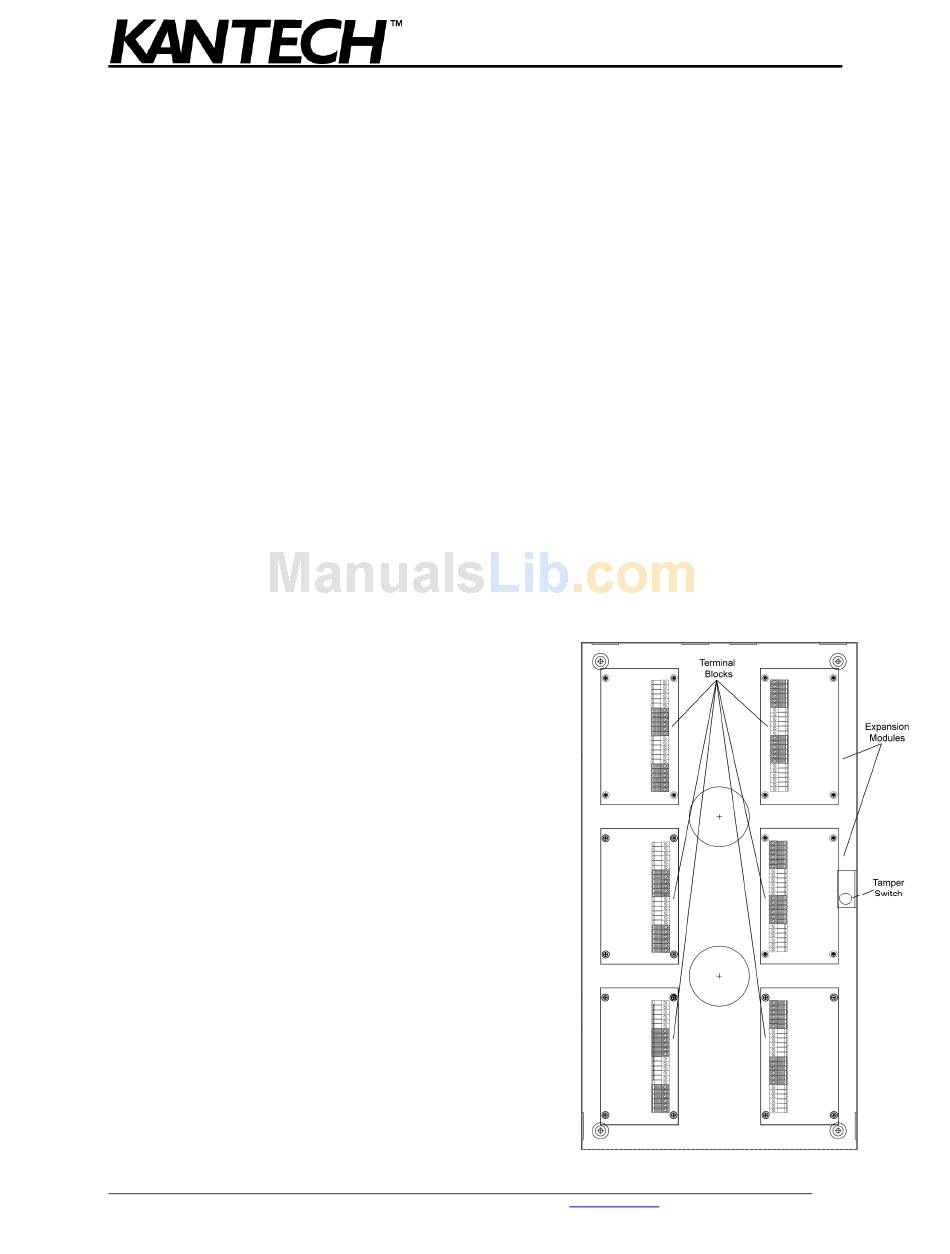

3. Mount the expansion modules on their standoffs.
IMPORTANT: Make sure the modules terminal
blocks are positioned towards the center of the
cabinet.
4. Run the 91 cm (36 in) SPI cable, provided with the
cabinet, from the KT-400 controller or expansion
modules cabinet, through one of the knockouts, to
st
the 1 module in the new cabinet.
