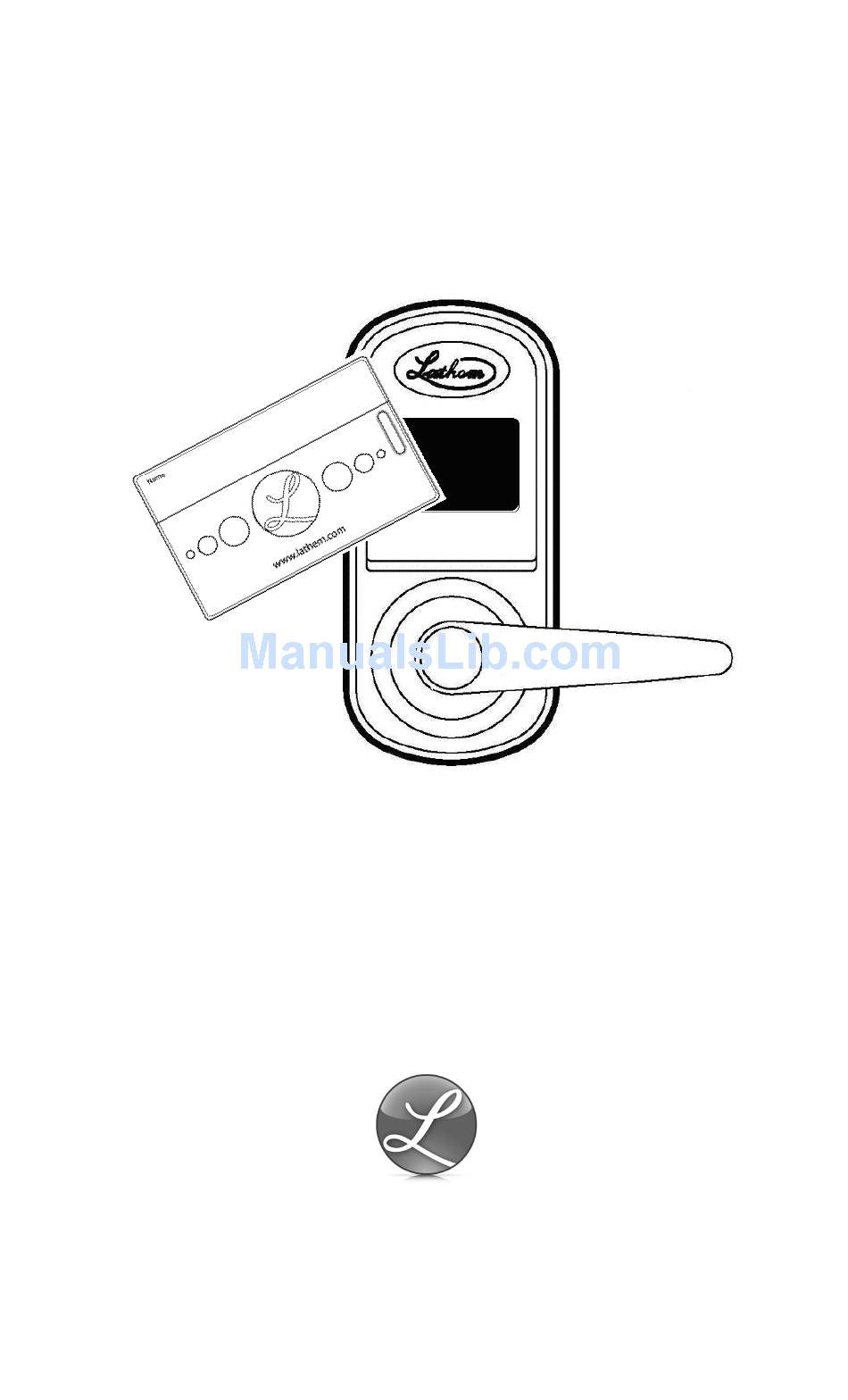

- Page 1 Model LX100 Proximity Door Lock User’s Guide Lathem Security Solutions Copyright © 2009 Lathem Time Corporation. All rights reserved. Document No: USG0071...
- Page 2 • The LX100 is not recommended for building exit doors. • The LX100 is not reversible from Right to Left hand or vice-versa. • Make sure you have the correct model for your door. There are 2 backup keys included for emergency purposes. Lathem •...
-
Page 3: Installation
LX100 User’s Guide Introduction The LX100 is a keyless proximity door lock that fits most standard doors. Simply replace your existing cylindrical style door handle with the LX100 for an economical access control system for your business or home. The locks provide stand alone operation and do not require the use of a computer or any external device for programming. - Page 4 When a badge or key fob is placed over the reader window of the LX100, it instantly reads its unique encoded ID number and verifies that it has been authorized to open the door. The LX100 comes with five preprogrammed badges which can be used immediately following installation with no additional setup required.
- Page 5 Bad Badge If a badge or key fob has not been programmed into the lock, the LX100 will flash a red light and a sound a negative tone. The handle will not engage the latch and the door will not open.
- Page 6 The Master not only allows access through the door, but also provides additional administrative rights to the holder so they can add and remove users as needed. The LX100 supports up to two (2) Master badges or key fobs. Each Master can add up to 59 individual Users.
- Page 7 A User badge or key fob allows access through the door. User badges or key fobs are added by a Master badge. There can be up to 59 User badges assigned to each Master card. The LX100 comes with four (4) preprogrammed User badges. These badges do not have the global key sticker like the Master badge.
- Page 8 Lathem Security Solutions Backup Keys The keys enclosed with your LX100 are for backup purposes in the event of badge loss or battery failure only. Keep your keys in a protected and easy-to-remember location OUTSIDE of the room the lock is on. Lathem does not manufacture or stock extra keys.
- Page 9 LX100 User’s Guide Adding a Master Badge Remove the interior handle from over the battery compartment. Press the Program Button four times, one right after another. Press Program Button Release 4 Times The blue light will appear and you will hear a long beep.
- Page 10 Select badge to assign as a Master, and place it over the reader window. Note: If this is a current User badge, you must first delete this User from the LX100 before it can be added as a Master. Light...
- Page 11 LX100 User’s Guide Adding a User Badge Place a Master badge over the reader window until you hear a beep. Master Badge The blue light will begin flashing. Place a new User badge over the reader window. New User Flashing...
- Page 12 Lathem Security Solutions Deleting an Individual Badge Only You can not individually delete a Master badge. Only User badges can be individually deleted. You must reset the lock, deleting ALL badges, to delete a Master badge (see Resetting the Lock).
- Page 13 LX100 User’s Guide Deleting All User Badges Only You can delete all of the User badges assigned to a specific Master badge without deleting the Master badge itself. Place the Master badge, originally used to add the Users, over the reader window four (4) times in succession. You will hear a beep each time and the blue light will flash.
- Page 14 Lathem Security Solutions Customize Unlock Window Time This specifies the door open time after a valid badge is used. Remove the interior handle from over the battery compartment. Press the Program Button once to set the unlock window to 3 seconds.
- Page 15 LX100 User’s Guide “Meeting Mode” Setting (Lock Bypass) Warning: Meeting Mode disables the lock and bypasses the use of badges for authorization. When in this mode, the lock will function only as a door handle. These badges will serve as “on/off switches”...
- Page 16 Lathem Security Solutions 3. The light will now flash red and blue. Place the badge you want to program for Meeting Mode on the display. You will hear 4 ascending notes (1-2-3-4). Place un- programmed User Badge on Reader Window while lights are flashing 4.
-
Page 17: Resetting The Lock
LX100 User’s Guide Resetting the Lock Remove the Interior handle. Press and hold down the Program Button for 5 seconds. Press Program and Hold Button for 5 Seconds The blue LED will appear and you will hear one beep, followed by 3 ascending tones. - Page 18 Lathem Security Solutions Using Multiple Locks If you have purchased multiple LX100s, you can configure and change the badge accessibility to each of your locks as you prefer. Remember that each lock is stand alone which means you must program them individually. However, this also means you have greater flexibility to customize access to rooms as employees or work areas change.
-
Page 19: Maintaining The Lock
LX100 User’s Guide Maintaining the Lock The Lathem LX100 is designed for years of trouble-free operation. The only routine maintenance typically required is the changing of batteries and occasional cleaning. You should routinely check your batteries every few months depending on the usage of door. -
Page 20: Installing The Lock
Lathem Security Solutions Installing the Lock PLEASE NOTE: We have used a Right hand LX100 for purposes of demonstration in this User Guide. 1. Affix the gaskets to the Exterior handle and battery pack. Use the 4 “dimple” guides in each corner and insert them in corresponding holes, peel away sticker and attach. - Page 21 LX100 User’s Guide 3. Insert axle (short axle for thinner doors, longer axle for thicker doors included) into center turning hub. Make sure the “dot” is up on the turning hub and holes are vertical on axle. 4. Insert securing pin downward thru top of turning hole, thru axle until pin is completely thru.
- Page 22 Lathem Security Solutions 6. If the axle and pillars fit, you may elect to keep your current latch in place or remove it and replace with the latch included. To expand latch for larger door hole, hold front of latch with one hand and pull on center axle hub. Make sure that latch slope faces the same direction the door closes.
- Page 23 LX100 User’s Guide 8. Push thru and allow Exterior handle to rest in latch. 9. Run wire thru rectangular opening in battery pack (to side of center hole). 10. Secure battery pack with 2 long connector screws at each side of opening into connecting pillars.
- Page 24 Lathem Security Solutions 11. Make sure Exterior handle and battery pack are straight as you tighten connector screws. 12. Connect wire to circuit board underneath the bottom battery on the battery pack. Observe how pins align with plastic connector. 13. Push back any excess wire thru the rectangular opening.
- Page 25 LX100 User’s Guide 14. Install 4 new AA (1.5 volt) alkaline batteries (not included) into battery pack on Interior handle. Make sure they are installed in the correct direction and are firmly seated in position. You will hear a buzz, indicating the lock is energized.
- Page 26 Lathem Security Solutions Preparing a New Door Verify that your new door is 1 3/8” – 2” thick. 1. Use the enclosed “Door Cutting Template” to mark your drill holes. Note: Position template at correct height (suggested: 38” or 97 mm from floor). Mark center for lock hole.
- Page 27 LX100 User’s Guide Latch Installation Use enclosed “Strike Plate Cutting Template” to cut and install latch in door as indicated below. 1. Insert latch into 1 1/8” latch hole in “width” of door. Latch is expandable, depending on the size of your door hole, to 2 ¾”.
- Page 28 Lathem Security Solutions Strike Plate & Dust Boot Installation 1. If you are installing on an existing door jamb, you may be able to use your existing strike. However, it is recommended that you use the strike included. 2. On a new door, use the “Strike Plate Cutting Template” to mark and install the strike plate.
-
Page 29: Troubleshooting
LX100 User’s Guide Troubleshooting Problem Solution No response from badge Make sure you’re holding badge on window and allow 1 – 2 seconds. Batteries may be expired. Replace with new batteries. Badge damaged – replace badge. Badge will not operate door Badge not assigned –... -
Page 30: One Year Warranty
Lathem Security Solutions One Year Warranty Lathem warrants the hardware product described in this guide against defects in material and workmanship for a period of one year from date of original purchase from Lathem or from an authorized Lathem reseller. The conditions of this warranty and the extent of the responsibility of Lathem Time Corporation (“Lathem”) under this warranty are listed below. - Page 31 LX100 User’s Guide Accessories Accessories are normally available from the place where you originally purchased your LX100 door lock or online at http://shop.lathem.com Additional Proximity Badges (RF-BADGE) Use to add more users to your door lock or replace lost or stolen badges. These are the same badges used with Lathem’s PC50...
- Page 32 Lathem Security Solutions Page 32...
