KT-400
Ethernet Four-Door Controller
Installation Manual
DN1726-0811

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ethernet Four-Door Controller KT-400 and is the answer not in the manual?

Questions and answers

Related Manuals for Kantech Ethernet Four-Door Controller KT-400

Summary of Contents for Kantech Ethernet Four-Door Controller KT-400

  • Page 1 KT-400 Ethernet Four-Door Controller Installation Manual DN1726-0811...

  • Page 3: Table Of Contents

    Table of Contents Pre-Installation Information ... 1 Copyright Information ... 1 Safety Instructions ... 1 Technical Support ... 2 Compliance Specifications ... 3 FCC & IC Compliance ... 3 UL Compliance ... 3 UL 294 Compliance Notice ... 3 UL 1076 Compliance Notice ... 3 Overview ...
  • Page 4 Configuring the KT-400 Ethernet Four-Door Controller with the KT-Finder ... 33 Installation Checklist ... 37 Inputs and Outputs Assignments Sheet ... 38 DN1726-0811...

  • Page 5: Pre-Installation Information

    Pre-Installation Information To the Installer: If you are familiar with the installation, you can use the installation checklist on page 37 with symbol. Copyright Information Copyright © 2008 Tyco International Ltd. and its Respective Companies. All Rights Reserved. All specifications were current as of publication date and are subject to change without notice.

  • Page 6: Technical Support

    Technical Support For technical assistance with the KT-400 Ethernet Four-Door Controller and other Kantech products, contact technical support, Monday to Friday. See the following table for the technical support phone numbers. Country/Region US and Canada Argentina Singapore Europe Toll Free +800 CALL TYCO / +800 2255 8926 (GMT +01:00) Bahrain France Greece...

  • Page 7: Compliance Specifications

    Compliance Specifications FCC & IC Compliance This device complies with Part 15 of the FCC rules Class A. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
  • Page 8 • 1 GB RAM Minimum free hard disk space: 20 GB • Color depth: 24-bit (16 million colors), required for Video Integration only • Screen resolution: 1024 x 768 • • Graphic adapter card: 32 MB • 48X CD-ROM drive •...

  • Page 9: Overview

    Overview The KT-400 Ethernet Four-Door Controller is designed to meet the highest standards of access control and point monitoring applications. Here are the features of the KT-400 Ethernet Four-Door Controller. Compatible with all EntraPass Special, Corporate and Global Editions The KT-400 Ethernet Four-Door Controller is compatible with all EntraPass Editions v4.01 and higher: EntraPass Special Edition EntraPass Corporate Edition with a Corporate Gateway EntraPass Global Edition with a Corporate Gateway...

  • Page 10: Inputs

    Inputs There are 16 onboard inputs on the KT-400 Ethernet Four-Door Controller. Up to 240 more can be added through the addition of expansion modules, such as the KT-MOD-INP16, for a total of 256 inputs. Each input can be individually configured for one of the following application: •...

  • Page 11: Downloadable Firmware

    Downloadable Firmware The firmware program can be downloaded from any EntraPass workstation to the KT-400 Ethernet Four-Door Controller. The firmware program, stored in the controller’s flash memory, is upgraded without having to change any parts. Trouble and Reporting The KT-400 Ethernet Four-Door Controller constantly supervises ac power and battery condition and reports “AC Lost”, “Normal Battery”, “Low Battery”, “Battery Critical”...
  • Page 12 Figure 1: KT-400 Ethernet Four-Door Controller PCB View DN1726-0811...
  • Page 13 Figure 2: KT-400 Ethernet Four-Door Controller Inputs and Outputs View BATT LOCK 13.75V LK4- PTF1 +12V- TAMP EGND LK3- LK2- LK1- PTF3 MODULE DN1726-0811...

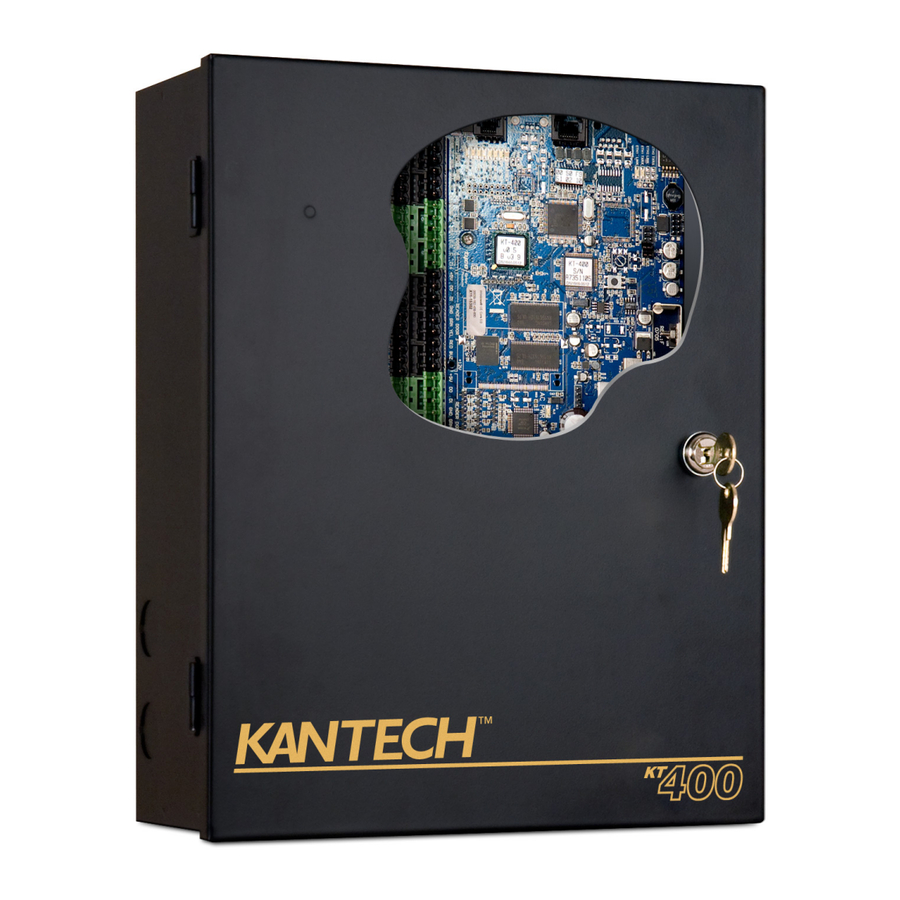

  • Page 14 Figure 3: KT-400 Cabinet Model for North America DN1726-0811...

  • Page 15: System Architecture

    System Architecture The KT-400 Ethernet Four-Door Controller can be used through various site applications with EntraPass Special Edition, EntraPass Corporate Edition and EntraPass Global Edition. Applications with EntraPass Special Edition and Corporate Edition with Corporate Gateway. • Over the internet. See Figure 4. •...
  • Page 16 Figure 5: USB-485 with EntraPass Special Edition and Corporate Edition with Corporate Gateway Figure 6: VC-485 with EntraPass Global Edition and Global or Corporate Gateway DN1726-0811...
  • Page 17 KT-400 Ethernet Four-Door Controller Installation Manual Figure 7: Over the internet with a KT-NCC and EntraPass Global Edition Figure 8: Over RS-232 straight from the EntraPass RS-232 COM port DN1726-0811...

  • Page 18: Vital Led Heartbeat Patterns

    VITAL LED Heartbeat Patterns Communication status and other vital controller parameters can be obtained from VITAL LED heartbeat patterns. It is located near the RS-232 port (COM3), see Figure 1. This information is particularly useful when connecting the controller to the rest of the EntraPass system. The following table lists all conditions along with a brief description. Refer to Table 3, if you must reset or change the communication mode of the KT-400 Ethernet Four-Door Controller.

  • Page 19: Technical Specifications

    Technical Specifications Type Power input (KT-400) Transformer class 2, IN 120 VAC; OUT 16 VAC, 75 VA Battery back-up (KT-BATT-12) 12 VDC, 7 Ah battery supervised, provides up to 12 hours of operation Operating Temperatures From 2°C to 49°C (35°F to 120°F) indoor use only Humidity Level 0 to 85% (relative humidity non-condensing).

  • Page 20: Electrical Specifications

    Electrical Specifications OPEN COLLECTOR OUTPUTS LEDs (LED, OUT1 and OUT2) for each door reader Buzzer (Buz) for each door reader OUTPUTS 1 for 12 VDC Auxiliary Power (11.2 to 13.75 VDC) polyswitch protected, shared with SPI expansion port 4 for Controlled Readers (11.2 to 13.75 VDC) 4 for Controlled Readers 5 VDC 4 for Locks (11.2 to 13.75 VDC) when jumper JP4 is on INT (internal)
  • Page 21 Part number DN1475 EntraPass Special Edition, Reference Manual - Spanish version DN1436 EntraPass Corporate Edition, Reference Manual - Spanish version DN1599 EntraPass Global Edition, Reference Manual - Spanish version DN1514 EntraPass Special Edition, Reference Manual - German version DN1598 EntraPass Corporate Edition, Reference Manual - German version DN1597 EntraPass Global Edition, Reference Manual - German version DN1684...

  • Page 22: Models Information

    Models Information • KT-400: Cabinet with one KT-400 for North America, up to three expansion modules can be installed in the cabinet, • KT-400-PCB: KT-400 with parts, KT-400-ACC: Accessory kit, • KT-400-CAB: Cabinet only for North America, • Item Description KT-400 PCB Cabinet KT-400-ACC Accessory Kit...

  • Page 23: Installing The Kt-400 Ethernet Four-Door Controller

    Installing the KT-400 Ethernet Four-Door Controller Preparing to Install the KT-400 Ethernet Four-Door Controller Required to install KT-400 Ethernet Four-Door Controller • For North America: AC transformer 120 VAC 60 Hz IN; 16 VAC, 75 VA OUT; class 2 (not included) •...

  • Page 24: Hooking Up Inputs

    Warning: Controlled door locks may be governed by regulatory bodies and should always be installed according to local regulations. In most instances, there are strict limitations to installing fail-secure devices and fail-safe locking devices such as magnetic locks or other similar locking devices on doors used as emergency exits. Hooking Up Inputs Connect devices to inputs 1 to 16 Resistors for all inputs 5.6K ohm (if selected)

  • Page 25: Relay Controlled Outputs

    Relay Controlled Outputs The KT-400 provides four relay outputs RELAY1 to RELAY4 (3 Amps, 30 VAC/VDC). The KT-400 can be expanded up to 256 controlled outputs when using expansion modules. • The KT-MOD-OUT16 module provides 16 outputs at a maximum of 750 mA per output.

  • Page 26: Connecting The Kt-400 Ethernet Four-Door Controller

    Connecting the KT-400 Ethernet Four-Door Controller Connecting the VC-485 or the USB-485 to the RS-485 Bus Connect the RS-485 cable to (COM1) + 485 - and the RS-485 signal ground to the 12 VDC AUX Controllers are linked together through their RS-485 terminals. The maximum communication loop length is 1.2 km (4,000 ft) using appropriate cabling.

  • Page 27: Connecting Over Corporate Network (Lan)

    Connecting the Master Controller to the Host PC via RS-232 Connect RS-232 cable from KT-400 to the PC (maximum length 30 m (100 ft)) If the local master controller is located more than 30 m (100 ft) from the host computer, you must use a VC-485 or USB-485 interface.

  • Page 28: Spi Expansion Port

    SPI Expansion Port The SPI (Serial Peripheral Interface) expansion port on the KT-400 is used to connect expansion modules, in order to add more inputs and outputs such as relays. The maximum current draw for the SPI expansion port is 500 mA when the 12V AUX terminals are not used.

  • Page 29: Important Installation Rules About Expansion Modules

    Important Installation Rules about Expansion Modules Note 1: The maximum current draw must be calculate each time there is a new module added to the SPI chain. Rule 2: The SPI cable, between the KT-400 and the 1st module or between each modules, cannot exceed 1 m (3 ft). Shielded wire should only be used in areas with excessive RF noise of electromagnetic interference.
  • Page 30 Figure 10: PCB View of Expansion Modules DN1726-0811...
  • Page 31 Figure 11: Example of KT-400 Ethernet Four-Door Controller Interconnection with Expansion Modules BK R BK R BK R DN1726-0811 R BK 12V + BLK RED R BK 12V + BLK RED...
  • Page 32 Figure 12: Expansion Modules Cabinet for North America DN1726-0811...

  • Page 33: Reset Types And Descriptions

    Troubleshooting Jumpers Heartbeats Continuous quick flashing 4 short pulses 3 long pulses Continuous long pulses Table 3: Reset Types and Descriptions Patterns Soft Reset: When JP2 and JP3 are ON, the controller will reset on a) power up, b) pushbutton, or c) EntraPass software 'Manual operator soft reset': •...

  • Page 34: Default Initialization

    Default initialization The KT-400 default initialization or Factory Default DHCP is done at Kantech. The following steps should only be followed if: a) You want to configure the KT-400 with the KT-Finder, see page 33. b) The KT-400 was communicating via the RS-232 port and you have installed a VC-485 or USB-485 to communicate via the RS-485 port.

  • Page 35: Kt-400 Ethernet Four-Door Controller Maintenance Recommendations

    KT-400 Ethernet Four-Door Controller Maintenance Recommendations The KT-400 includes a lithium ion rechargable battery (see the KT-400 Ethernet Four-Door Controller PCB View on page 8). This battery must be replaced by a Kantech technician to avoid any risk of explosion. If the Lithium-Ion battery stops working, return the circuit board to Kantech.

  • Page 36: Configuring The Kt-400 Ethernet Four-Door Controller With The Web Configuration Page

    Configuring the KT-400 Ethernet Four-Door Controller with the Web Configuration Page This procedure is practical if you want to configure the KT-400 in advance before going on site. Optional Documentation Application Note, Networking Basics, DN1796. Before you start • The detachable Network Configuration Information Sheet is fully completed. •...

  • Page 37: Configuring The Kt-400 Ethernet Four-Door Controller With The Kt-Finder

    Configuring the KT-400 Ethernet Four-Door Controller with the KT-Finder The KT-Finder is an application used to configure the KT-400 over the local area network (LAN) or the wide area It doesn’t require any installation. network (WAN). Important: The KT-Finder application is: C:\Program Files\Kantech\Server_xE\Bin, or •...
  • Page 38 Configuring the KT-400 Ethernet Four-Door Controller with the KT-Finder (continued) 7. Put jumpers on JP2 and JP3. 8. Verify your Network Configuration Information Sheet: • Enter the EntraPass IP address or the Domain name of the EntraPass Gateway. This information must be the same as entered in EntraPass workstation for Devices >...

  • Page 39: Configuration In A Local Area Network

    KT-400 Ethernet Four-Door Controller Network Configuration Information Sheet Please complete one sheet per KT-400 Ethernet Four-Door Controller Company Name: Site Name: LAN or WAN (see other side) Configuration in a Local Area Network (LAN) For more details, refer to the EntraPass Reference Manual. MAC Address: 00:50:F9: ______:______:______ Port (18810 by Default) or _________ IP Address Type:...
  • Page 40 Configuration in a Wide Area Network (WAN) For more details, refer to the EntraPass Reference Manual. EntraPass Special Edition / Corporate Gateway IP Address: ______.______.______.______ Router Public IP Address:______.______.______.______ Domain name: ____________________________ Port Forwarding Checklist For more details, refer to the EntraPass Reference Manual. EntraPass Gateway Ports: KT-400 Ethernet Four-Door Controller Site MAC Address: 00:50:F9: ______:______:______...

  • Page 41: Installation Checklist

    Installation Checklist To the Installer: If you are familiar with the installation, you can use the checklist with the Installing the KT-400 Ethernet Four-Door Controller Preparing to install the KT-400 Ethernet Four-Door Controller Required to install KT-400 Ethernet Four-Door Controller Physical Installation Check for ideal indoor location Stay away from electrical or communication devices...

  • Page 42: Inputs And Outputs Assignments Sheet

    Inputs and Outputs Assignments Sheet DOOR 1 DOOR 2 DOOR 3 DOOR 4 DOOR Z1 REX Z2 INPUT Z3 INPUT Z4 DOOR Z5 REX Z6 INPUT Z7 INPUT Z8 DOOR Z9 REX Z10 INPUT Z11 INPUT Z12 DOOR Z13 REX Z14 INPUT Z15 INPUT Z16 RELAY 1...
  • Page 43 KT-400 Ethernet Four-Door Controller Installation Manual Figure 14: KT-400 Cabinet Inner Door Sticker Diagram (North America) Figure 15 DN1726-0811...
