Summary of Contents for Giesecke & Devrient Cash Control Unit 1.0

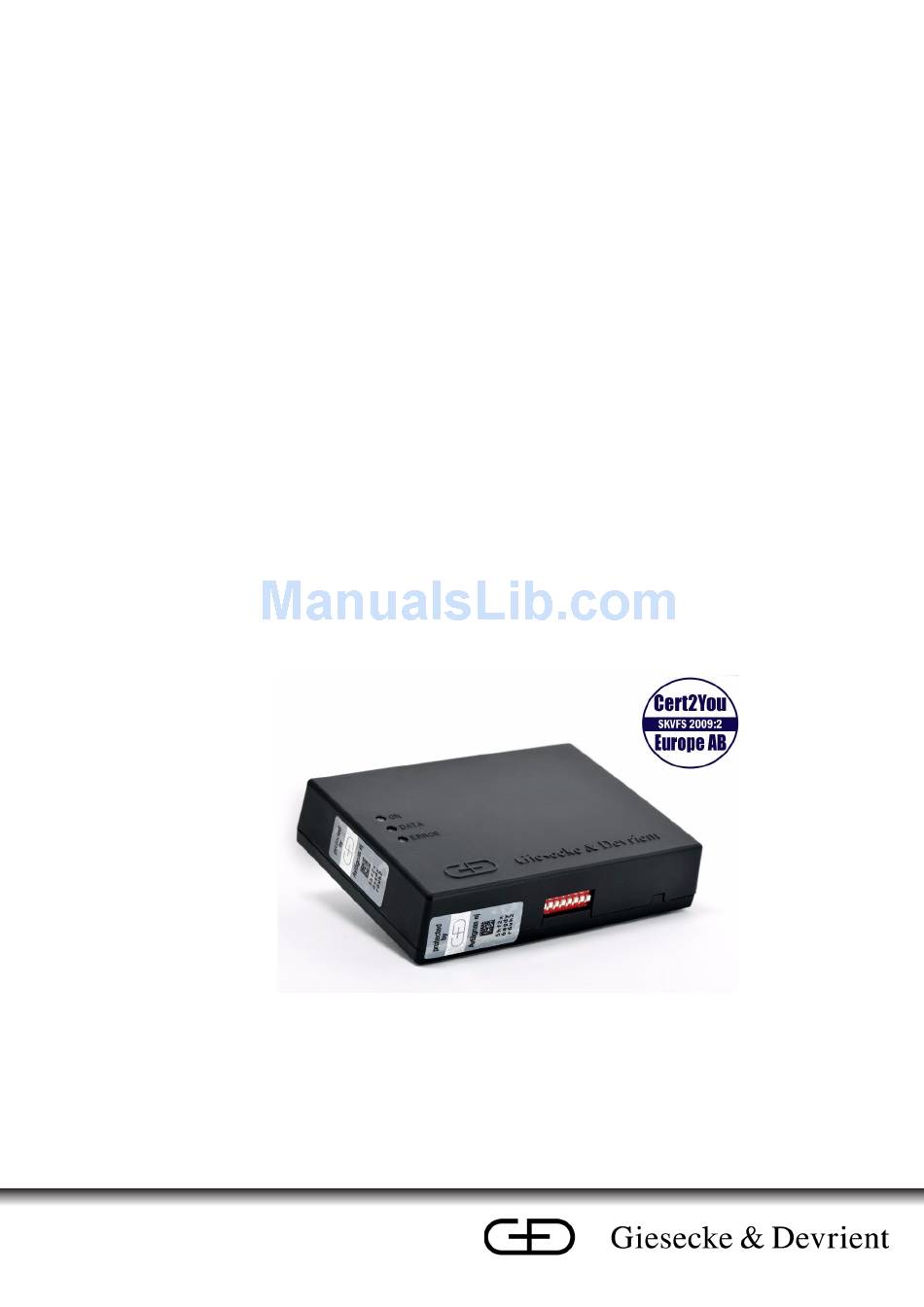

- Page 1 Cash Control Unit 1.0 Certified Transaction Logging for Cash Registers in Sweden User Manual Edition 12.2009...
- Page 2 ID No. 30033908 © Copyright 2009 by Giesecke & Devrient GmbH Prinzregentenstr. 159 Postfach 80 07 29 D-81607 München This document as well as the information or material contained is copyrighted. Any use not explicitly per- mitted by copyright law requires prior consent of Giesecke & Devrient GmbH. This applies to any repro- duction, revision, translation, storage on microfilm as well as its import and processing in electronical systems, in particular.
-
Page 3: Table Of Contents
2 Working with Cash Control Unit Connecting and Disconnecting Cash Control Unit............ 16 Transferring Data ..................... 18 Appendix Safety and Cleaning....................22 Disposal ........................24 Glossary........................25 Index ..........................27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908... - Page 4 Contents User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908...
-
Page 5: About Cash Control Unit
< 500 mA Dimensions 115 x 85 x 25 mm Operating temperature -5°C to +40°C Storage temperature -15°C to +60°C (short term) Operating humidity 10% to 85% relative humidity 1 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908... - Page 6 Cash Control Unit adheres to the following standards: Related Standards – SD Specification 2.0 – IEC 721-3-7:7K2 – IEC 721-3-7:7B1 – IEC 721-3-7:7C1L – IEC 721-3-7:7M1 – IEC 721-3-7:7M2 (drop) 2 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908...
- Page 7 The Cash Control Unit package comprises: Delivery Extent – Cash Control Unit – Power supply – RS232 cable – Protective seal for DIP switches – User manual Fig. 1 Delivery extent 3 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908...
-
Page 8: About The Document
Notes comprise hints and recommendations useful when working with Cash Control Unit. Warnings must be read carefully - they prevent severe malfunc- tions and loss of data! 4 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908... -
Page 9: Understanding Cash Control Unit
Understanding Cash Control Unit Understanding Cash Control Unit This chapter describes the basic principles of Cash Control Unit and pro- vides background information. 5 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908... -
Page 10: Connections And Sd Slot
Serial Port Pins Fig. 3 Serial port with numbered pins The Cash Control Unit serial port pins are used for the following signals: Signal Direction outgoing outgoing incoming incoming 6 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908... - Page 11 The SD slot is always covered by a seal to prevent tampering. For more information on seal placement and how to insert the SD card see ’2.2 Transferring Data’ on page 18. 7 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908...
-
Page 12: Leds
SD removed or power shut off before completion, or SD full Other technical problem Internal flash memory full blinking Internal counter overflow blinking Smart-card error 8 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908... -
Page 13: Dip Switches
Set switches 1 and 2 for desired communication speed as follows: DIP Switch Settings Communication Speed Switch 1 Switch 2 9,600 bps 19,200 bps DOWN 38,400 bps DOWN Default setting (9,600 bps) 9 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908... - Page 14 The figure below shows the protective seal used to cover the DIP switches. Fig. 7 Protective seal for DIP switches 10 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908...
-
Page 15: Security Seal
– On the bottom of Cash Control Unit Upon close inspection these seals must be intact and untampered with. Special attention must be paid to insure that the seals have not been cut. 11 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908... - Page 16 Security seals over SD slot and on the front of Cash Control Unit Fig. 10 Security seal on the back of Cash Control Unit Fig. 11 Security seal on the bottom of Cash Control Unit 12 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908...
-
Page 17: Product Label
The serial and certificate numbers, and the certification seal are found on the product label attached to the bottom of Cash Control Unit. Serial number Certification body logo Certificate number Fig. 12 Product label for Cash Control Unit 13 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908... - Page 18 Understanding Cash Control Unit Product Label 14 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908...
-
Page 19: Working With Cash Control Unit
This chapter describes how to connect and disconnect Cash Control Unit, and how to transfer control data from Cash Control Unit to a tax officer’s storage card. 15 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908... -
Page 20: Connecting And Disconnecting Cash Control Unit
2. Place a seal over the DIP switches (see ’ Seal’ on page 10). 3. Connect provided RS232 data cable to Cash Control Unit’s serial port and the other end to the ECR. 16 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908... - Page 21 1. Shut off the electronic cash register to ensure no operations that might affect Cash Control Unit are in progress. 2. Disconnect Cash Control Unit from the power supply. 3. Disconnect the RS232 data cable from the ECR. 17 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908...
-
Page 22: Transferring Data
Unit. This can take about 30 seconds. The yellow DATA LED blinks to indicate data transfer to the stor- age card (see ’1.2 LEDs’ on page 8). 18 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908... - Page 23 6. When data transfer has been completed and the yellow DATA LED has stopped blinking, remove the storage card from the SD slot. 7. Place a new seal over the card slot. 19 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908...
- Page 24 Working with Cash Control Unit Transferring Data 20 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908...
-
Page 25: Appendix
Appendix Appendix The appendix contains additional information on Cash Control Unit and the index. 21 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908... -
Page 26: A Safety And Cleaning
– Cash Control Unit is no longer functioning In this case, Cash Control Unit must be switched off and it must be ensured that Cash Control Unit can no longer be operated. 22 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908... - Page 27 DC power systems“ (UL 60950-1, Annex NAB; D2) and therefore may not be connected to such devices! Clean Cash Control Unit with a dry cloth. Cleaning Cash Control Unit 23 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908...
-
Page 28: Disposal
By recycling, reusing the materials or other forms of utilizing old devices, you are making an important contribution to protecting our environ- ment. 24 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908... -
Page 29: Glossary
SDHC Secure Digital High Capacity an extension of the SD standard which increases card storage capac- ity up to 32 GB SELV safety extra-low voltage Transmit 25 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908... - Page 30 Appendix Glossary 26 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908...
-
Page 31: Index
6 product label 13 RS232 6 safety 22 SD slot 7 security seal 11 serial number 13 serial port 6 serial port pins 6 standards 2 27 of 27 User Manual Cash Control Unit 1.0/Edition 12.2009 ID No. 30033908...
