Daewoo FR-061 Instruction Manual

051/081/121(FR-061/091/142)¿ „fi 00.6.8 11:31 AM ˘ ` 1

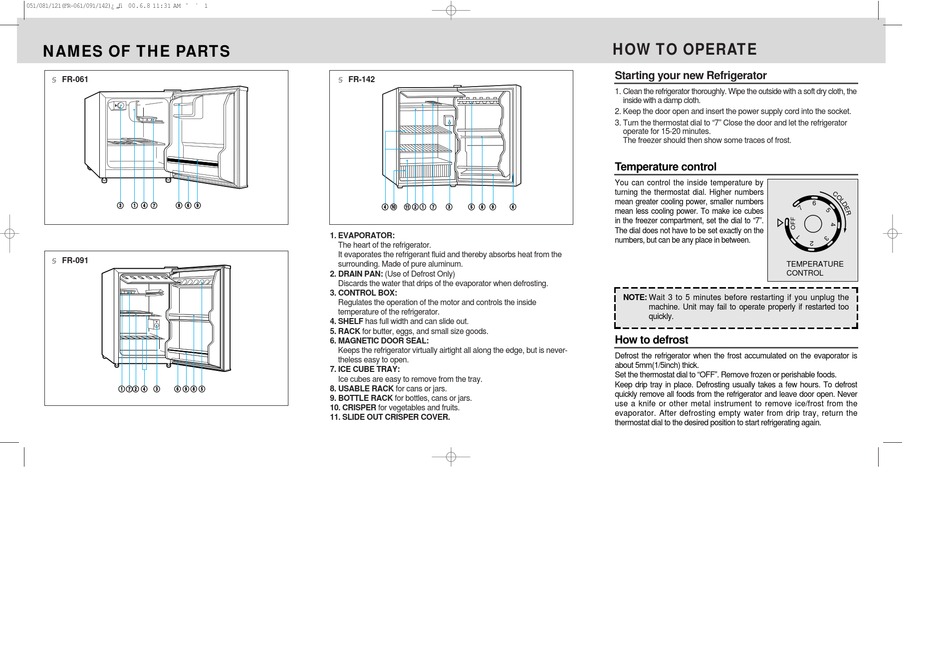

NAMES OF THE PARTS

§ FR-061
# ! $ & * ^ (
§ FR-091
!&@ $ # ^ ( * %
§ FR-142
$ ) 1 @! & # % * (
1. EVAPORATOR:
The heart of the refrigerator.
It evaporates the refrigerant fluid and thereby absorbs heat from the
surrounding. Made of pure aluminum.
2. DRAIN PAN: (Use of Defrost Only)
Discards the water that drips of the evaporator when defrosting.
3. CONTROL BOX:
Regulates the operation of the motor and controls the inside
temperature of the refrigerator.
4. SHELF has full width and can slide out.
5. RACK for butter, eggs, and small size goods.
6. MAGNETIC DOOR SEAL:
Keeps the refrigerator virtually airtight all along the edge, but is never-
theless easy to open.
7. ICE CUBE TRAY:
Ice cubes are easy to remove from the tray.
8. USABLE RACK for cans or jars.
9. BOTTLE RACK for bottles, cans or jars.
10. CRISPER for vegetables and fruits.
11. SLIDE OUT CRISPER COVER.

HOW TO OPERATE

Starting your new Refrigerator
1. Clean the refrigerator thoroughly. Wipe the outside with a soft dry cloth, the
inside with a damp cloth.
2. Keep the door open and insert the power supply cord into the socket.
3. Turn the thermostat dial to "7" Close the door and let the refrigerator
operate for 15-20 minutes.
The freezer should then show some traces of frost.
Temperature control
You can control the inside temperature by
turning the thermostat dial. Higher numbers
mean greater cooling power, smaller numbers
^
mean less cooling power. To make ice cubes
in the freezer compartment, set the dial to "7".
The dial does not have to be set exactly on the
numbers, but can be any place in between.
NOTE: Wait 3 to 5 minutes before restarting if you unplug the
machine. Unit may fail to operate properly if restarted too
quickly.
How to defrost
Defrost the refrigerator when the frost accumulated on the evaporator is
about 5mm(1/5inch) thick.
Set the thermostat dial to "OFF". Remove frozen or perishable foods.
Keep drip tray in place. Defrosting usually takes a few hours. To defrost
quickly remove all foods from the refrigerator and leave door open. Never
use a knife or other metal instrument to remove ice/frost from the
evaporator. After defrosting empty water from drip tray, return the
thermostat dial to the desired position to start refrigerating again.
6
2
TEMPERATURE
CONTROL
