Lynx AES16E User Manual

192khz multichannel aes/ebu pci express interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

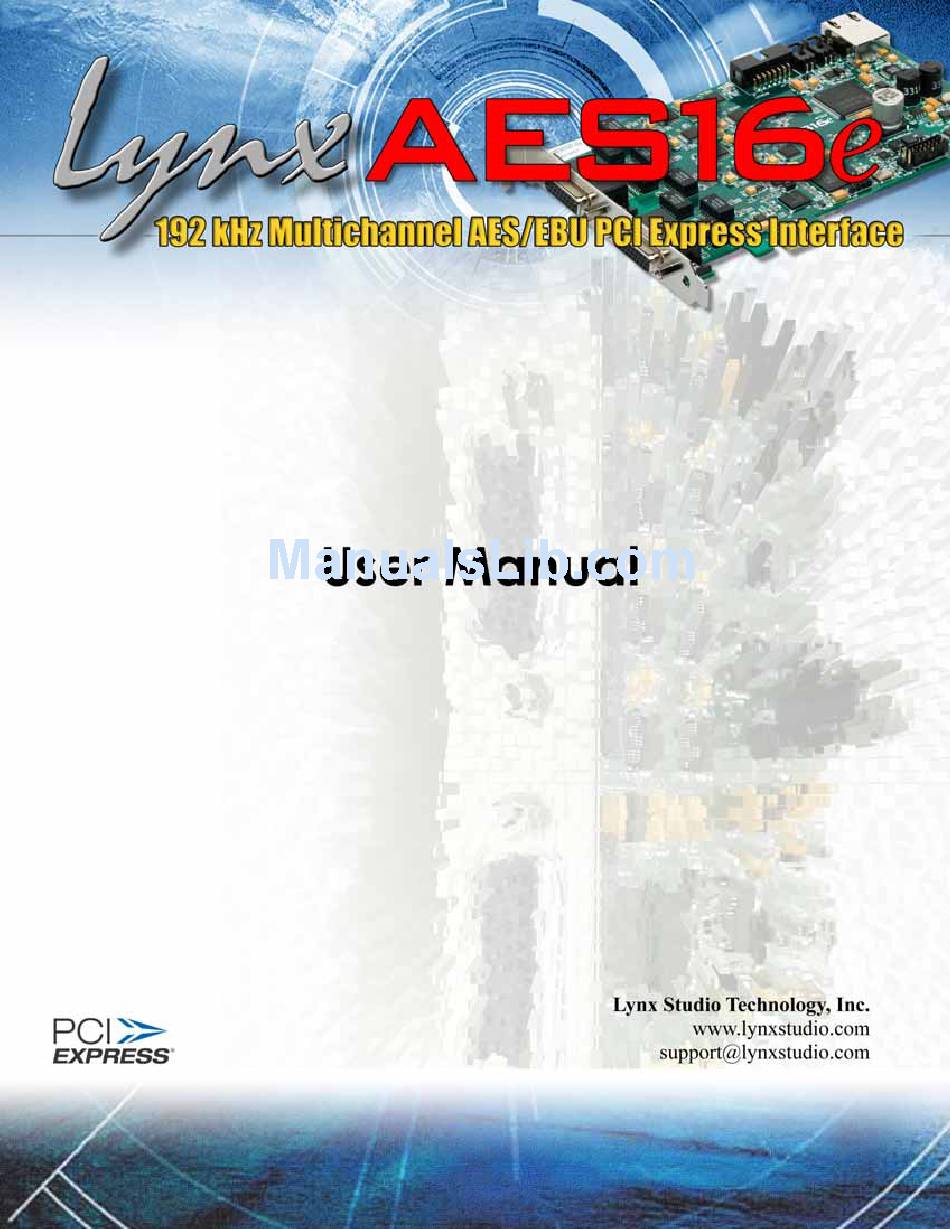

AES16e User Manual
AES16e User Manual
Page 1
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AES16E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lynx AES16E

Summary of Contents for Lynx AES16E

  • Page 1 AES16e User Manual AES16e User Manual Page 1 Page 1...

  • Page 2: Table Of Contents

    Adapter Window......................38 Record/Play Window.......................44 Outputs Window.......................47 Mixer Menu (Windows)/ File Menu (OS X) ..............50 Settings Menu ........................52 Using the AES16e ........................55 Mixer Scene Storage and Recall ...................55 Input Patching ........................55 Playback Routing and Mixing ..................58 Clock selection and control...................59 AES/EBU Dual-wire operation ..................59...
  • Page 3 Appendices ......................... 69 12.1 Specifications........................69 12.2 Programming the AES16e firmware................71 12.3 Safety instructions......................71 12.4 EMC Certifications......................72 License Agreement ......................73 Warranty Information ......................74 AES16e User Manual Page 3...

  • Page 4: Introduction

    The SynchroLock output can also provide a clean and accurate clock output for other audio devices. Up to four AES16e cards can be installed in a single host computer to deliver a total of 64 inputs and 64 outputs of ultra-high bandwidth audio performance.

  • Page 5: Before You Begin

    I/O. Before you begin Before you begin using the AES16e, we recommend you read through this manual and familiarize yourself with the installation and operational procedures of this device. It is highly recommended that you have a good working knowledge of Windows and/or Macintosh operating system basics, and an understanding of computer hardware basics.

  • Page 6: System Requirements

    Below are listed the minimum hardware and operating system requirements for compatibility with the AES16e. It is important to note that most professional audio applications place significant demands on your computer’s resources, and it is therefore recommended that you meet or exceed the recommended system requirements for your Digital Audio Workstation software, which will likely be greater than those listed for the AES16e.

  • Page 7: Installation Procedures

    The Lynx Installation CD contains all driver files mentioned in the subsequent installation steps, as well as the AES16e manual, driver release notes and test files. If you do not have a CDROM drive or need a more recent version, these files are available on our website at Support > Downloads.
  • Page 8 2.2.2 Installing the Windows Driver Package In Windows XP/XP64 When you start Windows after installing the AES16e into your computer, the New Hardware Wizard will appear. Select “Install from a list or specific location” and click “Next >” to proceed.
  • Page 9 Installation Procedures 2.2.3 Uninstalling the AES16e Windows Driver Package in Windows XP/XP64 From the start menu, click on “Control Panel.” Click “System” to launch System Properties: Choose “Device Manager” from the “Hardware” tab: AES16e User Manual Page 9...
  • Page 10 Installation Procedures Expand the “Sound, video and game controllers” section of device manager be clicking its + sign: Right click on “Lynx AES16” and choose “Uninstall” Confirm device removal by clicking “OK”. Reboot the computer AES16e User Manual Page 10...
  • Page 11 Navigate your web browser to: http://www.lynxstudio.com > Support > Download. Select OS = Windows; Product = AES16e; File Types = All Types. Download the current driver installer. Double-click the downloaded file to decompress, and accept the default destination folder of C:\Lynx.
  • Page 12 Choose “Device Manager” from the “Hardware” tab. Expand the “Sound, video and game controllers” section of device manager be clicking its + sign. Double click the “Lynx AES16e” entry to launch the Lynx AES16e Properties dialog box. Click the “Driver” tab, then click “Update Driver…”.
  • Page 13 When prompted to select a device driver, click “Have Disk”. Next, you’ll be asked to insert the manufacturer’s installation disk into the drive selected (the default is A:\) – type “C:\Lynx” in the text box, and click “OK”. AES16e User Manual...
  • Page 14 Installation Procedures You will be prompted to select the device driver you are installing. “Lynx AES16e” will be your only choice. Select it and click “Next>”. You may receive a warning that the driver has not been digitally signed by Microsoft. It is perfectly safe to disregard this warning and click “Continue Anyway”...
  • Page 15 Installation Procedures Next, we need to update the Lynx Mixer. From the Start Menu, choose “My Computer.” Double-click on the C: Hard Drive and look for the “Lynx” Folder. Double Click the folder to open it. Right Click on the LynxApps.inf (Setup Information) file and click “Install”...
  • Page 16 2.2.5 Installing the Windows Driver Package in Windows Vista When you start Windows after installing the AES16e into your computer, the New Hardware Wizard will appear. Select “Locate and install driver software (recommended)”. On the next screen, you will be prompted to “Insert the disc that came with your Multimedia Audio Controller”.
  • Page 17 Click “Device Manager” . Expand the “Sound, video and game controllers” section of device manager be clicking the + sign. Double click the “Lynx AES16e” entry to launch the LynxAES16e Properties dialog box. Click the “Driver” tab, then click “Update Driver…”.
  • Page 18 (advanced)” On the next screen, you will be prompted to specify a location for the driver files. Either click “Browse” and navigate to the Lynx folder on the C: drive, or type in “C:\Lynx”. Then click “Next”. If you are prompted to confirm the installation, click “Install”.

  • Page 19: Macintosh Os X

    The Lynx Installation CD contains all driver files mentioned in the subsequent installation steps, as well as the AES16e manual, driver release notes and test files. If you do not have a CDROM drive or need a more recent version, these files are available on our website at www.lynxstudio.com > Support > Downloads.
  • Page 20 When prompted to select a destination for the audio driver, choose an appropriate Macintosh HD and then click “Install”. Enter your password in the Authenticate dialog box and click OK. At the installer restart warning, click “Continue Installation”. AES16e User Manual Page 20...

  • Page 21: Hardware Connections

    When the install is complete, you will be prompted to restart the computer. NOTE: The OS X installation process installs both the Core Audio driver and the Lynx Mixer application. The Lynx Mixer application is installed in the “Applications” folder.
  • Page 22 Hardware Connections Figure 1: AES16e Board AES16e User Manual Page 22...

  • Page 23: Aes/Ebu Cable Connections

    I/O Port it is used on. These signals are listed below in Figure 2. Clock connections are discussed in detail in Section 3.3 This is the correct cable set to use whenever the AES16e is attached to an AES/EBU device that has XLR connections.

  • Page 24: Clock Connections

    Digital Inputs 1-4. Any digital devices that are connected to I/O Port A on the AES16e can serve as a clock source for the AES16e. From the Lynx Mixer, “Digital In 1” through “Digital In 4” can be selected as the active clock source (see section 6.2).
  • Page 25 Connect the CLOCK IN connector to the clock output of an internal device and select “Header” as the clock source in the Lynx mixer. The signal on the CLOCK OUT header is a word-clock that tracks the sample rate of the AES16e. Connect this output to the word-clock input of an internal device or another AES16e.

  • Page 26: Common Studio Setups

    The figure below illustrates the connection of an eight-channel A/D converter and an eight-channel D/A converter to I/O Port A of the AES16e. This setup uses only half of the available I/O on the AES16e. Additional converters can be connected to I/O Port B to provide up to 16 channels of A/D and D/A conversion.
  • Page 27 Each of these ports provides eight channels of input and eight channels of output. In this setup, either the digital mixer or AES16e can act as the system clock master depending on the clock settings of each device. In each case, the clock is transmitted to the receiving device via the AES/EBU connection.

  • Page 28: Getting Started

    The installation of your AES16e can be tested using the Lynx Mixer and the Lynx Demo application included on the AES16 Installation CD. This is a quick way of verifying that the AES16e card is installed correctly and properly connected to your external equipment.
  • Page 29 Launch the Lynx Demo application from the Lynx Studio Technology program directory (Start > All Programs > Lynx Studio Technology > Lynx Demo). The Lynx Demo program should appear in the upper left corner of your screen. Make certain that the Play Device is set to Lynx AES16e Device 01.
  • Page 30 Getting Started Check the Lynx Output mixer and confirm meter activity for Digital Out 1L and Digital Out 1R. If you have speakers or headphones connected to your destination device, you should hear audio as well as seeing meter activity.

  • Page 31: Macintosh Os X Quick Audio Test

    The installation of your AES16e can be tested using the Lynx Mixer and iTunes, which is included with current versions of OS X. This is a quick way of verifying that the AES16e card is installed correctly and is connected correctly to your external equipment.
  • Page 32 Getting Started Check the Lynx Output mixer and confirm meter activity for Digital Out 1L and Digital Out 1R. If you have speakers or headphones connected to your destination device, you should also hear audio and see meter activity. If the test did not operate as described or you received any errors, please refer to Section 10 Troubleshooting.

  • Page 33: Operational Overview

    Input Bus of digital mixer. In the case of the SRC version of the AES16e, the signals on digital inputs then pass through a high- performance sample rate converter before merging with the Input Bus.
  • Page 34 The Play Bus is derived from the 16 channels sent to the AES16e play devices from host applications. In other words, when an application is used to playback a file, the data from the file is sent to an AES16e play device.

  • Page 35: Sample Clock Generator

    5.1.6 Physical Outputs The physical outputs of the AES16e include eight AES3 signals and the output of the LStream port. As shown in Figure 6, the 16 channels of the Output Bus derived from the output submixers feed the physical outputs.

  • Page 36: Synchrolock

    The sample clock generator can derive its reference clock from both an internal and various external sources. Only one source can be selected at any given time. User control of the sample clock source selector is provided on the Adapter window of the Lynx Mixer application. The available clock sources are: On-board low-jitter oscillator (Internal)

  • Page 37: Lynx Mixer Reference

    By clicking on this icon, the Lynx Mixer will launch. If you do not have the Windows Quick Launch bar activated, the Lynx Mixer can be started be selecting “Start > All Programs > Lynx Studio Technology >...

  • Page 38: Adapter Window

    Windows Sample Clock Section This section of the mixer provides control of the system sample clock generator. All AES16e audio devices on a single card MUST have identical sample rates since there is one on-board generator. Sample rates cannot be changed while AES16e is playing or recording – unless the “Allow Clock Change if Active”...
  • Page 39 “Internal”. The rate will change only if the card is idle (not recording and playing). Manual adjustments are not required if the card is being used with an application. This control is primarily useful when the AES16e is the clock master for other digital devices.
  • Page 40 1. The selected source is not present or the connected device is not generating a valid clock signal. This can be confirmed by seeing “Not Present” next to this source. In these cases, the AES16e will operate from its Internal clock until a valid clock signal is connected to the selected clock source.
  • Page 41 Lynx Mixer Reference 3. The Clock Source was selected when the AES16e card was being accessed by some software application. In this case, the Preferred Clock Source will become the Current Source when the card is no longer being accessed. If “Allow Clock Change if Active” is selected from the Lynx Mixer Settings >...
  • Page 42 When DualWire In is checked to enable AES dual-wire operation on input, Clock Rate should read half of the encoded channel status rate described above. For example, when running at 192 kHz with dual-wire inputs, the Clock Rate should indicate 96.0 kHz and the Current Rate should indicate 192 kHz. AES16e User Manual Page 42...
  • Page 43 For example, when the device connected to Digital In 5 is running at 48 kHz, the AES16e-SRC is running at 44.1 kHz, and SRC Enable for Digital In 5 is ON, the AES16e-SRC will convert the sample rate from 48 kHz to 44.1 kHz and the SRC Ratio (see below) will indicate approximately 0.918:1.

  • Page 44: Record/Play Window

    In this example, LStream In 1 is being routed to the left channel of record device 1. This input would be valid if an LS-ADAT ADAT card was connected to the AES16e’s LStream Port.
  • Page 45 Lynx Mixer Reference Peak Meter These meters display the instantaneous peak level of audio being sent to the AES16e input selected by the Input Source Select buttons. Mute This button enables the mute function for the associated input. Dither This button enables dithering for the associated input. The Record Dither Type control in the Settings menu determines the type of dither applied to the input.
  • Page 46 Dropouts can produce audible glitches in audio files. They are typically caused by a computer’s inability to process data from the AES16e fast enough. The indicator is reset at the start of playback or on initialization of the driver when using the ASIO driver model. When a dropout has occurred, the background for this box will turn Red.

  • Page 47: Outputs Window

    Lynx Mixer Reference Outputs Window Windows AES16e User Manual Page 47...
  • Page 48 To attenuate a pair of channels, hold down the “Shift” key on the computer keyboard while click-dragging one of the faders of the pair to be attenuated. To attenuate all sixteen channels, hold down the “CTRL” key while click-dragging any fader. AES16e User Manual Page 48...
  • Page 49 This button enables the addition of triangular probability density dither for each associated output. Dither is recommended for improving signal fidelity when more than one monitor source is driving an output or when the volume fader is not at its maximum. AES16e User Manual Page 49...

  • Page 50: Mixer Menu (Windows)/ File Menu (Os X)

    To delete a scene simply delete the mixer scene file from the hard drive. NOTE: When the computer is shut down, the current mixer state is saved. When the computer is restarted, the mixer state is restored. This function is independent of Mixer Scene operation. AES16e User Manual Page 50...
  • Page 51 Firmware Date: Displays the date the firmware was released. If a Lynx Aurora AD/DA converter is connected to the AES16e, the Aurora serial#, PCB Revision, And Aurora Firmware Revision may also appear in the “About Lynx Mixer” dialog box (as pictured).

  • Page 52: Settings Menu

    L22/LynxTWO cards only. Always on Top (Windows Only) When this option is checked, the Lynx Mixer window stays on top of other active windows. High Resolution Clock Rates (Windows Only) When checked, this option enables the display of measured clock rates with 1-hertz resolution. Otherwise, rates are displayed with 100-hertz resolution.
  • Page 53 Play 1 Multi-Channel Mode – This option provides selection of the playback mode for Device 1 of the AES16e. Choices include: Stereo, Quad, 5.1 and 7.1. Mixer Lock – When checked, enables a locking feature that prevents changes to any of the mixer controls by any application, including the Lynx Mixer.
  • Page 54 Play Devices for a given sample rate range has been reduced to 6, then AES16e Play Devices 1-6 will be active, and Devices 7 and 8 will no longer pass audio.

  • Page 55: Using The Aes16E

    For more information on saving and recalling mixer scenes, refer to Section 6.5 Mixer Menu. Input Patching The physical inputs of the AES16e can be patched to any Record Bus channel of the on-board digital mixer. This feature allows complete flexibility in routing inputs to tracks and record devices within software applications.
  • Page 56 Lynx Mixer application or within applications that support ASIO Direct Monitoring. As discussed in Section 5.1.5 Digital Mixer Outputs, each output of the AES16e is derived from a ten-input submixer. This submixer is shown below. The inputs to the submixers include both input signals and playback signals.
  • Page 57 AES16e’s on- board digital mixer. Instead of using the Lynx Mixer to manually enable monitoring as discussed in the previous section, controls within the application provide convenient access to this functionality.

  • Page 58: Playback Routing And Mixing

    Click the speaker icon in Samplitude/Sequoia to enable Direct Monitoring. Playback Routing and Mixing In addition to standard monitoring of inputs through physical outputs, the Lynx mixer is capable of sophisticated routing and mixing of playback and record sources. One can monitor playback from several applications through a single output, combine live input and playback streams, and record a single source into several applications with the power of this flexible tool.

  • Page 59: Clock Selection And Control

    Operating System will resample the playback stream to match the current sample rate of the AES16e. In this case the audio speed and pitch will be fine, but there may be undesirable consequences from this low-quality sample rate conversion.

  • Page 60: Asio Specific Setup (Windows Only)

    Several control parameters of the AES16e are accessible from the ASIO Control Panel within applications that utilize the AES16e ASIO driver. One of the benefits offered by this inter-application control, is that these parameters can be saved with a project – allowing consistent performance conditions each time a project is opened.

  • Page 61: Controlling Latency By Changing Buffer Size

    Lynx LS-ADAT card would need to be used in conjunction with the AES16e in order to provide a sync source to the system. With a valid sync source connected to the ADAT Sync In port on the LS-ADAT, sample-accurate synchronization is possible via APP.

  • Page 62: Working With Third Party Applications

    When more than one AES16e is installed in your system, the device names will contain a numeric adapter ID assigned by the operating system. For example, the first input device on adapter 2 would be listed as “AES16e 2 Record 1”. Refer to the “Configuring Multiple AES16e’s” in section 9 for more information.

  • Page 63: Controlling Audio Bit Depth

    The application uses this information to set the resolution of the AES16e. The AES16e supports file types with 8, 16, 24, or 32 bit word widths. Note that 32-bit files contain 24-bit data with zero data in the least significant bit positions.

  • Page 64: Configuring Multiple Aes16E's

    Listen to the playback of any audio file and note which AES16e card is generating the audio signal. In this case, the card generating audio is adapter 1. Repeat steps 3 and 4, for “AES16e 2 Play 1”, “AES16e 3 Play 1”, and so on until all AES16e’s in your system have been identified.
  • Page 65 After the cable connections have been established, the clock sources for each card must be set correctly in the Lynx Mixer. One at a time, open the Adapter page for each card in the system. Verify that a sample rate is reported next to the target clock source in the “Preferred Clock Source”...

  • Page 66: Adapter Id's

    ID. For example, the first play device on adapter 2 is listed as “AES16e 2 Play 1”. In OS X, each adapter will be identified by which slot it has been installed into. For instance, AES16e in Slot-3, AES16e in Slot-2, etc.

  • Page 67: Troubleshooting

    If you see signal appearing on the AES16e’s output meters, verify your output connections, making certain you have a valid signal flow from the AES16e’s outputs to your mixer or other D/A device, and from that device to your speakers.

  • Page 68: Support

    Time, Monday through Friday, excluding United States Holidays. 11.3 Registering your Aurora Lynx is committed to providing you with the best service possible. To help us serve you better, please be sure to register your AES16e using one of the following methods: Fill out and mail the Warranty Registration Card included with your AES16e.

  • Page 69: Appendices

    Peak levels to -114 dB on all inputs and outputs. Status TREAM XPANSION Compatibility Supports Lynx LStream expansion cards including the LS-ADAT 16- Channel ADAT I/O card Type High-speed serial, up to 16 channels @ 24-bits. 14-pin internal connector. ONNECTIONS Two bracket-mounted 26-pin high-density female D-sub connectors.
  • Page 70 26-pin high-density male D-sub to 25-pin male D-sub. Supports 4 channels of input and output. Compatible with Aurora converters and devices with standard Yamaha digital I/O pinout from Yamaha, Apogee, Mackie, and others. Twelve- foot, 110-ohm shielded twisted pair cabling. AES16e User Manual Page 70...

  • Page 71: Programming The Aes16E Firmware

    Lynx firmware updater programs. When updating the Lynx firmware, it is critical that the computer not be turned off or the process interrupted in any way. If it is, the card may stop functioning and need to be returned to the factory to be re- programmed.

  • Page 72: Emc Certifications

    AES16 COMPLIANCE TEST REPORT NUMBER: Covered by European Standards Report #B30915V1 COMPLIANCE TEST REPORT DATE: November 2, 2003 RESPONSIBLE PARTY (IN USA): Lynx Studio Technology, Inc. ADDRESS: 711 West 17 Street, Suite H3, Costa Mesa, CA 92627 TELEPHONE: (949) 515-8265 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.

  • Page 73: License Agreement

    This End-User License Agreement (this “Agreement”) is a legal contract between you, as either an individual or a single business entity, and Lynx Studio Technology, Inc. and its affiliates (“Lynx”). READ THE TERMS AND CONDITIONS OF THIS AGREEMENT CAREFULLY BEFORE INSTALLING LYNX’S SOFTWARE (THE “SOFTWARE”).

  • Page 74: Warranty Information

    Lynx reserves the right to update any unit returned for repair. Lynx reserves the right to change or improve design of the product at any time without prior notice.
