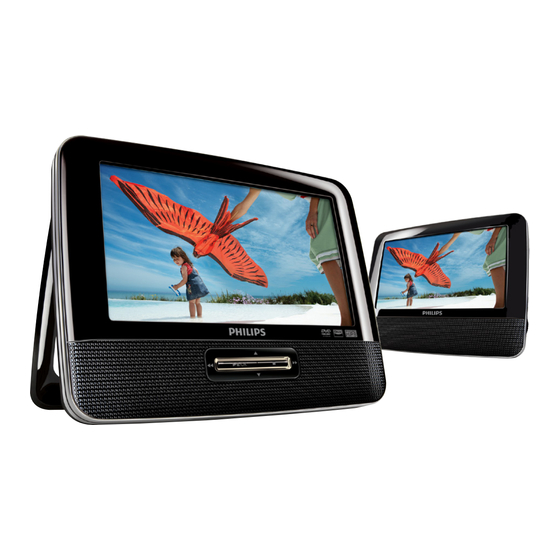

Philips PD7022 User Manual
  1. Manuals
  2. Brands
  3. Philips Manuals
  4. Portable DVD Player
  5. PD7022
  6. User manual
Philips PD7022 User Manual

Philips PD7022 User Manual

Hide thumbs Also See for PD7022:
Table of Contents

Advertisement

Quick Links

Download this manual
Always there to help you
Register your product and get support at
www.philips.com/welcome
Question?
Question?
Contact
Contact
Philips
Philips
User manual
Benutzerhandbuch
Mode d'emploi
Manual del usuario
3
Brugervejledning
47
Gebruiksaanwijzing
91
Manuale utente
135
Användarhandbok
PD7022
25
69
113
157

Advertisement

Table of Contents
loading

Related Manuals for Philips PD7022

Summary of Contents for Philips PD7022

  • Page 1 Always there to help you Register your product and get support at www.philips.com/welcome PD7022 Question? Question? Contact Contact Philips Philips User manual Brugervejledning Benutzerhandbuch Gebruiksaanwijzing Mode d'emploi Manuale utente Manual del usuario Användarhandbok...

  • Page 2: Table Of Contents

    Contents 1 Important Safety and notice Safety Compliance Care of the environment Copyright Warranty 2 Your portable DVD player Introduction What's in the box Overview of the main unit Overview of the second screen 3 Get started Preparation Connect the second screen Connect power 4 Use your player Switch on/off...
  • Page 3 5 Adjust settings Set the main unit Set the second screen 6 Use more of your player Connect additional equipment 7 Product information 8 Troubleshooting...

  • Page 4: Important

    Important Safety and notice Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply. Safety Only use attachments/accessories specified by the manufacturer. The product shall not be exposed to dripping or splashing. Do not place any sources of danger on the product (e.g.

  • Page 5: Compliance

    Warning • Never remove the casing of this product. • Never lubricate any part of this product. • Never place this product on other electrical equipment. • Keep this product away from direct sunlight, naked flames or heat. • Never look into the laser beam inside this product. •...

  • Page 6: Care Of The Environment

    This apparatus includes this label: Note • The type plate is located on the bottom of the product. Care of the environment Environmental information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company.

  • Page 7: Copyright

    Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

  • Page 8: Warranty

    • Never remove the cover of the product. Always contact Philips Customer Support for service or repairs. • Any operation expressly prohibited in this manual, or any adjustments and assembly procedures not recommended or authorized in this manual shall void the warranty.

  • Page 9: User Manual

    Your portable DVD player Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Introduction Your portable DVD player plays digital video discs that conform to the universal DVD Video standard.

  • Page 10: Overview Of The Main Unit

    Overview of the main unit • Turns on/off DVD player. b RESET • When the player hangs up, press it with a ball-point pen or similar tool to reset the player. c VOL +/- • Increases or decreases volume. • Headphone jack.

  • Page 11: Disc Menu

    f DC IN • Power supply socket. • Navigates menus. • Searches backward/forward at different speeds. • Confirms an entry or selection. • Starts, pauses or resumes disc play. • Stops disc play. h AV MODE • Switches between PAL and NTSC mode. i SETUP •...

  • Page 12: Overview Of The Second Screen

    Overview of the second screen a DC IN • Power supply socket. b AV IN • Audio/video input jack. • Headphone jack. d VOL -/+ • Decreases or increases volume. e BRIGHTNESS -/+ • Adjusts screen brightness. f OFF/ON • Turns off/on the second screen.

  • Page 13: Get Started

    • Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of your player. The model number and serial number are on the bottom of your player.

  • Page 14: Connect The Second Screen

    Connect the second screen Caution • Turn off your player before you connect the second screen. A: main unit; B: second screen Connect the supplied AV cable to: the AV OUT jack on the main unit. • the AV IN jack on the second screen. •...
  • Page 15 A: main unit; B: second screen; C: car cigarette lighter Connect one end of the double-connector end of the AC cable to the DC IN jack on the main unit. Connect the other end of the double-connector end of the AC cable to the DC IN jack on the second screen.

  • Page 16: Use Your Player

    Use your player Switch on/off Press to switch on the player. To switch on the second screen, slide the OFF/ON switch on the • second screen to the ON position. To switch off, slide the OFF/ON switch to the OFF position. To switch off the player, press Select OSD language You can select a different language for the onscreen display text.

  • Page 17: Play Options

    • To pause, press /OK. Press again to resume play. • To stop, press twice. • To select the previous/next item, press • To start search within video/audio, press once or more. Play options During play, press OPTIONS to select some play options. Follow the on-screen instructions.

  • Page 18: Adjust Settings

    Adjust settings Set the main unit To maximize your play experience, use SETUP to fine tune your settings. Press SETUP. » The setup menu is displayed. Use navigation keys to select an option and press /OK to confirm. [General] [Language] Select on-screen display language [PBC settings] Set playback control function on/off.

  • Page 19: Set The Second Screen

    Set the second screen You can also set the second screen. To adjust volume level for the second screen, press VOL -/+ on the second • screen. To adjust the brightness of the second screen, press BRIGHTNESS -/+ on • the second screen.

  • Page 20: Use More Of Your Player

    Use more of your player Connect additional equipment Caution • Turn off your player before connecting to any additional equipment. You can connect the player to a TV or an amplifier to enjoy DVDs or Karaoke. Match the color of the AV cables (the AV cable connected to TV is not supplied) with the jacks: the yellow cable is for the yellow video jack, the red/white cable is for the red/white audio jacks.

  • Page 21: Product Information

    200 x 155 x 21 mm Weight - Main unit 0.7 kg - Second screen 0.4 kg AC Power adaptor ASUC12E-090080 (Philips) Power supply Input: 100-240V 50/60Hz 0.3A Output: DC 9V 0.8A Power consumption Operating temperature range 0-45°C Laser wavelength...

  • Page 22: Troubleshooting

    If you encounter problems when using the player, check the following points before requesting service. If the problem remains unsolved, register your player and get support at www.philips.com/support. When you contact Philips, ensure that your apparatus is nearby and the model number and serial number are available.
  • Page 23 The player feels warm • When the player is in use for a long period of time, its surface will be heated. This is normal.
  • Page 24 Specifications are subject to change without notice © 2012 Koninklijke Philips Electronics N.V. All rights reserved. PD7022_12_UM_ERP_V3.1...
