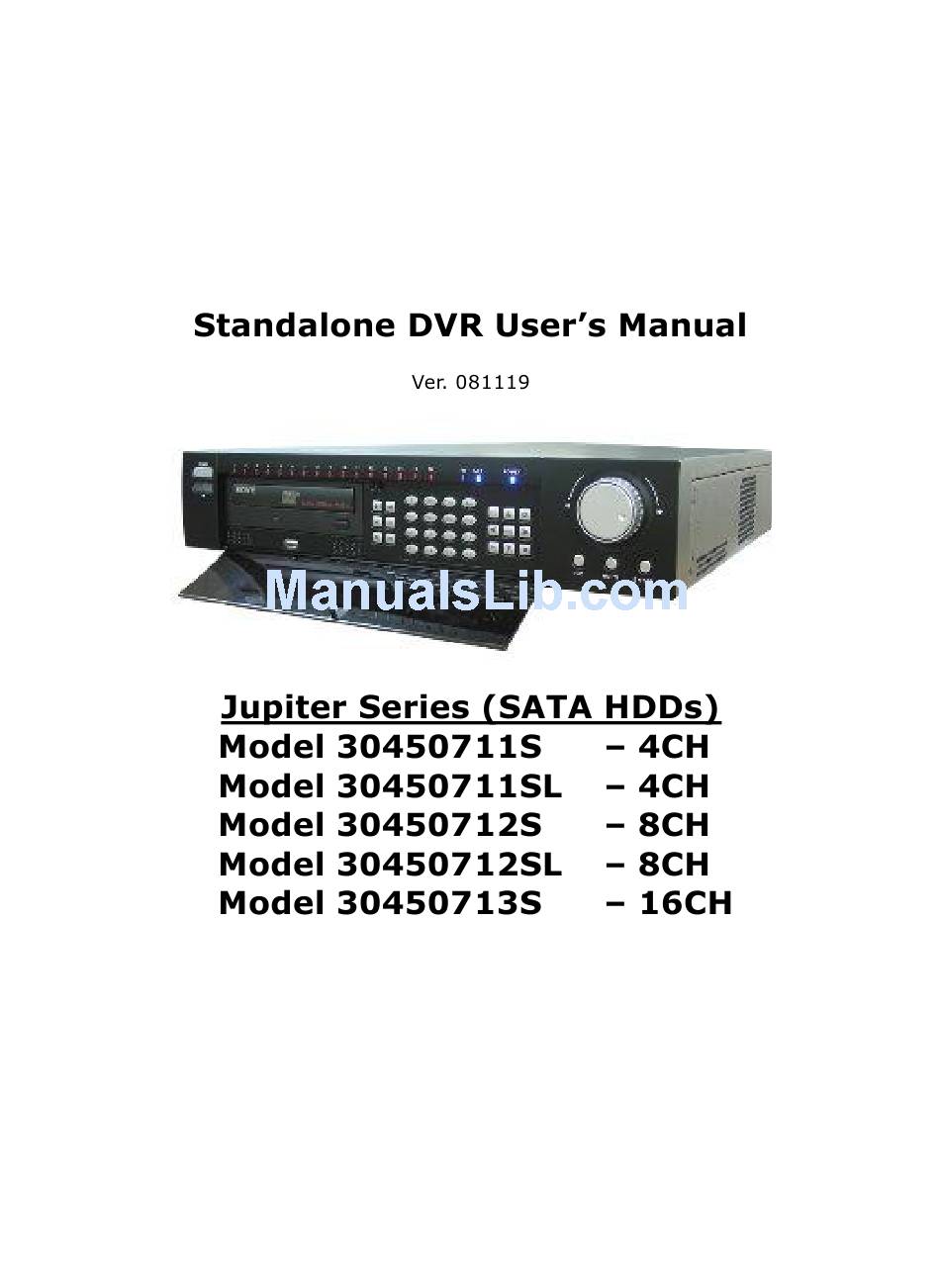

Talitor Jupiter 30450711S User Manual

Jupiter series sata hdds
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Jupiter 30450711S and is the answer not in the manual?

Questions and answers

Related Manuals for Talitor Jupiter 30450711S

Summary of Contents for Talitor Jupiter 30450711S

  • Page 16 ○ ” means the channel is not in recording. Select the channel to be recorded, please press the related number key (or use key/jog shuttle choosing) make the channel “●” on the screen then press to start recording. Repeat above steps and make the channel “ ” to stop the camera from recording. Press to return.
  • Page 17 Standalone DVR – Jupiter Series Connect the alarm input to the DVR. Set the related settings in the menu to start alarm recording. See details at -> -> Record the channel only in need of motion detection first confirm whether this channel is on schedule recording.
  • Page 18 Standalone DVR – Jupiter Series Before operation, please make sure you have properly installed HDDs and all the cable connections. When the system boots up, default video display is in multiple-window mode. Click Enter or left click mouse, you can see the login interface. See Figure 4-1. System consists of four accounts: Username: admin.

  • Page 19: Motion Detection

    Standalone DVR – Jupiter Series There are two ways for you to log out. One is from menu option: In the main menu, click shutdown button, you can see an interface is shown as below. See Figure 4-3. Figure 4-3 There are several options for you.
  • Page 20 Standalone DVR – Jupiter Series Note: You need to have proper rights to implement the following operations. 4.2.2.1 Manual record menu There are two ways for you to go to manual record menu. Right click mouse then select “Record” or in main menu, select “ADVANCED” -> “MANUAL RECORD”.
  • Page 21 Standalone DVR – Jupiter Series The corresponding indication light in front panel will turn on. Figure 4-7 All channel manual recording Please highlight “All” after “Manual”. See Figure 4-8. When system is in manual recording, all scheduled setup you have set in will be null. You can see record indicator light in front panel turns on, system begins manual record.
  • Page 22 Standalone DVR – Jupiter Series There are two ways for you to go to search menu. Click “Pause/Play” button in the front panel or in the remote control. Click “Search” in the main menu. Search interface is shown as below. See Figure 4-10. Usually there are three file types: R: regular recording file.
  • Page 23 Standalone DVR – Jupiter Series 4.3.2.1 Playback There are various search modes: video type, channel number or time. The system can max display 128 files in one screen. You can use page up/down button to view if there are more than one page. Select the file name and double click mouse, you can view file content.
  • Page 24 Standalone DVR – Jupiter Series 4.3.2.7 Fast forward/Rewind and frame by frame playback Fast forward When playback, turn the jog shuttle (outer ring) In forward or outer ring clockwise clockwise one round: you can view in fast level 1 . rewind mode, Turn it two rounds you get fast level 2.
  • Page 25 Standalone DVR – Jupiter Series Click calendar icon in Figure 4-10, system pops up calendar for your reference. Highlighted date means that there are record files in that day. You can cli ck blue date to view file list. In Figure 4-11, there are video files in July 16th and 17th. Double click the date to view file list. Figure 4-11 When the system boots up, it is in default 24-hour regular mode.
  • Page 26 Standalone DVR – Jupiter Series Please highlight icon “ ” to select the corresponding function. After all the setups, please click “Save” button, system goes back to the previous menu. At the bottom of the menu, there are color bars for your reference. Green stands for regular recording, yellow stands for motion detection and red stands for alarm recording.
  • Page 27 Standalone DVR – Jupiter Series There are two ways for you to playback or search in the redundant disk. Set redundant disk(s) as read-only disk or read-write disk. See Figure 4-13. (“MAIN MENU” -> “ADVANCED” -> “HDD MANAGEMENT”). System needs to reboot to get setup activated.
  • Page 28 Standalone DVR – Jupiter Series Please highlight icon “ ” to select the corresponding function. After all the setups please click save button, system goes back to the previous menu. Note: In motion detection mode, you can not use copy/paste to set channel setup since the video in each channel may not be the same.
  • Page 29 Standalone DVR – Jupiter Series Figure 4-16 Figure 4-17 Figure 4-18...
  • Page 30 Standalone DVR – Jupiter Series In Figure 4-14, select video loss from the type list. You can see the interface is shown as in Figure 4-19.This function allows you to be informed when video loss phenomenon occurred. You can enable alarm output channel and then enable show message function. Channel: select the channel you want to enable lens shading alarm.
  • Page 31 Standalone DVR – Jupiter Series When someone viciously masks lens, the system can alert you to guarantee video continuity. Camera masking interface is shown as in Figure 4-20. Channel: select the channel you want to enable camera mask detection function. Event type: please select camera mask detect from the dropdown list.
  • Page 32 Standalone DVR – Jupiter Series Before operation, please make sure you have properly connected alarm devices such as buzzer. In the main menu, from Setting to Alarm, you can see alarm setup interface. See Figure 4-21. Alarm interface is shown as below. See Figure 4-21. Alarm in: here is for you to select channel number.
  • Page 33 Standalone DVR – Jupiter Series Figure 4-21 Figure 4-22 Figure 4-23 Figure 4-24...
  • Page 34 Standalone DVR – Jupiter Series DVR support various backup devices such as CD/DVD burner, USB backup and network download. Here we introduce USB backup first. You can refer to Chapter 7 Web Client Operation for network download backup operation. Click “Backup” button, you can see an interface is shown as in Figure 4-25. Here is for you to view devices information.
  • Page 35 Standalone DVR – Jupiter Series Click “Backup” button, system begins burning. At the same time, the backup button becomes stop button. You can view the remaining time and process bar at the left bottom. See Figure 4-27. Figure 4-27 Tips: During backup process, you can click “ESC”...
  • Page 36 Standalone DVR – Jupiter Series Note: The camera video should be in the current screen. Before setup, please make sure the following connections are correct: Please follow the procedures below to go on cable connection: Connect the dome RS485 port to DVR 485 port. Connect dome video output cable to DVR video input port.
  • Page 37 Standalone DVR – Jupiter Series Figure 4-29 Click on “Pan/Tilt/Zoom”, the interface is shown as below. See Figure 4-30. Here you can set the following items: Speed: value ranges from 1 to 8. Zoom Focus Iris Click icon to adjust “Zoom”, “Focus” and “Iris”. Figure 4-30 In Figure 4-30, please click direction arrows (See Figure 4-31) to adjust PTZ position.
  • Page 38 Standalone DVR – Jupiter Series Here is a sheet for you reference. Zoom Near Focus Near Iris Close Open In Figure 4-30, click "Set" button. The interface is shown as below. See Figure 4-33. Here you can set the following items: Preset Tour Pattern...
  • Page 39 Standalone DVR – Jupiter Series In Figure 4-30, use eight direction arrows to adjust camera to the proper position. In Figure 4-33, click “Preset” button and input preset number. The interface is shown as in Figure 4-35. And then you can add this preset to one tour. Figure 4-35 In Figure 4-34, please input preset number in the No.
  • Page 40 Standalone DVR – Jupiter Series In Figure 4-34, input mode value in the No. blank, and click “Pattern” button. In Figure 4-33, click border button. The interface is shown as in Figure 4-38. Please go to Figure 4-30, use direction arrows to select camera left limit. Then please go to Figure 4-38 and click left limit button.
  • Page 41 Standalone DVR – Jupiter Series This series DVR menu tree is shown as below. After you logged in, the system main menu is shown as below. See Figure 5 -1. There are total six icons: “SEARCH”, “INFO”, “SETTING”, “ADVANCED”, “BACKUP”, “SHUTDOWN”. Move the cursor to highlight the icon, then double click mouse to enter the sub -menu.
  • Page 42 Standalone DVR – Jupiter Series In main menu, highlight “SETTING” icon and double click on the mouse. System setting interface is shown as below. See Figure 5-2. Figure 5-2 General setting includes the following items. See Figure 5-3. System time: here is for you to set system time. Date format: there are three types: YYYYY-MM-DD: MM-DD-YYYYY or DD-MM-YYYY.
  • Page 43 Standalone DVR – Jupiter Series Figure 5-3 Figure 5-4 Figure 5-5 Encode setting includes the following items. See Figure 5-6. Channel: Select the channel you want. Compression: system supports H.264. Or you can select from the dropdown list. Resolution: System supports various resolutions, you can select from the dropdown list Bit rate: system supports two types: CBR and VBR.
  • Page 44 Standalone DVR – Jupiter Series Cover area (Privacy mask): Here is for you to set window blanking section. You can drag you mouse to set proper section size. Preview/monitor: privacy mask has two types. Preview means the privacy mask zone can not be viewed by user when system is in preview status.
  • Page 45 Standalone DVR – Jupiter Series For Jupiter series, it supports various settings for channel, resolution and frame: 176 144 352 288 352 576 704 288 704 576 180 120 360 240 360 480 720 240 720 480 We take 16-channel DVR as an example. There are four groups 1~4, 5~8.
  • Page 46 Standalone DVR – Jupiter Series RS232 interface is shown as below. Here are five items. See Figure 5-9. Function: There are various devices for you to select. Console is for serial port or min-end platform to upgrade program. Keyboard is for you to use special keyboard to control current device.
  • Page 47 Standalone DVR – Jupiter Series After completing all the setups, please click save button, system goes to the previous menu. Figure 5-10 5.3.5.1 Advanced Setting Advanced setting interface is shown as in Figure 5-11. Please draw a “ ” to enable corresponding function and then double click current item to go to setup interface.
  • Page 48 Standalone DVR – Jupiter Series 5.3.5.3 Multiple Cast Setup Multiple-cast setup interface is shown as in Figure 5-13. Figure 5-13 Here you can set a multiple cast group. Please refer to the following sheet for detailed information. IP multiple cast group address - 224.0.0.0 ~ 239.255.255.255 - “D”...
  • Page 49 Standalone DVR – Jupiter Series Figure 5-14 5.3.5.5 NTP Setup You need to install NTP server (Such as Absolute Time Server) in your PC first. In Windows XP, you can use command “net start w32time” to start up NTP service. NTP setup interface is shown as in Figure 5-15.
  • Page 50 Standalone DVR – Jupiter Series Figure 5-15 5.3.5.6 Email Setup Email setup interface is shown as in Figure 5-16. Here you can set email server information. Note: You need to get the email address from your email service provider first. Please use semicolon to separate the addresses.
  • Page 51 Standalone DVR – Jupiter Series 5.3.5.8 Alarm Server You can set alarm in accordance with different alarm protocols. System can inform the alarm server when alarm occurs. See Figure 5-18. Figure 5-18 5.3.5.9 FTP You need to download FTP server (such as Ser-U FTP SERVER) to establish FTP service. Please install Ser-U FTP SERVER first.
  • Page 52 Standalone DVR – Jupiter Series System also supports upload multiple DVRs to one FTP server. You can create multiple folders under this FTP. In Figure 5-10, select FTP and then double click on the mouse. You can see the following interface.
  • Page 53 Standalone DVR – Jupiter Series Please refer to chapter 4.6 Alarm Setup and Alarm Activation. Please refer to chapter 4.5 Detect. Please refer to chapter 4.8.2 PTZ setup. The display setup interface is shown as below. See Figure 5-24. Transparency: You can adjust transparency value. The value ranges from 128 to 255. Channel name: You can modify channel name.
  • Page 54 Standalone DVR – Jupiter Series In Figure 5-24, click modify button after channel. You can see an interface is shown as in Figure 5-25. Please note all your modification here applies to local end only. You need to refresh web or client-end to get the latest channel name. The length of each channel name is up to 25-digital character.
  • Page 55 Standalone DVR – Jupiter Series Please highlight icon “ ” to select the corresponding function. After completing all the setups, please click “OK” button, system goes to the previous menu. Warning! System menu color, language, time display mode, video format, IP address, user account will not maintain previous setup after default operation! Figure 5-27 Please refer to chapter 4.3 Search &...
  • Page 56 Standalone DVR – Jupiter Series After all the setups are completed, please click “OK” button, system needs to reboot to get all the activated modification. Figure 5-29 Click “Alarm Set” button, the interface is shown as below. See Figure 5-30 (This interface is just like the abnormity setup).
  • Page 57 Standalone DVR – Jupiter Series Latch: makes your alarm on for extra specified seconds. The value ranges from 10s~300s. Here you can set corresponding delaying time. System automatically delays specified seconds to turn off alarm and activated output after external alarm stops. Show message: system can pop up the message on the local screen to alert you when alarm occurs.
  • Page 58 Standalone DVR – Jupiter Series For account management, please note: System account adopts two-level management: “Group” and “User”. No limit to group or user amount. For group or user management, there are two levels: “Admin” and “User”. The user name and group name can consist of eight characters. Once the user name is used, you can not use the same name for other user.
  • Page 59 Standalone DVR – Jupiter Series Here is for you to adjust TV output setup. See Figure 5-35. Please drag slide bar to adjust each item. After completing all the setups, please click OK button, system goes back to the previous menu.
  • Page 60 Standalone DVR – Jupiter Series Figure 5-37 5.5.8.5 Matrix setup 5.5.8.5.1 Enter Video Matrix Interface In the menu, from “ADVANCED” to “VIDEO MATRIX”. You can see an interface is shown as in Figure 5-38. Figure 5-38 5.5.8.5.2 Right Mouse Menu In single channel display mode, right click on the mouse to select “Video Matrix”.
  • Page 61 Standalone DVR – Jupiter Series 5.5.8.6.1 Scheduled Video Output (Scheduled Tour) Please enable corresponding video output item and input tour interval, and then set the tour output channel. System maximally supports 8 channels. Now system can implement tour output as you just set. Select channel(s) here Highlighted here...
  • Page 62 Standalone DVR – Jupiter Series If system has toured some activation channels, then corresponding alarm activation channels are null. Highlighted Select alarm here input Corresponding to video matrix output in Figure 5-40. Highlighted here Figure 5-41. 5.5.8.6.3 Motion Detection (including video loss and camera masking) Motion detection principle is the same as alarm.
  • Page 63 Standalone DVR – Jupiter Series 5.5.8.6.4 General Tour Principle When system is in scheduled tour status, once the alarm occurs, system first check video matrix function has been enabled or not and there is effective matrix or not. System will continue implementing scheduled tour in the following two conditions: Video output function has not been enabled.
  • Page 64 Standalone DVR – Jupiter Series Here is to list hard disk type, total space, free space, video start time and status. See Figure 5-44. Note: Please remove the broken hard disk before you add a new one. Once there is a hard disk confliction, please check hard disk time and system time is the same or not.
  • Page 65 Standalone DVR – Jupiter Series Please click “Page Up” / “Page Down” button to view if there are more than ten files. Figure 5-46 Here is for you to view some version information. See Figure 5-47. Channels Alarm In Alarm Out System Build Date Figure 5-47...
  • Page 66 Standalone DVR – Jupiter Series Double click “EXIT” button, system pop up a dialogue box for you to select. See Figure 5-49. Logout menu user: log out menu. You need to input password when you login the next time. Restart application: reboot DVR. Shutdown: system shuts down and turns off power.
  • Page 67 Standalone DVR – Jupiter Series Before web client operation, please check the following items: Network connection is right. DVR and PC network setup is right. Please refer to chapter 5.3.5 Network. Use order ping ***.***.***.*** (* DVR IP address) to check connection is OK or not. Usually the return TTL value should be less than 255.
  • Page 68 Standalone DVR – Jupiter Series System pops up warning information to ask you whether install or not. Please click “Yes” button to install ActiveX webrec.cab. If you can’t download and install the ActiveX file, please modify your settings as follows. See Figure 6-2.
  • Page 69 Standalone DVR – Jupiter Series After you logged in, you can see the main window. See Figure 6-6. This main window can be divided into the following sections. Section 1: there are five function buttons-> “Configuration”, “Search”, “Alarm”, “About” and “Logout”. Section 2: there are channel number and three function buttons ->...
  • Page 70 Standalone DVR – Jupiter Series In section 2, left click on the channel you want to view, you can see the corresponding video in current window. For detailed function key information, please refer to Figure 6-7. Figure 6-7 1->Digital zoom: Click this button and then left drag the mouse in the zone to zoom in. Right click on the mouse, and system will restore the original status.
  • Page 71 Standalone DVR – Jupiter Series Before PTZ operation, please make sure you have properly set PTZ protocol. Click “PTZ” button, the interface is shown as in Figure 6-10. You can click this icon to display or hide the PTZ control platform. Figure 6-10 6.2.2.1 Direction key and 3D positioning key In Figure 6-10, there are eight direction keys.
  • Page 72 Standalone DVR – Jupiter Series In Figure 6-11, click “PTZ Set” button you can see the following interface. See Figure 6-12. Figure 6-12 6.2.2.4 Auto Scan In Figure 6-12, move the camera to your desired location and then click the “Left Limit” button.
  • Page 73 Standalone DVR – Jupiter Series Click “Color” button in section 3, the interface is shown as Figure 6-14. Here you can select one channel and then adjust its brightness, contrast, hue and saturation. (Current channel border becomes green). Or you can click default button to use system default setup. Figure 6-14 Click “More”...
  • Page 74 Standalone DVR – Jupiter Series Left click on the mouse and then drag it to the channel control status bar. You can see the two menus interface switched. See Figure 6-19. You can compare the following interface with Figure 6-6. Figure 7-19 On the main window, click the “CONFIG”...
  • Page 75 Standalone DVR – Jupiter Series Click “Device Config” button, you can see the following interface. See Figure 6-21. Figure 6-21 Click “VERSION” button, you can see corresponding HDD information for your reference. See Figure 6-22. Figure 6-22...
  • Page 76 Standalone DVR – Jupiter Series Here you can view HDD amount, HDD status, total volume and free space. See Figure 6-23 Figure 6-23 Click “LOG” button, you can see an interface is shown as in Figure 6-24. Here you can view current device log information. Figure 6-24...
  • Page 77 Standalone DVR – Jupiter Series Setting includes the following items: General Encode setup Schedule RS232 Network MUL-DDNS Alarm setup Detect Pan/Tilt/Zoom Tool Please note: setups for different device series may vary. Please refer to the corresponding user’s manual.
  • Page 78 Standalone DVR – Jupiter Series General interface is shown as in Figure 6-25. System time: Here is for you to modify system time. Please click on “Save” after your modification. Data format: Here you can select data format from the dropdown list. Data separator: Please select separator such as “...
  • Page 79 Standalone DVR – Jupiter Series Encode setup includes the following items. See Figure 6-26. Here you can select: Channel: Here is for you to select a channel. Channel name: Modify channel name. Data stream: Regular and extra data stream. AV enable: Video/Audio. System only displays video by default. You need to manually enable audio function.
  • Page 80 Standalone DVR – Jupiter Series Schedule includes the following interface. See Figure 6-27.When DVR boots up, it is in 24-hour continuous record. In this interface you can set record type, record time and period. Record type includes: “Regular (R)", “Motion Detection (MD)” and “Alarm (A)”. Channel: select the channel number you desire.
  • Page 81 Standalone DVR – Jupiter Series After you finished setup for one channel, you can click “Save as” button, system pops up the following interface. See Figure 6-29. Then you can copy one channel setup to others. Figure 6-29 Network interface is shown as in Figure 6-30. This interface includes the following items: Max: Here you can set max connection amount.
  • Page 82 Standalone DVR – Jupiter Series You need a PC of fixed IP in the internet and there is the DDNS software running in this PC. In other words, this PC is a DNS (domain name server). See Figure 6-31. Please enable DDNS function and then input PC’s IP. Click save button and then reboot the DVR.
  • Page 83 Standalone DVR – Jupiter Series RS232 includes the following items. See Figure 6-32. Function: There are various devices for you to select. Console is for serial port or min-end platform to upgrade program. Keyboard is for you to use special keyb oard to control current device.
  • Page 84 Standalone DVR – Jupiter Series After you completed setup here, system upload scheduled data to the specified FTP server regularly. Need device supported. In Figure 6-34, you need to input FTP server address, port, log in user name and password. Then you need to specify the destination directory to save files. File: You can input uploaded file length (Unit: MB).
  • Page 85 Standalone DVR – Jupiter Series Please note before setting the alarm, you need to properly connect the devices of alarm input and output, the address of sending and receiving messages. Click “Save” button confirm current setup. Alarm setup includes the following items. See Figure 6-36. Event Type: you can select the event type from the drop down list.
  • Page 86 Standalone DVR – Jupiter Series Detect interface is shown as in Figure 6-38. Here includes the following items: Channel: Select channel name from the dropdown list. Type: There are three types->Motion detection/Video loss/Camera mask. Record channel: Here you can select record channel (Multiple choices). Please make sure you have set “MD”...
  • Page 87 Standalone DVR – Jupiter Series Figure 6-39 Figure 6-40 Figure 6-41 Figure 6-42...
  • Page 88 Standalone DVR – Jupiter Series Pan/Tilt/Zoom interface is shown as in Figure 6-43. Please make sure you have properly set dome address and all connections are right. Decoder: Select the channel which is connected with a dome camera. Protocol: select the corresponding dome protocol. (such as PELCOD) Address: Set corresponding dome address.
  • Page 89 Standalone DVR – Jupiter Series Here you can export or import configuration information. See Figure 6-44. Save configuration data: Click “ Export Config ” button to save current setup as a file. Extension name is CFG. See Figure 6-45. Load configuration data: Click “Import Config” button, you can load a setup file. Figure 6-44 Figure 6-45...
  • Page 90 Standalone DVR – Jupiter Series Advanced includes the following items. See Figure 6-46. Account HDD management Alarm input Alarm output Auto maintain Video matrix (For some special model only) Snapshoot Account interface is shown as in Figure 6-46. Here you can add/delete user, add/delete group, modify user or group right, modify user password.
  • Page 91 Standalone DVR – Jupiter Series Click “Add Group” button, you can see the following interface. See Figure 6-47. Here you can add one new group, and then select corresponding rights for the accounts of whole group. Figure 6-47 Click “Add User” button, you can see the following interface. See Figure 6-48. Here you can input a new user and then select corresponding rights.
  • Page 92 Standalone DVR – Jupiter Series Record control interface is shown as in Figure 6-49. Record control: Here you can enable record status for corresponding channels. Alarm output channel: Here you can select alarm output channels. DVR output channel can not support large overload. (It shall be less than 1A). Too heavy current may result in relay damage.
  • Page 93 Standalone DVR – Jupiter Series This function needs DVR device supported. Please select the HDD first and then you can see the items on the right side become valid. You can check the corresponding item here. See Figure 6-50. After you completed setup, please click “HDD Control” button, you can see the DVR begins restarting.
  • Page 94 Standalone DVR – Jupiter Series Video matrix interface is shown as in Figure 6-52. Please note this function needs DVR supported. Figure 6-52 The interface of Snap Picture is shown as in Figure 6-53. Please note this function needs DVR supported. Figure 6-53...
  • Page 95 Standalone DVR – Jupiter Series Here you can select video type, channel number and time to search the file you want. Click “Search” button, the interface is shown as below. See Figure 6-54 Please use page up/down key to view the search results. Double click on the file name, you can view the file and system will automatically backup the images in you installation directory.
  • Page 96 Standalone DVR – Jupiter Series Figure 6-55 You can select one or more files you want to download and then click “Download” button. System pops up a dialogue box asking you specify directory. See Figure 6-56. Figure 6-56...
  • Page 97 Standalone DVR – Jupiter Series Then you can input file name and click save to backup file in your local pc. During the download process, there is a process bar for your reference and you can see the download button becomes stop button. See Figure 6-57. Figure 6-57...
  • Page 98 Standalone DVR – Jupiter Series Here you can set the event type and alarm prompt audio file. See Figure 6-58. Figure 6-58 Click “About” button, you can view current web client information. See Figure 6-59. Figure 6-59...
  • Page 99 Standalone DVR – Jupiter Series Click “Log out” button, system goes back to log in interface. See Figure 6-60. Figure 6-60 You can use web uninstall tool “uninstall_webrec.bat” to uninstall web control. Please note, before the un-installation, please close all web pages, otherwise the un-installation might result in errors.
  • Page 100 Standalone DVR – Jupiter Series Astral Surveillance Program allows you to manage a lot of DVRs remotely. Astral Surveillance Program has the following features: Professional File System Structure Management & User and Right Management Device Intelligent Search Support Alarm Plan Customization and Alarm Arm and Withdraw Data Interface Technology Support Excel Edit to add platform device(To be developed) Intelligent Video Transmission Protocol...
  • Page 101 Standalone DVR – Jupiter Series Double click General_ASP icon, the interface is shown as in Figure 7 -1. Figure 7-1 Please click on next button to continue. See Figure 7-2. Figure 7-2 Here you can select destination directory. See Figure 7-3.
  • Page 102 Standalone DVR – Jupiter Series Figure 7-3 Click "Browse" to select installation folder and then click "Next" button you can see an interface is shown as in Figure 7-4. Figure 7-4 Please specify program folder for installation and then click “Next” to continue. The interface is shown as in Figure 7-5.
  • Page 103 Standalone DVR – Jupiter Series Figure 7-5 After installation, you will see a window as appears in Figure 7-6. Figure 7-6 Please click “Close” button to complete installation. You can see ASP icon Astral Surveillance Program(Basic) is in the desktop now. See Figure 7-7. Figure 7-7 There are two ways for you to un-install Astral Surveillance System.
  • Page 104 Standalone DVR – Jupiter Series Astral Surveillance System window is shown as in Figure 7-8. Section 1 Section 5 Section 2 Section 3 Section 6 Section 4 Figure 7-8 There are total six sections: Section 1: There are seven function keys: monitor, E-map, record, save, alarm, log and system.
  • Page 105 Standalone DVR – Jupiter Series There are following possibilities: Input power is not correct. Power connection is not correct. Power switch button is damaged. Program upgrade is wrong. Front panel error. Main board is damaged. There are following possibilities: Input voltage is not stable or it is too low. HDD malfunction or something wrong wit the ribbon.
  • Page 106 Standalone DVR – Jupiter Series There are following possibilities: Video quality setup is too low. Program read error, bit data is too small. There is mosaic in the full screen. Please restart the DVR to solve this problem. HDD data ribbon error. HDD malfunction.
  • Page 107 Standalone DVR – Jupiter Series There are following possibilities: For Windows 98 or Windows ME user, please update your system to Windows 2000 sp4. Or you can install client-end software of lower version. ActiveX control has been disabled. No dx8.1 or higher. Please upgrade display card driver. Network connection error.
  • Page 108 Standalone DVR – Jupiter Series There are following possibilities: Alarm setup is not correct. Alarm output has been open manually. Input device error or connection is not correct. Some program versions may have this problem. Please upgrade your system. There are following possibilities: Alarm setup is not correct.
  • Page 109 Standalone DVR – Jupiter Series Sandisk Cruzer Micro 512M Sandisk Cruzer Micro Sandisk Cruzer Micro Sandisk Cruzer Freedom 256M Sandisk Cruzer Freedom 512M Sandisk Cruzer Freedom Sandisk Cruzer Freedom DataTraveler Kingston DataTraveler Kingston Kingston DataTraveler Kingston DataTraveler Maxell USB Flash Stick 128M Maxell USB Flash Stick...
  • Page 110 Standalone DVR – Jupiter Series Sony AW-G170S SATA DVD-RW Samsung TS-H653A SATA DVD-RW Panasonic SW-9588-C SATA DVD-RW Sony DRX-S50U DVD-RW BenQ 5232WI DVD-RW...
  • Page 111 Standalone DVR – Jupiter Series Seagate Barracuda.10 ST3750640AS 750G SATA Seagate Barracuda.10 ST3500630AS 500G SATA Seagate Barracuda.10 ST3400620AS 400G SATA Seagate Barracuda.10 ST3320620AS 320G SATA Seagate Barracuda.10 ST3250620AS 250G SATA Seagate Barracuda.10 ST3250820AS 250G SATA Seagate Barracuda.10 ST3160815AS 160G SATA Seagate Barracuda.10 ST380815AS...

This manual is also suitable for:

Jupiter 30450711slJupiter 30450712sJupiter 30450712slJupiter 30450713s
