INTRODUCTION
Hearth & Home Technologies wireless wall mount timer system was developed to provide safe, reliable, and user-friendly remote
control system for gas heating appliances. The system can be operated manually from the transmitter. The system operates on one of
65,536 security codes that are programmed into the transmitter at the factory.

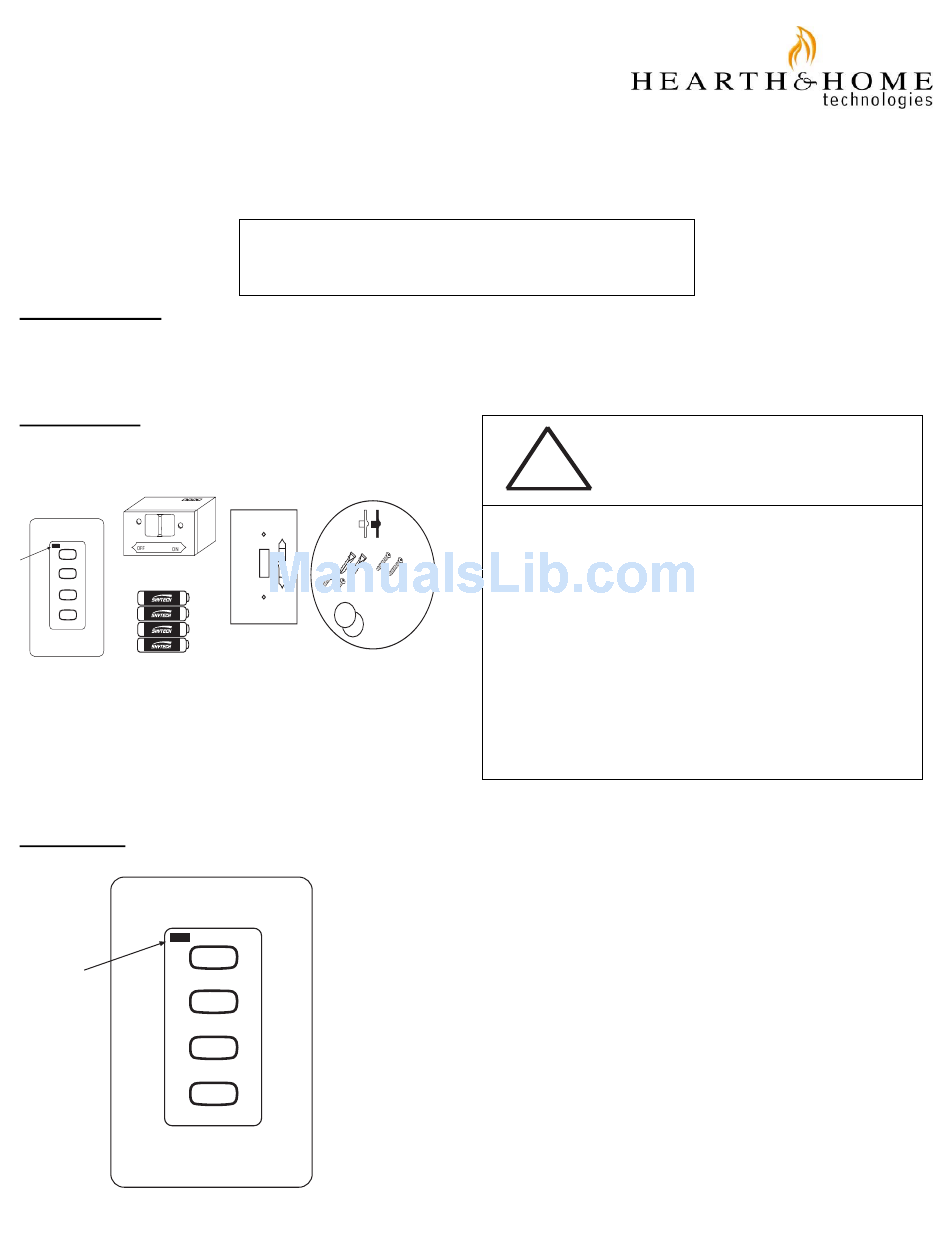

COMPONENTS
TRANSMITTER
ADJ.
LEARN
REMOTE
30 MIN
Indicator
Light
REMOTE RECEIVER
60 MIN
120 MIN
OFF
AA BATTERIES
WALL TIMER
Indicator
Light
WSK-SOUL-TMR
INSTALLATION AND OPERATING INSTRUCTIONS
Note: In addition to these instructions read and
follow instructions in gas appliance Owner's Guide.
SLIDE
ON
BUTTONS
R
E
M
O
T
2 ea.
E
OFF
12V (A23) Transmitter
2 ea.
battery(included in
(2) 3V Button Cell Transmitter
3V
batteries (included in
3V
WALL-MOUNT COVERPLATE
HARDWARE
30 MIN
60 MIN
120 MIN
OFF
!
Hearth & Home Technologies disclaims any responsibility for,
and the warranty will be voided by, the following actions.
4 ea.
•
transmitter)
•
transmitter)
•
•
Any such action may cause a fire hazard.
Read, understand and follow these instructions for safety and
operation.
The wall timer operates on a (2) 3V button cell batteries (included) made
specifically for remote controls and electronic lighters. Before using the wall
transmitter, install the two (2) 3V button cell batteries. Follow instructions below.
The wall timer has a 30 min, 60 min, 120 min, and OFF buttons. When any of the
buttons on the wall timer is pressed, a signal light on the wall timer illuminates
briefly to verify that a signal has been sent. If the signal light does not illuminate,
check the batteries. Upon initial use, there may be a delay of five seconds before
the remote receiver will respond to the wall timer.
WARNING
Installation and use of any damaged system
component.
Modification of the system component.
Installation other than as instructed by Hearth &
Home Technologies.
Installation and/or use of any component part not
approved by Hearth & Home Technologies.
2081-935 Rev D 12/19/05 Page 1 of 5
Advertisement
Summary of Contents for Hearth & Home WSK-SOUL-TMR
-
Page 1: Installation And Operating Instructions
WSK-SOUL-TMR INSTALLATION AND OPERATING INSTRUCTIONS Note: In addition to these instructions read and follow instructions in gas appliance Owner’s Guide. INTRODUCTION Hearth & Home Technologies wireless wall mount timer system was developed to provide safe, reliable, and user-friendly remote control system for gas heating appliances. The system can be operated manually from the transmitter. The system operates on one of 65,536 security codes that are programmed into the transmitter at the factory. -
Page 2: To Install Batteries
TO INSTALL BATTERIES Remove face from backing plate by insetting a small screwdriver into the small slot on the side at the top or bottom of the faceplate as shown below then snap OFF. 30 MIN Locate the (2) holders for the 3V button cell batteries. Place the button cell batteries into the battery holders and snap into place. -
Page 3: Installation
INSTALLATION The remote receiver can be either wall-mounted in a standard plastic switch box or placed on or near the fireplace hearth. Preferably, the remote receiver should be wall-mounted in a plastic switch box, as this will protect its electronic components from both the heat produced by the gas appliance and potential damage or abuse that can occur if it is left exposed on the hearth. -
Page 4: General Information
BATTERY LIFE Life expectancy of the alkaline batteries in the HEARTH & HOME TECHNOLOGIES WSK-SOUL-TMR should be at least 12 months. Check and replace all batteries annually. When the transmitter no longer operates the remote receiver from a distance it did previously (i.e., the transmitter’s range has decreased) or the remote receiver does not function at all, the batteries should be checked. -
Page 5: Troubleshooting
TROUBLE SHOOTING If you encounter problems with your fireplace system, the problem may be with the fireplace itself or it could be with the HEARTH & HOME TECHNOLOGIES wall timer system. Review the fireplace manufacturer’s operation manual to make sure all connections are properly made.
