Installation and Operation Manual
Thank you for choosing the
camera and microphone into one package is a breakthrough in size, cost and convenience.
Totally solid-state, with no moving parts, the
digital) memory card for ultimate reliability in all weather and road conditions.
This manual provides a source for easy navigation and setup of the product features and
operation. Here, you can set:
On-screen and recorded Time and Date stamps.
Recording quality.
Recording speed.
Recording schedule.
Whether to overwrite or stop recording when memory is full.
Please refer to the individual sections for complete details on each phase of use.
micro
micro
®. This combination of a digital recorder,
micro
® records to an SD (secure

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the microBus-Cam II and is the answer not in the manual?

Questions and answers

Summary of Contents for Robotics Technologies microBus-Cam II

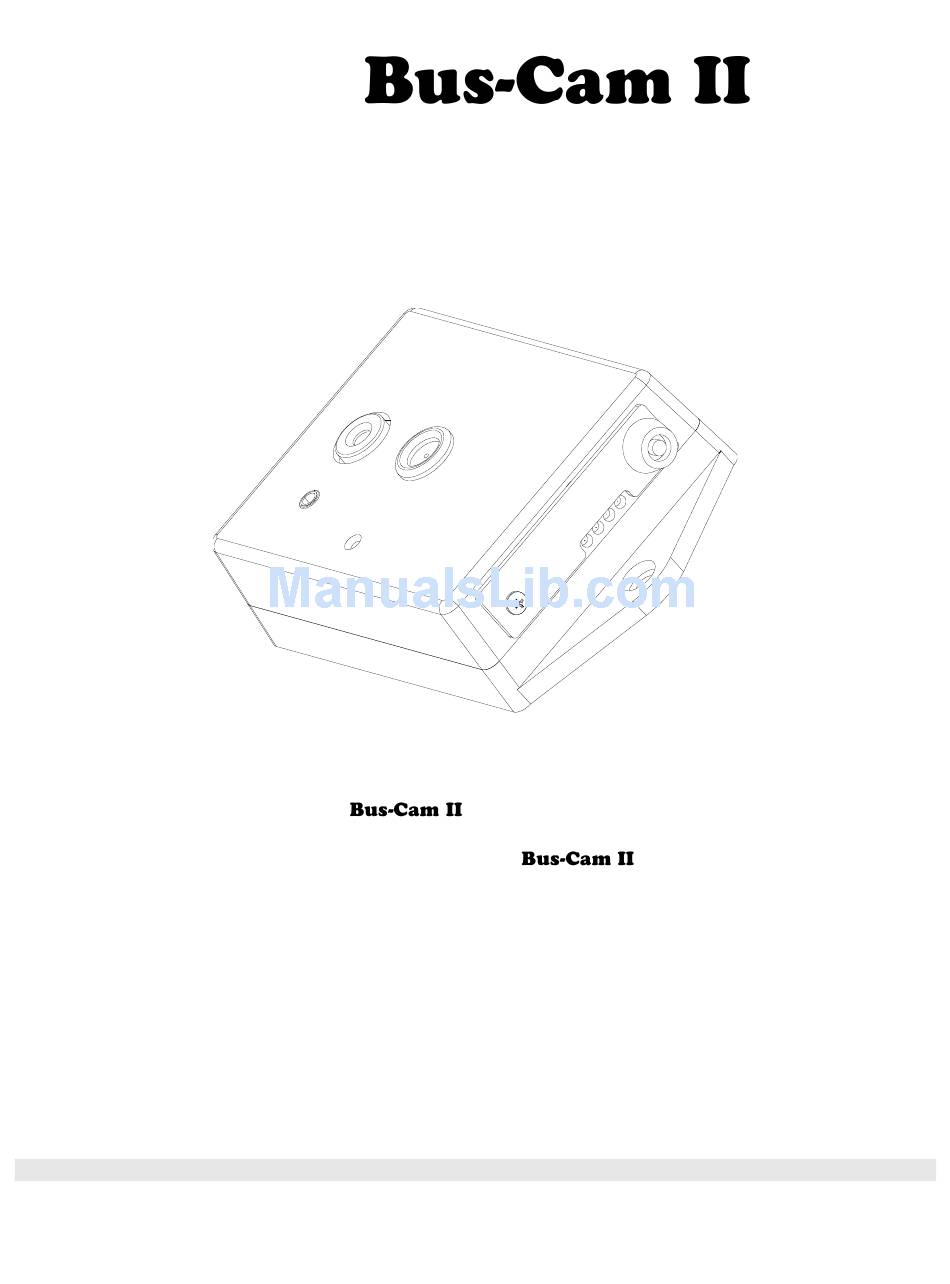

  • Page 1 micro Installation and Operation Manual Thank you for choosing the micro ®. This combination of a digital recorder, camera and microphone into one package is a breakthrough in size, cost and convenience. Totally solid-state, with no moving parts, the micro ®...
  • Page 2: Table Of Contents

    micro Table of Contents 1.0 Mechanical Installation......................3 2.0 Product Features........................4 2.1 Status LEDs............................5 3.0 Electrical Connections......................6 4.0 Remote Control Layout......................7 5.0 Screen Layouts......................... 8 5.1 Standby (Live) Mode..........................8 5.2 Record Mode............................8 6.0 Image Setup..........................9 7.0 Recording Setup........................
  • Page 3: Mechanical Installation

    micro 1.0 Mechanical Installation 1. Mount the support bracket to the bulkhead or ceiling of the vehicle, using the sheet-metal screws (provided). Position the bracket at the horizontal center of the vehicle. If the bracket is to be bulkhead-mounted, then position the bracket as high as possible on the bulkhead.
  • Page 4: Product Features

    micro 2.0 Product Features Camera Lock A/V Jack Status LEDs Remote Sensor SD Card Cover 4. To access the SD Card Socket: 1. Unscrew Lock, using the key 2. Pivot the cover open 3. Push to Install / Remove SD Card...
  • Page 5: Status Leds

    micro 2.1 Status LEDs LED Number Steady Flashing Menus Playback Active Preview Reading SD Card Recording Power Power...
  • Page 6: Electrical Connections

    micro 3.0 Electrical Connections Access the Power Connector from the Rear of the Unit Connect each wire as indicated by the diagram. Make sure that the battery connection is to a constant source of +12 VDC power, and fuse the +12 VDC wire at a maximum of 2A. That's it! You're done with the installation.
  • Page 7: Remote Control Layout

    micro 4.0 Remote Control Layout Buttons Functions ▲ Up / Volume up (during playback) ▼ Down / Volume down (during playback) ◄ Left / Fast Forward (during playback) ► Right / Fast Rewind (during playback) Confirm / Record (during playback) MENU Activate Menu Play / Pause playback / Delete file...
  • Page 8: Screen Layouts

    micro 5.0 Screen Layouts 5.1 Standby (Live) Mode 5.2 Record Mode...
  • Page 9: Image Setup

    micro 6.0 Image Setup Continued...
  • Page 10 micro...
  • Page 11: Recording Setup

    micro 7.0 Recording Setup 7.1 Scheduling Continued...
  • Page 12 micro...
  • Page 13 micro...
  • Page 14: Continuous Record Mode (Rewrite)

    micro 8.0 Continuous Record Mode (Rewrite) 9.0 Clip Length Select...
  • Page 15: Motion Detection

    micro 10.0 Motion Detection...
  • Page 16 micro...
  • Page 17: Recording Mode

    micro 11.0 Recording Mode NOTE: Use only Manual and Scheduled Settings for Vehicles.
  • Page 18: Playback

    micro 12.0 Playback...
  • Page 19: System Settings

    micro 13.0 System Settings...
  • Page 20 micro Note: The GPS function is reserved for future versions. Use the TIME selection to enable/disable the display and recording of the time-stamp. The ENABLE setting is highly recommended. When you have finished programming, press MENU to save and exit to LIVE MODE. When the Ignition is activated, the unit will start recording with your new settings.
  • Page 21: Working With Clips--The Sd Card

    micro 14.0 Working with Clips--The SD Card The recorded video clips are stored on a totally solid-state SD (Secure Digital) Card. The micro ® can accept SD Cards with capacities up to 32 GB. Most users prefer to use a computer to view their clips. It is more convenient than on- vehicle viewing—...
  • Page 22: Post Trip Delay

    micro 15.0 Post Trip Delay This feature provides the ability to continue recording for a set period--even after the Ignition (or other trigger source) is turned off. The time delay setting can be made with the 3-position DIP switch that is located on the rear of the unit.
  • Page 23: Specifications & Features

    micro 16.0 Specifications & Features For DVR Parameter Compression Standard MPEG-4 / H.264 Resolution Full D1 (704 x 576) Video Format MPEG-4/ASF Audio Format / Rate, Encoding MP3 / 8KHz,ADPCM Frame Rate User-selectable, 5/15/30 Storage Medium SDHC Memory Card, Max. 32 GB Playback Composte NTSC User Control/Setup...
