Summary of Contents for SSSI Black4Neo

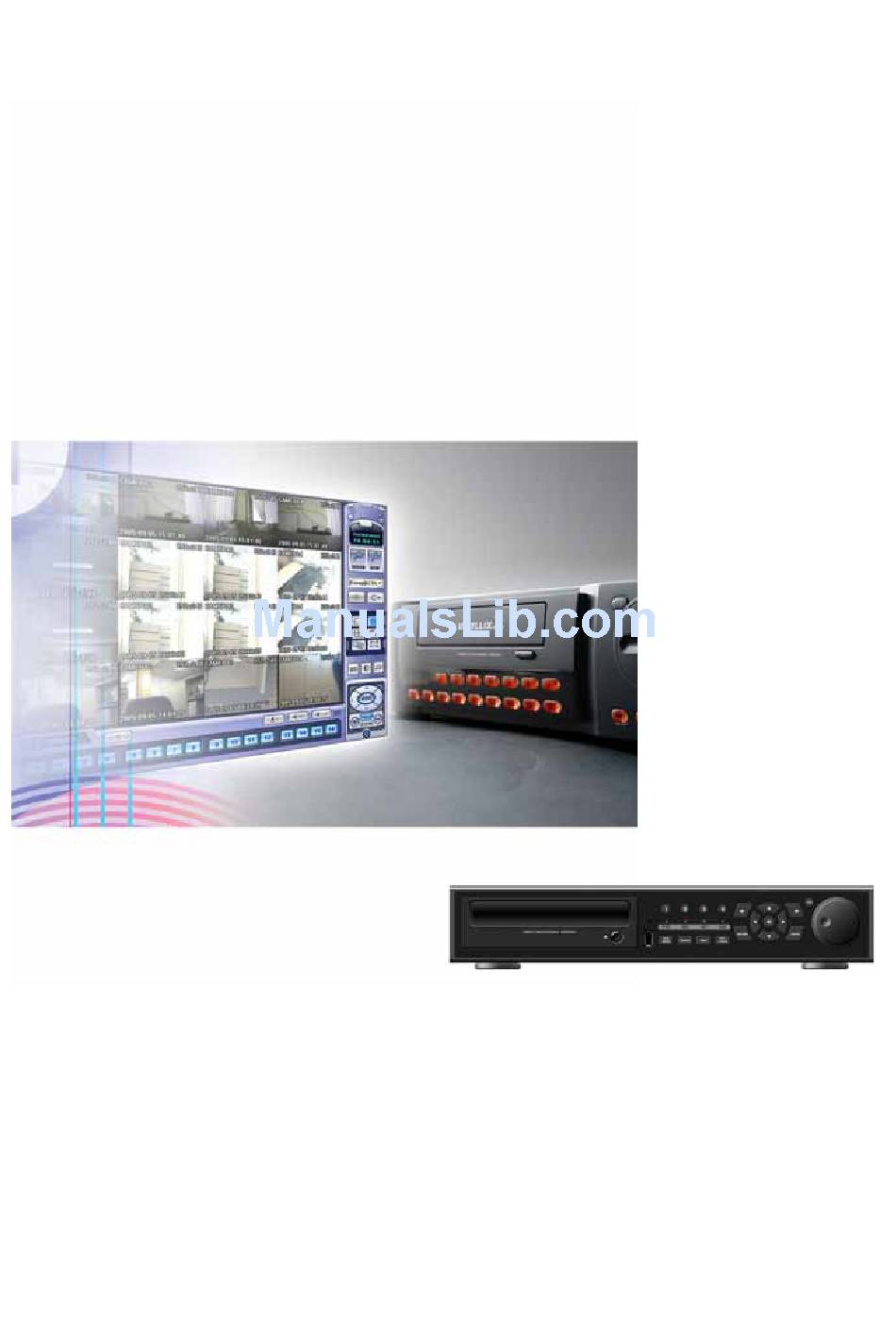

- Page 1 Standalone DVR USER’S MANUAL DVR-Black4Neo DVR-Black800Neo DVR-Black1600Neo Revision date : Oct 2006...
-
Page 2: Table Of Contents
2. System Organization --------------------------------------------------------- 4 • Chapter 2. Product Description 1. DVR-1600Neo / 800Neo Front Panel--------------------------------------------- 5 Rear Panel ----------------------------------------------- 7 DVR-1600Neo / 800Neo 3. DVR-Black4Neo Front Panel----------------------------------------------------- Rear Panel ---------------------------------------------------- 9 DVR-Black4Neo 5. Remote Controller -------------------------------------------------------- 10 • Chapter 3. Display 1. - Page 3 • INDEX • Chapter 5. SETUP ⊙ Go to Menu -------------------------------------------------------------- 16 ⊙ Go to System Setup -------------------------------------------------------- 16 1. Display ------------------------------------------------------------------ 17 2. Camera ----------------------------------------------------------------- 21 3. Sound ------------------------------------------------------------------ 22 4. System ------------------------------------------------------------------ 25 5. Event/Sensor ------------------------------------------------------------- 30 6. Disk Management ---------------------------------------------------------- 31 ⊙...
-
Page 4: Product Contents List
1. Specification & Organization 1. Product contents List Please Confirm the Contents When open Package. ① Basic Contents Power Cable User’s Manual Remote Controller Remote Client AAA Battery X 2 Program Install CD ② Option Contents CD-RW USB Memory... -
Page 5: System Organization
2. System Organization Remote Client PC Image Printer Alarm Sensor #1-8(16) Relay Out Camera #1-8(16) Alarm Input/Out NETWORK AVI Backup TCP/IP Video In WEB Client Backup Video Out Remote Controller AV Monitor CD-RW Monitor (It is not supported on DVR-Black4Neo) -
Page 6: Dvr-1600Neo / 800Neo Front Panel
2. Description (DVR-Black800Neo/1600Neo) 1. Front Panel POWER : System Power On/Off Shortcut button for convenience SHORTCUT : CD/DVD RW : Back up image to CD/DVD RW HOLD : Hold Current Jog/Shuttle position RETURN : Cancel/Deselect/Return to previous screen Direction / Navigation Button : UP/DOWN/LEFT/RIGHT ENTER : Confirm/ Select next screen CHANNEL Select button : Select Channel or Input Password. - Page 7 2. Description * Shortcut button DISPLAY : Select Screen Division Mode or Rotation Mode. SEQ : Select sequence screen mode. PANIC : Urgent Recording as setup. ZOOM : Digital zoom on Live or Playback image LOCK : Front Panel Lock Button (Default password: 1234) When locked, “LOCK”...
-
Page 8: Rear Panel
2. Description 2. Rear Panel Video IN / Loop : BNC Video Input Port/ Loop Output (1-8/16) Monitor out : BNC Main Monitor Output. SVHS : S-Video Main Monitor Output. Spot #1 ~ #4 : 4x BNC Output to individually – Sequenced Spot Monitors Audio In : 4 x RCA Audio Line Input Terminal Audio Out : RCA Audio Line Out Terminal Alarm : 8/16 x Input TTL Alarm/Sensor Input Terminal... -
Page 9: Dvr-Black4Neo
2. Description (DVR-Black4Neo) 1. Front Panel CD-RW : CD-RW Device for Backup. Channel Selection Button : Select Channel or Input Password. Led Indicator : Indicate Present System Status Information. ( PWR: System On/Off, REC: Record On/Off, ALARM: Alarm Sensor Detection Status, NET: Client Network Connection Status, ) Search Controller : Searching Recorded Data or Control Menu &... -
Page 10: Rear Panel
2. Description 2. Rear Panel Video In : BNC Port for Connection of DVR & Camera. (4 Camera Connectable) Loop Back : Output DVR Camera Video to Loop Back Port. (4 BNC Port) Monitor Out : Output DVR Video to AV Monitor. Spot Out : Output Spot-out Video to AV Monitor. -
Page 11: Remote Controller
2. Description 3. Remote Controller POWER MENU : Open System Setup Menu System ON/OFF Channel Selection Buttons RETURN ENTER : Apply / Select /Go to Next Sereen Cancel / Deselect Navigation Buttons : Used for Playback Previous Screen Control, Menu Navigation, and PTZ/Focus Control Change Display PTZ/IRIS Mode... -
Page 12: Chapter 3. Display
3. Display 1. System Power ON • Press power button to start system. • After Checking Hard Disk, display mode is shown.1 • Initial Screen View Mode is Quad Division Mode and Recording Mode. <Picture of Power On after Finishing Installation> CAMERA •... -
Page 13: Screen View Selection
3. Display When this unit is connected with a remote client PC, a Network status icon will appear on the Status Bar • This icon indicates the current network conditions - Green: Network is connected and stable. - Blue: Network is connected, but is unstable. - Red: Network is very unstable. -
Page 14: Ptz/Focus Control
3. Display 4. PTZ/FOCUS Control • Control Camera Movement of PTZ (Pan/Tilt/Zoom) devices. • Press PTZ Button to switch into PTZ mode. (Status Bar is replaced by PTZ controls) • Each PTZ function is manipulated by using a button on the Front Panel or on the Remote controller. •... -
Page 15: Go To Search Mode
4. Search ⊙ Go to Search Mode • Press search button and Log-In. (as administrator or manager ) • Use directional keys to navigate search menu. • To open/ advance each sub menu, Press enter • To return to a previous menu screen, Press return. ( Repeatedly pressing return will exit out of all menus.) 1. -
Page 16: Search By Event
4. Search • Video Playback Controls ① : Basic playback mode (Normal speed (1X) forward playing) ② : Normal speed (1x) backward playing ③ : Pause playback (Enable the JOG wheel) ④ : Fast forward (2x ~ 64x speed) ⑤ : Fast rewind (2x ~ 64x speed) ⑥... -
Page 17: Chapter 5. Setup
5. Setup ⊙ Go to setup ① Press setup button. ② Unit will ask for login/password Entry. ③ Input password using by channel selection button. ④ After login, select a submenu and press enter. • The Initial password for the Admin account is 1234. •... -
Page 18: Display
5. Setup 1.Display - Allows configuration of display properties • Live view display options are edited within this submenu. • Navigate menu by using directional buttons • Select the desired menu category and press “ Enter” ENTER • Return to previous menu (or live view mode) RETURN 1-1. - Page 19 5. Setup 1-2. MONITOR • Sequence dwell : Set up channel sequence cycle time (1-60 sec). • Spot-out dwell : Setup spot-out time cycle(1~60 sec.). • De-interlace mode : Remove interlacing in high resolution & low frame. * This applies only D1 resolution. (704X480) •...
- Page 20 5. Setup 1-3. SEQUENCE • Choose add to add sequence. • Activation : Setup activation on/off. • Input the sequence title. • List : Sequence title. • Choose activation. (on/off) • Created by user who programmed the • Save and exit sequence.
- Page 21 5. Setup 1-4. SPOT OUT • Channel : Select spot out channel (4CH=> 1 SPOT, 8CH=> 2 SPOT, 16CH=> 4 SPOT) • Select camera channel for spot out • User can see the selected channel via AV monitor...
-
Page 22: Camera
5. Setup 2. Camera - Allow setup of camera Parameters and Options 2-1. Camera Title • Covert : Setup channel as Covert channel (on/off) => What’s Covert? When a channel is set to covert, it will be hidden Live view and Playback, but video will still be recorded. •... - Page 23 5. Setup ※ How to use Virtual Keyboard • Input the directional buttons to select keys on the virtual keyboard. • Press enter to press a key on the keyboard. • Press the button for shift for CAPS and punctuation. 2-3.
- Page 24 5. Setup 2-4. Motion Detection • Move cursor over grid using the Directional keys. • Adjust the Motion Sensitivity Level (1-10) • Press Enter, and then use the Directional Keys to • Click area setup to define motion-sensitive area. select an area of targets on the grid. •...
-
Page 25: Sound
5. Setup 3. Sound 3-1. Audio - Allows for configuration of audio parameters and options • Live Audio : Audio output to audio out terminal (ON/OFF). (Live audio output is from audio in terminal) • Audio Monitoring Channel: Select channel for audio output. •... -
Page 26: System
5. Setup 4. System - Basic System environment Setup 4-1. Date/Time ※ User should set the proper Time zone for your geographic location before adjusting the other settings. • Date time : Set the present date & time. • Date Format : Select the style of date display. (Ex: 2005-00-00, 2005/00/00) •... - Page 27 5. Setup 4-2. Network • IP Address : Input the unit IP Address. • Gateway : Input the IP address of Internet-connected Router • Subnet Mask : Input the Subnet Mask IP. • DNS Server: Input 1 AND 2 DNS Server IP Addresses. •...
- Page 28 5. Setup 4-3. Mail These settings allow the DVR to send outgoing E-mail notifications to the list of recipients listed within the DVR • Server: Setup the outgoing Mail server address. • Input the server address using the Virtual Keyboard. •...
- Page 29 5. Setup 4-4. User Management DVR User account Setup • There are 3 groups of User Account types - Administrator, Manager, and User. • A Total 7 users can be established for each account type. • Input the new User ID, •...
- Page 30 5. Setup 4-5. System Management • F/W version: DVR Server firmware version. • H/W version : DVR Hardware version. • Video signal type: NTSC or PAL. • Disk capacity: Used HDD capacity/ total HDD capacity. • IP address: Current IP address of the DVR. •...
-
Page 31: Event/Sensor
5. Setup 4-6. Control device • System ID : Select system ID. (1~254) • Protocol : Select protocol. • Baud rate : Setup baud rate. 5. Event/Sensor 5-1. HDD Event • Drive: All HDDs are listed by IDE channel Number. •... - Page 32 5. Setup 5-2. Alarm Input • Operation: Setup Alarm Sensor Connection Status. (enable/disable) • Type : Setup Alarm Sensor N/Open, N/Close Type. • Normal Open : Open status in normal times, when alarm out happen changed to close status . •...
- Page 33 5. Setup 5-4. Buzzer out • Operation: Buzzer Out (Enable/Disable). • Mode: Setup in Latched/Transparent Mode (same as Alarm out). • HDD Event: Turn buzzer (on/off) when HDD event occurs. • Duration: Buzzer time (5sec~5min or manual reset on DVR) •...
-
Page 34: Disk Management
5. Setup 5-5. E-mail Notification • E-Mail Notification will send an e-mail to a list of recipients, based on alarm, video loss, motion, or HDD events. • Check or uncheck each type of condition that you want to trigger an E-mail notification, on each channel. •... -
Page 35: Go To Record Menu
5. Setup ⊙ Go to Record Menu • Press the setup button and login as an Administrator. • Choose “ Record Menu” 1. Recording Operations • Schedule Mode: Choose ‘DAILY’ or ‘WEEKLY’. - Daily : The recording schedule that you configure will be used for every day of the week. -
Page 36: Timer/Motion Setup
5. Setup 2. Continuous / Motion Record Schedule 2-1. Parameter • Select a block of time from the 0-24hr Timeline (you may select multiple blocks). • Press ENTER again to set up the Resolution, FPS, Quality, and Audio on each channel. 2-2. -
Page 37: Alarm Recording Schedule
5. Setup 3. Alarm Recording Schedule 3-1. Parameter • Select a block of time from the 0-24hr timeline (you may select multiple blocks). • Press ENTER again to set up the resolution, FPS, quality, and audio on each channel. 3-2. Schedule •... -
Page 38: Panic Setup
5. Setup 4. Panic Setup • To setup each channel, press enter. • Setup each channel. (Size, FPS, Quality, Audio) • By using panic button of front panel can record urgently as setup. -
Page 39: Go To Archiving
5. Setup ⊙ Go to Archiving 1. CD-RW and USB Back Up • Device : Indicate CD-RW model and USB memory model automatically. If you use the CD-RW and USB memory (or USB HDD) together, it can choose the CD-RW and USB by direction key. •... -
Page 40: Hdd Installation
SUPPLEMENT * HDD Installation ① Jumper Setup as Master or Slave • Jumper Setup as master or Slave, Following the Direction of Surface of Hard Disk. • Jumper Located at Hard Disk Data Cable or Rear Side of Hard Disk. •...
