WARNING: IF THE INFORMATION IN THIS MAN-
UAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY
DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY: Do not store or use gasoline
or other flammable vapors or liquids in the vicin-
ity of this or any other appliance.
FOR YOUR SAFETY: What to do if you smell gas:
• DO NOT light any appliance.
• DO NOT touch any electrical switches.
• Do not use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow your gas
suppliers instructions.
• If your gas supplier cannot be reached, call
the fire department.
Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
INSTALLATION AND OPERATION
FREESTANDING VENTED GAS FIRED ROOM HEATERS

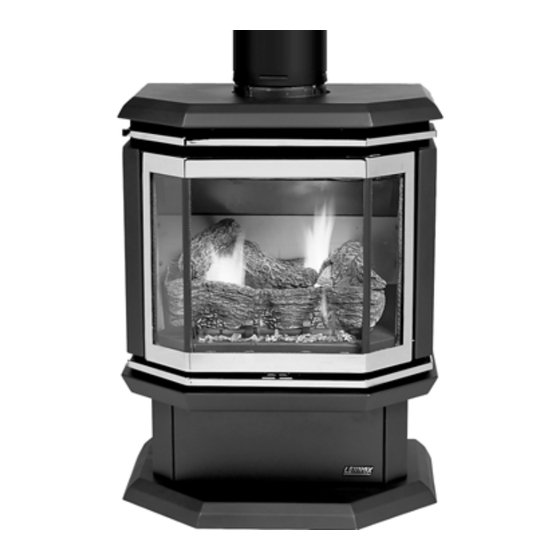

L20 DVF-2 shown with optional gold door and brickaded interior
Models: L20 BF-2 (B-Vent) and L20 DVF-2 (Direct-Vent)
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Model L20 DVF-2 may be installed in an aftermarket permanently located,
manufactured (mobile) home, where not prohibited by local codes
AVERTISSEMENT: ASSUREZ-VOUS DE BIEN SUIVRE LES
INSTRUCTIONS DONNÉ DANS CETTE NOTICE POUR
RÉDUIRE AU MINIMUM LE RISQUE D'INCENDIE OU
POUR ÉVITER TOUT DOMMAGE MATÉRIEL, TOUTE
BLESSURE OU LA MORT.
POUR VOTRE SÉCURITÉ: Ne pas entreposer ni utiliser
d'essence ni d'autre vapeurs ou liquides inflammables dans
le voisinage de cet appareil ou de tout autre appareil.
POUR VOTRE SÉCURITÉ: Que faire si vous sentez une
odeur de gaz:
• Ne pas tenter d'allumer d'appareil.
• Ne touchez à aucun interrupteur. Ne pas vous
servir des téléphones se trouvant dans le batiment
où vous vous trouvez.
• Evacuez la piéce, le bâtiment ou la zone.
• Appelez immédiatement votre fournisseur de gaz
depuis un voisin. Suivez les instructions du
fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz, appe-
lez le service dos incendies.
L'installation et service doit être exécuté par un qualifié
installeur, agence de service ou le fournisseur de gaz.
MANUAL
P/N 775,021M Rev. C, 8/04
