Lathem PS8-2412 Specifications

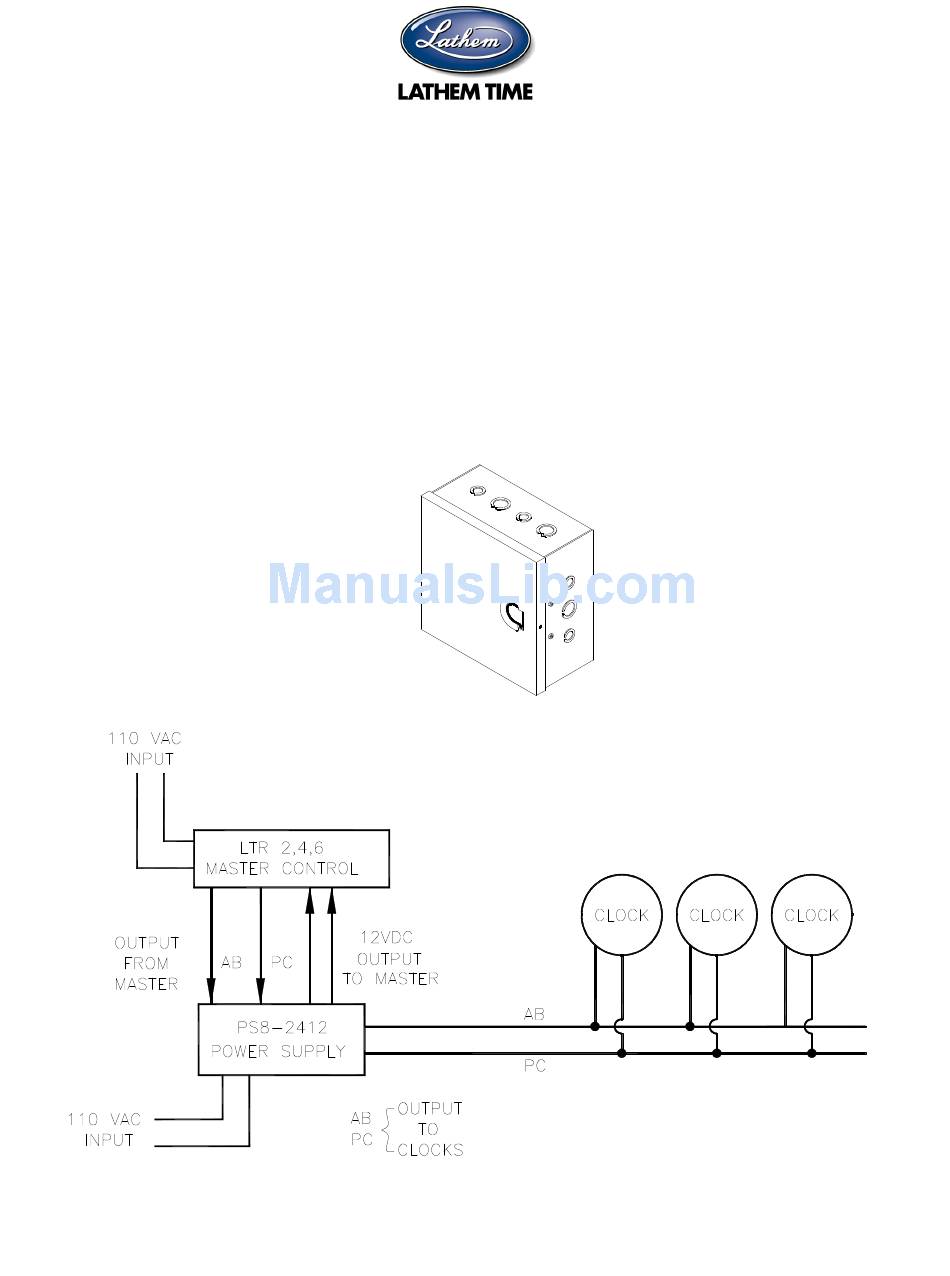

PS8-2412 Power Supply

The PS8-2412 Power Supply was designed to operate with 2 wire reverse polarity systems. It
operates from 115/220 VAC as specified by the customer, and provides two different voltage level
outputs: 12VDC full wave and 24VDC at the terminal block (TB2).
The power supply is fused (input and output) with two 5-amp fuses, to provide a maximum of
5-amp total current. The ON/OFF switch controls all voltage outputs. The unit is housed in an
8" x 4" black, surface-mount box with a latched door hinged on the left. Universal knockouts are
provided on all sides for routing wires in and out of the box.
Revised: 11/03 Doc. # INS0011
