GE Appliances

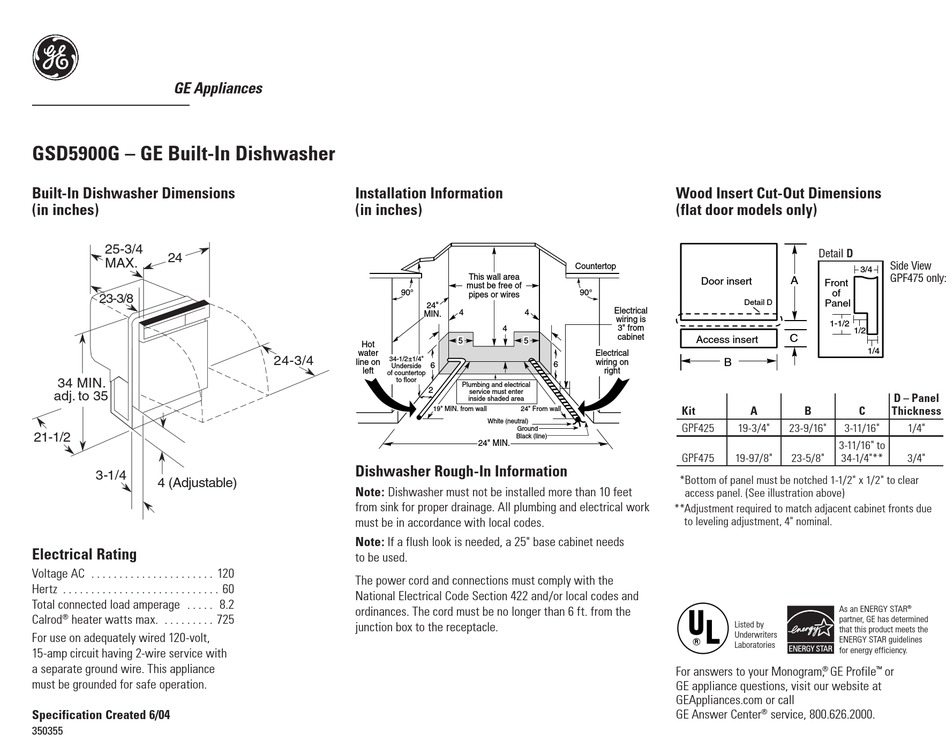

GSD5900G – GE Built-In Dishwasher
Built-In Dishwasher Dimensions
(in inches)
25-3/4
24
MAX.
23-3/8
34 MIN.
adj. to 35
21-1/2
3-1/4
4 (Adjustable)
Electrical Rating
Voltage AC . . . . . . . . . . . . . . . . . . . . . . 120
Hertz . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Total connected load amperage . . . . . 8.2
Calrod
®
heater watts max. . . . . . . . . . 725
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service with
a separate ground wire. This appliance
must be grounded for safe operation.
Specification Created 6/04
350355

Installation Information

(in inches)
90°
24"
MIN.
Hot
water
24-3/4
34-1/2±1/4"
line on
6
Underside
left
of countertop
to floor
2
19" MIN. from wall
Dishwasher Rough-In Information
Note: Dishwasher must not be installed more than 10 feet
from sink for proper drainage. All plumbing and electrical work
must be in accordance with local codes.
Note: If a flush look is needed, a 25" base cabinet needs
to be used.
The power cord and connections must comply with the
National Electrical Code Section 422 and/or local codes and
ordinances. The cord must be no longer than 6 ft. from the
junction box to the receptacle.
Countertop
This wall area
must be free of
90°
pipes or wires
Electrical
4
4
wiring is
3" from
4
cabinet
5
5
Electrical
wiring on
6
right
Plumbing and electrical
service must enter
inside shaded area
24" From wall
White (neutral)
Ground
Black (line)
24" MIN.
(Pub. 1-G003 pg. 131B) May 12, 199
Wood Insert Cut-Out Dimensions (in inches
(Pub. 1-G003 pg. 131B) May 12, 1
GE/Hotpoint/RCA
Wood Insert Cut-Out Dimensions (in inche
Wood Insert Cut-Out Dimensions
GE/Hotpoint/RCA
(flat door models only)
Detail D
Panel Thickness
A
Door insert
Panel Thickness
A
Door insert
Detail D
Front
of
Panel
Detail D
Front
C
Access insert
of
1-1/2
Panel
1/2
B
C
Access insert
1-1/2
B
When using GPF325
1/4" custom dishwasher
door and access panel kit.
When using GPF325
Kit
A
B
1/4" custom dishwasher
When using GPF375
door and access panel kit.
3/4" custom dishwasher
GPF425
19-3/4"
23-9/16"
3-11/16"
door and access panel kit.
When using GPF375
3-11/16" to
3/4" custom dishwasher
GPF475
19-97/8"
23-5/8"
34-1/4"**
door and access panel kit.
**Bottom of panel must be notched 1-1/2" x 1/2" to clear
access panel. (See illustration above)
**Adjustment required to match adjacent cabinet fronts due
to leveling adjustment, 4" nominal.
As an ENERGY STAR
partner, GE has determined
Listed by
that this product meets the
Underwriters
ENERGY STAR guidelines
R
Laboratories
for energy efficiency.
For answers to your Monogram,
GE Profile
®
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center
service, 800.626.2000.
®
Dishwashers Installation
Dishwashers Installation
Side View
3/4
GPF475 only:
3/4
1/4
1/2
1/4
D – Panel
C
Thickness
1/4"
3/4"
®
or
