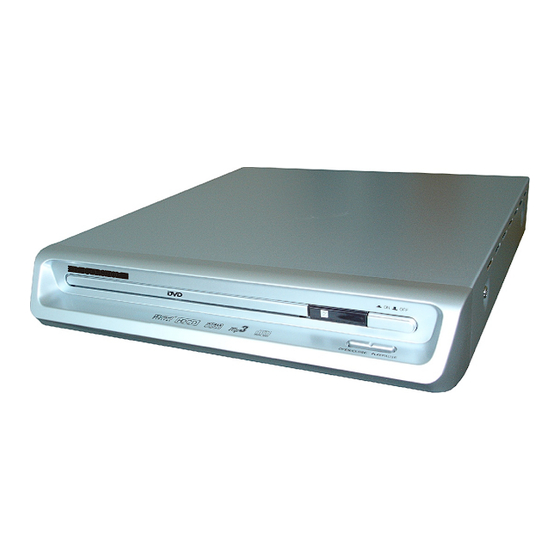

Electrohome DVD20EBL User Manual

Compact dvd player with progressive scan
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
DVD20EBL
Compact DVD Player with
Progressive Scan
Kodak

Advertisement

Table of Contents
loading

Related Manuals for Electrohome DVD20EBL

Summary of Contents for Electrohome DVD20EBL

  • Page 1 USER MANUAL DVD20EBL Compact DVD Player with Progressive Scan Kodak...
  • Page 2 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTINGA RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK IS PRESENT DO NOT OPEN WITHIN THIS UNIT.
  • Page 3 11.GROUNDING OR POLARIZATION This unit is equipped with a polarized altemating-current line plug (plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug.
  • Page 4 c. If the unit has been exposed to rain or water. d. If the unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to its normal operation.

  • Page 5: Table Of Contents

    Table of Contents Table of Discs Your DVD player Will play Supporting function of disc Remote Control Systems Connection Chapter 1 Basic Operation 1. Turn On the TV and your DVD player 2. Place a disc 3. Play . Program Play Chapter 2 Additional Operation 1.

  • Page 6: Table Of Discs Your Dvd Player Will Play

    Types of Discs Your DVD Player Will Play Types of Data Format Remark Diameter Playback Time Discs 1 layer: 120min DVD Format Disc: 12cm 2 layers: 240min Compressed Digital Audio Compressed Digital 1 layer: 80min Video Moving picture 2 layers: 180min MPEG2 Include: Compressed Digital Audio...

  • Page 7: Remote Control

    Remote Control: 1. SUBTITLE 2. OPEN/CLOSE NUMERIC KEYS 4. PBC 5.STEP PROGRAM SLOW 8. SETUP CURSOR CONTROL /ENTER 10.TITLE 11. PAUSE 12.MUTE FR, FF 20 19 PREV, NEXT 20 18 15. STOP 16.PLAY 17. MENU 18. ZOOM 19. A-B VOL+,VOL- REPEAT 22.

  • Page 8: Systems Connection

    Must connect properly, especially the plug should be inserted to the bottom. Notice: this picture is only for your reference, all the functions should be based on the real unit machine. CLASS I LASER PRODUCT DVD20EBL AUDIO/VIDEO APPARATUS 25RY E253271...

  • Page 9: Chapter 1 Basic Operation

    Chapter 1 Basic Operation 1.Turn On the TV and Your DVD Player Press the Power or STANDBY button on the player or the remote controller, and Read appears on the TV screen. If there hasn't a disc in the DVD player. 2.Place A Disc Press the Open / Close button on the remote controller or the front of the DVD player, and Open appears on the screen.

  • Page 10: Program Play

    b) Sequence Play (compatible with DVD, SVCD, VCD, CD+G, DTS-CD, HD-CD, WMA, MP3/JPEG discs) I. When a SVCD or VCD disc is loaded and PBC is on, once PBC button pressed, PBC switches off. Then the player can play in sequence playback mode; when PBC button pressed twice, PBC switches on.

  • Page 11: Chapter 2 Additional Operation

    Chapter 2 Additional Operation 1. Selecting Tracks (compatible with DVD, SVCD, VCD, CD, CD+G, DTS-CD, HD-CD, WMA, MP3 /JPEG discs) a) When playing a DVD disc, press Numeric buttons on the menu or title page to select tracks; During DVD playback, you can input desired title number directly. b) As a SVCD or VCD disc, during sequence playback, press Numeric buttons to select tracks.

  • Page 12: Multispeed Slow Motion Playback (Compatible With Dvd, Svcd, Vcd, Cd, Cd+G, Dts-Cd, Hd-Cd Discs)

    4. Multispeed Slow Motion Playback (compatible with DVD, SVCD, VCD, CD, CD+G, DTS-CD, HD-CD discs) Press Slow button when pictures moving, you can enter Slow Motion Playback mode. Press the Slow button on the remote during playback. Press the button again on the remote to play at the next speed.

  • Page 13: Using The Search Feature (Compatible With Dvd, Svcd, Vcd, Cd, Dts-Cd, Hd-Cd Discs)

    b) Loading and playing SVCD, VCD discs (two pages) Press OSD button once to show the first page: Disc Type,Track * / * (the playing track / total tracks), Elapsed Time of the Playing Track, Repeat Mode, PBC, Play Mode, Mute. Press the button again, the display menu fades out.

  • Page 14: Changing The Audio Language (Compatible With Dvd, Svcd Discs)

    Changing the Audio Language (compatible with DVD, SVCD discs) During disc playback, press Language on the remote once, and the audio language info banner appears. When a DVD or SVCD is recorded whit multiple soundtracks, you can use the Lang- uage feature to temporarily change the audio language (the language of the soundtrack) With each consecutive press of the Language button, the audio language switches and the corresponding serial number appears on the screen.

  • Page 15: Zoom In The Video Image (Compatible With Dvd, Svcd, Vcd, Jpeg Discs)

    14. Zoom In the Video Image (compatible with DVD, SVCD, VCD, JPEG discs) a) The Zoom Function allows you to enlarge or zoom out the video image and to pan though the image. Press Zoom repeatedly to activate the function and choose the required zoom factor: Zoom 2, Zoom 3, Zoom 4, Zoom 1/2, Zoom 1/3, Zoom 1/4.

  • Page 16: Chapter 3 Playing Wma, Mp3 And Jpeg Discs

    Chapter 3 Playing WMA, MP3 and JPEG discs Place a MP3 / JPEG disc into the tray, and the player will auto search the directories saved MP3 / JPEG files. After searching, it will auto go to the first directory saved MP3 files (to the disc containing both MP3 and JPEG files;...
  • Page 17 V. You can press the Numeric buttons to select the file you want to play. For example, if you desire the 15 track in current list, press the 10+ button once, then press 5 , the 15 starts playback. Notes: When playing a disc with MP3 files, video cannot be output while only digital audio can.

  • Page 18: Chapter 4 The Setup Menu System

    Chapter 4 The Setup Menu System 1. General Steps of Setup Menu a) Press the Setup button, the main setup menu appears. When the main menu displayed, the DVD system will auto pause. b) Press the Left and Right arrow buttons to highlight the icon of the desired page, then press the Down or Right arrow button to activate that page;...

  • Page 19: Setup Items Introduction

    2. Setup Items Introduction a) LANGUAGE SETUP The language setup options are illustrated below: MENU LANGUAGE Highlight the MENU option, and press the Arrow buttons to choose the MENU language you prefer. Press Enter to confirm, and it will display MENU in that language. Notes: Menu languages are practicality-dependent.
  • Page 20 SUBTITLE LANGUAGE Highlight the SUBTITLE LANG option, and press the Arrow buttons to choose the subtitle language you prefer. Press Enter to confirm. If the disc you are playing has that language available, it will displays subtitles in that language Notes: Subtitle languages are practicality-dependent.
  • Page 21 RESET User can reset the setting to restore one and former setting will be changed. B) DISPLAY SETUP The display setup options are illustrated below: ASPECT RATIO 16 : 9 (Wide Screen): Choose this setting if your DVD player is connected to a wide screen TV.
  • Page 22 MESSAGE You can set Message on or off. BLACK LEVEL You can set Black Level on or off. TV SYSTEM According to the Color System of the TV, you can choose the TV System. NTSC: Choose this settings if your DVD player is connected to a NTSC TV. Notes: DEFAULT modes are practicality-dependent.
  • Page 23 VIDEO OUT S-VIDEO: Choose this setting if your DVD player is connected to the TV with S-VIDEO cable. YPbPr: Choose this setting if your DVD player is connected to a progressive scan TV with Y, Pb, Pr video cables. YUV: Choose this setting if your DVD player is connected to the TV with Y Cb Cr video cable. Notes: Output setup are dependert on actual function.
  • Page 24 LPCM OUTPUT Set LPCM output to 48k or 96k. SPDIF DOLBY SPDIF DTS...
  • Page 25 CHANNEL OUTPUT LT/RT: Choose this setting, it will be sound like in a movie theatre if the original movie the disc was recorded from was encoded in the Pro Logic Dolby Digital format. STEREO: Choose this setting, when 5.1-channel sound playing, two channels of signals will be output from the left and right soundtrack;...
  • Page 26 D) SPEAKER SETUP The speaker setup options are illustrated below: 3D/EQ E) PARENTAL SETUP The parental setup options are illustrated below: ASSWORD The password option is initialized locked, and you cannot set the ratings limit or change the password. In order for the Ratings feature work, the password mode must be turned on. If you want to set the ratings limit, you will need to enter the default password, which is 0000, then press Enter to confirm.
  • Page 27 RATING LEVEL The Rating feature is a rating limit system, like movie rating. It works with DVD that have been assigned rating. This helps you control the types of DVDs that your family watches. NOTES: If you password option is locked. you cannot set the rating limit ; the rating limit does not work when the password option unlocked CHANGE Press ENTER button ,enter a 4-digital number(this is your password), so your old password...

  • Page 28: Disc Maintenance

    Disc maintenance Disc protection: Take the disc both by the hole in the center and the brim; No paper shall be adhered to surface of disc neither fingerprint allowed; Disc must be kept clean; Disc must be cleaned with soft cotton regularly by directing from disc center outside. Specifications: Type of video disc: DVD/SVCD/VCD/CD+G(digital AV discs) MP3/CD-DA(common music laser disc)
  • Page 29 75-7901131-01...
