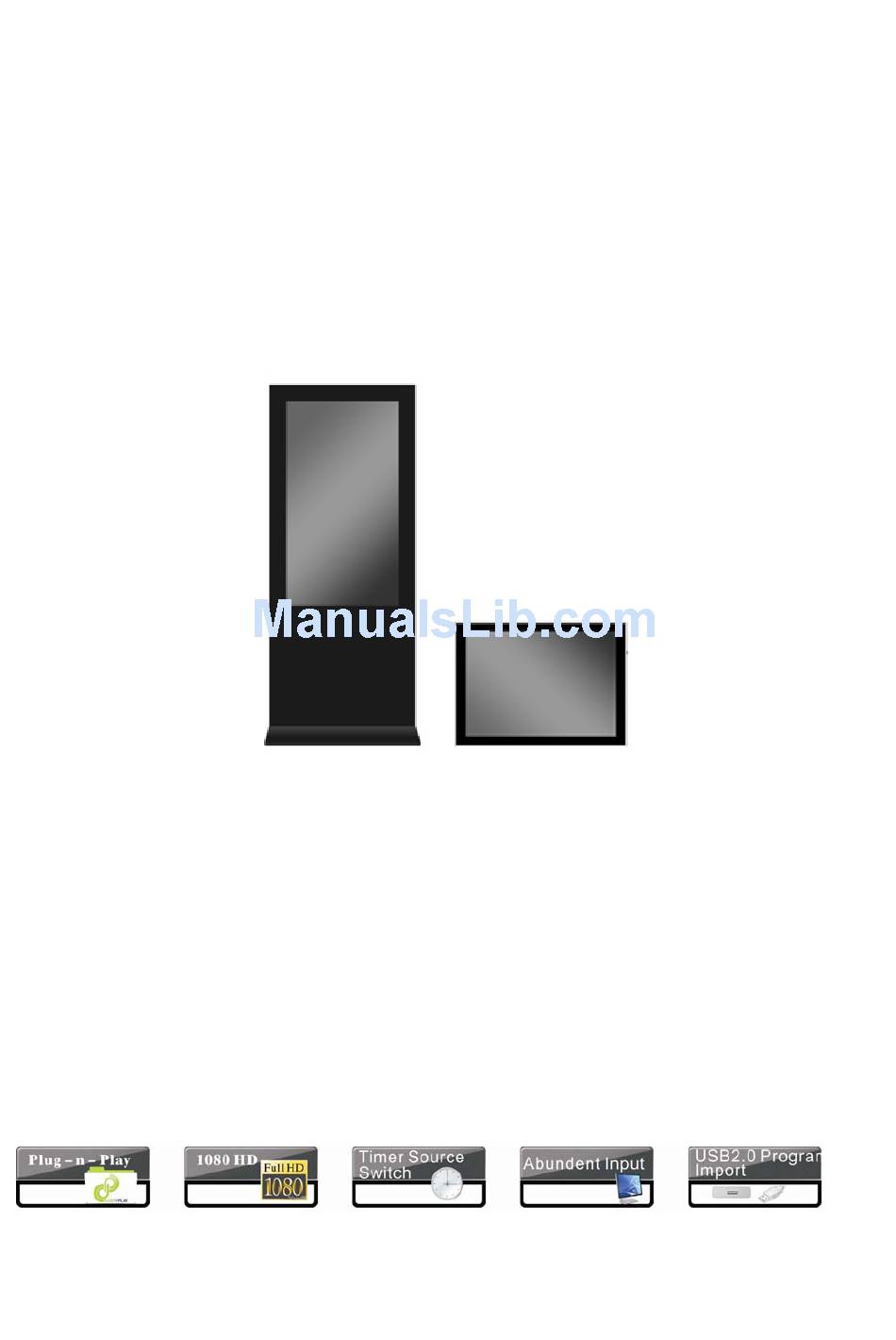

- Page 1 High Definition AD Player Universal User’s Manual L series PF series...
-
Page 2: Table Of Contents
High Definition AD Player User’s Manual Contents： Chapter 1 Introduction .........................3 1.1 Introduction of the system ......................3 1.2 System description ........................3 1.3 Attention about CF, SD, USB usage ..................3 1.4 Function description........................4 1.5 Supported media file format ....................5 Chapter 2 Interface definition ......................6 2.1 Product features........................6 Chapter 3 Remote control and menu setup ..................7 3.1 Remote control........................7... -
Page 3: Chapter 1 Introduction
High Definition AD Player User’s Manual Congratulations on your purchase of our products. Please read carefully and follow all instructions in the manual before first use. 1. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. -
Page 4: Function Description
High Definition AD Player User’s Manual 5. The video file code rate should below 20M 6. High speed CF card is recommended for playing HD program 1.4 Function description 1. Auto copy function: import the media file from flash disk to memory card automatically. 2. -
Page 5: Supported Media File Format
High Definition AD Player User’s Manual 1.5 Supported media file format 1. File format Regular play Video Codec Container Mpeg1,2 MPG, MPEG MPEG2 –TS MPEG2 ,H.264 H264-TS MPEG2 MPEG2 –PS MPEG4 Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 AVI, MP4 H.264... -
Page 6: Chapter 2 Interface Definition
High Definition AD Player User’s Manual Chapter 2 Interface definition 2.1 Product features Function CVBS port： Composite signal input VGA port： VGA signal input YPbPr： Component signal input HDMI port： HDMI signal input CF card slot： CF card input USB port： USB flash disk input Note: VGA and YPbPr connection can not be used in the same time, and their audio connection also can not be connected in the same time. -
Page 7: Chapter 3 Remote Control And Menu Setup
High Definition AD Player User’s Manual Chapter 3 Remote control and menu setup 3.1 Remote control... -
Page 8: Replace Remote Control Battery
High Definition AD Player User’s Manual 3.2 Replace remote control battery 1. Open the battery cover 2. Take out the battery box in the right direction as the following picture shows 3. Remove the used battery 4. Insert the new battery in the right way 5. - Page 9 High Definition AD Player User’s Manual System: System Language: ENGLISH Show time: Clock mode: --：-- Encrypt: Auto play system: Seamless play: Photo time: Restore default: Return > Language：简体中文, ENGLISH > Show time: On/off, the default mode is off > Clock mode：--:--,--:--:-- >...
- Page 10 High Definition AD Player User’s Manual > Seamless play: The video file will play seamlessly if this function is turned on. Factory default mode is off Note: If turn on this function, the file format should be the same (including AV resolution, frame rate and other specification), otherwise there will be abnormal.
-
Page 11: Auto Adjust
High Definition AD Player User’s Manual PC SETTING Auto Adjust Horizontal Pos. Vertical Pos. Clock Phase Return main menu Clock Setup: Press ←→ button to select item and press ↑↓setup parameter. CLOCK SETUP Jun/14 12:55 CURRENT TIME 2010 Year Jun. Month Date Hour... - Page 12 High Definition AD Player User’s Manual Normally on: the player keeps turning on once power is connected. Always off: the player will turn off after two minutes if there is no operation. On/Off time setup: 3 groups of On/off setup provided in the menu. ...
- Page 13 High Definition AD Player User’s Manual VOLUME SETUP DEFAULT VOLUME active Range1 Start Hour Range 2 Start min Range 3 End Hour End min Volume Confirm Return Main Menu...
-
Page 14: Chapter 4 Installation (For Pf Series)
