Power Bank
User's Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the Power Bank and is the answer not in the manual?

Questions and answers

Summary of Contents for Global Solar Energy Power Bank

  • Page 1 Power Bank User’s Guide...

  • Page 2: Product And Accessories

    Introduction The Power Bank is practical and easy to use and can be easily charged by Global Solar Energy, Inc. (GSE) solar products. It is compatible with many mobile phones, PDAs, digital cameras and many other devices by using the specialized connectors, making it a versatile travel companion.

  • Page 3: Technical Parameters

    Power bank net 167 g weight Safety certified CE / FCC 3. Illustration of the Product and Functions Figure 1 (Power Bank Main Unit) Figure 2 When TIP is accordant with “+”, DC connector is inner positive and outer negative...
  • Page 4 Figure 3 When TIP is accordant with “-”, DC connector is inner negative and outer positive Figure 4 Universal Adaptor for Mobile Phone / PDA Figure 5 DC Connectors for Digital Cameras Figure 6 Universal Cable for Digital Cameras Figure 7 Mobile Phone / PDA cable...

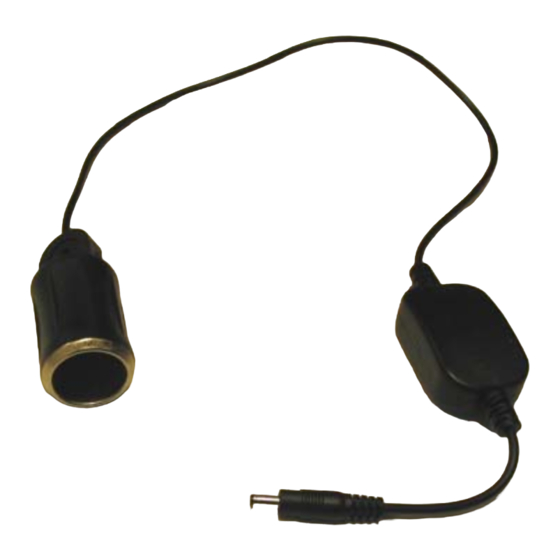

  • Page 5 Figure 8 Step-up cable for 12V CLA Figure 9 GSE Adapter Cable 28001 Figure 10 GSE Adapter Cable 28002...
  • Page 6 4. General Operation Methods 4.1. Before using the power bank, check the capacity of the power bank battery: connect the 3.5 mm DC connector digital camera or mobile phone / PDA adaptor to the DC jack of the power bank.
  • Page 7 Please see the following links for helpful CLA attachments for your electronics: www.belkin.com www.ziplinq.com www.thesupplynet.com Warning: Be sure to check the compatibility of your electronics prior to attaching to Power Bank to avoid any possible damage. Contact your electronic supplier first. Adaptor Designation Compatibility With...
  • Page 8 1. The maximum input voltage to the Power bank is 15V 2. CLA input cable (which reduces the input voltage to match the battery voltage) to the Power bank has an input rating of 12-24V but withstands 26V (i.e. the Voc of OEMs and P3s (except for P3- 15W)) 3.
