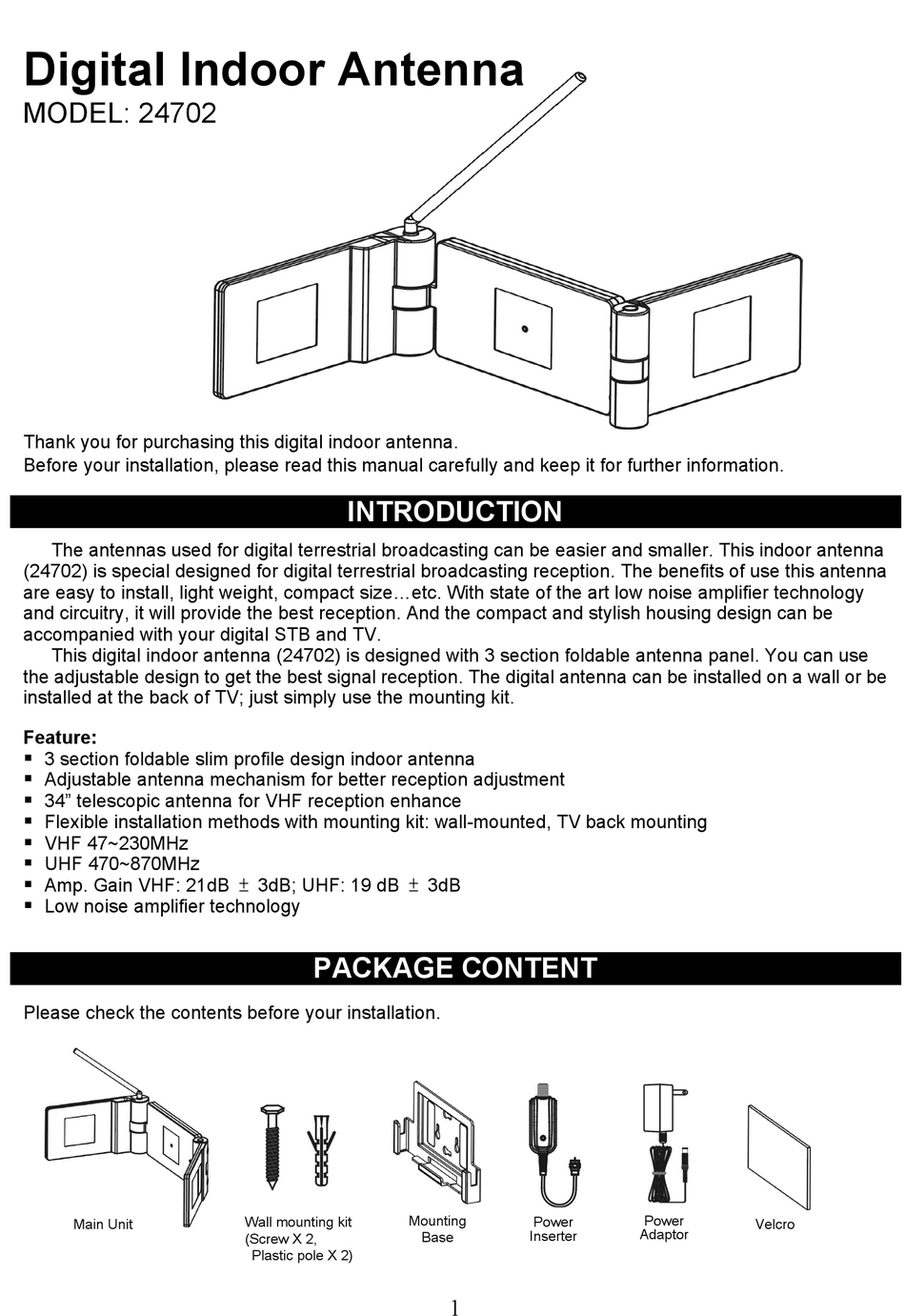

Digital Indoor Antenna
MODEL: 24702
Thank you for purchasing this digital indoor antenna.
Before your installation, please read this manual carefully and keep it for further information.
The antennas used for digital terrestrial broadcasting can be easier and smaller. This indoor antenna
(24702) is special designed for digital terrestrial broadcasting reception. The benefits of use this antenna
are easy to install, light weight, compact size...etc. With state of the art low noise amplifier technology
and circuitry, it will provide the best reception. And the compact and stylish housing design can be
accompanied with your digital STB and TV.
This digital indoor antenna (24702) is designed with 3 section foldable antenna panel. You can use
the adjustable design to get the best signal reception. The digital antenna can be installed on a wall or be
installed at the back of TV; just simply use the mounting kit.
Feature:
§
3 section foldable slim profile design indoor antenna
§
Adjustable antenna mechanism for better reception adjustment
§
34" telescopic antenna for VHF reception enhance
§
Flexible installation methods with mounting kit: wall-mounted, TV back mounting
§
VHF 47~230MHz
§
UHF 470~870MHz
§
Amp. Gain VHF: 21dB
§
Low noise amplifier technology
Please check the contents before your installation.
Main Unit
INTRODUCTION
3dB; UHF: 19 dB
PACKAGE CONTENT
Mounting
Wall mounting kit
(Screw X 2,
Plastic pole X 2)
3dB
Power
Inserter
Base
1
Power
Velcro
Adaptor
Advertisement
Table of Contents
Summary of Contents for Jasco 24702
- Page 1 STB and TV. This digital indoor antenna (24702) is designed with 3 section foldable antenna panel. You can use the adjustable design to get the best signal reception. The digital antenna can be installed on a wall or be installed at the back of TV;...
- Page 2 INSTALLATION Step 1: Take out the antenna main unit. Step 2: Connect the power inserter to your Set Top Box (or TV) with the F-Male connector. Power Inserter Digital TV or STB Step 3: Take the coaxial cable that attached on the antenna, and connect it to the power inserter. Power Inserter Digital TV or STB Step 4: Take out the power adaptor;...
- Page 3 Antenna placement with mounting base: § Before the following step, please make sure that you have enough protection when you try to drill on wall to install the antenna. § Please check the signal reception and make sure you can get a good signal at the location where you are going to install the antenna.
- Page 4 SPECIFICATIONS Antenna Frequency VHF: 47 MHz～230 MHz UHF: 470 MHz～870MHz Amp Gain VHF: 21 dB ±3dB UHF: 19 dB ±3dB O/P Return Loss < - 6dB < 2 dB RF Output Impedance 75 Ohm Power Adapter AC120V / DC9V / 200mA (CEC Level IV) RF Cable F (Male), Length 180cm x 1, RG-174/U Power inserter...
