Lasko 6701 Instructions

TM
Innovators in Home Comfort
This stand assembly is for residential use only. It is not
intended to be used in commercial or industrial settings.
PARTS:
A. (4) Front & Back Legs
Holes at Top & Bottom
B. (1) Upper Cross Brace
Same as Part E
C. (6) 1-3/4" Bolts
D. (1) Lower Cross Brace
Same as Part C
E. (2) Wheels
ASSEMBLY
1. Using a yard stick or tape measure, measure the Fan Body
width. If Fan width is 21-3/8" (54.3 cm) continue using
Assembly Detail A. If Fan width is 20-1/2"(52.1 cm), con-
tinue using Assembly Detail B.
2. Fasten one Front Leg (A) and one Back Leg (A) to each
Handle (K) using a Bolt (C) and Nut (H) into lower of two Holes
in each Handle.
3. Connect the two Leg and Handle Assemblies, with the Upper
Cross Brace Assembly (B) using Bolt (C) and Nut (H) through
the Upper Hole in each Handle.
4. Bolt the Lower Cross Brace (D) in position near the bottom of
the Back Legs.
5. To attach Wheels, insert a 2-1/4" Axle Bolt (F) and Metal
Spacer (M), through Wheel (E), and into the bottom Hole on
each Back Leg. Secure with 1/4" -20 Nuts (H).
Note: Lengthened Wheel Hub side goes towards Leg,
spacing Wheel away from Tube when assembled.
6. Slip Plastic Caps (I) over Tubing ends at the top of the
Handles and at the bottom of the Front Legs.
7. Push Plastic Nut (J) in the square Hole on each side of the Fan.
8. Lay Fan on the floor, front side up.
9. Place Fan Stand on floor, Wheels down, with Handles on
each side of Fan. Align Handle Holes with the Plastic Nuts on
Fan. Now assemble the Fan to the Roll-About Stand using
Assembly A or B determined in Step 1.
ASSEMBLY A - (21-3/8"/54.3 cm width)
Place Rubber Washers (G) between the Stand Handles and sides of
the Fan. Insert Fan Support Knobs into Plastic Spacers (N). Then
thread Fan Support Knobs through the Handles and Rubber
Washers into the Plastic Nuts. Skip to Step 10.
ASSEMBLY B - (20-1/2"/52.1 cm width)
Place Rubber Washers (G) between the Stand Handles and sides of
the Fan. Find Plastic Spacers (N). Thread Fan Support Knobs
through the Handles, Plastic Spacers, Rubber Washers and into the
Plastic Nuts. Continue to Step 10.
10. Check all Bolts for tightness.
11. Lift the Stand to its upright position.
Rev. E 2/98
ADJUSTABLE ROLL-ABOUT
BOX FAN STAND
To be used on Type 1 Box Fans Only (Models 3723, 3700, 3733)
READ AND SAVE THESE INSTRUCTIONS
F. (2) 2-1/4" Bolts
G. (2) Rubber Washers
H. (8) 1/4"-20 Nut
I. (4) Plastic Caps
J. (2) Plastic Nuts
K. (2) Handles
L. (2) Fan Support Knobs
M. (2) Metal Wheel Spacers
N. (2) Plastic Spacers
Check package contents. If parts are missing, please call our PARTS
DEPARTMENT TOLL-FREE AT 1-800-966-2028. MONDAY THROUGH
FRIDAY, BETWEEN THE HOURS OF 8 AM AND 4 PM EST. "PLEASE
DO NOT RETURN PRODUCT TO PLACE OF PURCHASE." Reference
the Model Number 6701 and description above when you call.
TOOLS REQUIRED FOR ASSEMBLY:
• Tape Measure or Yard Stick
• Flat Head Screwdriver
• 7/16 Wrench, Adjustable Wrench
or Pliers to hold Nuts

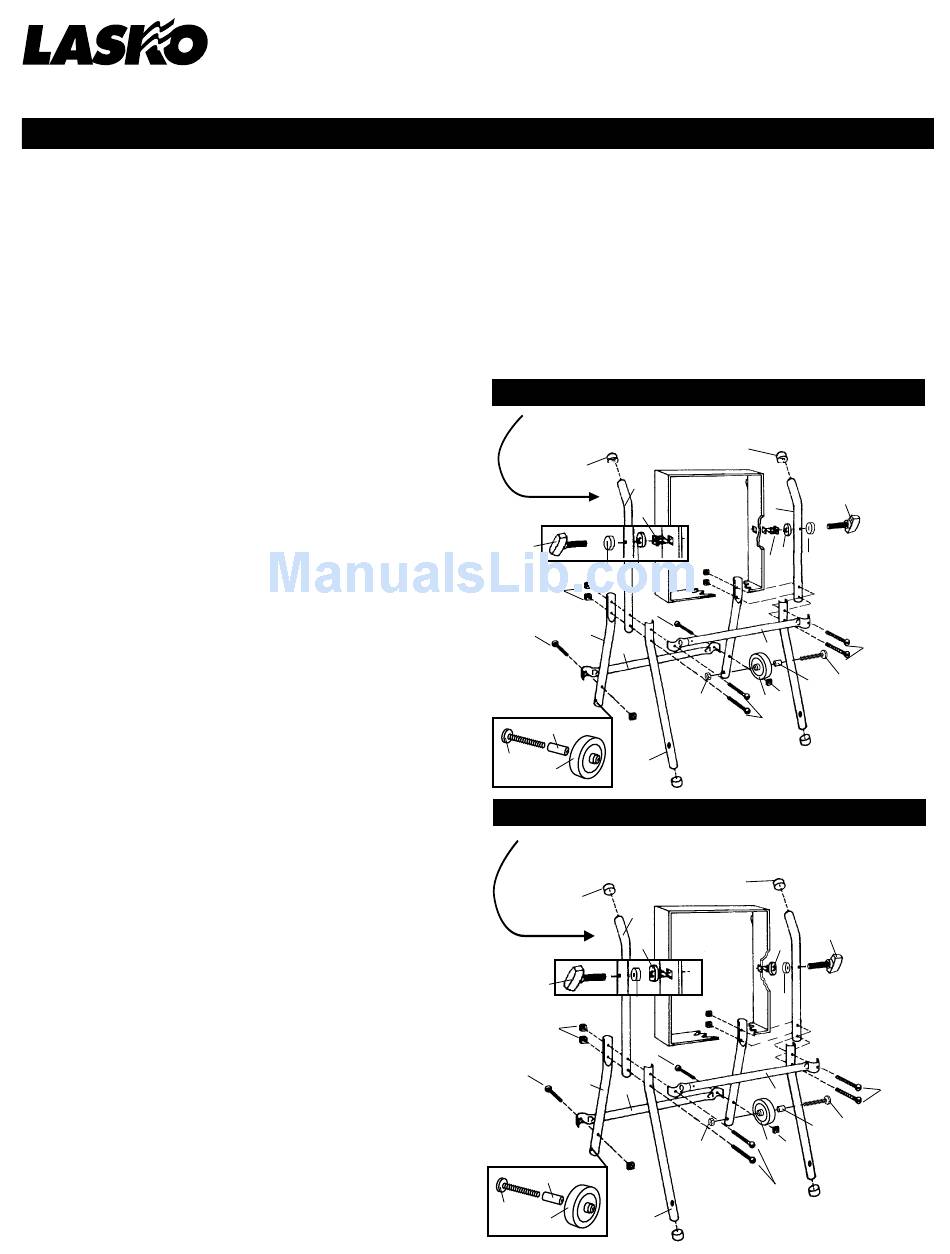

ASSEMBLY A
NOTE: Bend of Handle must be towards side of Wheels
I
K
J
L
N
G
H
C
A
D
M
A
F
E
ASSEMBLY B
NOTE: Bend of Handle must be towards side of Wheels
I
K
G
L
N
H
C
A
D
M
F
A
E
1
(Model 6701)
(21-3/8"/54.3 cm width)
I
K
G
N
J
C
B
M
H
H
E
C
(20-1/2"/52.1 cm width)
I
G
N
C
B
M
H
E
H
C
L
C
F
L
C
F
2085113
