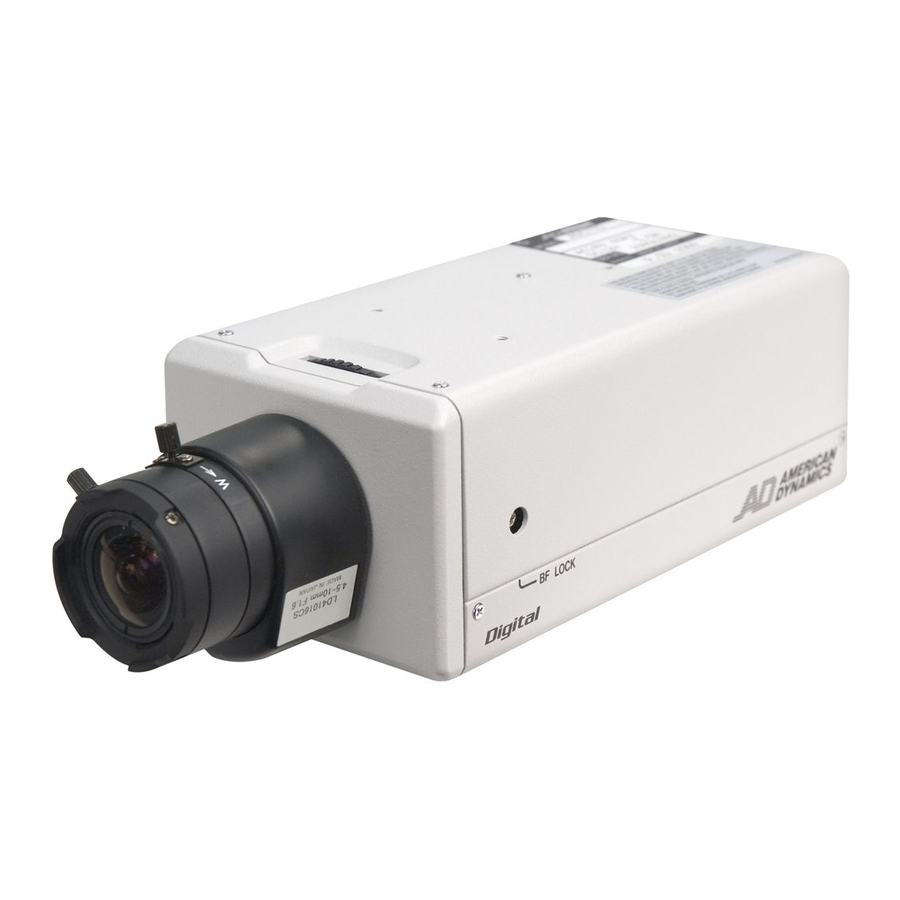

- Page 1 COLOR VIDEO CAMERA ADC770 INSTRUCTIONS For Customer Use: Enter below the Serial No. which is located on the body. Retain this information for future reference. Model No. ADC770 Serial No. LWT0188-001A-H...
-
Page 2: Important Safeguards
These are general IMPORTANT SAFEGUARDS and certain items may not apply to all appliances. 1. Read all of these instructions. 2. Save these instructions for later use. 3. All warnings on the product and in the operating instructions should be adhered to. 4. - Page 3 13. Follow all warnings and instructions marked on the appliance. 14. Do not overload wall outlets and extension cords as this can result in fire or electric shock. 15. Never push objects of any kind into this appliance through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock.
-
Page 4: Safety Precautions
Safety Precautions FOR USA AND CANADA CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.REFER QUALIFIED SERVICE PERSONNEL. The lightning flash wish arrowhead symbol, within an equilateral triangle is intended to alert the user to the pres- ence of uninsulated "dangerous volt- age"... -
Page 5: Table Of Contents
Thank you for purchasing this product. (These instrustions are for ADC770) Before beginning to operate this unit, please read the instruction manual carefully in order to make sure that the best possible performance is obtained. CONTENTS INTRODUCTION Features ... 6 Operating Precautions ... -
Page 6: Introduction Features
INTRODUCTION Features A new DSP (Digital Signal Processor) features a Extended Dynamic Range (ExDR) and enables to shoot both bright and dark locations. The use of a new CCD with a SENSE UP (X32) function realized the minimum luminous flux density for subject of 0.8 lx (F1.2, 50%, AGC 20dB) and 0.025 lx (at slow shutter). -
Page 7: Operating Precautions
Operating Precautions To save energy, when it is not being used turn the system’s power off. This camera has been designed for indoor use. When you use it outdoor, be sure to use a housing and the like. Do not install or use the camera in the following places. -
Page 8: Controls, Connectors And Indicators
INTRODUCTION Controls, Connectors and Indicators Lens mount This means to attach the lens. This is applicable to both the C-mount lenses and CS-mount lenses. Backfocus adjustment ring Adjusting the back focus during lens installation. When readjustment is required, loosen the locking screw counterclockwise and turn the back focus adjustment ring After the adjustment, tighten the locking... - Page 9 Cover The cover opens if it is pulled to the left while being pushed. [VIDEO/DC] Iris Selector Switch This is set according to the type of lens when an automatic iris control lens is used. VIDEO: In case of lens with EE amp built- In case of lens without EE amp built-in.
- Page 10 INTRODUCTION Controls, Connectors and Indicators (Continued) ] Up-and-down, left-and- right Button These buttons select items on the menu screen and change a set value. Page 23) [EXT.TERM-ON/OFF] Terminal On/Off Switch of External Synchronization Signal This is a terminating ON/OFF switch for the external synchronization input signal.
- Page 11 ¤ ⁄ [DC 12V, AC 24V] Power input terminals To input DC 12V or AC 24V power. [AUX, GND] Auxiliary Output Terminals If any change occurs in the area that was set on the MOTION DETECT screen, these terminals output signals. ( [Open-collector Low signal.
-
Page 12: Connection/Installation Procedures
CONNECTION/INSTALLATION Procedures Execute connection/installation according to the procedures described below. Turn OFF the power supply to all equipment to be used before making carefully. Setting the switches Page 17) Auto white balance control adjustment Page 22) E-12 Back focus adjustment CAMERA SETUP TERM-OFF... - Page 13 DC 12V/AC 24V power supply Connections Page 15) Genlock sync signal generator REMOTE CLASS 2 ONLY(U TYPE) ISOLATED POWER ONLY (E TYPE) AUX GND Y/C OUT SYNC IN VIDEO OUT SEE INST- RUCTION POWER MANUAL To alarm terminals such as switches Monitor E-13...
-
Page 14: Mounting The Lens
CONNECTION/INSTALLATION Mounting the lens Mount the lens according to the procedures described below. VIDEO IRIS VIDEO Lens DC IRIS Pin No. (does not contain EE amplifier) Brake Brake Drive Drive E-14 Lens C mount lens 17.526mm CS mount lens 12.5mm Attached 4 pin plugs –... -
Page 15: Connections On The Back
Connections on the back Power supply REMOTE CLASS 2 ONLY(U TYPE) ISOLATED POWER ONLY (E TYPE) Y/C OUT SYNC IN VIDEO OUT POWER MEMO • If thin cables are used (i.e. with a high resistance), a significant voltage drop will occur when the unit is at its maximum power consumption. - Page 16 CONNECTION/INSTALLATION Connections on the back (Continued) Genlock connection With some systems, when the external sync signal is a composite video or black burst sig- nal genlocking by applying an external sync input requires the horizontal phase (H PHASE) and colour phase (SC COARSE) to be adjusted.
-
Page 17: Setting The Switches
Setting the switches MENU Select the synchronization method of the camera image. Set the switch on all cameras to LL (Line Lock) and match with the V. PHASE. Page 26.) CAMERA SETUP TERM-OFF INT/GL NOT USED IRIS VIDEO TERM-OFF INT/GL NOT USED E-17... -
Page 18: Mounting The Camera
CONNECTION/INSTALLATION Mounting the camera Camera mounting screw Camera-mounting bracket Rotation prevention hole V ID E O S Y N C P O W E E-18 When mounting the camera on a fixer, pan/ tilt, etc., use the camera mounting screw hole located on the camera-mounting bracket. - Page 19 Camera- mounting bracket Installation of camera • Mounting from the bottom This camera is originally designed to be mounted from the bottom, as shown q. The hole is standard photographic pan- IRIS VIDEO head screw size (1/4-20 UNC). Example the Fixing unit or Pan/Tilt unit. •...
-
Page 20: Lens Adjustment
CONNECTION/INSTALLATION Lens adjustment Connect the camera according to the connection method, turn it on, display an image on the monitor, and check the image. The camera has been factory-adjusted to the best position, but it may need to be adjusted according to the object conditions or combination of lenses. If the image is unnatural, adjust it as follows: (Also read the instruction manual of the lens.) LEVEL adjustment... -
Page 21: Back Focus Adjustment
Back focus adjustment Back focus adjustment Be sure to make back-focus adjustments when changing the lens mounting method or using a different lens. If required, adjust it as follows: Back focus adjusting ring Tighten Loosen Back focus fixing screw (M2.6) Lens focus ring MEMO •... -
Page 22: Auto White Balance Control Adjustment
CONNECTION/INSTALLATION Auto white balance control adjustment Each light source has its own colour temperature. Therefore, when the main light source lighting an object is changed, the white balance should be adjusted again by pressing the AWC button. AWC button CAMERA SETUP MENU NOT USED... -
Page 23: Menu Setting Setting The Menu
MENU SETTING Setting the menu MENU button CAMERA SETUP MENU CAMERA SETUP TERM-OFF MENU INT/GL NOT USED Press the MENU button. The MENU screen is displayed. Set the cursor (>) to a desired sub-menu using the button. MENU S YNC A DJ UST. . A L C S E T T I NGS V I DEO A DJ UST MODE... -
Page 24: The Flow Of Menu Screen
MENU SETTING The flow of menu screen MENU S YNC A DJ UST A L C S E T T I NGS V I DEO A DJ UST MODE S L ECT MOT I ON D E T E CT F A C TORY SET T I NGS E-24 Page 26... - Page 25 Page 26 A C SE T I NGS R S L E VE L NORMAL V RA E G : P EAK S UT T ER E x DR ) N RMAL MODE 2 d B L L U MODE S NS E U P R I T Y...
-
Page 26: Sync Adjust Screen
MENU SETTING SYNC ADJUST Screen This executes the setting regarding synchronization. Item V PHASE This adjusts the vertical synchronization to those of other cameras when a selector switch for the synchronizing system on the side is at LL. (60Hz power region only.) When it is not set to LL, “---”... - Page 27 Item SHUTTER This sets the electronic shutter as well as the ExDR (Extended (ExDR) Dynamic Range). The use of an electronic shutter function enables shooting with proper brightness, as more brightness results in higher shutter speed. The ExDR function allows even the shooting of a subject having different luminous flux density by composing a picture shot at 1/120 sec.
- Page 28 MENU SETTING ALC SETTINGS Screen (Continued) Item This sets the fastest value of a shutter speed when AUTO is set. FAST LIMIT The MANUAL, M. ExDR, A. ExDR set value is displayed as “- - -” and cannot be changed. The higher the shutter speed becomes, the more smear phenomenon is emphasized, which is peculiar to the CCD.
- Page 29 Item PRIORITY This item sets the order in which the AGC and slow shutter speed decrease function when the object brightness becomes low. When the item AGC MODE or the item SENSE UP is set to OFF, “- - -” will appear, disabling any setting. MOTION: Priority is given to motion.
-
Page 30: Video Adjust Screen
MENU SETTING VIDEO ADJUST Screen Adjustments are made on video signals. Item WHITE Selects the white balance adjustment function. The white BALANCE balance can be adjusted manually or automatically for light within the colour temperature range of 2500K to 8000K. •... -
Page 31: Mode Select Screen
MODE SELECT Screen Titles, image reversion, etc., are set. Item CAMERA Bring up the CAMERA TITLE, EDIT screen. TITLE EDIT Page 36) Settings are executed for image reversion. REVERSE OFF: Image does not reverse. MODE R-L: Left and right of the image are reversed. U-D: Up and down of the image are reversed. - Page 32 MENU SETTING MOTION DETECT Screen (Continued) Item LEVEL This sets the level that detects motion. If the item MODE is set to OFF, “- - -” will appear, and settings cannot be changed. To function with large signal level change…decrease the value To function with small signal level change…increase the value...
-
Page 33: Factory Settings Screen
FACTORY SETTINGS Screen Set values are returned to initial values. Item The values set on the menu are returned to initial values. FACTORY SETTINGS CANCEL CLEAR (WITHOUT TITLE) CLEAR (ALL) Select respective set value and press the SET button. Then, “DATA CLEARED” will appear for about 3 seconds. Be sure not to switch off the power while the display is still on. -
Page 34: Blc Editting Screen
MENU SETTING BLC EDITTING Screen It is possible to set freely the light metering area for backlight compensation. The 2 screens of EDIT1 and EDIT2 can be set. A C SE T I NGS R S L E VE L V RAGE : P EAK S UT T ER E x DR ) -
Page 35: Manual Adjustment Of White Balance
Manual Adjustment of White Balance When automatic adjustment of the white balance results in a “reddish screen”, etc., adjust the white balance manually. MENU button SET button MENU O ADJ U ST WH T E BAL CO OUR L E E N ANCE L E P E E ST AL AU O BL AC K... -
Page 36: Camera Title Setting
MENU SETTING CAMERA TITLE Setting Up to 24 characters can be selected as camera text for each camera. The set characters are displayed at the bottom of the screen. MENU button SET button MENU MODE S EL E C T CAMERA T I T L E ED I T . -
Page 37: Setting The Motion Detect Function
Setting the MOTION DETECT Function It is possible to set freely the area where MOTION DETECTING functions. O N DE T EC T MO E L E E L AR A E D I T AL RM T I DE ON S TRA T I N MOTION DETECT screen flash Setting screen... -
Page 38: Others
OTHERS Installing the ferrite core To retain electromagnetic compatibility, use the ferrite cores provided when connecting to the lens or the power source. VIDEO Notes: ● Install the ferrite cores within 50 mm of the camera-side connectors. (Fasten the ferrite core with the wire clamp provided.) For lens connection: ●... - Page 39 Image pickup device: Synchronization method : Scanning frequency: Resolution: VIDEO OUT: Y/C OUT: Video S/N ratio: Minimum required illumination: 0.8 lx (50%, F1.2, AGC 20 dB) Lens mount: Power supply and power consumption: Ambient temperature: Mass: Accessory: Design and specifications are subject to change without notice. 1/3 type IT CCD, 768 (H) ×...
