Fusion MS-IPDOCKG2 Installation Manual

MARINE DOCK FOR iPod
MS-IPDOCKG2
THE MARINE DOCK FOR iPod IS COMPATIBLE WITH THE
FOLLOWING 500 AND 600 SERIES, MARINE STEREO UNITS.
(MS-CD500, MS-CD600, MS-AV600)

INSTALLATION GUIDELINES

BULKHEAD MOUNT

» Open the front panel cover and feed the Marine Dock for iPod through
the front cover, as shown in fig 1. Use the included gasket if needed,
to ensure the front panel is fitted tightly to the dock.
» Attach the Dock to the bulkhead using the screws provided.

MOUNTING DIMENSIONS:

MOUNTING SCREW HOLES:

WALL MOUNT

Attach the dock to a wall or shelf as illustrated in fig 2, using the two
screws provided. This mounting option is suitable for interior installation
where the dock is not exposed to the marine elements.
The dock connects directly to the Marine Stereo, via the white iPod
connector.
MOUNTING DIMENSIONS:
MOUNTING SCREW HOLES:
MOUNTING TEMPLATE CUT OUT
DOOR OPENING CLEARANCE
126mm x 40mm
136mm x 48mm
145mm x 121mm x 34mm
90mm
PRODUCT OUTLINE
www.fusionelectronics.com

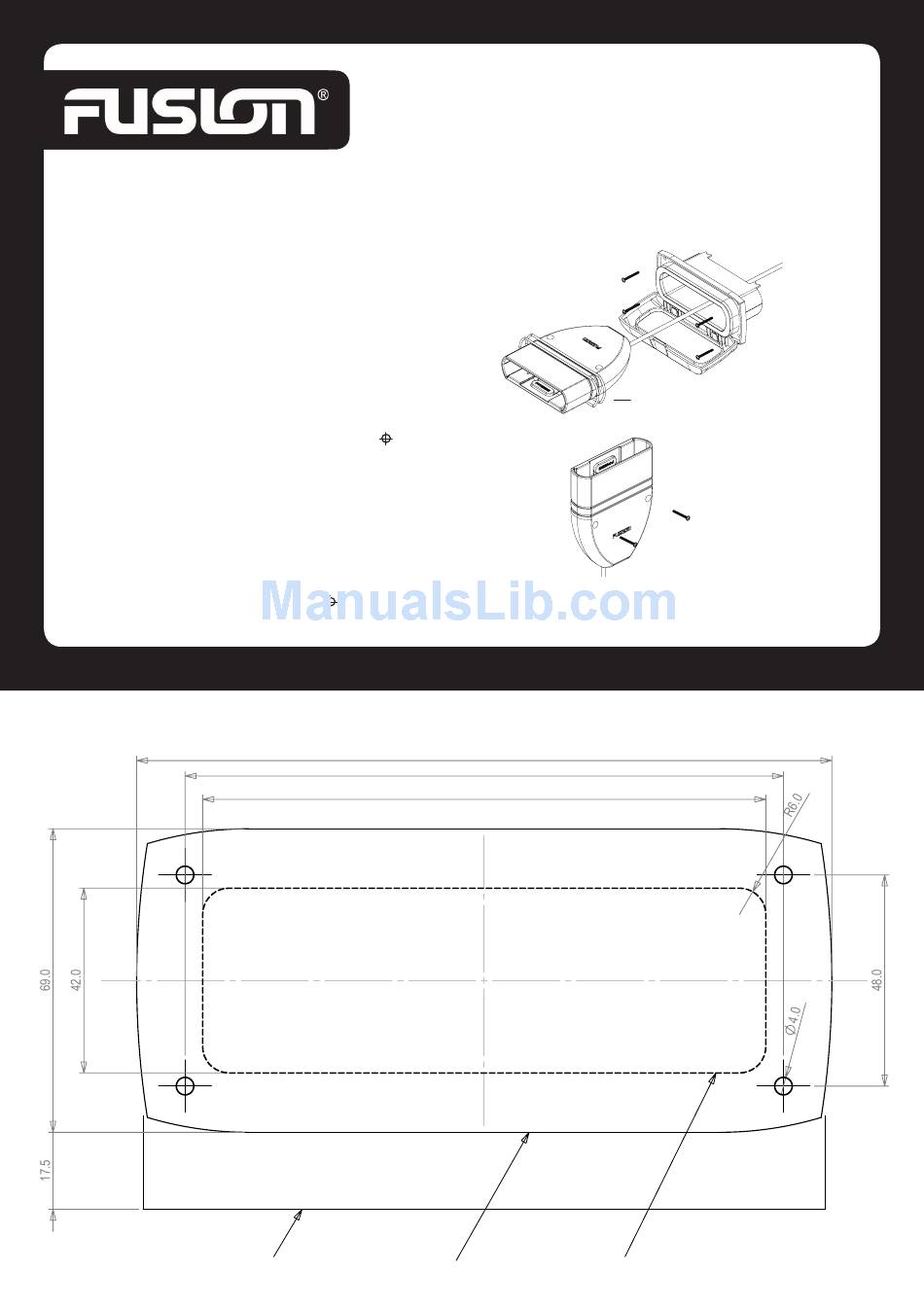

fig 1
optional gasket
fig 2
SEE REVERSE FOR DOCK SLEEVE GUIDE
158.0
136.0
128.0
CUTOUT
