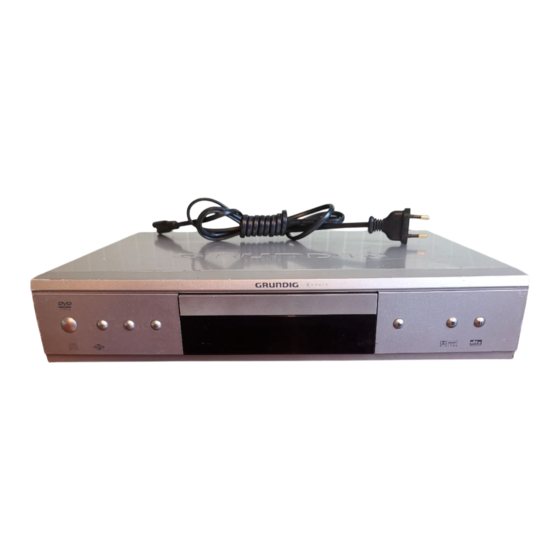

- Page 1 DVD-PLAYER XENARO DEUTSCH GDP 5120 ENGLISH FRANÇAIS ITALIANO NEDERLANDS...
-
Page 2: Table Of Contents
CONTENTS ________________________________________________________________________ GDP 5120 DVD player Special features of your DVD player Packing contents Set-up and safety Guarantee Overview The front of the DVD player The back of the DVD player The display elements of the DVD player The remote control Connection and preparation Connecting the television Connecting to a HiFi system with analog two-channel stereo sound... - Page 3 CONTENTS __________________________________________________________________________________ Interrupting and resuming playback Ending playback Removing the DVD/video CD Additional playback functions Selecting and playing scenes MP3 CD playback AUDIO CD playback Audio CD features Before playback Audio functions Parental lock Locking and releasing the disc tray of the DVD player Authorising the contents of a DVD Sound settings Setting the (dynamic) volume range...
-
Page 4: Using External Devices
Connecting digital amplifiers Adapting the digital output to a digital multi-channel amplifier Connecting a video recorder Television remote control Video recorder remote control Information Technical data General instructions for laser devices Rectifying minor problems Cleaning CDs and DVDs GRUNDIG Service... -
Page 5: Gdp 5120 Dvd Player
GDP 5120 DVD PLAYER _____________________________________ Special features of your DVD player Your DVD player gives you perfect digital video playback in studio quality. It also provides superb cinema-quality audio playback – in stereo or with digital multi-channel sound – depending on the type of DVD and the HiFI system or stereo television. -
Page 6: Set-Up And Safety
SET-UP AND SAFETY ______________________________________________ Please note the following points when setting up the DVD player: °C °C This DVD player set is designed to play video and audio signals from compact discs (DVD and CD). Any other use is expressly prohibited. e n a r o n a r o If the DVD player is subject to a sudden change in temperature, for example if... -
Page 7: Guarantee
As a rule, GRUNDIG declines to refund any costs resulting in such cases. Any repair costs thus due, even those occurring within the guarantee period, are to... -
Page 8: Overview
OVERVIEW ________________________________________________________________________ The front of the DVD player e na r o Press once to switch the DVD player from Low-Power Stand-by to Stand- by. Press » « again to switch the DVD player on. To switch to Stand-by, press » «... -
Page 9: The Back Of The Dvd Player
OVERVIEW __________________________________________________________________________________ Press once to activate the ”RESUME” function. Press twice to switch to ”STOP” mode. Press once to pause. Press twice to advance the picture playback frame by frame. Press and hold down to start the playback at half speed (slow motion). The back of the DVD player Audio output jacks (left/right channel) for AUDIO OUT L R... - Page 10 OVERVIEW __________________________________________________________________________________ © EURO AV Video/audio output jack for connecting a television set. Audio output jack (coaxial and optical) for DIGITAL AUDIO OUT PCM/MPEG2/AC3/DTS signals, for connecting a digital multi-channel audio-/video amplifier. Multi-channel/audio output jacks. MULTI-CHANNEL 5.1 AUDIO OUT Audio output socket, for connecting an amplifier FRONT LR for front loudspeakers or active front loudspeakers.
- Page 11 OVERVIEW __________________________________________________________________________________ The remote control Switches the DVD player on from stand-by mode (the red indicator on the DVD player is lit) and off again (stand-by). Numeric keys for various inputs. 1 ... 0 Zooms in on scenes during playback. For marking and repeating sections on DVDs and video CDs or tracks on audio CDs.
-
Page 12: The Display Elements Of The Dvd Player
OVERVIEW __________________________________________________________________________________ Selects the previous/next title or section during playback. Switches to reverse/forward frame search at various speeds during playback. Switches between the original and the dubbed language during DVD playback. Switches the remote control from DVD player operation to television or video MODE recorder operation. -
Page 13: Connection And Preparation
CONNECTION AND PREPARATION _______ Connecting the television ..using a EURO-AV cable © Plug the EURO-AV provided cable into the »EURO AV TV« socket on the DVD player and into the appropriate socket (AV 2) on the television. Note: ©... -
Page 14: Connecting To A Hifi System With Analog Two-Channel Stereo Sound
CONNECTION AND PREPARATION _______________________________________ Note: If the DVD player is connected via the »S-VIDEO OUT« socket, you must carry out the setting described in ”Selecting the video output socket (RGB or S-Video)” on page 17. If the DVD player is connected to a television set with a 16:9 format, observe the settings described in the ”Selecting the screen format of the television”... -
Page 15: Connecting The Power Cord
CONNECTION AND PREPARATION _______________________________________ Connecting the power cord Plug the power cord supplied into the »220-240V « socket on the back of the the DVD player. Insert the power cord plug into the socket. Caution: The only way to disconnect the DVD player from the mains supply is to pull the plug. -
Page 16: Operation
OPERATION _____________________________________________________________________ Setting the language When the DVD player is first operated, the »Player language« menu appears automatically. You can now choose the language of the user guide. When this is selected, the language of the DVD menu and the dubbed language are automa- tically set in the same language. - Page 17 OPERATION ________________________________________________________________________________ TV format Select the »TV format« line with » « or » « and activate with »OK«. 16:9 widescreen Select the screen format required (4:3 or 16:9 wide screen) with » « or » « and confirm with »OK«. Selecting the video output socket (RGB or S-Video) Select the »...
-
Page 18: Dvd/Video Cd Playback
DVD/VIDEO CD PLAYBACK ____________________________ DVD and video CD features You can recognise DVDs, s-video CDs and video CDs by the logo on the label. Depending on the contents of the DVD, s-video CD or video CD (films, video clips etc.), they may carry one or more titles. Each title may contain one or more chapters. -
Page 19: Before Playback
DVD/VIDEO CD PLAYBACK _____________________________________________________ Before playback Preparation Switch on the television and select the channel for the DVD player. If a HiFi system is connected to the DVD player, switch on the HiFi system and select the appropriate audio input for the DVD player. Press »... -
Page 20: Playing Back A Title
DVD/VIDEO CD PLAYBACK _____________________________________________________ Playing back a title After the disc compartment closes and the DVD is scanned, playback starts automatically. To pause playback (freeze-frame), press » «. Press » « again to resume playback. End playback by pressing » «. -
Page 21: Selecting Titles Or Chapters
DVD/VIDEO CD PLAYBACK _____________________________________________________ Selecting titles or chapters If a DVD or video CD contains several titles and/or chapters, you can select /2 C33 /45 01:35:55 00:26:28 Einstellungen from among them. The »T«and »C« boxes in the info line will tell you whether F en 1/3 Mbit/s en1 /14... -
Page 22: Interrupting And Resuming Playback
DVD/VIDEO CD PLAYBACK _____________________________________________________ Interrupting and resuming playback The playback of a DVD/video CD can be interrupted at any point and then resumed from the same place. Interrupt playback by pressing » « once only. Resume playback at the same point by pressing » «. -
Page 23: Additional Playback Functions
DVD/VIDEO CD PLAYBACK _____________________________________________________ Additional playback functions Note: The sound is muted with the ”frame-search”, ”slow-motion” and ”freeze- frame” functions. Some functions can not be selected. This depends on the DVD/video CD being used. Video strobe With this effect, individual video frames of the DVD are shown on the screen after each other in groups of nine. -
Page 24: Slow Motion
DVD/VIDEO CD PLAYBACK _____________________________________________________ Slow motion You can choose from among four different speeds (forwards or reverse). During playback, press » «. 1/20 Select the desired slow motion speed (1/20, 1/8, 1/4, 1/2) with » « or » « on the remote control. Resume playback by pressing »... - Page 25 DVD/VIDEO CD PLAYBACK _____________________________________________________ Repeating a selected scene (A-B Repeat) You can use this function to select the beginning and end of a scene, and then play it over and over. During playback, mark the beginning of the scene by briefly pressing »b« A –...
-
Page 26: Enlarging The Picture (Zoom)
DVD/VIDEO CD PLAYBACK _____________________________________________________ Enlarging the picture (Zoom) During playback or pause, press »v«. – Display: » k X2«, » k X4« or » k X8«. The DVD player enlarges a screen section. You can move the screen section by pressing » «, »... -
Page 27: Selecting And Playing Scenes
DVD/VIDEO CD PLAYBACK _____________________________________________________ Selecting and playing scenes You can mark a scene on the DVD, which you can then select directly during playback. The bookmark is retained when you remove the DVD. You can give up to 5 DVDs a bookmark. Setting a mark During playback, press »c«. -
Page 28: Mp3 Cd Playback
MP3 CD PLAYBACK _____________________________________________________ Preparation Switch on the television and select the channel for the DVD player. If a HiFi system is connected to the DVD player, switch on the HiFi system and select the appropriate audio input for the DVD player. Press »... - Page 29 MP3 CD PLAYBACK __________________________________________________________________ Note: For information about the MP3 CD, press »TITLE«. Press ».« to see the contents menu (file browser) of the MP3 CD. To pause playback, press » «. Press » « again to resume playback. Selecting a different title Press »TITLE«...
-
Page 30: Selecting A Different Folder And Other Tracks
MP3 CD PLAYBACK __________________________________________________________________ Selecting a different folder and other tracks This can be done if the MP3 CD contains several folders. Press ».« to call up the Contents menu (file browser). Press » « to end playback. If the Contents menu displays tracks, press » «... -
Page 31: Audio Cd Playback
AUDIO CD PLAYBACK ________________________________________________ Audio CD features An audio CD is identified by this logo. Audio CDs contain only music recordings. They can be played in the normal manner on a HiFi system. Before playback Preparation Switch on the television and select the channel for the DVD player. –... -
Page 32: Audio Functions
AUDIO CD PLAYBACK ______________________________________________________________ Calling up the info line Press »OK« to call up the info line. CD-DA Track: 00:00:01 00:03:24 Einstellungen F LDCD PCM 2.0 Mbit/s – The info line is displayed. Here you find information about the CD, including the number of tracks, the playing time of the tracks, the playing time remaining, the audio system and the data flow. - Page 33 AUDIO CD PLAYBACK ______________________________________________________________ Interrupting and resuming playback The playback of a CD can be interrupted at any point and then resumed from the same place. Interrupt playback by pressing » « once only. Resume playback at the same point by pressing » «.
-
Page 34: Parental Lock
PARENTAL LOCK _________________________________________________________ With the parental lock you can: – Lock the disc tray of the DVD player. – Block scenes which are not appropriate for children from DVDs or video CDs, or select alternative scenes. Locking and releasing the disc tray of the DVD player Locking the disc tray of the DVD player Player Menu Press »i«... -
Page 35: Authorising The Contents Of A Dvd
PARENTAL LOCK ________________________________________________________________________ Authorising the contents of a DVD Films on DVD may be wholly or partially unsuitable for children. Such DVDs contain information which identifies these scenes, providing them with ratings from 1 to 8. You can select one of the ratings and thereby authorise alternative scenes for playback. -
Page 36: Setting The Dynamic Volume Range
SOUND SETTINGS ____________________________________________________ Setting the dynamic volume range Dolby digital soundtracks have a very large dynamic volume range, hence there is a great difference in volume between quiet and loud tones. When played at full volume this can be a fascinating experience, which may however cause disturbance late at night. -
Page 37: Sound Settings
SOUND SETTINGS _____________________________________________________________________ Adapting the analogue ouput to the HiFi system This feature allows you to set the output level of the audio signal and thereby also the volume and audio mode (stereo, surround sound or Dolby Pro Logic). Press »i« to call up the main menu. Select the »Sound«... -
Page 38: Surround Sound Settings
SOUND SETTINGS _____________________________________________________________________ Surround sound settings You can select different 3D surround sound effects including virtual Dolby surro- und sound. Dolby virtual surround is a process which appears to provide sound all around the listener via only two loudspeakers. Note: You can select these settings if you have connected analogue two-channel stereo sound to your HiFi system. - Page 39 SOUND SETTINGS _____________________________________________________________________ Bass settings for the loudspeakers With this adjustment, you can assign the deep bass playback to those loudspea- kers of your system which are best suited for playing back lower frequencies. Press »i« to call up the main menu. Select the »Sound«...
-
Page 40: Selecting The Picture Format For Your Television
PICTURE SETTINGS ___________________________________________________ Selecting the picture format for your television This setting is dependent on the chosen TV format, see the ”Selecting the screen format for your television” chapter on page 16. If 4:3 format is selected, you can set: »Pan&Scan«... -
Page 41: Selecting Filter Functions
PICTURE SETTINGS ____________________________________________________________________ Selecting filter functions Press »i« to call up the main menu. Picture Letterbox 1 Format 2 Extended settings Select the »Picture« menu with » « or » «activate with »OK«, or select directly with »1 ... 0«. select exit Select the »Extended settings«... - Page 42 PICTURE SETTINGS ____________________________________________________________________ Selecting the horizontal filter Horizontal filter This setting optimises the soft focus function, computer graphics and photos Crisp Medium when playing back. Soft Select the » Horizontal filter« line with » « or » « and activate with »OK«.
-
Page 43: Selecting The Language Of The Screen Menu
CUSTOM SETTINGS __________________________________________________ Settings in the »Player menu« menu Press »i« to call up the main menu. Installation English 1 Player language 2 TV Format Select the »Installation« menu with » « or » « and activate with »OK«, 3 Video output 4 TV standard 5 Extended settings select directly using... -
Page 44: Dvd Player
CUSTOM SETTINGS ___________________________________________________________________ Setting the screen menu and display of the DVD player Press »i« to call up the main menu. Select the »Installation« menu with » « or » « activate with »OK«, or Installation English 1 Player language select directly with »1 ... -
Page 45: Software Status And Dealer Menu
CUSTOM SETTINGS ___________________________________________________________________ Setting the DVD player display With these settings you can expand the DVD player’s display and adjust the Console display brightness. 1 Extended display 2 Brightness hell Select the »Console display« line with » « or » «... -
Page 46: Language Settings
CUSTOM SETTINGS ___________________________________________________________________ Language settings Press »i« to call up the main menu. Disc preferences 1 Audio language English 2 Subtitle Disc-Vorgabe Select the »Disc preferences« menu with » « or » « and activate with 3 Menu language English »OK«, or select directly using »1 ... -
Page 47: Custom Settings
CUSTOM SETTINGS ___________________________________________________________________ Subtitle Select the desired language with » « or » « and activate with »OK«. Danish Norwegian Finnish Note: When the »Off« line is selected, the subtitles are not displayed. Disc default Selecting the language of the DVD menus If a DVD has menus in several languages, you can select the language of your select and choose... -
Page 48: Using External Devices
USING EXTERNAL DEVICES ____________________________ Connecting a digital amplifier The digital multi-channel sound of a DVD can best be decoded and played with a multi-channel audio/video amplifier (Dolby* digital decoder or DTS). OPTICAL DIGITAL DIGITAL AUDIO INPUT INPUT Plug a standard cinch cable or optical cable into one of the »DIGITAL OUT«... -
Page 49: Selecting Audio Signal Types For The Digital Output
USING EXTERNAL DEVICES _____________________________________________________ Adapting the digital output to a digital multi-channel amplifier With this you choose whether the decoder signal is processed in the unit or fed unchanged to the digital output. With internal decoding, there is a stereo signal (PCM) at the digital output. -
Page 50: Setting The Sampling Rate
USING EXTERNAL DEVICES _____________________________________________________ Setting the bit rate Bits Here you choose the possible digital resolution and the dynamic range possible of the output signal in order to adapt the signal to the decoder. Select the » Bits« line with » «... - Page 51 USING EXTERNAL DEVICES _____________________________________________________ Setting the digital output level With this setting, the output level can be adapted to the volume of other external sound sources. Digital 1 Output format Select the »Output level« line with » « or » «...
-
Page 52: Television Remote Control
TELEVISION REMOTE CONTROL ______________________________ You can also operate GRUNDIG televisions with this remote control. The functions available to you depend on the model of the GRUNDIG television. Point the remote control directly at the TV. Note: Point the remote control at the television and keep pressing the » Mode«... - Page 53 TELEVISION REMOTE CONTROL _____________________________________________ Switches from TV operation to video text operation and back. Switches the TV guide on and off again. TV-G In teletext mode: returns to the p revious page. In teletext mode: advances to the n ext page. In teletext mode: switches to the next t heme.
-
Page 54: Video Recorder Remote Control
VIDEO RECORDER REMOTE CONTROL ________________ You can also operate GRUNDIG video recorders with this remote control. The functions available to you depend on which model of the GRUNDIG video recorder you are using. Note: Point the remote control at the video recorder and keep pressing the »... -
Page 55: Information
INFORMATION _____________________________________________________________ Technical data This product fulfils the European directives 89/336/EEC, 73/23/EEC and 93/68/EEC. This device conforms to the safety regulation DIN EN 60065 (VDE 0860) and therefore the international safety regulation IEC 60065. You may not open the DVD player. The manufacturer accepts no liability for damage resulting from improper handling. -
Page 56: General Instructions For Laser Devices
INFORMATION __________________________________________________________________________ General instructions for laser devices Your system is a CLASS 1 LASER PRODUCT. This means that the laser is designed in such a way as to ensure that the maximum permissible emission CLASS 1 value cannot be exceeded under any circumstances. LASER PRODUCT Caution: If operating devices or methods other than those specified here are employed, it... -
Page 57: Rectifying Minor Problems
INFORMATION __________________________________________________________________________ Rectifying minor problems Not every picture or sound problem is caused by a defect in your DVD player. Impairment can also be caused by leads having been accidentally pulled out, damaged DVDs/CDs and worn-out batteries in the remote control. If the following measures do not bring about satisfactory results, consult an aut- horised dealer. - Page 58 Grundig AG Beuthener Str. 41 D-90471 Nürnberg http://www.grundig.com 26710-941.4001 • • •...
