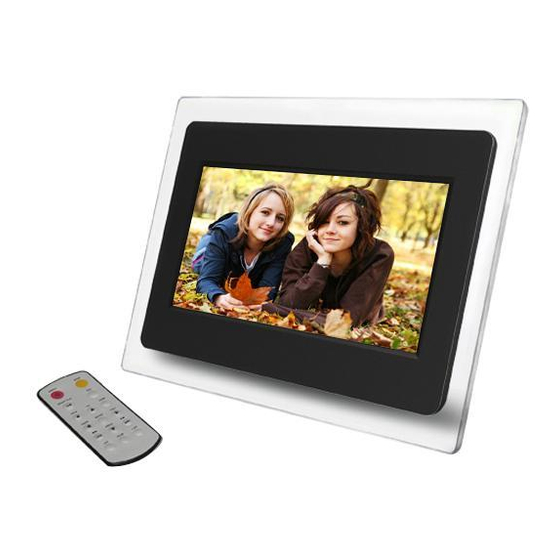

Axion AXN-9905 User Manual

USER MANUAL
DIGITAL PHOTO FRAME
Model: AXN-9905
Please read these instructions before you operate the unit
Manufacturer of this unit follows a principle of constant improvement and is not
held responsible for any changes that are made to the unit nor accepts any
liabilities for these changes. Thanks for your choice of our products.
CAUTION: Only use the AC adapter included with the digital photo frame, Using
any other power adapter will void your frame. Unplug the power cord from the
outlet when the digital photo frame is not in use.
Contents:
* Digital Photo Frame
* AC Adapter
* User Guide
* Remote Control
Specifications:
Audio format: Mp3
Photo format: JPEG
Power source: DC 9V
Power consumption: 8W
Operating temperature: 5~35 C
Dimensions(W*D*H): 280.0 *213.0 *37.8 mm
1
16
2
3 5 7 9 11
4 6 8 10
12
13
14
15 18
17
1
2
3
4
5
6
7
8
9
10
Power supply
Plug one end of the AC adaptor into the DC input jack, then plug the
other end into AC wall outlet.
Phone jack
For private listening, insert a headphone or earphone into the phone
jack.
CAUTION: Listening at high power for a long moment could damage
users' ears.
USB slot
Insert a USB data traveller into the USB port to enjoy the audio files or
pictures. When you need to unplug the USB, please enter the main
menu firstly, then unplug the USB data traveller.
SD/MMC/XD/MS
Insert an SD/MMC/XD/MS card into the card slot to enjoy the audio
files or pictures.
Snooze/Alarm off button
To sleep an extra several minutes when the alarm comes on, lightly

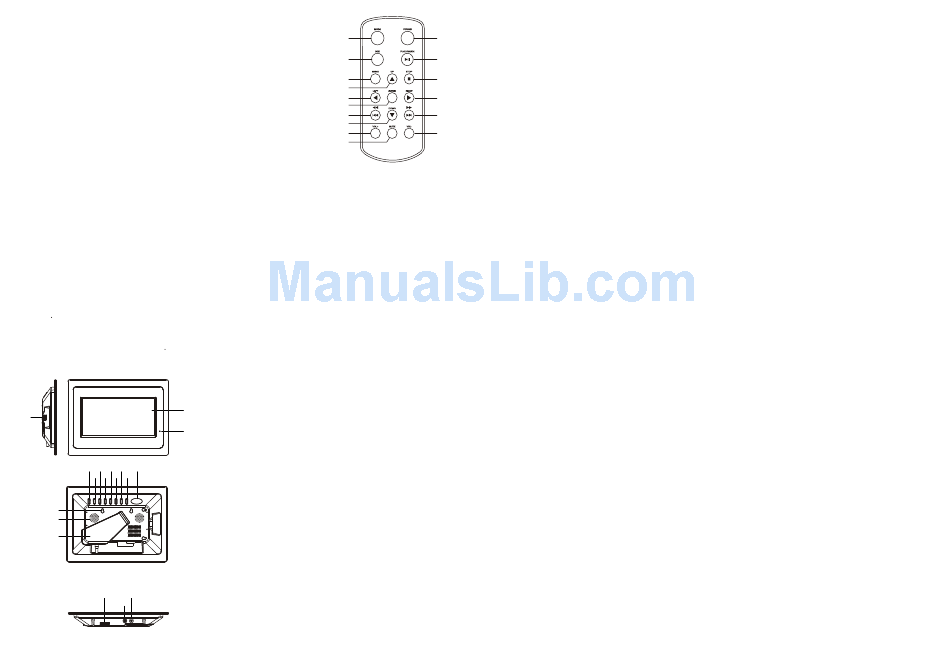

MAIN UNIT
touch the SNOOZE/ALARM OFF button, the alarm will stop for several
1. TFT display(screen)
minutes and comes on again. Press and hold SNOOZE/ALARM OFF
2. Remote sensor
button about 3 seconds in normal mode to disable the alarm function.
3. Power button
(this button works as described above only when the mode option is
set to ALARM enabled.)
4. Play/Enter button
5. Return button
Play/pause button
6. Navigation down
Press PLAY/PAUSE button to pause during playback, press this button
button
again will resume playback.
7. Navigation up button
Basic play
8. Navigation right button
Power on the unit then enter the main menu, the screen shows 8
9. Navigation left button
functions, eg: photo, music, photo + music, setup, calendar, clock,
10. Mode button
alarm and copy/delete .
11. Snooze/Alarm of
Insert a USB data traveller or SD/MMC/XD/MS card first, press
button
NAVIGATION BUTTON to select one of the following functions.
12. Hanging hole
13. Speaker
Press NAVIGATION buttons to select photo option, then press ENTER
14. Bracket
to confirm the selection. After the player read it for several seconds, it
15. SD/MMC/XD/MS slot
begins to browse the picture automatically one by one. When photo in
16. USB port
Auto Play Off mode, it enters Thumbnail mode directly.
During picture playing, press STOP button, thumbnail mode menu
17. DC jack
appears on the screen as below.
18. Phones jack
Thumbnail of each title: select the thumbnail by using NAVIGATION
buttons and press ENTER to play.
REMOTE CONTROL
1. Mode button
11 2. OSD button
3. Menu button
4. Navigation up button
12
5. Navigation left button
6. Enter button
13
7. F.BWD & previous button
8. Navigation down button
14
9. Volume+ button
10. Mute button
15
11. Power button
12. Play/pause button
16
13. Stop button
14. Navigation right button
15. F.FWD & next button
16. Volume- button
Information: Resolution, created date, rotate, and slide show
Rotate: Highlight the rotate option and press ENTER to confirm, then
enter the rotate mode, there are three options appear in the bottom of
the screen including Rotate it, Reset and return. Use NAVIGATION
buttons to select picture you desired to rotate, then press ENTER to
rotate it. Select reset to restore the picture. Select return to back the
thumbnail mode.
Slide show: Select slide show option to slide the picture one by one.
Press NAVIGATION LEFT and NAVIGATION RIGHT buttons to rotate the
picture Clockwise and Anti-clockwise respectively.
buttons on the remote control to skip the picture ahead or backward.
Press NAVIGATION DOWN button to flip the picture vertically.
Press NAVIGATION UP button to flip the picture horizontally.
Press STOP button twice to return the file manager.
Music
Press NAVIGATION buttons to select music, then press ENTER to confirm
the selection, a browse menu appears on the screen. When music is in Auto
Play On mode, the player begins to play the files automatically, use
NAVIGATION UP/DOWN button to highlight desired file, then press
PLAY/PAUSE to play selected file.
Photo+Music
Press NAVIGATION buttons to select photo + music function and press
ENTER to start slide show the pictures and play the music files
synchronously. During picture sliding, to rotate or flip picture by pressing
NAVIGATION buttons.
Calendar
Use NAVIGATION buttons to select CALENDAR function and press ENTER
to confirm, the calendar will be shown on the display. By now you can adjust
the calendar by pressing NAVIGATION BUTTONS. Press STOP button, Use
NAVIGATION LEFT/RIGHT button to adjust year, use NAVIGATION
UP/DOWN button to adjust month, then press STOP button again, use
NAVIGATION LEFT/RIGHT/UP/DOWN button to adjust the day and press
ENTER button to confirm. To exit this function by pressing MENU button.
Clock
Use NAVIGATION buttons to select CLOCK Function and press ENTER to
confirm, then the current time will be shown on the screen in big characters,
and the current date, month, year and week will be shown under the time in
small characters. To exit this function by pressing MENU button.
*Note: The time will not be exactly when remove the power. You need to re-
set the time.
Alarm
Use NAVIGATION buttons to select ALARM function and press ENTER to
confirm. The options of ALARM as follows:
Enable: press NAVIGATION UP/DOWN button to make a selection between
the two options(on/off)
Set time: select this option to set the alarm time after the alarm is enabled.
use NAVIGATION UP/DOWN button to select SET TIME option and press
ENTER to confirm, use NAVIGATION LEFT/RIGHT button to highlight the
time you desired to set, then use NAVIGATION UP/DOWN button to adjust,
press NAVIGATION RIGHT button to confirm and press ENTER To exit the
alarm time set. Buzzer will sound at the pre-set alarm time.
Exit: select exit option to exit alarm setting.
Copy/Delete
Use NAVIGATION buttons to select Copy/delete function and press ENTER
to confirm, select COPY or DELETE to enter the correspond windows to do
the file copy or file delete function.
Copy function: when copy function is selected, all JPEG files in the USB
data traveller or memory card will be displayed in the file manager. use
NAVIGATION UP/DOWN buttons to select the files and press ENTER to
confirm, then the selected file will be highlight in a rectangle frame. when the
selection is finished, use NAVIGATION buttons to select SAVE to save the
selected files into the internal memory of the unit.
Press NEXT & Previous
