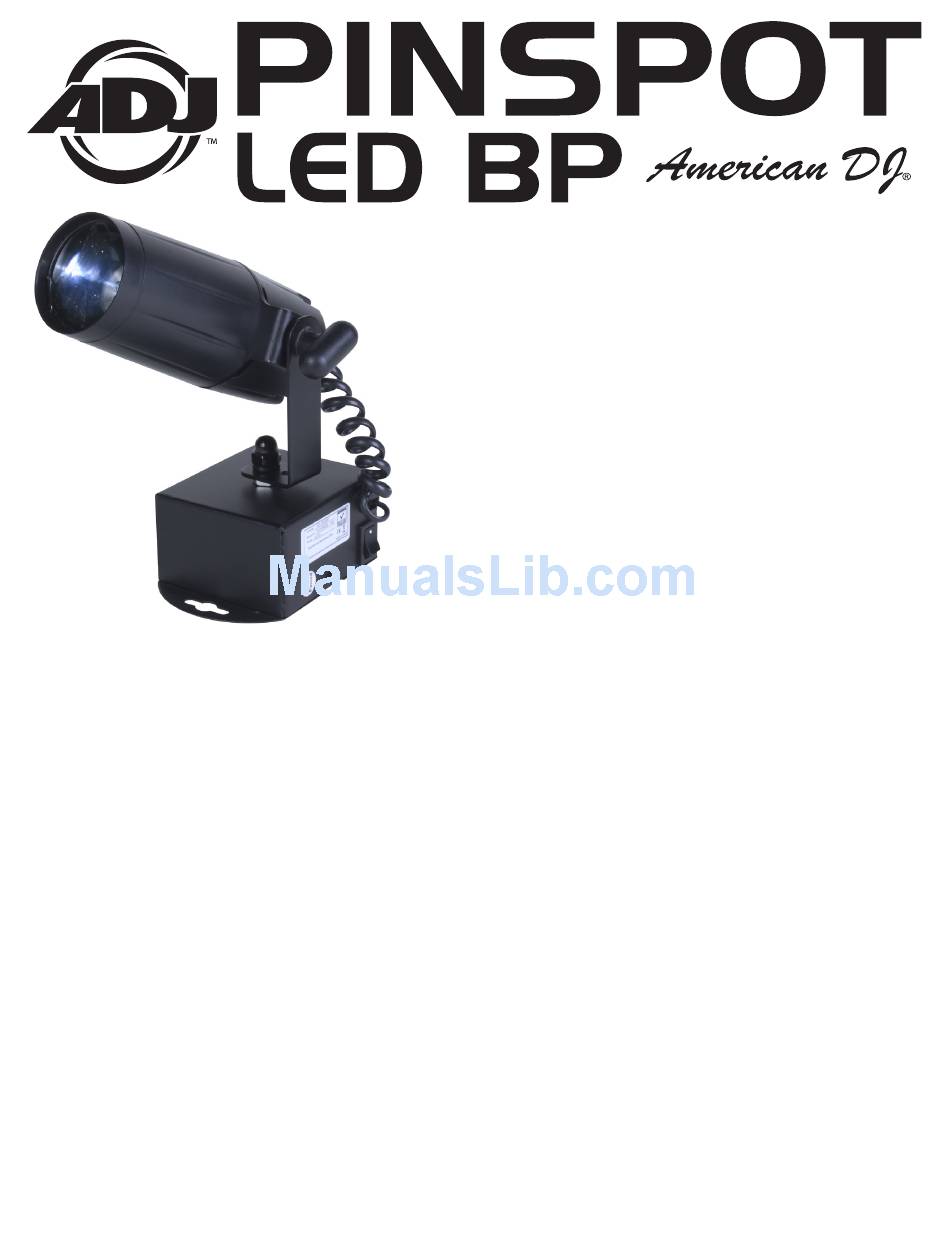

American DJ Pinspot LED BP Specifications

Unpacking: Thank you for purchasing the Pinspot LED BP by American DJ®. Every Pinspot LED BP

has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the

shipping carton for damage that may have occurred during shipping. If the carton appears to be dam-

aged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate

the unit has arrived intact. In the case damage has been found or parts are missing, please contact our

toll free customer support number for further instructions. Do not return this unit to your dealer without

first contacting customer support.

Introduction: The Pinspot LED BP is part of American DJ's continuing pursuit for creating high quality

affordable fixtures. The Pinspot LED BP is a simple, small battery powered Pinspot LED BP. This pin

spot is light weight and compact which makes it a great piece for mobile DJ's, archtectural lighting,

or ligting effect.

Battery Replacement: To replace the batteries, remove the screws from the bottom panel underneath

the unit. Remove and replace all eight batteries, then screw in the bottom panel.

Lens Change: The Pinspot LED BP comes with a standard 12 degree lens already attached. Included

in the box is an optional 6 degree lens. To switch lenses simply remove the retainer ring in front of the

current lens, carefully remove the lens, and attach the 6 degree lens. Replace the retainer ring and the

switch is complete.

Pinspot LED BP SPECIFICATIONS:

LED:

Working Position:

Power:

Power Consumption:

Weight:

Dimensions:

Warranty:

Any safe working position

8 x AA (Regular or

Rechargable)

4.5W

1.3lbs./ 0.6Kgs.

5.9"(L) x 4.8"(W) x 5.8"(H)

150 x 122 x 149mm

3 Year (1095 days)
