American DJ Quad Scan LED User Instructions

User Instructions
2/12
Quad Scan LED
Unpacking:
Thank you for purchasing the Quad Scan LED by Ameri-
can DJ . Every Quad Scan LED has been thoroughly tested and has
®
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all equipment necessary to operate the unit has
arrived intact. In the event damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Please do not return this unit to your dealer without con-
tacting customer support first.
Introduction:

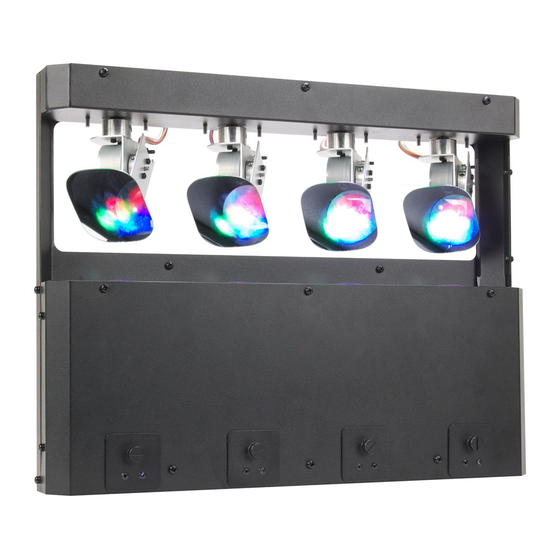

The Quad Scan LED is a DMX intelligent, RGB Tri LED
scanner. The Quad Scan LED can operate as a stand alone fixture or in
a Master/Slave configuration. The Quad Scan LED has three operating
modes; sound active mode, show mode, and DMX control. For best
results use fog or special effects smoke to enhance the beams projec-
tions.
Customer Support:
American DJ
support line, to provide help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacific Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Warning!
This may cause severe eye damage. Avoid looking directly
into the light source at all times!
American DJ - www.americandj.com - Quad Scan LED Instruction Manual Page 2
®
General Information
provides a toll free customer
®
