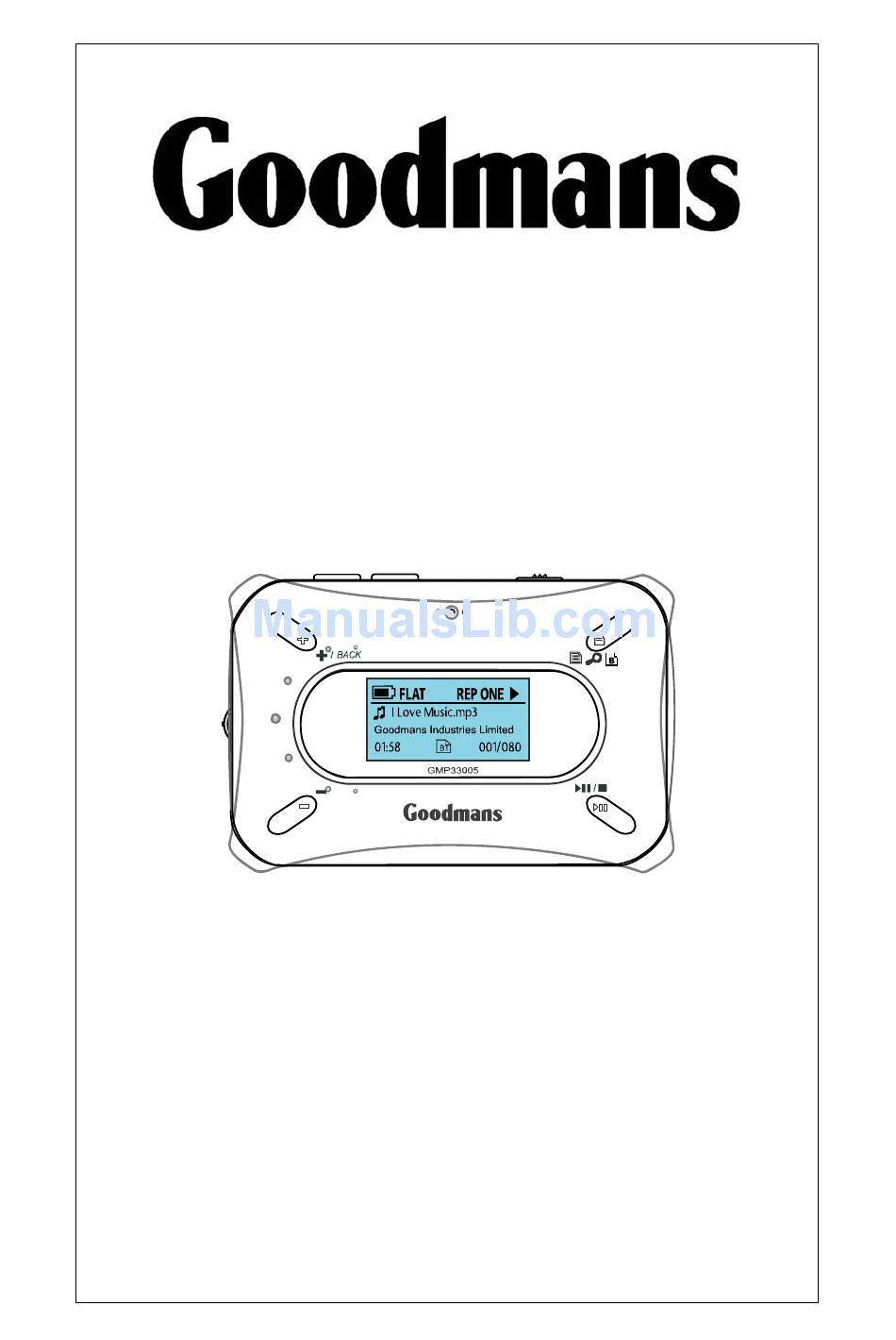

Page 1: Instruction Manual
GMP33005 INSTRUCTION MANUAL Before operating this unit Please read this Instruction Manual carefully www.goodmans.co.uk GOODMANS Product Information Helpline 08708730080... -
Page 2: Introduction
Classic, Rock, Pop and Jazz effects. To transfer purchased tracks (WMA DRM encoded) from most online music download services to the GMP33005 Windows Media Player 10 must be used. Note: this is exclusively available with Windows XP alternatively use the... -
Page 3: Table Of Contents
Troubleshooting Guide & Maintenance……..…..….. 30 Product Specifications………………………………... 32 YOUR PACKAGE INCLUDES THE FOLLOWING COMPONENTS: 1 x Main Unit (GMP33005, 3GB Digital MP3/WMA Player) 1 x Pair of Earphones 1 x USB Cable 1 x Carrying Pouch 1 x AC Adapter (230 Volts to DC 5 Volts) 1 x Instruction Manual 1 x Driver Installation CD (with music management software –... -
Page 4: System Requirements
System Requirements HARDWARE AND SOFTWARE REQUIREMENTS Computer IBM PC/AT-Compatible (not operable with Macintosh) Operating System Microsoft® Windows® 98SE/ME/2000 Professional/ XP Home Edition standard install Windows® XP Professional/XP Home Edition Pentium® II 300 MHz or higher Windows ® Millennium Edition, 2000 Professional, Windows®... -
Page 5: Precautions & Safety Notes
Precaution & Safety Notes CAUTIONS ! SAFETY NOTES Power Sources Be sure that the local voltage is corresponding with the supplied AC Power Adapter before using this product. If the AC Power Supply exceeds the limit it may cause malfunction or permanent damage to this unit. Battery The unit has a non-removable battery. -
Page 6: General Information
AUDIO DATA Backup data stored on this product periodically in case of loss or malfunction. Goodmans cannot be held liable for any damages or loss of data resulting from defects in this product or your computer. NOTE: In the unlikely event that there is some problem like loss of recorded audio... -
Page 7: Overview Of General Controls
Overview of General Controls FRONT VIEW 1) Volume + (Up) / BACK 2) Volume- (Down) 3) Inbuilt Microphone 4) Menu/Search/Bookmark 5) LCD Display 6) Play/Pause/Stop TOP VIEW 1) REC 2) Power On/Off 3) HOLD switch 4) Reset hole BOTTOM VIEW 1) DC socket 2) USB socket LEFT SIDE VIEW... -
Page 8: Power Source
Power Source The GMP33005 has a non-removable battery. It can be charged with the supplied AC Adapter. CHARGING THE UNIT First time usage Charge the inbuilt rechargeable battery at least 3 hours before using the player the first time. 1. Connect the supplied AC adaptor to the 5V DC-In socket on the unit. -
Page 9: Pc Connection
PC Connection CONNECTING THE UNIT TO THE PC 1. Connect the unit to a PC with the supplied USB connection cable, by inserting the smaller plug to the unit and the larger plug to the USB port of the computer. Plug-and-Play feature of the PC OS will automatically detect the device. - Page 10 PC Connection (contd.) DISCONNECTING THE UNIT FROM THE PC The GMP33005 can be used in the same way as a normal hard drive and MP3 and WMA files can be dragged into the drive to add them to the player memory.
-
Page 11: Software Installation
Software Installation The installation CD that comes with the GMP33005 contains the necessary drivers required to enable the player to connect to a computer running Windows 98SE and the music management software powered by enables you to transfer or organize music files from your computer to the player. - Page 12 Software Installation (contd.) Installing on your PC 1. Click “Install Mi MUSIC” to run the music management software. 2. The installation may take few minutes to run the program, a shortcut icon will appear on the computer desktop after the installation is completed. MiMUSIC - 11 -...
- Page 13 Software Installation (contd.) Windows 98SE Driver (for Windows 98SE users only) To use the GMP33005 on a PC running Windows 98SE please install a driver for the product. Click “Install USB Driver” after connecting the unit to the PC via the USB cable supplied.
- Page 14 Software Installation (contd.) MANAGING AUDIO DATA USING MiMUSIC 1. Connect the player to the PC via the USB cable supplied. 2. Double click MiMusic shortcut icon on your computer desktop. screen appears. 3. The - music management software enables you to manage or edit the music tracks from the PC to the player.
- Page 15 Software Installation (contd.) TRANSFEERING TRACKS TO PLAYER 1. Click the “Add Songs to Editor” or “ Add Folders to Editor” icon, you browse and add the audio data from your computer directory to the editing screen 2. Click the “Update” icon on the right side of display to copy selected files and playlists to the player.
- Page 16 Select the music files to transfer to the player from the menu bar. Drag and drop the selected items to the right column. Select Sync from the menu bar and select to the player as “GMP33005” Select Start Sync, the selected item will be synchronized to the player automatically.
- Page 17 Software Installation (contd.) - 16 -...
-
Page 18: Getting Started
Getting Started DISPLAY ICONS DURING MUSIC PLAYBACK 1) EQ MODE 5 preset EQ: Flat, Classic, Rock, Pop, Jazz 2) BATTERY INDICATOR 3) TRACK TITLE 4) ARTIST NAME / ALBUM NAME / GENTRE TYPE The information provided in the playback screen depends on the ID3 tags that have been set up for the song. - Page 19 Getting Started (contd.) SWITCHING THE POWER ON To switch the player ON first ensure the HOLD switch is in the Off (pushed fully towards the left) position then press and hold the POWER button for more than 2 seconds. The start-up screen logo appears and the hard disk starts to load information. The first music track will appear together with track and file information ready for playback, if no files have been loaded onto the player “No Music Files“...
- Page 20 Getting Started (contd.) MUSIC PLAYBACK OPERATIONS Basic Operations Controls to Press Playback start and pause Press Interrupt playback Press or JOG_Enter button Stop playback Press or JOG_Enter button for more than 2 seconds Go to the next track Press the (JOG_Down) button Go to the previous track Press the...
- Page 21 Getting Started (contd.) USING PLAYLISTS (select music tracks from Playlist) You can create a playlist as ‘My Playlist’ on the player using the supplied music management software. 1. Press MENU/SEARCH/BOOKMARK button ONCE, the SEARCH display appears. 2. Use JOG Up/Down control ( ) to scroll up and down the search mode, push JOG_ENTER to enter the ‘...
- Page 22 Getting Started (contd.) USING BOOKMARKS Two types of playlists can be created, in addition to the playlists created by the supplied music management software, you can tag your favourite tracks in Bookmark type (Bookmark 1 to Bookmark 5) using the player. Please note when using playlists or bookmark playback the player automatically selects a repeat mode to allow continuous playback of the selected playlist or bookmark list.
- Page 23 Getting Started (contd.) VOICE RECORDING Voice or music data can be recorded through the inbuilt microphone in WAV format. TO START RECORDING 1. Power ON the unit. 2. Hold down the REC button for 2 seconds. 3. Recording starts. TO INTERRUPT RECORDING Press the REC button for 1 second.
- Page 24 Getting Started (contd.) TO PLAY A RECORDED VOICE FILE 1. Press MENU/SEARCH/BOOKMARK button ONCE, the SEARCH display appears. 2. Use JOG Up/Down control ( ) to scroll up and down the search mode, push JOG_ENTER to enter the ‘REC PLAYBACK’. The list of recorded voice files appears.
-
Page 25: Customized Settings
Customized Settings Customized Settings ADVANCED SETTINGS AND FUNCTIONS To change the default settings of Equalizer, Play mode and etc. In the MAIN MENU the following functions can be accessed the bottom 7 functions are contained within the settings submenu. Menu Item Functions EQ mode (Equalizer) Adjust preset sound effect settings... - Page 26 Customized Settings (contd.) EQ MODE (EQUALIZER) The unit has FIVE preset equalizer effects: FLAT*, CLASSIC, ROCK, POP and JAZZ. Select an effect according to a music genre or personal preference. NOTE: (*) indicates the default setting. 1. Press MENU button TWICE to access the MAIN MENU display.
- Page 27 Customized Settings (contd.) BACKLIGHT 1. Press MENU button TWICE to access the MAIN MENU display. 2. Use JOG Up/Down control ( ) to browse the MAIN MENU and select SETTINGS, press JOG_ENTER button. 3. Use the JOG Up/Down control ( ) to scroll the SETTINGS submenus.
- Page 28 Customized Settings (contd.) RECORD QUALITY SETTINGS 1. Press MENU button TWICE to access the MAIN MENU display. 2. Use JOG Up/Down control ( ) to browse the MAIN MENU and select SETTINGS, press JOG_ENTER button. 3. Use the JOG Up/Down control ( ) to scroll the SETTINGS submenus.
- Page 29 Customized Settings (contd.) USB MODE (for PC connections) DRM (MTP): Windows Media Transport Protocol (MTP) The DRM (MTP) mode must be selected for DRM10 encrypted music files transferring through Windows Media Player 10 (only available for Windows XP) Mass Storage mode is for transferring any files using Mass Storage: Windows 98SE, Windows ME, Windows 2000 (Default setting)
- Page 30 Customized Settings (contd.) VERSION (FIRMWARE VERSION) 1. Press MENU button TWICE to access the MAIN MENU display. 2. Use JOG Up/Down control ( ) to browse the MAIN MENU and select SETTINGS, press JOG_ENTER button. 3. Use the JOG Up/Down control ( ) to scroll the SETTINGS options.
-
Page 31: Troubleshooting Guide & Maintenance
Troubleshooting Guide & Maintenance TROUBLESHOOTING GUIDE Many potential problems can be resolved without calling a service technician. If something seems to be wrong with this product, check the following before calling us. The player cannot be switched on Check if the AC adapter is disconnected. Check if the inbuilt battery is exhausted. - Page 32 Troubleshooting Guide & Maintenance (contd.) MAINTENANCE MOISTURE CONDENSATION If condensation forms inside the unit the unit may not function properly. In the following cases, condensation may form inside the unit. Shortly after turning on a heater. When the unit is placed in a room where there is excessive steam or moisture. When the unit is moved from a cool place to a warm place.
-
Page 33: Product Specifications
Product Specifications As a part of our policy of continuous improvement. Goodmans reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values. There may be some deviations from these values in individual units.
