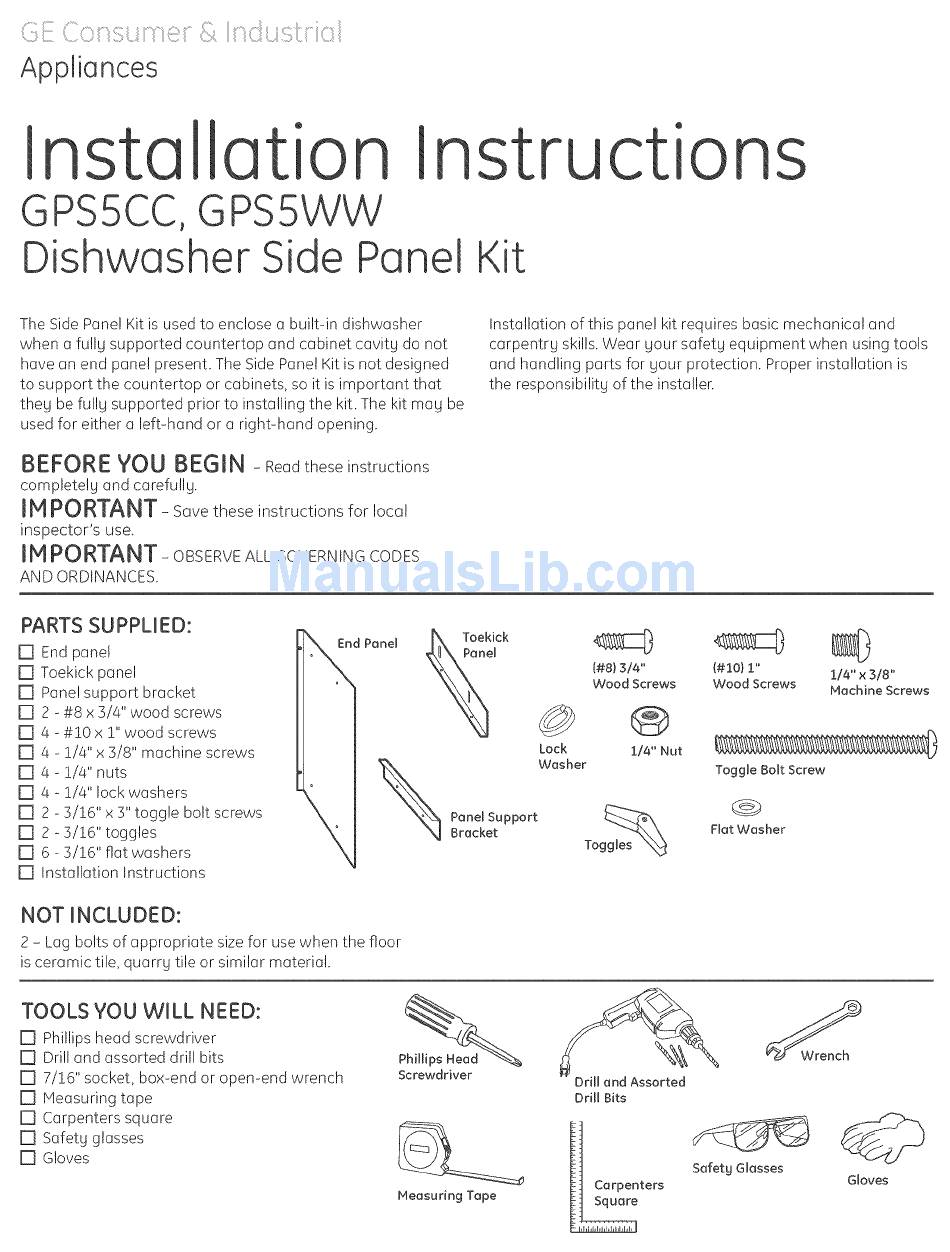

GE GPS5CC Installation Instructions

(iiiiii iii!!{{{{{{i C On s u _iiv_i e _ir { iii:i;;,i iii _ii ¸'_i (i:;ii u :!!{{; _il _i! ii(i1 ii
Appliances
Installation
Instructions
GPS5CC,GPS
sher Side Panel Kit
The Side Panel Kit is used to enclose a built-in dishwasher
when a fully supported countertop and cabinet cavity do not
have an end panel present. The Side Panel Kit is not designed
to support the countertop or cabinets, so it is important that
they be fully supported prior to installing the kit. The kit may be
used for either a left-hand or a right-hand opening.
BEFORE YOU BEGIN - Read these instructions
completely and carefully.
I M PO RTANT-
Save these instructions for local
inspector's use.
IH PO RTANT- OBSERVE ALL GOVERNING CODES
AND ORDINANCES.
Installation of this panel kit requires basic mechanical and
carpentry skills. Wear your safety equipment when using tools
and handling parts for your protection. Proper installation is
the responsibility of the installer.
PARTS SUPPLIED:
Fq End panel
[] Toekick panel
D Panel support bracket
[] 2 - #8 x 3/4" wood screws
[] 4 - #10 x 1" wood screws
E] 4 - 1/4" x 3/8" machine screws
[] 4 - 1/4" nuts
[] 4 - 1/4" lock washers
D 2 - 3/16" x 3" toggle bolt screws
[] 2 - 3/16" toggles
[] 6 - 3/16" flat washers
D Insta!lation Instructions
Panel
Toekick
Panel
@
Lack
Washer
Panel Support
Bracket
!#BIS/4"
Wood Screws
@
1/4" Nut
(#1O) 1" 1/4" x 3/8"
Wood Screws Machine Screws
Toggle Bait Screw
@
Flat Washer
NOT INCLUDED:
2 - Lag bolts of appropriate size for use when the floor
is ceramic tile, quarry tile or similar material.
TOOLS YOU WILL NEED:
E] Phillips head screwdriver
[] Drill and assorted drill bits
[_ 7/16" socket, box-end or open-end wrench
[Z] Heasuring tape
[] Carpenters square
El] Safety glasses
D Gloves
Screwdriver
Measuring Tape
Drill and Assorted
Drill Bits
Carpenters
Safetg Glasses
Gloves
