4 output power distribution module

Advertisement

Quick Links

R
333 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs, (800) 645-9445
For Technical Service, (800) 645-9440
© NAPCO 2005
DESCRIPTION

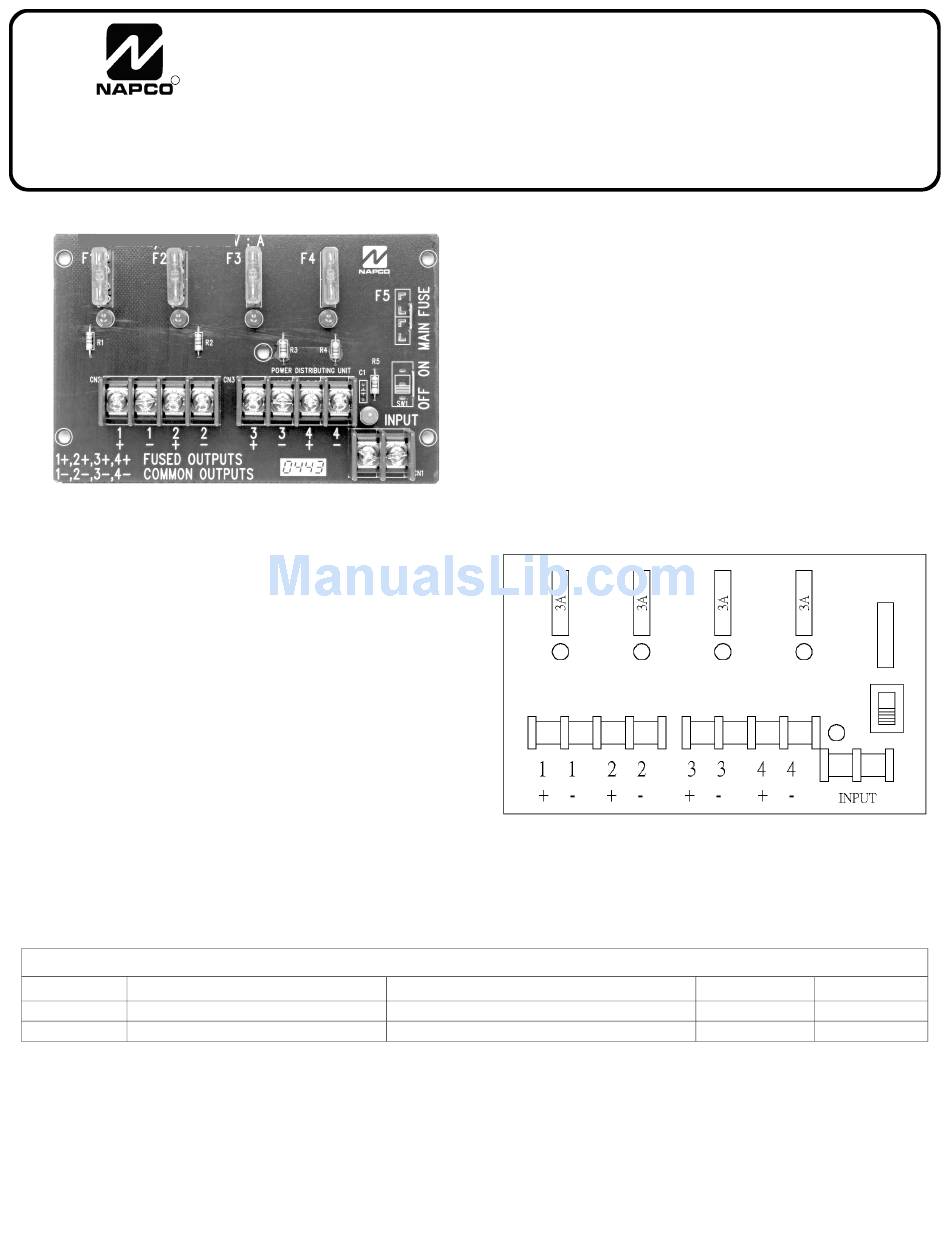

A Power Distribution Module, the NP-DMOD-4OUT
easily converts a single AC or DC output power supply
into four (4) individually fused outputs.
FEATURES
• Surge protected outputs.
• Conveniently converts a single AC or DC input into
four (4) individually fused outputs (fuses are rated @
3 Amps fuses may be used).
• Handles up to 28VAC/VDC.
• Power output LED indicator.
• Board dimensions: 131.83mm(H) x 85.34mm(W) x
28mm(D)
Item
1
Instruction Sheet
2
Double Stick Foam Tape
POWER DISTRIBUTION MODULE
Description
NP-DMOD-4OUT
4 OUTPUT

INSTALLATION INSTRUCTIONS

1
. Mount the NP-DMOD-4OUT in desired location/
enclosure.
2. Connect the desired power supply output to termi-
nals marked [INPUT].
Note: If using DC voltage, left terminal is NEG. (-)
and right terminal is POS. (+).
3. Connect each device to terminal pairs 1 to 4, marked
[1+ 1- thru 4+ 4-].
Note: It is important to measure output voltage be-
fore connecting devices. This helps avoid potential
damage.
All terminals with common suffix P 1+, 2+..." are
same polarity.
4. Fuses rated at 3 Amps.
APPENDIX LIST
Dimension
A4
60*20*7mm
WI1337A 12/05
Volume
Memo
1
